Bevel Gear 191677C1 for Case-IH Combine Separator

Upgrade your Case-IH combine separator with Raydafon Group's Bevel Gear 191677C1, a precision-engineered component crafted from durable materials for smooth, reliable operation. Designed for farmers and agricultural professionals, it ensures enhanced performance in harvesting, reducing downtime and boosting efficiency. Its unique design offers superior durability compared to standard gears, providing peace of mind during critical seasons. Choose Raydafon Group for peak machinery performance—order today and keep your equipment running seamlessly.

Send Inquiry

Product Description

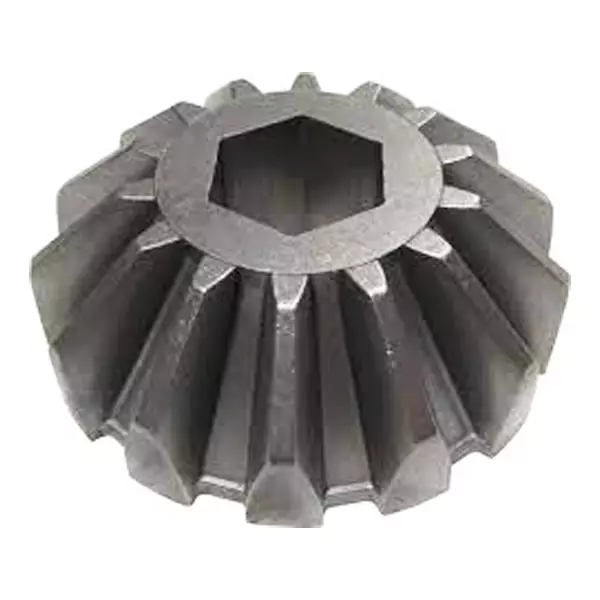

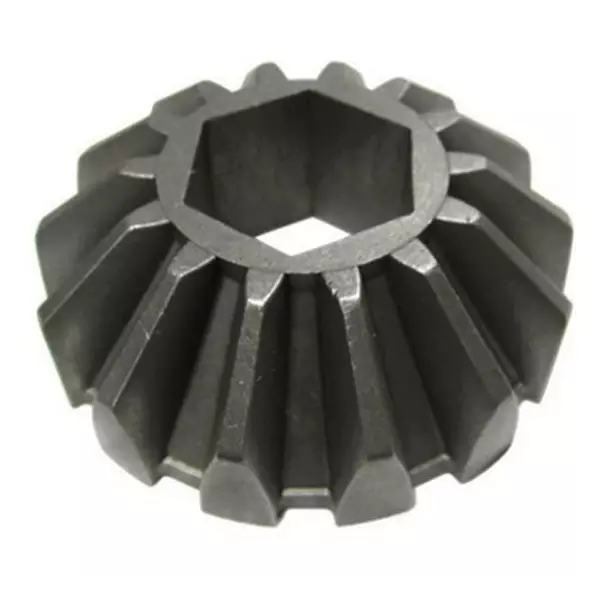

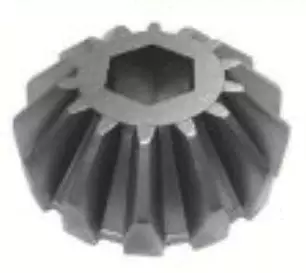

Bevel Gear 191677C1 for Case-IH Combine Separator

▍Bevel Gear Fits the following makes and models:

Fits Case-IH Combine Models: 1420, 1440, 1460, 1470, 1480, 1482, 1620, 1640, 1644, 1660, 1666, 1670, 1680, 1682, 1688, 2144, 2166, 2188, 2344, 2366, 2388 Specifications: Used on shaker shaft and auger drive & models with extended length cleaning system 1.13" Hex ID 14 Tooth Weight - 1.13 lbs Replaces Part Numbers: 191677C1, 188410C1, 185411C1, 1300639C1, 87375654, CV100180

▍Related Gears and services

◆Gear Gears are rotating mechanisms that use "teeth" to transmit torque between individual shafts. Two or more mutually matched gears are called gearboxes, which can produce mechanical advantages by changing speed, torque, or direction of rotation. ◆Helical gear Helical gears are cylindrical gears whose teeth are not parallel to the rotating shaft. The teeth are angled and appear as a segment of a spiral. Helical gears transmit power between parallel or right-angle shafts. ◆Hypoid gear Hypoid gear is a kind of spiral bevel gear. Its main change is that the axes of meshing gears do not intersect. Hypoid gears are offset from the gear center, allowing for unique configurations and large diameter shafts. The teeth on hypoid gears are helical, and the pitch surface is best described as hyperboloid. Hypoid gear can be regarded as the intersection between bevel gear and worm drive. ◆Metric gear Metric gears are defined by modules that specify the center distance between successive teeth. This gear selection standard is used in metric countries to standardize gear selection. ◆Rack and pinion The rack and pinion are used to convert rotation to linear motion. ◆Spur gear Spur gears are the simplest gear type. The teeth transmit power between parallel shafts and protrude radially on the disc. ◆Worm and worm gear Worm and worm gear is a kind of gear set, which can provide high gear reduction and torque multiplication with a small floor area. Worm gearing is a cylindrical gear with shallow helical threads that mesh with the worm gear in a nonintersecting, vertical shaft configuration.


194194C1/87375653	191677C1	186517C1
Weight: 0.53kg	Weight: 0.48kg	Weight: 2.52kg
For Case-IH Combine straw Chopper Parts	For Case-IH Combine Separator	For Case-IH Combine Auger Related Parts

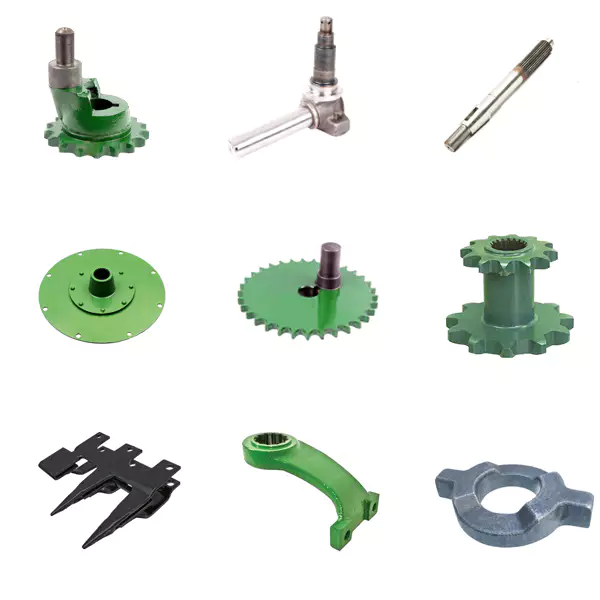

▍Parts by equipment type

We can supply the following repair replacement parts for John Deere agricultural machinery equipment and accept customization Our products are widely applicable for that tractors and engines such as Massey Ferguson, John Deere, UTB, Fiat, Ford, New Holland, Perkins, Deutz, and so on. Our products have covered more than 6000 kinds of parts. Bevel Gear 191677C1 for Case-IH Combine Separator

▍Related Products

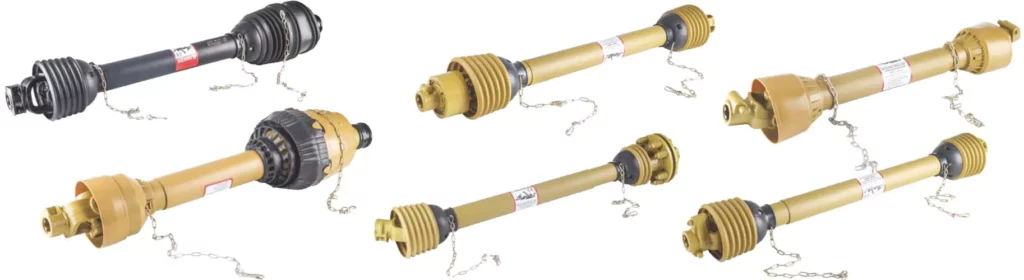

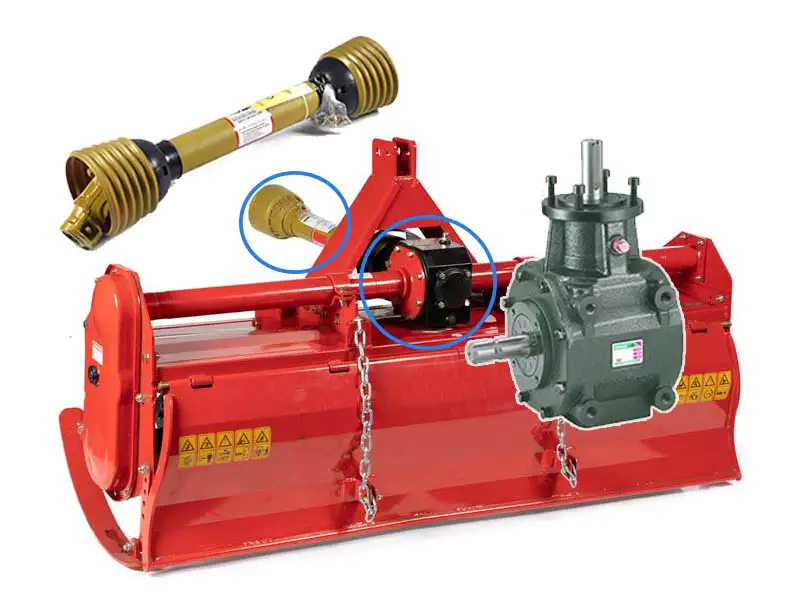

▍We Also Supply PTO Shafts & Agricultural Gearboxes

If you also need the PTO shafts, click here：https://hzpt.com/agricultural-pto-shaft/ Bevel Gear 191677C1 for Case-IH Combine Separator

We Also Supply Agricultural Gearboxes Bevel Gear 191677C1 for Case-IH Combine Separator

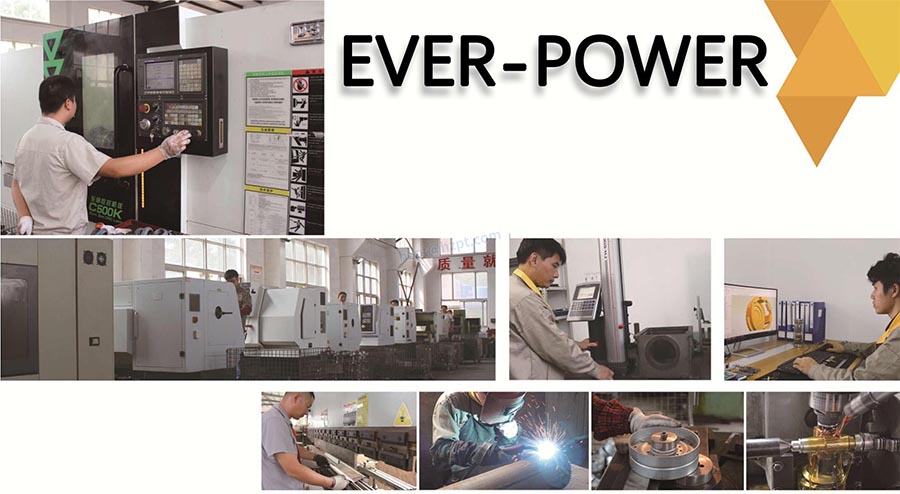

▍Company Information

Raydafon specializes in the production of various precision small module gears, internal gears, spur gears, helical gears, gearbox gears, non-standard sprockets, large gears, large ring gears, large transmission shafts, and synchronous belt wheels, and can process and customize them according to the drawings, samples, and dimensions provided by customers. Our company has a variety of large and medium-sized processing equipment, which can process all sprockets and gears with a pitch of 6.35mm ~ 300mm, roller diameter of 3.3mm ~ 150mm, modulus of 1mm ~ 14mm, number of teeth of 6 ~ 500 and outer diameter of 20mm ~ 2200mm. The company has advanced production equipment and first-class technical personnel, with strong economic strength and supporting strength of manufacturers. Our company tenet: is "survive by quality, develop by reputation", and is willing to cooperate with customers at home and abroad to create brilliance!
