BTB140 Electric Bike Controller Big Screen Display Wireless Button

BTB140 Electric Bike Screen Display Wireless Button

The BTB140 Electric Bike Wireless Button combines wireless control, solar charging, extended battery life, automatic connectivity, sleep mode, and app data synchronization to provide a cutting-edge solution for electric bicycle riders. These features enhance convenience, sustainability, battery efficiency, and connectivity, ultimately improving the overall riding experience.

Features of BTB140 Electric Bike Wireless Button:

1. Wireless Control: The BTB140 utilizes wireless technology, such as Bluetooth or RF (Radio Frequency), to establish a seamless connection between the button and the electric bike's control unit. This wireless control allows riders to effortlessly operate various bike functions, such as power on/off, assist level adjustment, light activation, and more, with a simple press of the button.2. Solar Charge: The BTB140 button features a solar panel that harnesses sunlight to charge its internal battery. This solar charging capability reduces the reliance on external power sources and promotes energy efficiency and sustainability. Riders can enjoy the convenience of the button without worrying about frequent recharging or battery replacement.3. Permanent Use without Charging: With its solar charging capability, the BTB140 button offers extended battery life. In many cases, the button can operate for extended periods without the need for recharging, providing riders with continuous use and reducing the need for frequent charging.4. Auto Connect When Near the Motor: The BTB140 button is designed to automatically connect to the electric bike's control unit when in proximity. This auto-connect feature ensures a seamless and instant connection between the button and the bike's system, eliminating the need for manual pairing or setup each time the rider starts their ride.5. Automatic Sleep & Press to Wake Up: The BTB140 button includes an automatic sleep mode to conserve battery power when not in use. When the button is inactive for a certain period, it enters sleep mode. Riders can wake up the button by simply pressing it, instantly activating the device for immediate use. This feature enhances battery efficiency and ensures that the button is ready for use whenever needed.6. App Data Synchronization in Real Time: The BTB140 button offers the capability to synchronize data with compatible mobile applications in real time. Through wireless connectivity, riders can integrate the button with a smartphone app, enabling features such as GPS navigation, ride tracking, fitness monitoring, and customization options. This real-time data synchronization enhances the riding experience and provides valuable insights for users.

BTB140 Electric Bike Wireless Button Specification

Specification	BTB140
Rated Voltage (V)	3V
Battery Capacity (mah)	20
Charge Time	20000lx: 8h
Support Level	0-5
Communicate Mode	Wireless Low Energy
Wireless Version	Wireless 5.1
Automatic Sleep Time (s)	60s
Working Temperature (℃)	-20℃ ~ 65℃
Waterproof	IP67
Solar Panel Size (mm)	14mm×14mm
Width (mm)	17mm
Holder Diameter (mm)	Φ22mm ~ Φ24mm
Weight (g)	14g

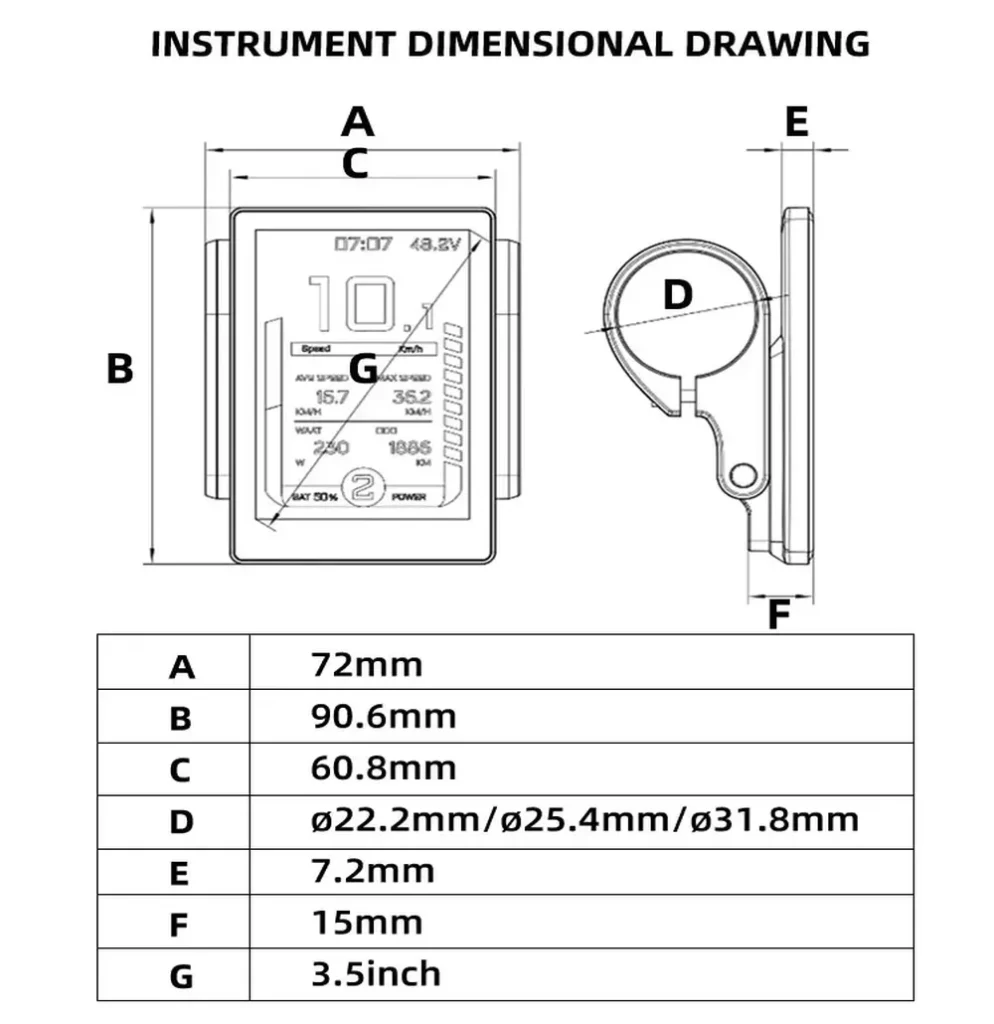

BTB140 Electric Bike Wireless Button Instrument Dimension

BTB140 Electric Bike Wireless Button Functions

The BTB140 Electric Bike Wireless Button offers a range of functions that enhance the convenience, control, and safety of electric bicycle riders. Here are some of the key functions provided by the BTB140:(1) Power On/Off: The BTB140 button allows riders to easily turn the power on or off for their electric bikes with a simple press. This function provides quick control over the bike's motor and enables riders to conserve battery power when the bike is not in use.(2) Assist Level Adjustment: Riders can adjust the level of motor assistance provided by their electric bikes using the BTB140 button. This function allows users to select different assist levels, such as low, medium, or high, depending on their desired level of support or the terrain they are riding on.(3) Light Activation: The BTB140 button enables riders to activate or deactivate the lights on their electric bikes. This function is particularly useful for enhancing visibility and safety during low-light conditions or nighttime riding.(4) Mode Selection: Many electric bikes offer different riding modes, such as eco mode, sport mode, or turbo mode. The BTB140 button allows riders to switch between these modes, which can adjust the bike's power output, responsiveness, and overall performance to suit different riding preferences or terrain conditions.(5) Horn or Bell Activation: The button may include a horn or bell function, providing riders with an audible signal to alert pedestrians, cyclists, or other vehicles of their presence. This function enhances safety by allowing riders to communicate and signal their intentions while riding.(6) Battery Level Indication: The BTB140 button often includes a battery level indicator, displaying the remaining charge of the button's internal battery. This function allows riders to monitor the battery status and plan for recharging when necessary, ensuring uninterrupted use of the button.(7) Mobile App Integration: The BTB140 button can be integrated with compatible mobile applications, providing additional functionality and features. Riders can connect their electric bike's button to a smartphone app via Bluetooth and access features such as GPS navigation, ride tracking, fitness monitoring, and customization options.(8) Auto Connect: The BTB140 button is designed to automatically connect to the electric bike's control unit when in proximity. This auto-connect feature ensures a seamless connection between the button and the bike's system, eliminating the need for manual pairing or setup.(9) Sleep Mode and Wake-Up: The button includes an automatic sleep mode to conserve battery power when not in use. It enters sleep mode after a certain period of inactivity and can be easily awakened by pressing the button, instantly activating it for immediate use.

Choose the Right BTB140 Wireless Button for Electric Bike

When choosing the right BTB140 Wireless Button for your electric bike, there are several factors to consider to ensure compatibility and meet your specific needs. Here are some key considerations to help you make an informed decision:1. Compatibility: Ensure that the BTB140 Wireless Button is compatible with your electric bike's control unit. Check the specifications and compatibility information provided by the button manufacturer or consult your electric bike's documentation. Compatibility may depend on factors such as the communication protocol (Bluetooth or RF) used by the button and the compatibility of the control unit with wireless accessories.2. Functionality: Consider the specific functions and features offered by the BTB140 Wireless Button. Determine which functions are important to you based on your riding preferences and requirements. For example, if you frequently ride at night, having a button with light activation function may be crucial. If you prefer different assist levels, ensure the button allows for easy adjustment.3. Design and Mounting Options: Evaluate the design and mounting options of the BTB140 Wireless Button. Consider factors such as the button's size, weight, and ergonomic design. Ensure that it can be easily mounted on your electric bike's handlebar or other convenient locations. A compact and user-friendly design will enhance your overall riding experience.4. Power Source: Determine the power source of the BTB140 Wireless Button. Some buttons may have a built-in rechargeable battery that can be charged via USB, while others may feature solar charging capabilities. Consider your preference for recharging convenience and sustainability when selecting a button with the appropriate power source.5. Connectivity and Integration: Assess whether the BTB140 Wireless Button offers integration with mobile applications or other smart devices. Integration can provide additional features such as GPS navigation, ride tracking, and real-time data synchronization. If these features are important to you, choose a button that supports the desired connectivity options.

Why Choose Raydafon's Electric Bike Wireless Button?

Raydafon Electric Technology Co Ltd. is a leader in the development, manufacturing, and worldwide marketing of high-end electric bicycle parts. Dedicated to producing superior quality products, all our products are CE-certified and protected by independent intellectual property rights. Our Li-ion water bottle battery for electric bicycles is renowned for its reliable quality, exquisite craftsmanship, and stylish design.Our product range includes super-mini wireless motors, super-mini intelligent motors, ALL-IN-ONE rear hub motors, P100/P110 rear hub motors, S100/S110 rear hub motors, ALL-IN-ONE front hub motors, P100/P110 front hub motors, S100/S110 front hub motors, ALL-IN-ONE rear hub motors, water bottle Li-Ion batteries, Wireless buttons, Wireless displays and more. Suitable for all kinds of bikes, our products provide electric power support for bicycles while maximizing bicycles' original appearance and characteristics, making riding more convenient, easy, and environmentally friendly.If you are seeking high-end electrical components for electric bicycles, if you are still worried about traffic jams, or if you would like to contribute to environmental protection, Raydafon sincerely welcomes global distributors to visit and negotiate. We look forward to working with you to jointly promote the development of the electric bicycle industry and contribute to environmental protection.

Professionalism and International Certifications

Raydafon is dedicated to the R&D of high-end electric bicycle parts. All our products are designed and developed in-house and protected by a number of domestic and international intellectual property rights. We have introduced professional production and testing equipment, established a complete quality management system, and all our products are CE-certified.

Customized Services

We offer customized design services. Our team of designers can make custom designs according to your requirements. Whether you want a specific color, shape, or size, we can make it happen.

Production Facilities

Our state-of-the-art production facilities enable us to produce high-quality products. We have advanced production lines that ensure the efficient production of our products.

After-Sales Services

We understand the importance of after-sales service. That's why we offer a 12-month warranty on our products. We promise to reply to your inquiry within 2 working days. We strive to make high-quality products with competitive prices.[embed]https://www.youtube.com/embedaTq20wxuwho[/embed]

FAQ

Q: Are you a manufacturer?A: Yes. Established in 1993, our company is keeping dedicated to the R&D, manufacturing and worldwide marketing of high-end electric bicycle parts. We provide ODM & OEM services as per your requests. Welcome to our company.Q: Can I get a sample and how long will it take?A: Yes. We'd like to submit a sample for checking at the beginning of our business. Usually it needs take about 2 weeks to produce sample order.Q: What is your MOQ and delivery time?A: Our MOQ is 1 pcs normally. It takes about 30 days to complete an order. The specific delivery time depends on the items and the quantity of your order.Q: How to control the quality of the products?A: We have independent quality inspection department for products quality. The parts are inspected in every production process to prevent bad parts from entering the next process. 100% products are inspected before shipment. Third party detection is welcomed.Q: Do you have customized service?A: Yes, the technical specifications and logo of Motor, and the Raydafon APP both can be customized.Q: What is the warranty period for your products?A: Motor: 2 years. Battery: 1.5 - 2 years. Other Accessories: 1 year.Q: Where is your after-sales service location?A: Germany or China. You can choose a suitable after-sales location according to your convenience.Q: How do I pay for my order?A: We accept your payment through T/T, L/C, D/C, Paypal, Western Union, etc.
