Triangular End Yoke for PTO Shaft

Triangular End Yoke for PTO Shaft

The PTO end yoke is a critical component of your tractor's driveline. It connects the tractor yoke to the driveline shaft. PTO end yokes we produce are available in various sizes and shapes. The type you choose depends on the specifications of your equipment. If you are looking for new PTO end yokes for sale, contact us to find quality and affordable PTO end yokes for sale.

Code for U-Joint

For example 1. One end yoke2. The series of cross kit3. The other end yokeDo you need to replace a worn or broken yoke in your PTO shaft assembly? Raydafon is your fully stocked source for PTO end yokes you can trust with our agricultural equipment. We carry a broad assortment of PTO yokes for the North American, Italian, and German series. Choose from hundreds of parts and multiple spline count options. Our customer service team can assist you with product selection and provide reliable technical support.

Triangular End Yoke Specifications

Model Number	Triangular End Yokes
Function	Power transmission Yoke
Use	PTO shafts
Place of Origin	Zhejiang, China (Mainland)
Brand Name	PRECISE
Yoke Type	push pin/quick release/ball attachment/collar/double push pin/bolt pins/split pins
Processing Of Yoke	Forging
Spline Type	1 3/8" Z6; 1 3/8 Z21 ;1 3/4 Z20;1 1/8 Z6; 1 3/4 Z6; 8*42*48*8; 8*32*38*6

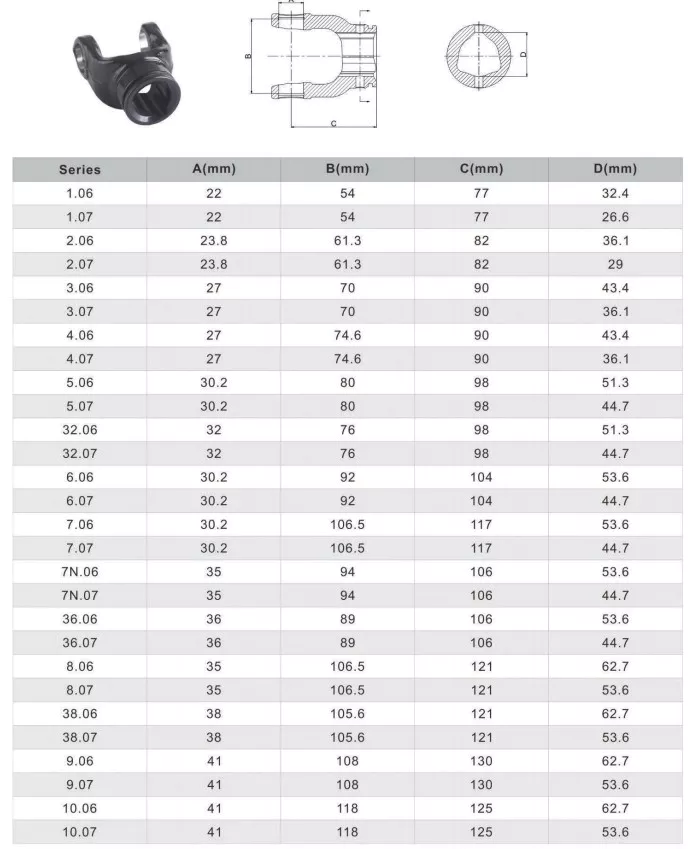

Triangular End Yoke Parameter

Triangular End Yoke Features

For precision and durability, PTO end yokes help minimize noise and vibration to keep your driveline running smoothly. In addition, PTO shaft end yokes are:

• Forged from hardened steel.
• Heat is treated to endure tough conditions.
• Engineered a precise fit.

• Direct replacement - this differential end yoke matches the fit and construction of the original yoke.
• Excellent value - this replacement end yoke offers original equipment quality at a fraction of the price of dealer parts.
• Quality materials - this end yoke is machined from cast iron for strength and is precision machined for reliability.
• Validated fit - this differential end yoke has been tested to confirm an accurate fit.
• Ensure fit - to ensure this part fits your exact vehicle, input your make, model, and trim level into the garage tool.

Types of PTO Yoke

The PTO yokes are available in 4 primary styles.- Plain bore. They are used to fit on machinery with plain (non-splined) shafts with keyways. These PTO yokes are supplied with keyways and grub screws or clamp bolts as required by the design of the PTO yoke.- Quick release. These PTO yokes are fitted with either one or two push-release pins (depending on the size) and are designed to provide splined shafts where the PTO shaft needs to be uncoupled regularly.- Clamp bolt. These PTO yokes are fitted with single or double clamping bolts (depending on the size). They are designed to provide splined shafts where the PTO shaft needs to be held securely in position and is only removed periodically for servicing etc. Commonly fitted to the implement end of a PTO shaft.- Tube yokes. These PTO yokes fit directly onto your PTO shaft's telescopic tube to form the universal joint's inner half. They are supplied with different bore sizes to suit the inner or outer tube section. These PTO yokes are held in position by a heavy-duty roll pin. (Supplied separately)

Tube End Yokes Types

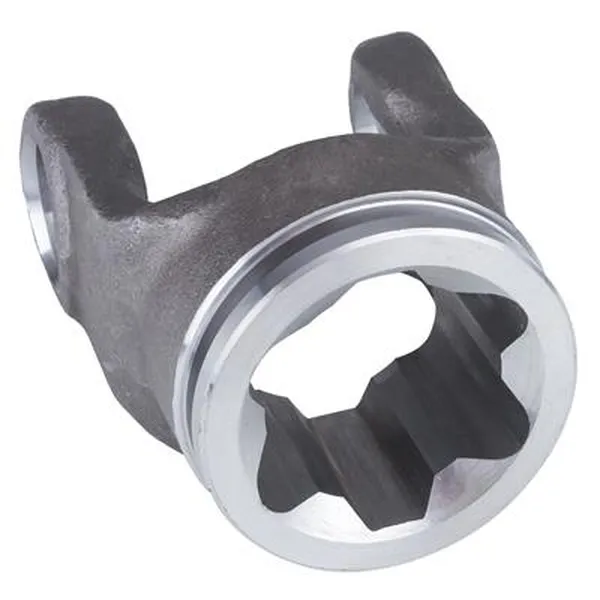

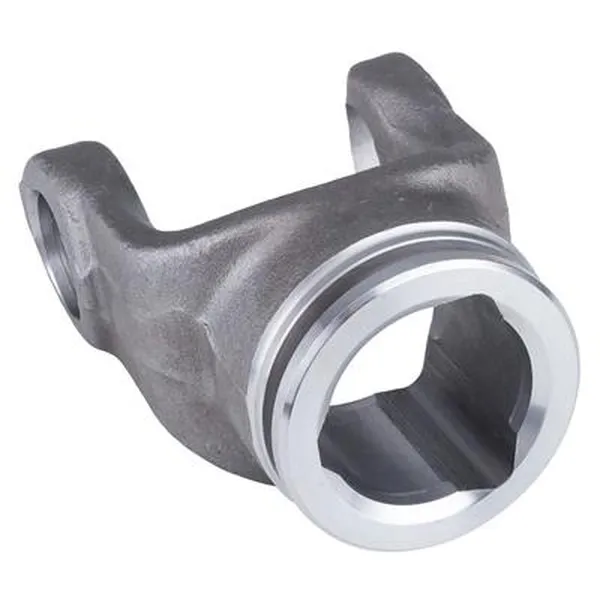

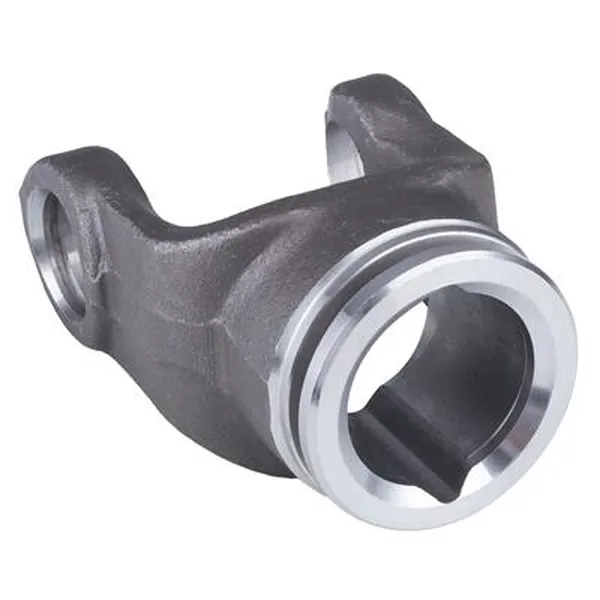

Star End Yoke	Lemon End Yoke	Triangular End Yoke

Part of PTO Shaft

Internal Yoke- There are two yokes at both ends of the PTO shaft -tractor and implement. This is welded to the drive end.Universal Joint- There are two PTO shaft universal joints located at both ends of the PTO shaft.External Yoke- There are two at both ends of the PTO shaft. It has a "Y" shape to connect to the U-joint and a female hole.Safety Chains- The chains secure the PTO shaft onto the equipment and the tractor.Safety Shield- These cones are found on both ends.

1	23		45
Cross	Joint simple		Splined yoke	Tube yoke		Tube

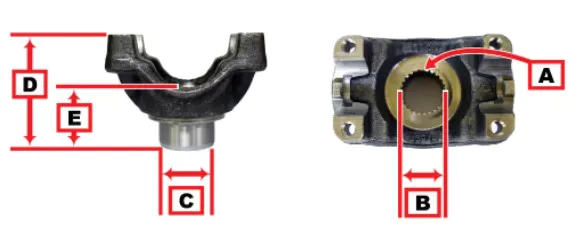

How to Measure an End Yoke

A.) Spline Count

B.) Spline Outside Diameter (from the farthest point to the farthest point)

C.) Hub Outside Diameter

D.) Overall Height

E.) Through Hole

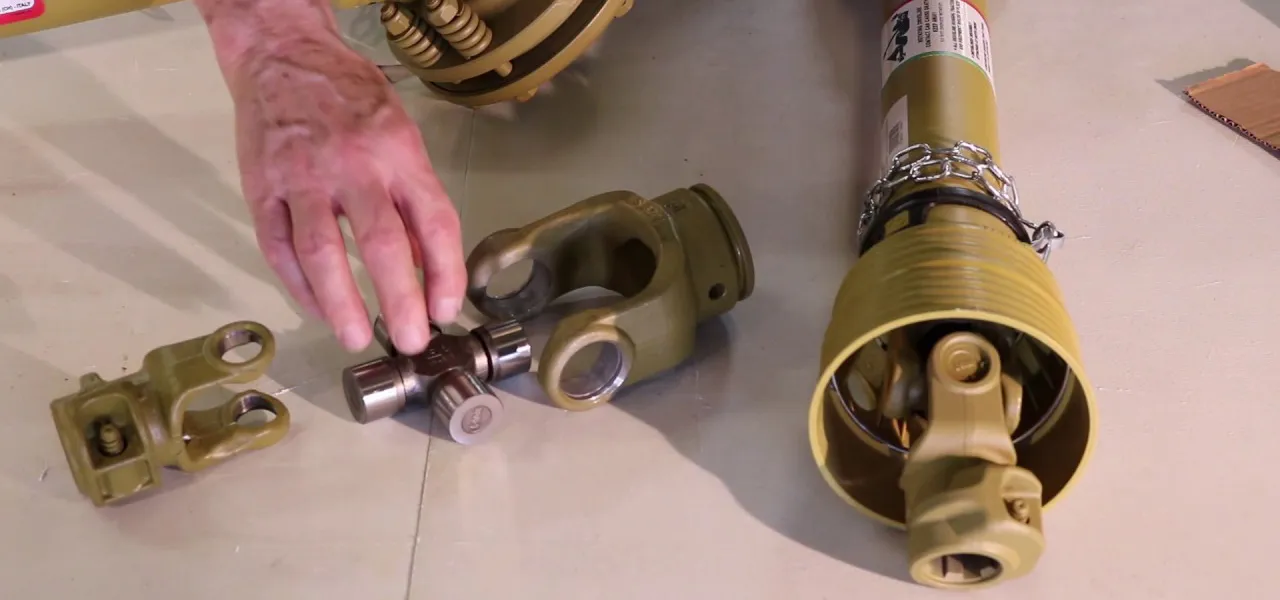

How to Replace Yoke on PTO Shaft?

The needle bearings are in the end caps. Grease the old u- joint, then remove the retaining circling. Place the inboard end of the shaft in a vise with one of the caps in the PTO yoke pointed straight up. Hold the end of the shaft with your left hand and strike the end near the end cap forcing it down and the joint end cap up, be careful don't strike too hard and eject the end cap onto the floor, spilling the needle bearings. I force the cap almost out, then twist it with vise grips for the final remove. Ensure all the bearings are in the end cap, set it aside, and repeat on the other side. Be careful; remember you have one side of the joint flopping around, which could cause damage to the needle bearings. After both end caps are removed, remove the old PTO yoke and replace it with the new, used one. Replace the end caps, and after ensuring, they are on, use the vise to force them in. You will need a small socket to set on the cap between the cap and vise to move the end cap far enough to reinsert the retaining circlip.

Triangular End Yoke Maintenance

Maintenance on these units is straight forward, and like all moving parts, these need their fair share of grease and should be greased regularly as these components work very hard and are subject to all that nature can provide for wear and tear. Good grease is essential here; put grease in until you see the old grease oozing out. Go easy on the "U" joints, so you don't blow the seals. Short bursts of a low-pressured air grease gun or, even better, a hand pump gun will do the job and should be done based on hourly use. At least once a season, the primary and secondary shafts should be separated. All debris and any rust should be cleaned off. Examine thoroughly for any signs of stress and apply a liberal amount of grease. In addition, both the PTO yoke holes need grease inside of them at least once a year, along with the yoke lock pin.

Other PTO Shaft Accessories

PTO End Yoke Manufacturers

From PTO end yokes with a range of sizes of shear pin holes and set screw holes to PTO shaft parts such as replacement pin kits and complete shields, Raydafon has dozens of PTO shaft accessories. We have end yokes for round implement ends, and quick detach connectors. Find end yokes to fit different series of PTO shafts. We have PTO end yokes in more than a hundred sizes and styles. We have end yokes for all equipment for farms or construction sites.Dozens of PTO end yokes at Raydafon means you can find the PTO shaft accessories you need to hook up equipment. Our PTO shaft parts include roll pins to fit various yoke sizes and complete shields with shield bearings for safety. PTO end yokes have features such as quick-release ring styles, shear pin holes, and smooth bores with keyways. Implement end yokes work with different types of equipment, and we have specialized end yokes for typical uses such as post-hole diggers. We have spline yokes with double pins for implementation use. PTO shaft parts for every type of work can be found among our more than 26,000 items for farms, shops, homes, and gardens.Our Advantages:1. We have specialized in designing and manufacturing PTO shafts, drive shafts, steering coupler shafts, and universal joints, which have been exported to the USA, Europe, Australia, etc., for years.2. Application to all kinds of general mechanical situations.3. Our products are of high intensity and rigidity.4. Heat resistant & Acid resistant.5. OEM orders are welcomed.
