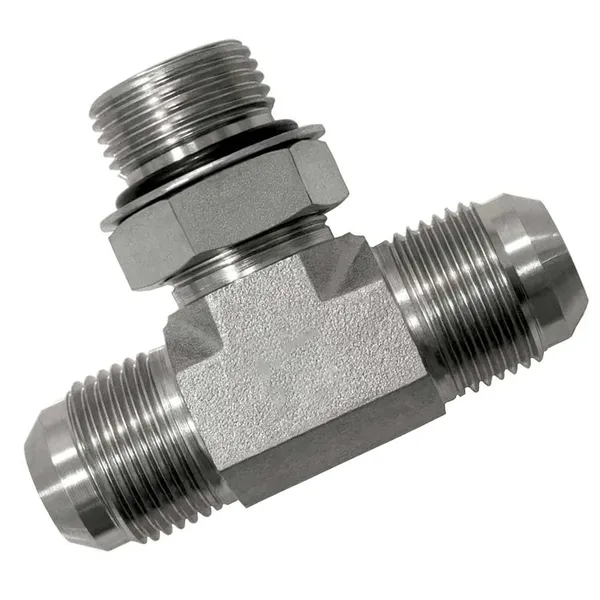

Flared Adjustable Male Branch Tees Fittings

Flared Adjustable Male Branch Tee Fittings

Flared adjustable male branch tee fittings are a type of plumbing or hydraulic fitting used to create a branch connection in a fluid system. These fittings are designed with a flared end that allows for a secure and leak-resistant connection.Here are the key features and how they work:1. Flared End: The flared end of the fitting is a cone-shaped end that allows for a tight seal when connected to a flared tube or pipe. It ensures a leak-free connection by creating a metal-to-metal seal.2. Adjustable Design: The adjustable feature of these fittings allows for flexibility in the branch connection. It means that you can adjust the angle or position of the branch connection to suit your specific requirements. This adjustability makes them versatile and adaptable to various plumbing or hydraulic systems.3. Male Connection: The male connection refers to the threaded end of the fitting. It is designed to be inserted into a female threaded port or fitting. The threading provides a secure connection that can be tightened using a wrench or other suitable tools.4. Branch Tee Configuration: The branch tee configuration means that the fitting has three openings: one for the main fluid flow and two for the branch connections. This configuration is commonly used when you need to split the fluid flow into two separate lines.Flared adjustable male branch tee fittings are commonly used in applications where a branch connection is required, such as in plumbing systems, hydraulic systems, and fluid transfer systems. They are often used in industries such as manufacturing, construction, automotive, and aerospace.

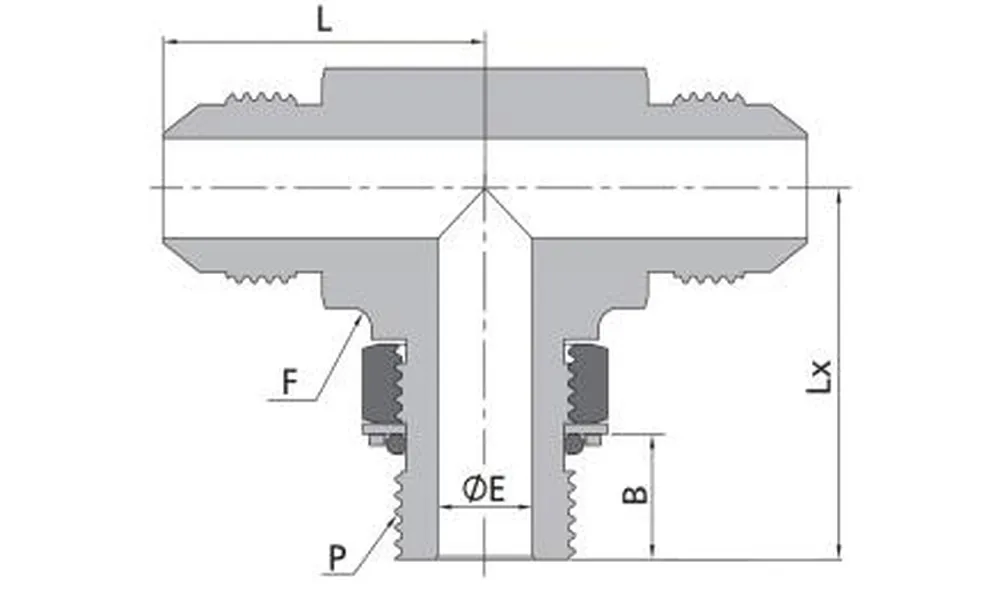

Flared Adjustable Male Branch Tee Fittings Size Chart:

T-Tube O.D		P-SAEThread Size	Basic OrderingNumber	Dimension, in. (mm)
In.	mm			L	E	F (Flat)	Lx	B
1/8	3	5/16-24	-AMB-AN2-ST5	0.77(19.6)	0.06(1.6)	0.44(11.1)	0.94(23.9)	0.33 (8.4)
3/16	4	3/8-24	-AMB-AN3-ST6	0.83(21.1)	0.13(3.2)	0.44(11.1)	0.94(23.9)	0.33 (8.4)
1/4	6	7/16-20	-AMB-AN4-ST7	0.89(22.6)	0.17(4.4)	0.50(12.7)	1.03(26.2)	0.39 (9.8)
5/16	8	1/2-20	-AMB-AN5-ST8	0.95(24.1)	0.24(6.0)	0.56(14.3)	1.13(28.7)	0.39 (9.8)
3/8	10	9/16-18	-AMB-AN6-ST9	1.06(26.9)	0.30(7.5)	0.63(15.9)	1.25(31.8)	0.43(11.0)
1/2	12	3/4-16	-AMB-AN8-ST12	1.25(31.8)	0.39(9.9)	0.81(20.6)	1.45(36.8)	0.49 (12.5)
5/8	16	7/8-14	-AMB-AN10-ST14	1.45(36.8)	0.48(12.3)	0.94(23.8)	1.70(43.2)	0.56 (14.2)
3/4	18	1 1/16-12	-AMB-AN12-ST17	1.66(42.2)	0.61(15.5)	1.25(31.8)	1.94(49.3)	0.65 (16.5)
7/8	22	1 3/16-12	-AMB-AN14ST19	1.80(45.7)	0.72(18.3)	1.25(31.8)	2.00(50.8)	0.65 (16.5)
1	25	1 5/16-12	-AMB-AN16-ST21	1.81(46.0)	0.85(21.5)	1.37(34.9)	2.05(52.1)	0.65 (16.5)
1 1/4	32	1 5/8-12	-AMB-AN20-ST26	2.06(52.3)	1.08(27.5)	1.69(42.9)	2.25(57.2)	0.65 (16.5)
1 1/2	38	1 7/8-12	-AME-AN24-ST30	2.33(59.2)	1.30(33.0)	2.00(50.8)	2.39(60.7)	0.65 (16.5)
2	50	2 1/2-12	-AME-AN32-ST40	3.06(77.7)	1.77(45.0)	2.50(63.5)	2.89(73.4)	0.65 (16.5)

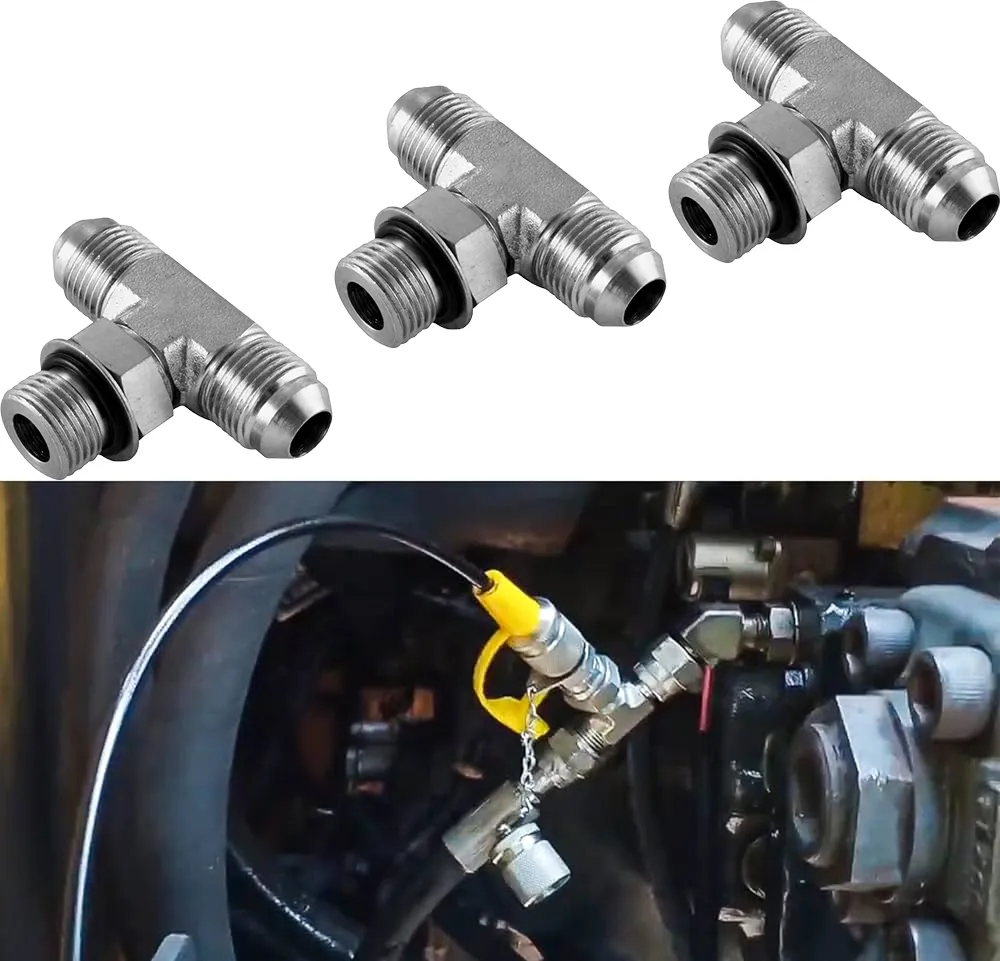

Advantages of Flared Adjustable Male Branch Tee Fittings:

Flared adjustable male branch tee fittings offer several advantages in fluid system installations. Here are some key benefits of using these fittings:1. Leak Resistance: Flared adjustable male branch tee fittings are known for their excellent sealing capabilities. The flared end of the fitting creates a metal-to-metal seal when connected to a flared tube or pipe. This design ensures a tight and reliable connection, minimizing the risk of leaks or fluid seepage. It is particularly advantageous in applications where maintaining a leak-free system is critical.2. Adjustable Branch Connection: The adjustable feature of these flared adjustable male branch tee fittings allows for flexibility in the branch connection. You can easily adjust the angle or position of the branch connection to suit your specific requirements. This adaptability is beneficial when dealing with complex plumbing or hydraulic systems where precise alignment or space constraints are present. It simplifies the installation process and provides greater versatility.3. Versatility: Flared adjustable male branch tee fittings are compatible with various pipe or tube materials, including copper, brass, stainless steel, and some plastics. This versatility enables their use in a wide range of applications across different industries. Whether it's plumbing, HVAC systems, hydraulic lines, or automotive applications, these fittings can accommodate diverse fluid system needs.4. Durable and Resistant: Flared adjustable male branch tee fittings are typically made from robust materials such as brass or stainless steel. These materials offer excellent durability and resistance to corrosion, chemicals, and high-pressure environments. They can withstand demanding conditions, ensuring long-lasting performance and minimizing the need for frequent replacements.5. Ease of Installation: Installing flared adjustable male branch tee fittings is relatively straightforward. They utilize a threaded male connection that can be easily inserted into a female threaded port or fitting. Tightening the fitting securely with a wrench or appropriate tool ensures a reliable connection. This ease of installation saves time and effort during system assembly or maintenance.6. Compatibility: These flared adjustable male branch tee fittings are designed to meet industry standards and specifications, ensuring compatibility with other plumbing or hydraulic components. They can be integrated seamlessly into existing systems or used with other flared fittings, adapters, or valves, providing a standardized and reliable solution.7. Maintenance and Repair: The adjustable feature of these flared adjustable male branch tee fittings simplifies maintenance and repair tasks. If adjustments or modifications are required in the branch connection, the fitting can be easily repositioned without the need for cutting or replacing the entire line. This convenience reduces downtime and allows for efficient system maintenance.

China Flared Tube Fittings Manufacturers

We're well-known as one of the leading flared tube fitting manufacturers and suppliers, specializing in providing different kinds of fittings, instrument valves, and flanges. We warmly welcome you to buy high-quality flared tube fittings in stock from our factory. Flared Tube Nuts, Flared Tube Sleeves, Flared Tube Union Swivel Elbows, Flared Tube Large Hex Unions, Male Connectors-NPT Flared Tube Fittings, Male Connectors-SAE Flared Tube Fittings, Flared Tube Male Branch Tee Fittings, Flared Tube Reducing Adapters, Male Elbows-NPT Flared Tube Fittings, 45° Flared Male Elbows, Flared Tube Female Elbows, Flared Tube Union Elbows, Flared Adjustable Male Elbows, 90 Degree Flared Male Elbows, Flared Bulkhead Unions.1. We established in July 2008.2. We are a professional manufacturer of Instrumentation Tube Fittings, Pipe Fittings, Hydraulic Ball Valves, Needle Valves, Ball Valves, Check Valves, Valve Manifolds, DIN 2353 Fittings, SAE Flanges, Sampling systems, and Water Heater Accessories.3. Products are available in a variety of different materials, such as Carbon Steel, Stainless steel 316/316L, Duplex, Super Duplex, Hastelloy, Monel, Inconel, Incoloy, and Titanium.4. We are located in Ningbo City, a two-hour drive to Shanghai, with convenient transportation access worldwide.5. Our products are widely used in industries of Chemical, Petrochemical, Power Generation, Oil, Gas, and Shipbuilding.6. Always available to discuss your requirements and ensure full customer satisfaction.7. We have more than 50 CNC machines, 3D measurement equipment, Raw Material chemical composition inspection equipment, High-pressure test equipment, etc.8. We have obtained ISO9001 and CE certificates and more than twenty utility model patents.9. Our products are exported to the United States, Japan, Germany, South America, South Africa, Southeast Asia, and many other countries.10. We also welcome OEM and ODM orders. Please feel free to contact and visit us.
