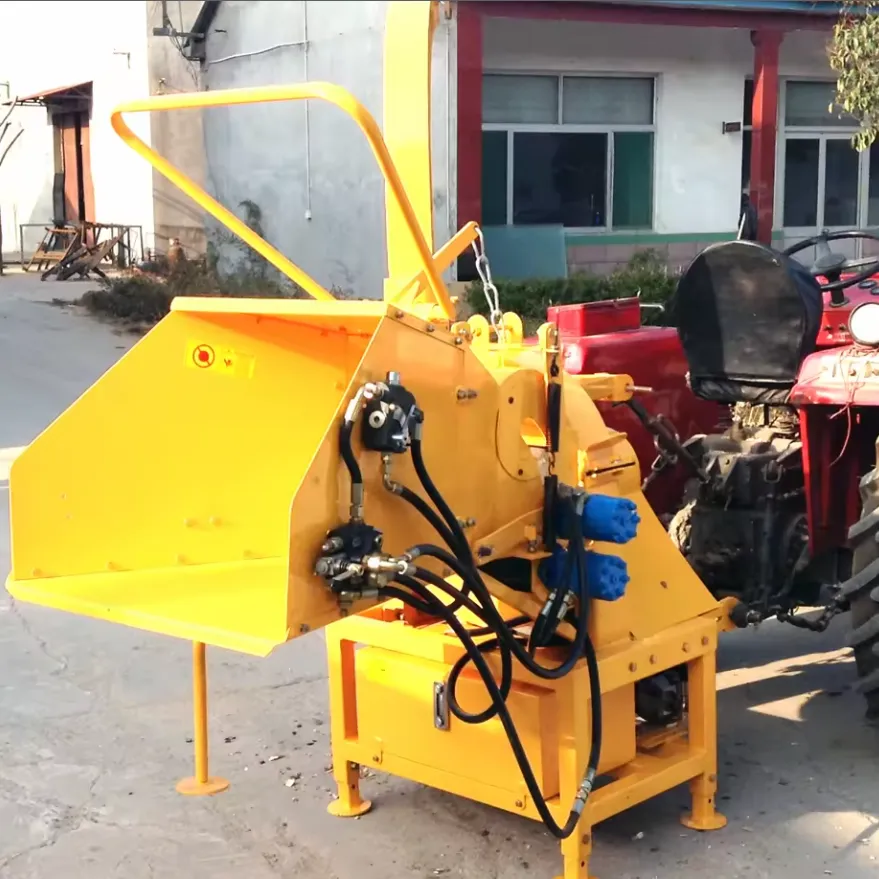

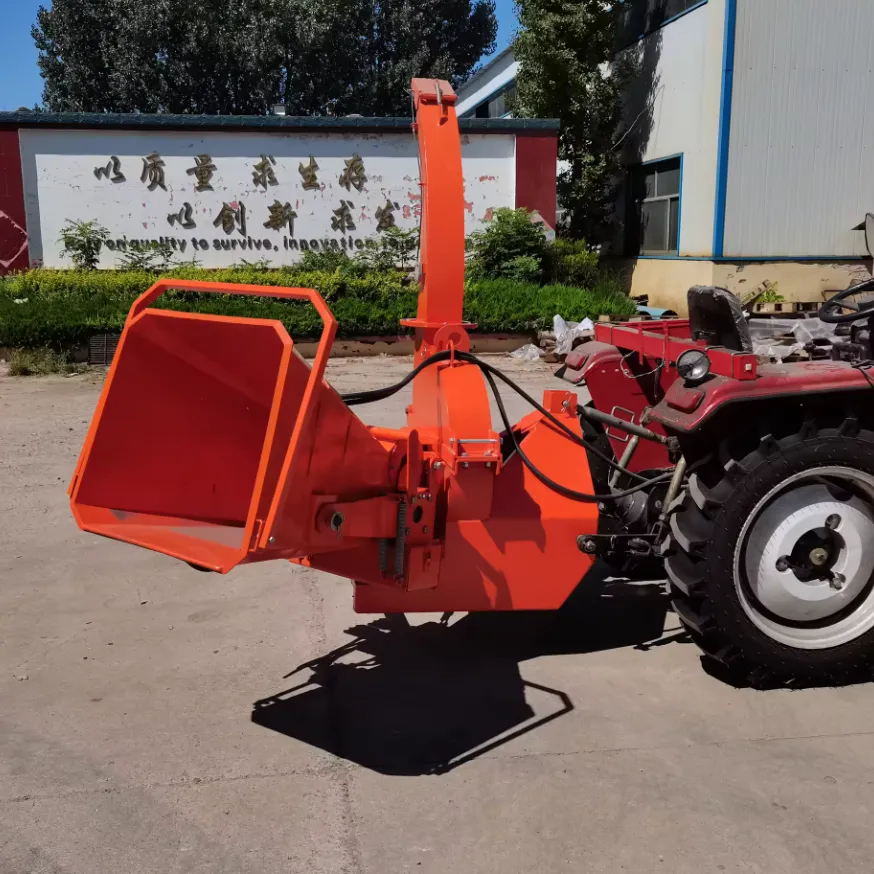

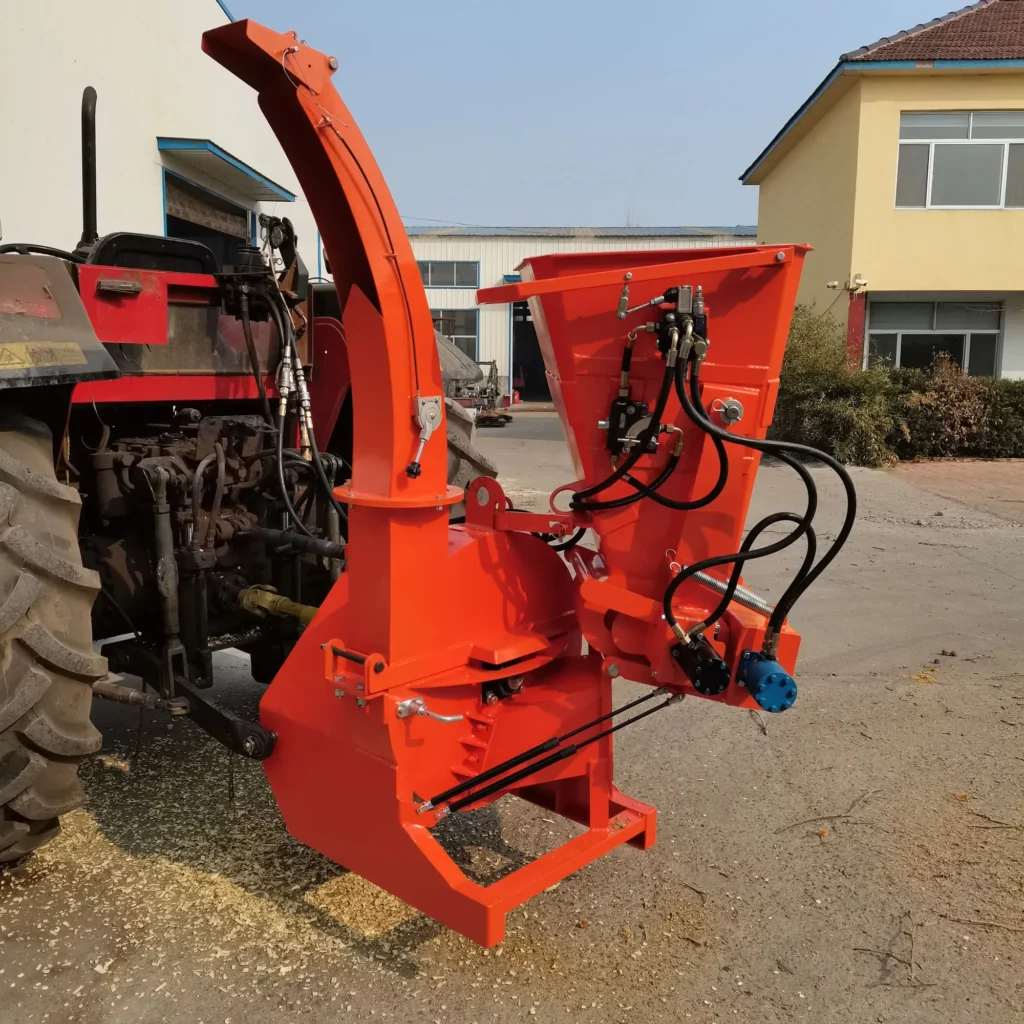

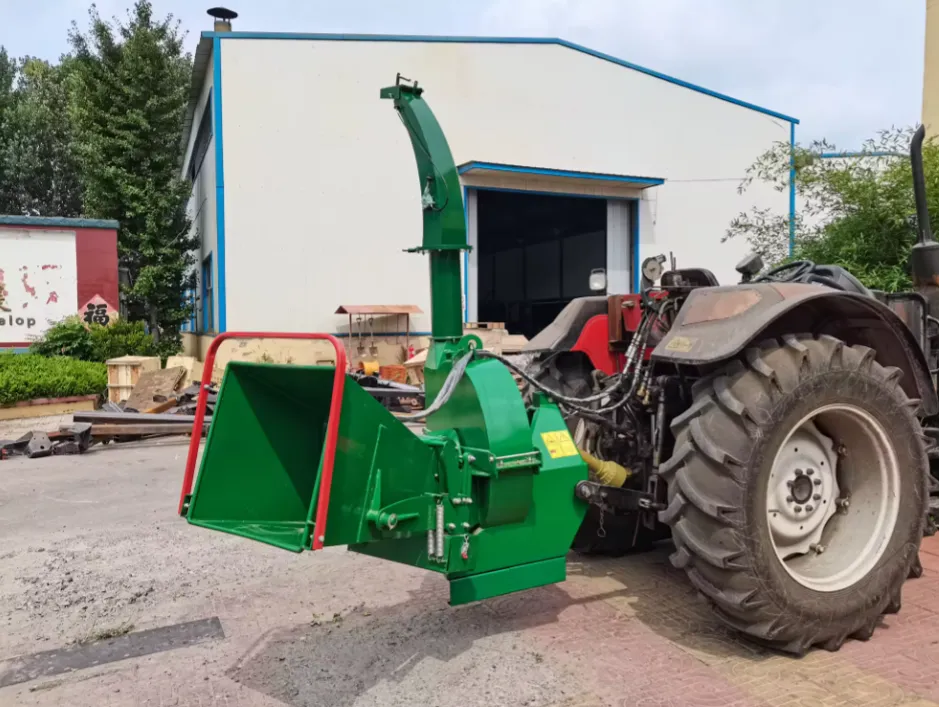

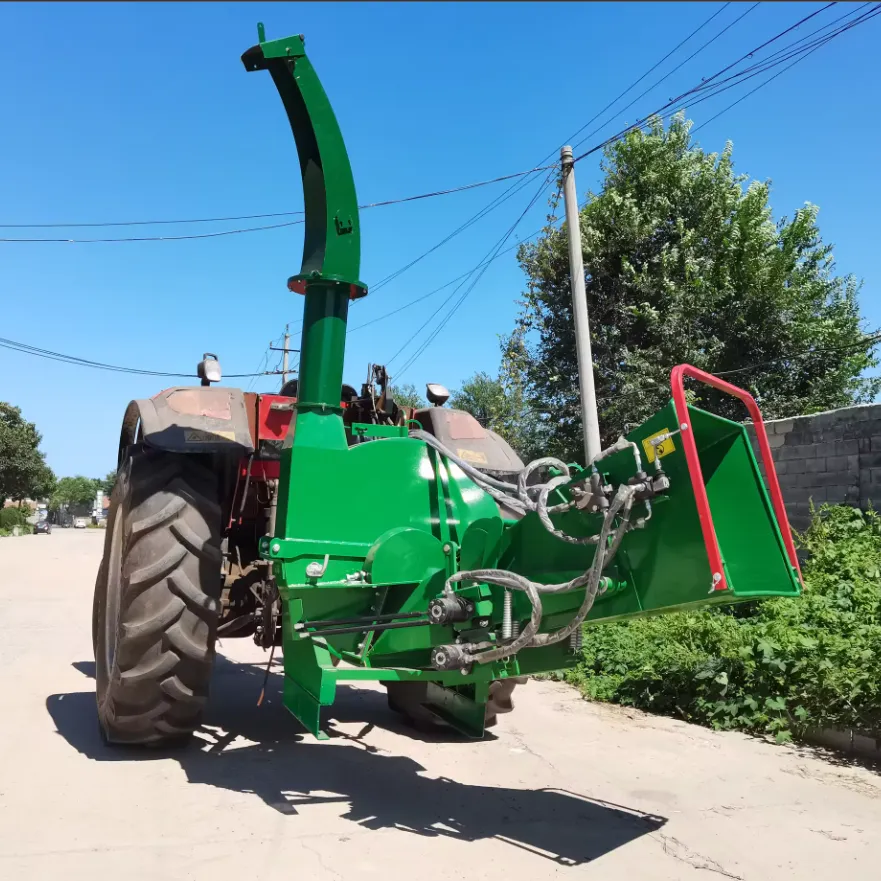

BX92 8 Inch Wood Chipper Machine With CE for Chipping Wood and Tree Branch

[embed]https://youtu.be/j3Wm-RDreEc[/embed] A tractor PTO (Power Take-Off) wood chipper is a specialized piece of agricultural or forestry equipment designed to transform wood, tree branches, and other vegetative debris into smaller, manageable chips. This machinery is particularly useful for clearing land, managing yard waste, and preparing materials for composting or mulching. Unlike standalone wood chippers that operate on their own engines, PTO wood chippers harness the power from a tractor's PTO. This setup allows for a more efficient and powerful chipping process, as it utilizes the robust engine power of the tractor. The chipper is mounted to the tractor's three-point hitch, and the PTO shaft connects the tractor to the chipper. When engaged, the tractor’s PTO transfers rotational power to the chipper's cutting mechanism, usually a disc or drum equipped with blades or knives. As wood and branches are fed into the chipper's hopper, they are quickly cut into chips. The capacity and efficiency of a PTO wood chipper depend on the tractor's horsepower (HP) and the chipper’s design. These machines can handle branches and wood ranging from small diameters up to several inches thick, depending on the model. The BX92 8 inch Wood Chipper Machine is a superior solution for those in the farming industry, who require a reliable and efficient machine to chip wood and tree branches. This brand-new machine is CE and ISO certified, ensuring it meets high safety and quality standards. Its key features include a tractor PTO driven power type, a robust dimension of 1600*1020*1400mm, and a weight of 390 KG. The machine is equipped with two rotary blades and one stationary blade, capable of chipping a maximum diameter of 20cm/8 inch.

BX92 8 Inch Wood Chipper Machine Specifications

Model	BX42S/BX42R	BX62S/BX62R	BX92R
Drive system	Direct drive, pto with shearbolt	Direct drive, pto with shearbolt	Direct drive, pto with shearbolt
HP Range	35-60	60-80	75-100
Capacity	4” diameter	6” diameter	10” diameter
Max. of wood	4" x 10"	6.5" x 12"	10" x 14”
Dia. of rotor	630mm	740mm	940mm
Thickness of rotor	18mm	25mm	35mm
No. of Knives	4	4	4
Rotor Weight	50kg	80kg	170kg
Feeding System	Self feed / Hydraulic feed	Self feed / Hydraulic Feed	Hydraulic Feed
Dimensions(hopper folded)	40" L x 42"W x 60" H	50"L x 52"W x74" H	52"L x 50"W x90" H
Infeed hopper Opening	500*500mm	580*580mm	620*620mm
Discharge Hood Rotation	360	360	360
Discharge Hood Height	60"	74"	90"
Rated RPM	540-1000	540-1000	540-1000
Weight	225kg / 430kg	435kg / 560kg	780kg

Advantages of the BX92 8 Inch Wood Chipper Machine

Choosing the BX92 8 Inch Wood Chipper Machine with CE brings with it a host of advantages:

1. High Efficiency: Designed for round logs, square blocks, wood staff and much more, this machine's efficiency is significantly higher than ordinary machines.
2. Easy Operation: The machine is user-friendly, ensuring a smooth operation process.
3. Low Maintenance: With simple maintenance requirements, you can expect a long lifespan from this machine.
4. Low Noise: Unlike many other wood chippers, this machine operates with a low noise level, providing a more comfortable working environment.
5. Customizable: The machine is available in different colors ?C red, green, orange, and more, it can also be customized according to your preference.
6. Warranty: The BX92 8 Inch Wood Chipper Machine comes with a 1-year warranty, providing peace of mind with your purchase.

Applications of the BX92 8 Inch Wood Chipper Machine

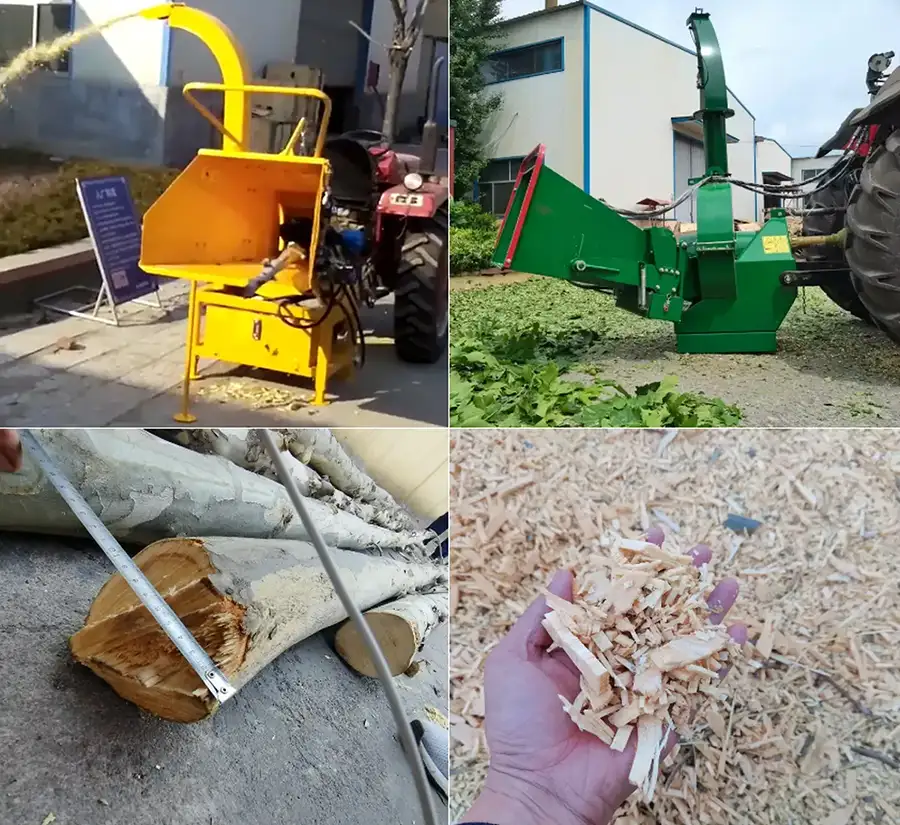

The BX92 8-Inch Wood Chipper Machine is a specific model of wood chipper with an 8-inch capacity. It can be used in various industries and applications, including:

• Farming: The wood chipper is useful in farming operations for clearing fields, removing tree branches, and managing agricultural waste. It can chip agricultural residues, such as corn stalks, sugarcane bagasse, and wheat straw, which can then be used for livestock bedding, composting, or as a source of renewable energy.
• Woodworking: In woodworking and carpentry, the wood chipper can be used to process wood waste from sawmills, construction sites, or furniture manufacturing. It can chip logs, branches, and other wood scraps, reducing waste volume and providing material for mulch, composting, or biomass fuel.
• Landscaping: Landscapers often use wood chippers to maintain gardens, parks, and large landscapes. The machine can chip tree branches, fallen leaves, and other green waste, helping to clear the area and create wood chips or mulch that can be used for ground cover, pathways, or garden beds.
• Waste Management: The wood chipper plays a role in waste management by processing organic waste materials. It can chip yard waste, tree trimmings, and other organic debris, reducing the amount of waste sent to landfills. The resulting wood chips can be utilized for composting or as a biomass resource.
• Composting: Wood chips produced by the chipper can be used as a carbonaceous material in composting. Mixing wood chips with nitrogen-rich materials, such as kitchen scraps or grass clippings, helps create a balanced compost pile. The chipped wood increases airflow within the compost pile, aiding in decomposition.
• Renewable Energy: Wood chips generated by the wood chipper can be utilized as a renewable energy source. They can be burned in biomass boilers or converted into wood pellets, which are used for heating or electricity generation. This promotes sustainable energy practices and reduces dependence on fossil fuels.

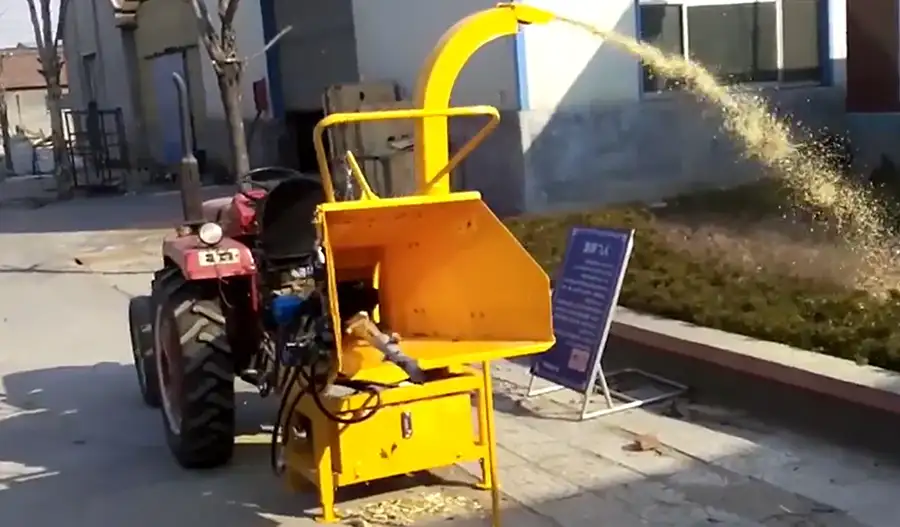

How Does the Tractor PTO Wood Chipper Work?

A tractor PTO wood chipper is a mechanical device designed to chip wood, turning tree branches, limbs, and possibly whole trees into smaller, more manageable chips. This equipment is highly efficient for clearing out brush, managing yard waste, and preparing wood chips for various uses such as mulch, biomass fuel, or garden bedding. Here’s a step-by-step explanation of how a tractor PTO wood chipper works: (1) Power Source: The wood chipper does not have its own engine. Instead, it utilizes the power from a tractor's engine. It is connected to the tractor via the Power Take-Off (PTO) shaft. When the tractor's PTO is engaged, it transfers rotational power to the wood chipper. (2) Connection to the Tractor: The chipper is mounted to the tractor using a three-point hitch system. This ensures that the chipper is securely attached to the tractor and allows for easy maneuverability over different terrains. (3) Feeding the Material: Operators feed branches or pieces of wood into the chipper through a feed chute or hopper. The size of the material that can be chipped will depend on the capacity and design of the chipper. Some chippers have mechanisms to help pull the wood into the machine, reducing the need for manual pushing. (4) Chipping Mechanism: Inside the wood chipper, a heavy, rotating cutting disc or drum equipped with blades or knives is powered by the tractor’s PTO. As wood is fed into the chipper, these blades cut the wood into small chips. The speed and force of the cutting mechanism are significant, ensuring that the wood is chipped efficiently. Some models may also include counter blades that further refine the size of the wood chips. (5) Discharge of Wood Chips: Once the wood is chipped, the chips are expelled from the machine through a discharge chute. The direction of this chute can usually be adjusted to direct the wood chips into a specific area or container. The force of the expulsion is typically strong enough to create a pile of wood chips at a distance from the machine.

How to Install the 3 Point Hitch PTO Wood Chipper to Tractor?

Installing a 3-point hitch PTO wood chipper to a tractor involves a series of steps to ensure a secure connection and safe operation. Here’s how to do it: Step 1: Preparation

• Read the Manuals: Familiarize yourself with the tractor and chipper manuals, noting any specific installation instructions or requirements.
• Safety Check: Ensure both the tractor and chipper are turned off, with keys removed. Wear appropriate personal protective equipment.

Step 2: Positioning

• Level Ground: Position the tractor and chipper on stable, level ground to facilitate easier connection.
• Align the Chipper: Move the chipper close to the tractor’s rear, aligning the chipper’s hitch with the tractor’s three-point hitch arms.

Step 3: Connecting the 3-Point Hitch

• Lower the Hitch: Use the tractor’s controls to lower the three-point hitch to its lowest position.
• Attach the Arms: Connect the lower arms of the three-point hitch to the mounting points on the chipper. Secure them with the provided pins or locking mechanisms.
• Connect the Top Link: Attach the top link between the tractor and chipper. Adjust its length to ensure the chipper is level or as specified in the chipper’s manual.

Step 4: Attaching the PTO Shaft

• Measure and Adjust: Ensure the PTO shaft is the correct length. It may need to be adjusted or trimmed to prevent it from being too long or too short, which could cause damage or disconnection.
• Align and Connect: Align the PTO shaft with the tractor’s PTO stub. Slide the shaft onto the stub until it locks into place. Ensure the safety shield is correctly positioned and secure.

Step 5: Safety Checks

• Check Connections: Double-check all connections to ensure they’re tight and secure.
• Inspect Safety Features: Verify that all safety features, including PTO guards and chipper safety shields, are in place and in good condition.

Step 6: Operational Test

• Test in a Safe Environment: With no one else near the chipper, start the tractor and engage the PTO at a low RPM to check the chipper’s operation. Listen for any unusual sounds or vibrations that could indicate a problem.

Common Troubleshooting of the BX92 8 Inch Wood Chipper Machine

Troubleshooting common issues with a BX92 8-inch wood chipper, or similar models, involves identifying and resolving problems that can affect performance and safety. Here are some common issues and potential solutions: 1. Chipper Does Not Start: PTO Connection: Ensure the PTO shaft is correctly connected to the tractor. Check for any obstructions or damage to the shaft that could prevent it from engaging properly. Power Source: Verify that the tractor is operational, the PTO is engaged, and there is enough power being supplied to the chipper. 2. Wood Chipper Vibrates Excessively: Unbalanced Drum or Flywheel: Check the chipper’s drum or flywheel for balance. Continued use can cause wear on the cutting blades, leading to imbalance. Inspect and replace or sharpen blades as necessary. Loose Components: Inspect for any loose parts or components, including the PTO shaft, bolts, and nuts, and tighten them. 3. Chipping Efficiency is Low: Dull Blades: Dull or damaged cutting blades can significantly reduce chipping efficiency. Remove and sharpen the blades or replace them if they are beyond repair. Overfeeding: Feeding wood into the chipper too quickly can overload the machine. Reduce the feed rate to match the chipper’s capacity. Incorrect PTO Speed: Ensure the tractor’s PTO speed matches the recommended operating speed for the wood chipper. 4. Wood Chips are Too Large or Uneven: Blade Adjustment: Check the blade alignment and distance from the anvil or counter blade. Incorrect spacing can result in improperly chipped wood. Adjust according to the manufacturer’s specifications. Worn Blades: Similar to the issue of low chipping efficiency, worn blades can also cause poor chip quality. Sharpen or replace as needed. 5. Chipper Feeding is Difficult or Jammed: Obstructions: Turn off the chipper and tractor, and inspect the hopper and chipping chamber for any obstructions or jammed wood. Clear any blockages using appropriate safety procedures. Feeding Mechanism: For chippers with mechanical or hydraulic feeding systems, check for malfunctions or adjustments needed in the feed rollers or mechanisms. 6. Discharge Chute Clogs: Wet or Green Wood: Chipping very wet or green wood can lead to clogs in the discharge chute. Try chipping drier wood, or clear the chute as needed. Chute Alignment: Ensure the discharge chute is properly aligned and free of damage that could obstruct the flow of wood chips.

Why Choose Raydafon's PTO Wood Chipper?

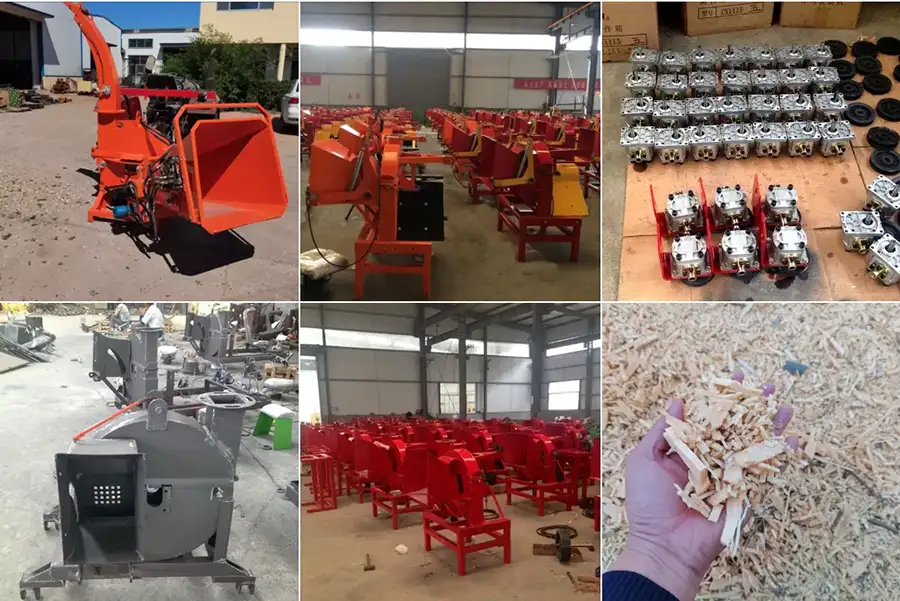

Raydafon Agricultural Machinery Co., Ltd is a leading manufacturer of agricultural machinery. With over 100 employees, including 20 technical staff and five senior R&D personnel, we are committed to delivering high-quality farming machinery and accessories. We use advanced technology and equipment, like CAD computer-aided design systems, and have a strong production capacity. Our extensive product range includes farming machinery, planting machinery, harvesting machinery, and their accessories. All our products are complete in specifications, excellent in performance, and reliable in quality. We are proud to offer our products across the globe, serving customers in Europe, America, Africa, the Middle East, and Southeast Asia.

Professionalism and Certifications

Raydafon is a professional manufacturer with more than ten years of experience in the production of agricultural machinery. Our products are CE and ISO certified, underlining our commitment to quality and safety.

Customized Services

At Raydafon, we are capable of customizing our products according to the specific requirements of our customers. Whether you need a unique color or a specific design, we have you covered.

Production Facilities

We have advanced casting, forging, machining, heat treatment, and lacquering production lines. Our production technology is strong, and the equipment is advanced, including lathing, milling, planing, stamping, cutting plate, and electric welding.

After-sales Services

Customer satisfaction is our priority. We offer excellent after-sales service, providing spare parts and technical support to ensure the longevity and optimal performance of our products. Author: Yjx
