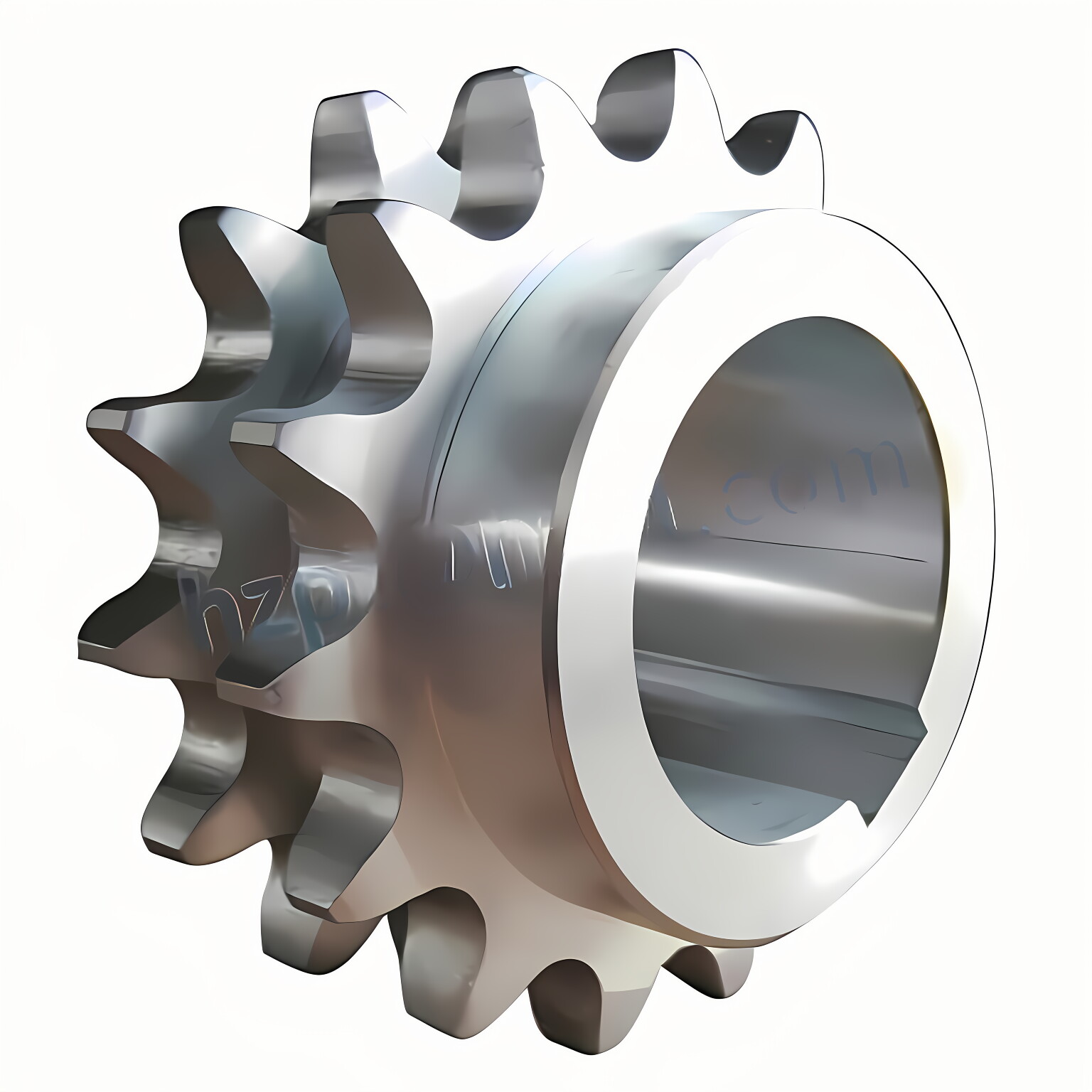

C2052 Double Pitch Sprockets

Discover Raydafon Group's C2052 Double Pitch Sprockets, engineered for high-speed conveyor systems to reduce noise and wear. Featuring durable steel construction, precise double pitch design, and corrosion resistance, these sprockets ensure reliable performance in demanding industrial applications. Ideal for manufacturers, they offer smooth operation and longevity, solving common efficiency issues. Choose Raydafon Group for superior quality and innovation that stands out from the competition.

Send Inquiry

Product Description

Our in-stock standard double pitch sprockets are manufactured out of SAE-1045 case hardened steel with extra-hardened teeth and coated with black oxide. These sprockets are extremely durable, high-strength, and manufactured to high precision tolerances. Stock double pitch sprockets include standard roller and carrier roller style.Below is a chart of all of the standard C2052 double pitch roller chain sprockets. We also stock a full line of high quality C2052 roller chain.

Stock C2052 Roller Chain Sprockets

Sprocket Size	Tooth Count	Outside Diameter	Stock Bore	Maximum Bore	Length Thru Bore	Weight
2052A12	12	5.420"	23/32"	--	--	1.58 LBS
2052A13	13	5.820"	23/32"	--	--	1.82 LBS
2052A14	14	6.230"	23/32"	--	--	2.28 LBS
2052A15	15	6.630"	23/32"	--	--	2.46 LBS
2052A16	16	7.030"	23/32"	--	--	2.88 LBS
2052A17	17	7.440"	23/32"	--	--	3.28 LBS
2052A18	18	7.840"	23/32"	--	--	3.64 LBS
2052A19	19	8.240"	23/32"	--	--	4.12 LBS
2052A20	20	8.640"	23/32"	--	--	4.72 LBS
2052A21	21	9.040"	23/32"	--	--	5.08 LBS
2052A22	22	9.440"	23/32"	--	--	5.20 LBS
2052A23	23	9.850"	15/16"	--	--	5.84 LBS
2052A24	24	10.250"	15/16"	--	--	6.70 LBS
2052A25	25	10.650"	15/16"	--	--	7.54 LBS
2052A26	26	11.050"	15/16"	--	--	8.24 LBS
2052A28	28	11.840"	15/16"	--	--	8.70 LBS
2052A30	30	12.640"	15/16	--	--	9.92 LBS
2052B8	8	3.770"	5/8"	1-19/32"	1"	1.38 LBS
2052B9	9	4.190"	5/8"	1-25/32"	1"	1.92 LBS
2052B10	10	4.600"	5/8"	2"	1"	2.30 LBS
2052B11	11	5.010"	5/8"	2"	1"	2.54 LBS
2052B12	12	5.420"	3/4"	2"	1-1/4"	3.20 LBS
2052B13	13	5.820"	3/4"	2"	1-1/4"	3.48 LBS
2052B14	14	6.230"	3/4"	2"	1-1/4"	3.88 LBS
2052B15	15	6.630"	3/4"	2-1/4"	1-1/4"	4.46 LBS
2052B16	16	7.030"	3/4"	2-1/4"	1-1/4"	4.80 LBS
2052B17	17	7.440"	3/4"	2-1/4"	1-1/4"	5.34 LBS
2052B18	18	7.840"	3/4"	2-1/4"	1-1/4"	5.64 LBS
2052B19	19	8.240"	3/4"	2-1/4"	1-1/4"	6.04 LBS
2052B20	20	8.640"	3/4"	2-1/4"	1-1/4"	6.48 LBS
2052B21	21	9.040"	3/4"	2-1/4"	1-1/4"	7.00 LBS
2052B22	22	9.440"	3/4"	2-1/4"	1-1/4"	7.30 LBS
2052B23	23	9.850"	1"	2-3/4"	1-1/4"	8.66 LBS
2052B24	24	10.250"	15/16"	2-3/4"	1-1/4"	9.32 LBS
2052B25	25	10.650"	15/16"	2-3/4"	1-1/4"	10.30 LBS
2052B26	26	11.050"	15/16"	2-3/4"	1-1/4"	11.00 LBS
2052B28	28	11.840"	15/16"	2-3/4"	1-1/4"	11.70 LBS
2052B30	30	12.640"	15/16"	2-3/4"	1-1/4"	12.90 LBS
