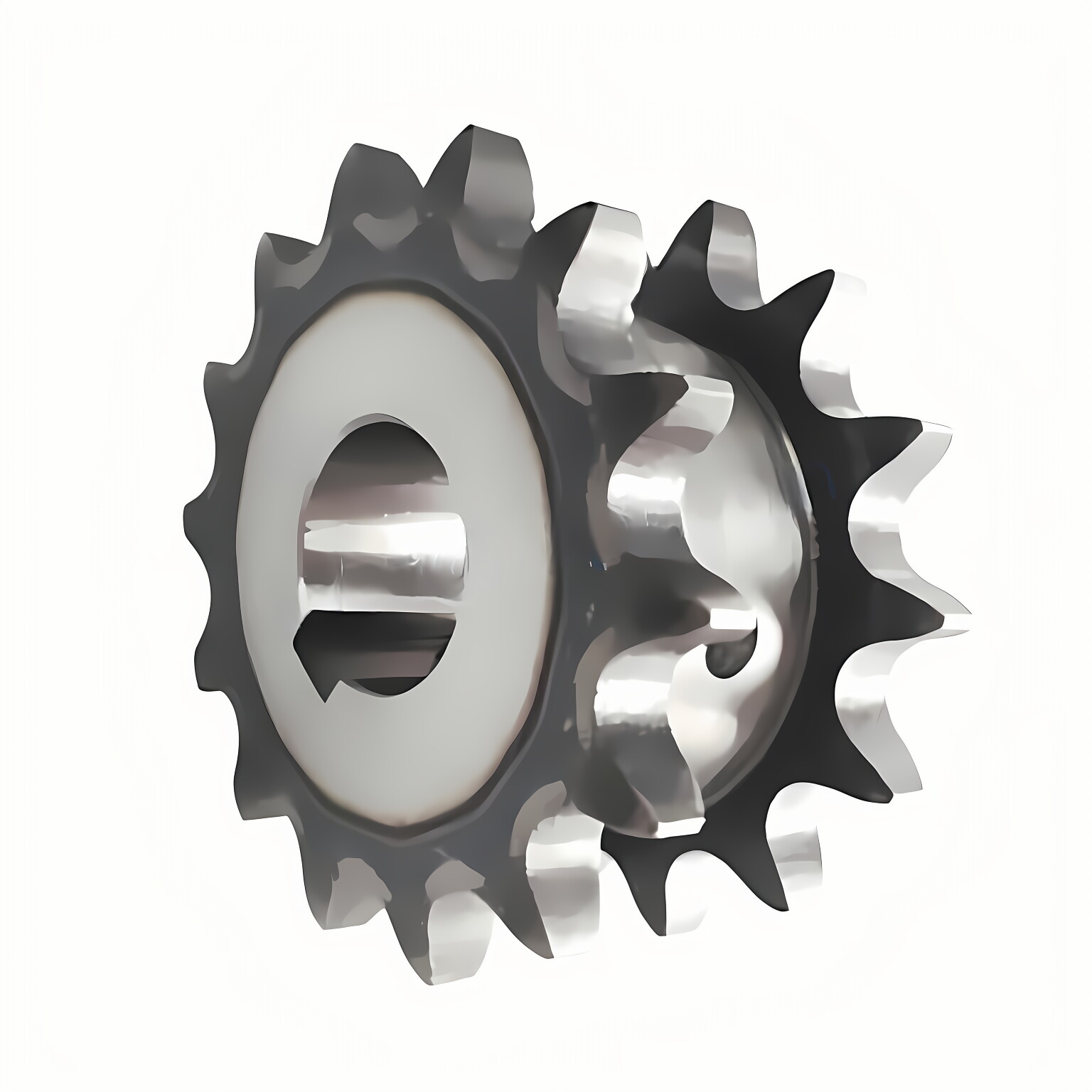

C2062H Double Pitch Sprockets

Raydafon Group's C2062H Double Pitch Sprockets are heavy-duty components designed to smoothly drive chains in demanding applications like conveyors and drive systems. Their robust construction and precision design ensure durability and efficient power transmission, making them ideal for industries requiring reliable, long-lasting performance. Experience enhanced operational stability and reduced downtime with these superior-quality sprockets.

Send Inquiry

Product Description

Our in-stock standard double pitch sprockets are manufactured out of SAE-1045 case hardened steel with extra-hardened teeth and coated with black oxide. These sprockets are extremely durable, high-strength, and manufactured to high precision tolerances. Stock double pitch sprockets include standard roller and carrier roller style.Below is a chart of all of the standard C2062H double pitch roller chain sprockets. We also stock a full line of high quality C2062H roller chain.

Stock C2062H Roller Chain Sprockets

Sprocket Size	Tooth Count	Outside Diameter	Stock Bore	Maximum Bore	Length Thru Bore	Weight
2062A12	12	6.500"	23/32"	--	--	2.98 LBS
2062A13	13	6.990"	23/32"	--	--	3.60 LBS
2062A14	14	7.470"	23/32"	--	--	4.02 LBS
2062A15	15	7.960"	23/32"	--	--	4.76 LBS
2062A16	16	8.440"	23/32"	--	--	5.70 LBS
2062A17	17	8.920"	15/16"	--	--	6.16 LBS
2062A18	18	9.410"	15/16"	--	--	6.96 LBS
2062A19	19	9.890"	15/16"	--	--	8.00 LBS
2062A20	20	10.370"	15/16"	--	--	8.46 LBS
2062A21	21	10.850"	15/16"	--	--	8.93 LBS
2062A22	22	11.330"	15/16"	--	--	10.74 LBS
2062A23	23	11.810"	15/16"	--	--	11.64 LBS
2062A24	24	12.290"	15/16"	--	--	12.64 LBS
2062A25	25	12.770"	15/16"	--	--	13.78 LBS
2062A26	26	13.250"	15/16"	--	--	15.00 LBS
2062A28	28	14.210"	1-1/4"	--	--	17.32 LBS
2062A30	30	15.170"	1-1/4"	--	--	19.50 LBS
2062B8	8	4.520"	3/4"	1-27/32"	1-1/4"	2.60 LBS
2062B9	9	5.020"	3/4"	2-9/32"	1-1/4"	3.48 LBS
2062B10	10	5.520"	3/4"	2-9/16"	1-1/4"	4.54 LBS
2062B11	11	6.010"	3/4"	2-3/4"	1-1/4"	5.20 LBS
2062B12	12	6.500"	3/4"	2-3/4"	1-1/4"	5.70 LBS
2062B13	13	6.990"	3/4"	2-3/4"	1-1/4"	6.28 LBS
2062B14	14	7.470"	3/4"	2-3/4"	1-1/4"	6.82 LBS
2062B15	15	7.960"	3/4"	2-3/4"	1-1/4"	7.48 LBS
2062B16	16	8.440"	1"	2-3/4"	1-1/4"	8.18 LBS
2062B17	17	8.920"	1"	2-3/4"	1-1/4"	8.82 LBS
2062B18	18	9.410"	1"	2-3/4"	1-1/4"	9.36 LBS
2062B19	19	9.890"	1"	2-3/4"	1-1/4"	11.10 LBS
2062B20	20	10.370"	15/16"	2-3/4"	1-1/4"	11.66 LBS
2062B21	21	10.850"	15/16"	2-3/4"	1-1/4"	13.24 LBS
2062B22	22	11.330"	15/16"	2-3/4"	1-1/4"	13.78 LBS
2062B23	23	11.810"	15/16"	2-3/4"	1-1/4"	14.90 LBS
2062B24	24	12.290"	15/16"	2-3/4"	1-1/4"	15.66 LBS
2062B25	25	12.770"	15/16"	2-3/4"	1-1/4"	16.80 LBS
2062B26	26	13.250"	15/16"	2-3/4"	1-3/4"	20.20 LBS
2062B28	28	14.210"	1-1/4"	2-3/4"	1-3/4"	21.86 LBS
2062B30	30	15.170"	1-1/4"	2-3/4"	1-3/4"	26 LBS
