The CA Monaural Type Phs Fisheye Connector Heavy Rod Hydraulic Cylinder is a cutting-edge hydraulic component designed to deliver exceptional power, precision, and reliability in heavy-duty industrial applications. Engineered with advanced technology and superior materials, this hydraulic cylinder is built to withstand demanding operating conditions while providing optimal performance. Whether you need to lift, push, or pull heavy loads, the CA Monaural Type Phs Fisheye Connector Heavy Rod Hydraulic Cylinder is designed to optimize productivity and ensure smooth operations.Essential Characteristics Of Heavy Rod Hydraulic Cylinder:Robust Construction: The CA Monaural Type Phs Fisheye Connector Heavy Rod Hydraulic Cylinder features a rugged construction, utilizing high-quality materials that guarantee strength, durability, and longevity. Its sturdy design allows it to endure heavy loads, high pressures, and challenging environments, making it an ideal choice for demanding industrial tasks.Monaural Type Design: This hydraulic cylinder has a monaural configuration, offering a single rod extension for enhanced stability and controlled movement. The monaural type design ensures precise positioning and smooth operation, improving efficiency and reducing the risk of misalignment or deflection.PHS Fisheye Connector: The CA Monaural Type Phs Fisheye Connector Heavy Rod Hydraulic Cylinder is equipped with a Phs Fisheye Connector, a specialized connector that enables easy and secure attachment to hydraulic systems. This connector ensures reliable fluid transfer and minimizes the risk of leaks or disconnections during operation.High Force Output: This hydraulic cylinder delivers impressive force output with its advanced hydraulic design and large piston diameter. It can generate significant force, making it ideal for applications requiring substantial power and lifting capacity.

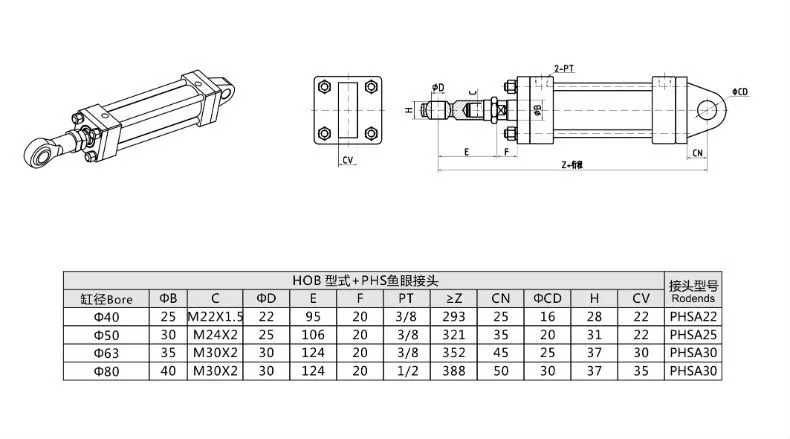

CA Monaural Type Phs Fisheye Connector Heavy Rod Hydraulic Cylinder Parameter:

Usage Method Of CA Monaural Type Phs Fisheye Connector Heavy Rod Hydraulic Cylinder:

1. Mounting: Begin by securely mounting the CA Monaural Type Phs Fisheye Connector Heavy Rod Hydraulic Cylinder using appropriate mounting brackets or fixtures. Ensure proper alignment and stability during installation to prevent misalignment or excessive stress on the cylinder.
2. Hydraulic System Integration: Connect the hydraulic lines to the cylinder's Phs Fisheye Connector, following the manufacturer's instructions and guidelines. Integrate the cylinder into the hydraulic system by connecting it to a suitable pump or power unit. Ensure compatibility with the cylinder's specifications and operating requirements.
3. Control and Operation: Utilize the control valves in the hydraulic system to regulate the flow of hydraulic fluid into and out of the cylinder. Adjust the control settings as per the desired linear motion and force output. Test the cylinder's movement to verify its functionality and responsiveness.

Maintenance Of CA Monaural Type Phs Fisheye Connector Heavy Rod Hydraulic Cylinder:

Regular maintenance is essential to ensure optimal performance and longevity of the CA Monaural Type Phs Fisheye Connector Heavy Rod Hydraulic Cylinder. Follow these maintenance guidelines:

1. Regular Inspection: Conduct routine inspections to identify signs of wear, damage, or leaks. Inspect the cylinder body, rod, seals, and other components for abnormalities. Address any issues promptly to prevent further injury or operational inefficiencies.
2. Lubrication: Apply the recommended lubricant to the moving parts of the cylinder, including the rod and seals. Regular lubrication minimizes friction, reduces wear, and ensures smooth operation. Follow the manufacturer's guidelines for lubrication intervals and use the appropriate lubricant type.
3. Seal Replacement: If you notice seal deterioration or leakage, replace the seals using genuine manufacturer-approved parts. Damaged or worn seals can compromise the cylinder's performance and may lead to hydraulic fluid leaks.
4. Cleaning: Clean the cylinder by removing dirt, debris, and other contaminants. Use a non-abrasive cleaner and ensure all components are thoroughly dried before reassembly. Regular cleaning promotes optimal performance and prevents premature wear or damage.

How To Rebuild Hydraulic Cylinder Diagram？

Rebuilding a hydraulic cylinder involves disassembling the cylinder, inspecting its components, replacing worn or damaged parts, and reassembling the cylinder. While it is difficult to provide an interactive diagram, I can provide you with a step-by-step guide on how to rebuild a hydraulic cylinder:

1. Gather Tools and Materials:
   • Wrenches or socket set
   • Hydraulic cylinder rebuild kit (includes seals, O-rings, and other necessary components)
   • Cleaning solvent
   • Lubricating oil or hydraulic fluid
   • Soft mallet or hammer
   • Bench vise (optional)
   • Safety goggles and gloves
2. Cylinder Disassembly:a. Ensure the hydraulic system is depressurized and the cylinder is in a safe position.b. Remove any mounting brackets or fixtures securing the cylinder to the equipment.c. Locate and remove the retaining bolts or pins holding the cylinder's end caps.d. Gently tap the end cap with a soft mallet or hammer to dislodge it from the cylinder.e. Once the end cap is removed, carefully pull out the piston assembly, taking note of its orientation and any seals that may come with it.f. Repeat the process for the other end cap, if applicable.
3. Component Inspection:a. Inspect the cylinder barrel for signs of scoring, pitting, or other damage. The cylinder barrel may need to be replaced if significant damage is present.b. Examine the piston and rod for wear, scoring, or bent sections. If necessary, replace the piston or rod.c. Check the seals and O-rings for wear, cracks, or damage. Replace any seals that show signs of deterioration.
4. Cleaning:a. Clean all disassembled components using a suitable cleaning solvent to remove dirt, debris, and old lubricant.b. Use a soft cloth or brush to remove any stubborn residues.c. Ensure all components are thoroughly dried before proceeding.
5. Reassembly:a. Apply a small amount of lubricating oil or hydraulic fluid to the new seals and O-rings to ease installation.b. Install the new seals and O-rings onto the piston and end caps, ensuring they are properly seated.c. Carefully insert the piston assembly back into the cylinder barrel, aligning it with the rod and seals.d. Securely attach the end caps to the cylinder barrel using the retaining bolts or pins.e. Tighten the bolts or pins to the manufacturer's specified torque settings.f. Check the movement of the piston and rod to ensure smooth operation.
6. Cylinder Testing:a. Reinstall the hydraulic cylinder onto the equipment, following the manufacturer's guidelines.b. Restore hydraulic pressure to the system and test the cylinder's functionality.c. Monitor for any leaks, abnormal noises, or irregular movements.d. Make any necessary adjustments or repairs before returning the equipment to regular operation.
