The CA Monoaural Type PHS Fisheye Connector Light Rod Hydraulic Cylinder is an innovative hydraulic cylinder designed to deliver enhanced precision, connectivity, and efficiency in industrial applications. This cylinder combines the advantages of a monoaural design, PHS fisheye connector, and light rod construction to provide reliable and high-performance hydraulic power.Key Characteristics and Benefits:Monoaural Design: The cylinder features a monoaural design with a single rod extending from one end. This design ensures compactness and simplifies installation, making it suitable for applications with limited space.PHS Fisheye Connector: The PHS fisheye connector is a unique feature of this hydraulic cylinder. It provides a secure and efficient connection between the cylinder and other hydraulic components, ensuring reliable power transmission and minimizing the risk of leaks.Light Rod Construction: The light rod construction utilizes lightweight materials such as aluminum or composites. This reduces overall weight, enabling faster operation, reduced energy consumption, and improved efficiency.Enhanced Precision: The CA Monoaural Type PHS Fisheye Connector Hydraulic Cylinder ensures precise linear motion control. It delivers accurate positioning and smooth movement, making it ideal for applications that require high precision, such as robotics, automation systems, and packaging machinery.

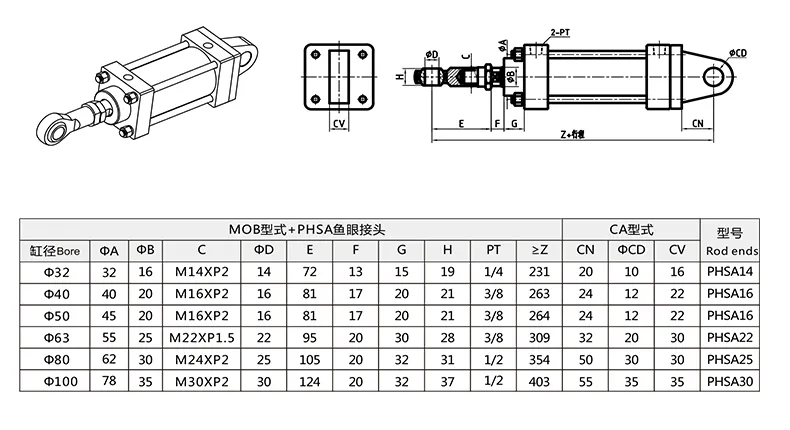

CA Monoaural Type PHS Fisheye Connector Light Rod Hydraulic Cylinder Parameter:

Usage Method Of CA Monoaural Type Y Connector Light Rod Hydraulic Cylinder:

1. Mounting: Securely mount the cylinder using appropriate fasteners, ensuring stability and proper alignment.
2. Hydraulic Connections: Utilize the PHS fisheye connector to connect the hydraulic lines to the designated ports on the cylinder. Ensure tight fittings to prevent leakage and ensure efficient power transmission.
3. Power Source: Connect the cylinder to a reliable hydraulic power source, such as a pump or power unit, through the appropriate hydraulic lines.
4. Testing and Adjustment: Before operation, thoroughly check all connections and ensure they are secure. Test the cylinder's movement by activating the hydraulic system and verifying smooth linear motion.

Maintenance Of CA Monoaural Type Y Connector Light Rod Hydraulic Cylinder:

Proper maintenance is essential for maximizing the longevity and performance of the CA Monoaural Type PHS Fisheye Connector Light Rod Hydraulic Cylinder. Here are some maintenance guidelines:

1. Regular Inspections: Periodically inspect the cylinder for any signs of wear, damage, or leaks. Pay attention to seals, fittings, and the PHS fisheye connector.
2. Lubrication: Apply the recommended lubricant to the moving parts of the cylinder, including the rod and seals, per the manufacturer's guidelines. Regular lubrication ensures smooth operation and minimizes friction-related issues.
3. Seal Replacement: If you notice seal deterioration or leakage, replace the seals using genuine manufacturer-approved parts. Follow the appropriate seal replacement procedure.
4. Cleaning: Keep the cylinder clean by removing dirt, debris, and contaminants that may affect its performance. Use a non-abrasive cleaner and ensure all components are thoroughly dry before reassembly.

How Does a Hydraulic Cylinder Work?

A hydraulic cylinder is a mechanical device that converts hydraulic energy into linear force and motion. It operates based on the principles of Pascal's law, which states that when pressure is applied to a fluid in an enclosed system, the force is transmitted equally in all directions.Here's a simplified explanation of how a hydraulic cylinder works:

1. Basic Components: A hydraulic cylinder consists of a cylindrical barrel, a piston, a piston rod, and seals. The barrel is typically sealed at one end and open on the other.
2. Fluid and Pressure: Hydraulic cylinders utilize a hydraulic fluid, usually oil, which is stored in a reservoir. The fluid is pressurized by a hydraulic pump, creating a flow of pressurized fluid in the hydraulic system.
3. Fluid Introduction: Pressurized hydraulic fluid is directed into the cylinder through a control valve. The control valve allows the operator to regulate the flow of fluid into and out of the cylinder, controlling the direction and speed of the cylinder's movement.
4. Piston and Piston Rod: Inside the cylinder, the piston is located. The piston divides the cylinder into two chambers: the rod side and the cap side. The piston rod extends from the piston and protrudes through a seal in the closed end of the cylinder.
5. Force and Motion Generation: When pressurized fluid is introduced into one chamber, it exerts force on the piston, causing it to move in the cylinder. As the piston moves, the piston rod connected to it also extends or retracts, depending on the direction of fluid flow.
6. Sealing: Seals located on the piston and cylinder prevent fluid from leaking between the chambers, ensuring that the pressure is applied effectively to generate force and motion.
7. Control and Direction: By manipulating the control valve, the operator can control the flow of hydraulic fluid into the cylinder, determining the direction and speed of the piston's movement. Reversing the flow of fluid will cause the piston to move in the opposite direction.
8. Load Handling: The hydraulic cylinder's linear motion and force can be used to move or exert force on external loads. For example, hydraulic cylinders are commonly employed in various applications such as construction equipment, industrial machinery, hydraulic presses, and automotive systems.

China Hydraulic Cylinder Manufacturers:

Raydafon is a company in the R&D and manufacture of light rod hydraulic cylinders. It maintains a leading position in the market segment of hydraulic cylinders for forklifts in China. In 2020, the domestic market share was around 29%. We produce Industrial vehicle light rod hydraulic cylinders, Aerial work vehicle light rod hydraulic cylinders, Agricultural Machinery hydraulic cylinders, and Sanitation machinery hydraulic cylinders.We have a first-class independent R&D platform for assembly. The light rod hydraulic cylinder production workshop has four semi-automatic lifting cylinder assembly lines and one fully automatic tilting cylinder assembly line, with a designed annual production capacity of 1 million pieces; the special cylinder workshop is equipped with semi-automatic cleaning and assembly systems of various specifications, with a designed annual production capacity of 200,000 essays. It has famous CNC machining equipment, machining centers, special equipment for high-precision cylinder processing, robot welding machines, automatic cleaning machines, automatic cylinder assembly machines, and automatic paint production lines. We have more than 300 sets of critical equipment running. The optimized allocation and efficient utilization of equipment resources ensure the precision requirements of the products and meet the high standard quality requirements of the products.
