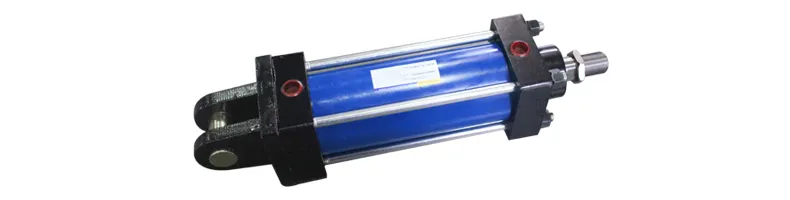

CB With Pin Light Rod Hydraulic Cylinder

CB With Pin Light Rod Hydraulic Cylinder

The CB With Pin Light Rod Hydraulic Cylinder is a remarkable hydraulic cylinder designed to deliver exceptional performance and flexibility in various industrial applications. With its unique pin design and light rod construction, this cylinder offers precise linear motion control and enhanced operational efficiency. Whether used in manufacturing equipment, construction machinery, or material handling systems, the CB With Pin Light Rod Hydraulic Cylinder is a reliable solution that optimizes productivity and ensures smooth operation.Key Characteristics Of Light Rod Hydraulic Cylinder:Pin Design: The cylinder features a pin design that allows for easy installation and removal. The pins provide a secure connection between the cylinder and the mounting structure, ensuring stability and minimizing the risk of misalignment or movement during operation.Light Rod Construction: The light rod construction incorporates lightweight materials such as aluminum or composites for the piston rod. This construction reduces the overall weight of the cylinder, resulting in faster movement, improved energy efficiency, and reduced operational costs.Precise Linear Motion Control: The CB With Pin Light Rod Hydraulic Cylinder is engineered to provide precise linear motion control. It ensures accurate positioning, smooth movement, and exceptional repeatability, making it ideal for high-precision and reliability applications.

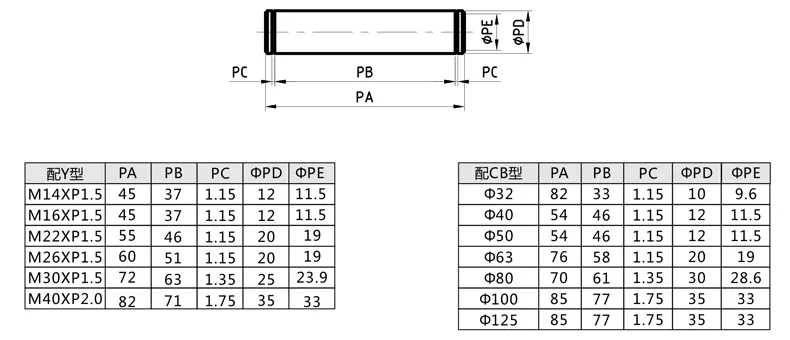

CB With Pin Light Rod Hydraulic Cylinder Parameter:

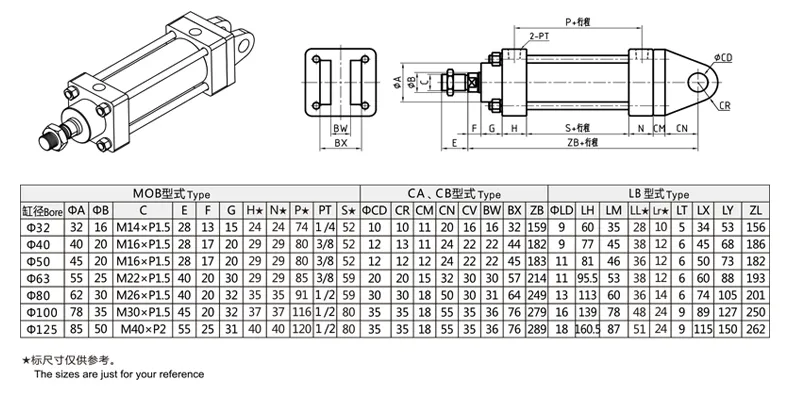

Bolt Outline Installation Dimension Drawing:

Usage Method Of CB With Pin Light Rod Hydraulic Cylinder Cylinder:

1. Mounting: Attach the cylinder to the mounting structure using the provided pins. Ensure that the pins are inserted correctly and tightly secured to prevent any movement or misalignment during operation.
2. Hydraulic Connections: Connect the hydraulic lines to the designated ports on the cylinder, ensuring proper alignment and tight fittings to prevent leakage. Follow the hydraulic system's guidelines and consult the manufacturer's instructions for the appropriate hydraulic connections.
3. Power Source: Connect the cylinder to a reliable hydraulic power source, such as a pump or power unit, through the appropriate hydraulic lines. Ensure the power source matches the cylinder's specifications and operating requirements.
4. Control and Testing: Utilize the control valves to regulate the flow of hydraulic fluid into and out of the cylinder. Test the cylinder's movement by activating the hydraulic system and observing the linear motion. Verify that the cylinder operates smoothly and precisely without abnormal sounds or vibrations.

Maintenance Of CB With Pin Light Rod Hydraulic Cylinder:

Regular maintenance is crucial to ensure optimal performance and prolong the lifespan of the CB With Pin Light Rod Hydraulic Cylinder's lifespan. Here are some maintenance guidelines:

1. Regular Inspections: Periodically inspect the cylinder for signs of wear, damage, or leaks. Check the pins, seals, rods, and other components for abnormalities. Address any issues promptly to prevent further injury or operational inefficiencies.
2. Lubrication: Apply the recommended lubricant to the moving parts of the cylinder, including the rod and seals. Regular lubrication minimizes friction, reduces wear, and ensures smooth operation. Follow the manufacturer's guidelines for the appropriate lubrication intervals and lubricant type.
3. Seal Replacement: If you notice seal deterioration or leakage, promptly replace the seals using genuine manufacturer-approved parts. Incorrect or worn seals can compromise the cylinder's performance and lead to hydraulic fluid leaks.
4. Cleaning: Clean the cylinder by removing dirt, debris, and other contaminants. Use a non-abrasive cleaner and ensure all components are thoroughly dry before reassembly. A clean cylinder promotes optimal performance and prevents premature wear or damage.

How To Disassemble A Hydraulic Cylinder?

Disassembling a hydraulic cylinder requires careful attention and adherence to proper procedures to ensure safe and effective disassembly. Here is a general guide on how to disassemble a hydraulic cylinder:

1. Safety Precautions: Before beginning the disassembly process, ensure the hydraulic system is depressurized and the equipment is securely stabilized to prevent accidental movement or injury. Wear appropriate personal protective equipment (PPE) such as gloves and safety glasses.
2. Identify the Cylinder: Familiarize yourself with the specific type and model of hydraulic cylinder you are working on. Refer to the manufacturer's documentation or technical specifications for disassembly instructions or precautions.
3. Drain Hydraulic Fluid: Position a suitable container beneath the cylinder to catch any hydraulic fluid draining during disassembly. Loosen the fittings or plugs on the cylinder to allow the liquid to drain completely.
4. Secure the Cylinder: Use appropriate clamps or fixtures to hold the cylinder securely during disassembly. This ensures stability and prevents any accidental movement or damage.
5. Remove External Components: Remove any external components attached to the cylinder, such as mounting brackets, end caps, or covers. Use the appropriate tools, such as wrenches or sockets, to loosen and remove fasteners or retaining bolts.
6. Disassemble the Head and Cap: Carefully remove the head and cap of the cylinder. Depending on the cylinder design, these may be secured by bolts or threaded connections. Loosen the fasteners or unscrew the links, not damaging any sealing surfaces.
7. Extract the Piston and Rod: Once the head and cap are removed, the piston and rod assembly can be extracted from the cylinder barrel. Slowly and evenly push or pull the piston and rod out of the barrel, ensuring it remains aligned and does not bind or get stuck.
8. Inspect and Clean Components: Inspect all disassembled components for signs of wear, damage, or contamination. Clean the parts using an appropriate solvent or cleaner to remove dirt, debris, or hydraulic fluid residue. Use lint-free cloths or brushes for cleaning.
9. Replace Seals and Worn Parts: If any seals or other components show signs of wear or damage, replace them with genuine manufacturer-approved parts. Ensure that the replacement parts match the specifications of the original features.
10. Reassembly or Further Maintenance: If you are conducting maintenance or repairs on specific cylinder components, follow the appropriate procedures. Otherwise, reverse the disassembly steps if you need to reassemble the cylinder, ensuring all members are properly aligned and tightened according to the manufacturer's specifications.

China Hydraulic Cylinder Manufacturers:

Raydafon is a company in the R&D and manufacture of light rod hydraulic cylinders. It maintains a leading position in the market segment of hydraulic cylinders for forklifts in China. In 2020, the domestic market share was around 29%. We produce Industrial vehicle light rod hydraulic cylinders, Aerial work vehicle light rod hydraulic cylinders, Agricultural Machinery hydraulic cylinders, and Sanitation machinery hydraulic cylinders.We have a first-class independent R&D platform for assembly. The light rod hydraulic cylinder production workshop has four semi-automatic lifting cylinder assembly lines and one fully automatic tilting cylinder assembly line, with a designed annual production capacity of 1 million pieces; the special cylinder workshop is equipped with semi-automatic cleaning and assembly systems of various specifications, with a designed annual production capacity of 200,000 essays. It has famous CNC machining equipment, machining centers, special equipment for high-precision cylinder processing, robot welding machines, automatic cleaning machines, automatic cylinder assembly machines, and automatic paint production lines. We have more than 300 sets of critical equipment running. The optimized allocation and efficient utilization of equipment resources ensure the precision requirements of the products and meet the high standard quality requirements of the products.
