CE Approved Tractor Driven Straw Pickup Round Hay Baler for Agricultural Machine

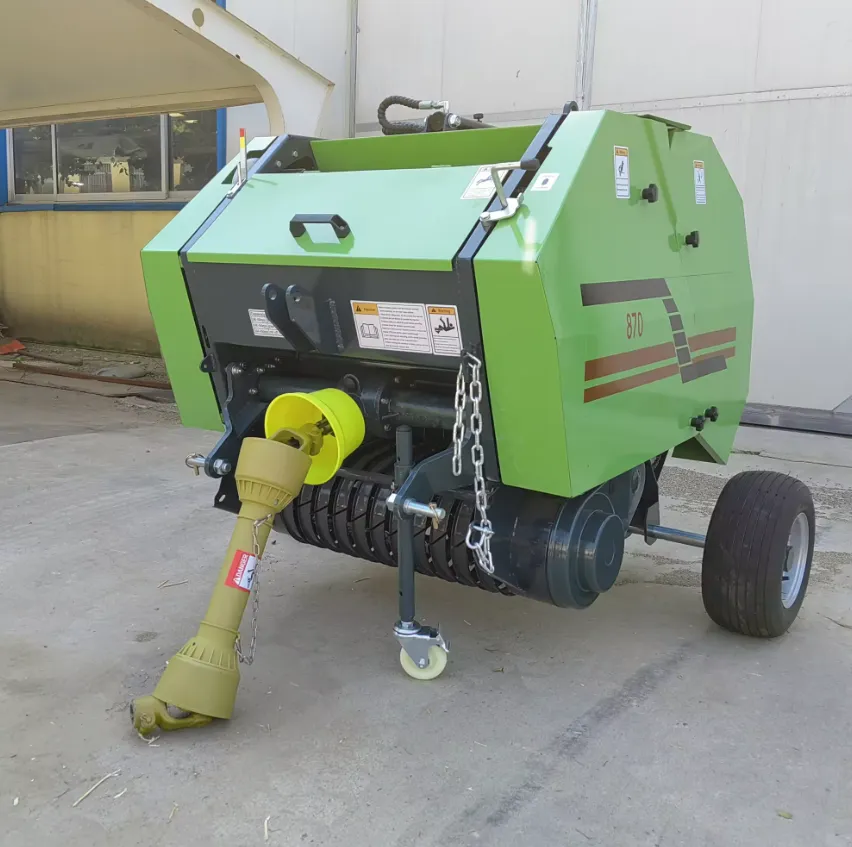

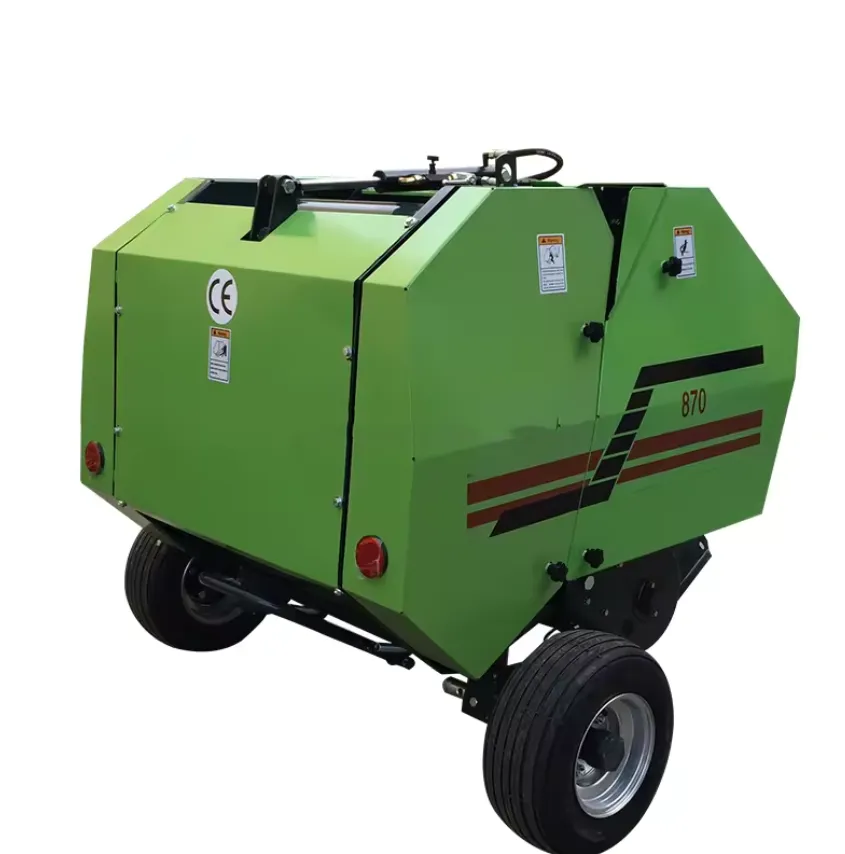

Efficiency and reliability merge in our CE-approved, tractor-driven straw pickup round hay baler. A necessary tool for agricultural machinery, this round baler is perfect for hay, cornstalk, wheat, and rice straw applications. With a dimension of 1300x1300x1350mm and weighing 390 kg, it comes with a one-year warranty and after-sales service provided by engineers available to service machinery overseas. The baler has a pickup width of 800mm, working efficiency of 80-120 bales/hour, PTO of 540rpm, and is suitable for tractors with 18-50HP power. The bale size is customizable between 500x700mm and 610x700mm, with a tire size of 16x6.5-8-4pr. This new model, with model numbers RXYK0850 and RXYK0870, is CE ISO certified.

Advantages of the Tractor Driven Straw Pickup Round Hay Baler

This exceptional round hay baler comes with numerous advantages, making it an excellent tool for your agricultural needs:

1. CE ISO Certified: Ensures the product meets international quality standards.
2. Operational Efficiency: It can produce 80-120 bales per hour, enhancing your productivity.
3. Wide Application: Perfect for bundling hay, cornstalk, wheat, and rice straw.
4. Compact Design: The baler's size and weight make it easy to maneuver and operate.
5. Low Power Requirement: It can operate efficiently with tractors ranging from 18-50HP.
6. After-sales Service: Engineers are available to service machinery overseas, ensuring ongoing support and assistance.

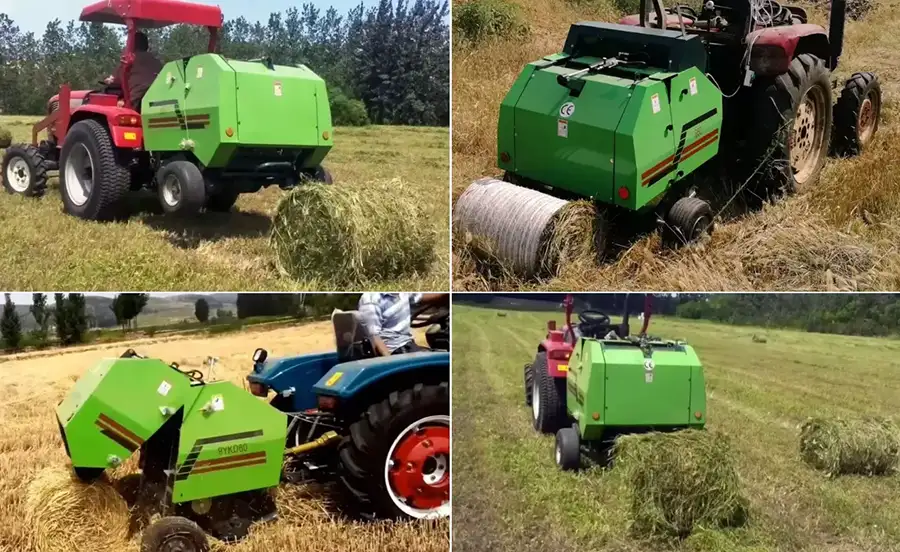

Applications of the Tractor Driven Straw Pickup Round Hay Baler

The tractor-driven straw pickup round hay baler is a versatile machine with a wide range of applications:

1. Farming: It is perfect for bundling hay, cornstalk, wheat, and rice straw on farms.
2. Landscaping: It can be used for removing and bundling straw and hay in landscaping projects.
3. Animal Husbandry: It can help in preparing feedstock for livestock by bundling hay or straw.
4. Waste Management: It can bundle and manage agricultural waste materials efficiently.
5. Rural Development Projects: It can be used in rural development projects where hay and straw management is necessary.
6. Environmental Projects: It can be used in environmental projects for managing and recycling organic waste.

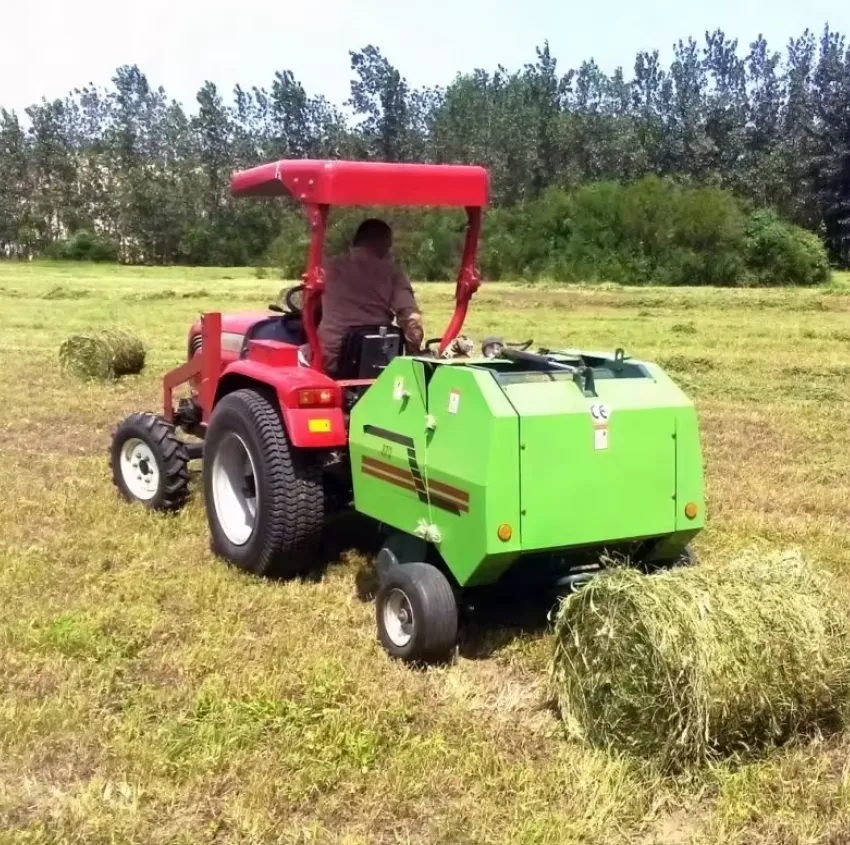

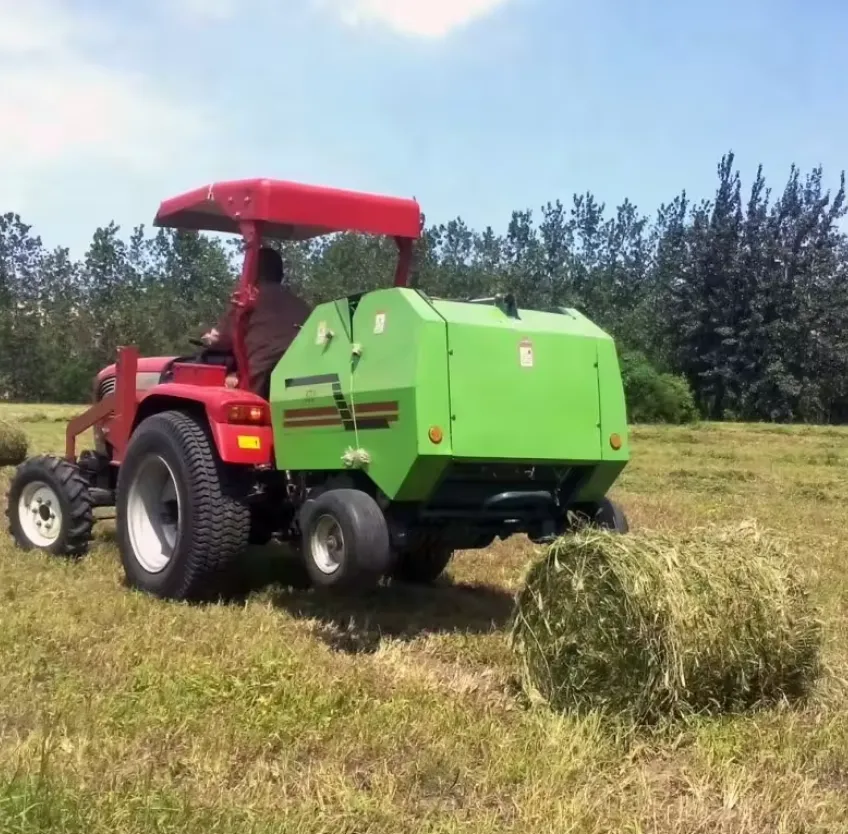

How Does the Tractor Mounted Mini Hay Round Baler Work?

The tractor-mounted mini hay round baler works through a series of steps:

1. Preparing the Tractor: The tractor is equipped with the necessary power take-off (PTO) shaft and hydraulic connections to operate the baler.
2. Hitching the Baler: The baler is attached to the tractor's three-point hitch or other compatible attachment mechanism, ensuring a firm and stable connection.
3. Adjusting Settings: Baling parameters are set based on the desired bale size, density, and other factors. These settings may include bale diameter, bale weight, twine tension, and bale density.
4. Operating the Pickup Attachment: The pickup attachment of the baler is lowered onto the ground using the tractor's hydraulic controls. The pickup attachment consists of rotating tines or belts that gather the loose hay or straw from the ground and feed it into the baling chamber.
5. Bale Formation: As the pickup attachment collects the material, it is conveyed into the baling chamber of the baler. Inside the chamber, the material is compressed and formed into a round bale by a combination of belts and rollers.
6. Bale Ejection: Once the bale reaches the desired size and density, it is ejected from the baling chamber and released onto the ground. Some mini hay round balers may have an automatic bale ejection mechanism, while others require manual assistance to remove the bale from the chamber.

How to Install the Mini Hay Round Baler to a Tractor?

Installing the mini hay round baler involves several steps:

1. Read the Manuals: Begin by reading the operator's manuals for both the tractor and the mini hay round baler. These manuals will provide specific instructions for attaching and operating the equipment.
2. Position the Tractor and Baler: The tractor is positioned close to the baler so that the PTO shaft on the tractor aligns with the PTO input shaft on the baler.
3. Attach the Baler to the Tractor: If your baler attaches via a three-point hitch, raise the hitch on the tractor and align the hitch arms with the mounting points on the baler. For balers that connect via a drawbar, line up the drawbar of the tractor with the tow bar of the baler and insert the pin through both holes to secure them together.
4. Connect the PTO Shaft: The PTO shaft from the baler is slid onto the PTO stub on the tractor. Ensure it locks into place; you should hear a click or be able to see that the locking mechanism is engaged.
5. Connect Hydraulics (If Applicable): If the baler requires hydraulic connections to operate, connect the hydraulic hoses from the baler to the tractor's hydraulic outputs.
6. Test the Connections: Before operating the baler, check all the connections, including the hitching mechanism, hydraulic hoses, and PTO shaft, to ensure they are secure and properly fitted.

Maintenance of the Tractor Driven Straw Pickup Round Hay Baler

Proper maintenance of the mini hay round baler is essential:

1. Regular Cleaning: After each use, clean the baler thoroughly to remove any accumulated debris, hay, or straw.
2. Lubrication: Check the baler's lubrication points and follow the manufacturer's recommendations for lubrication intervals.
3. Roller Inspection: Inspect the rollers for any signs of damage, misalignment, or excessive wear.

4. Twine or Net Wrap System: If your baler uses twine or net wrap for bale tying, inspect the twine or net wrap system regularly.
5. PTO Maintenance: If the baler is powered by the tractor's power take-off (PTO), inspect the PTO shaft regularly for any signs of wear, damage, or loose connections.
6. Check Hydraulic System: If your baler has a hydraulic system, inspect the hoses, fittings, and cylinders for leaks, damage, or signs of wear.

Why Choose Raydafon's Mini Hay Round Baler for Agricultural?

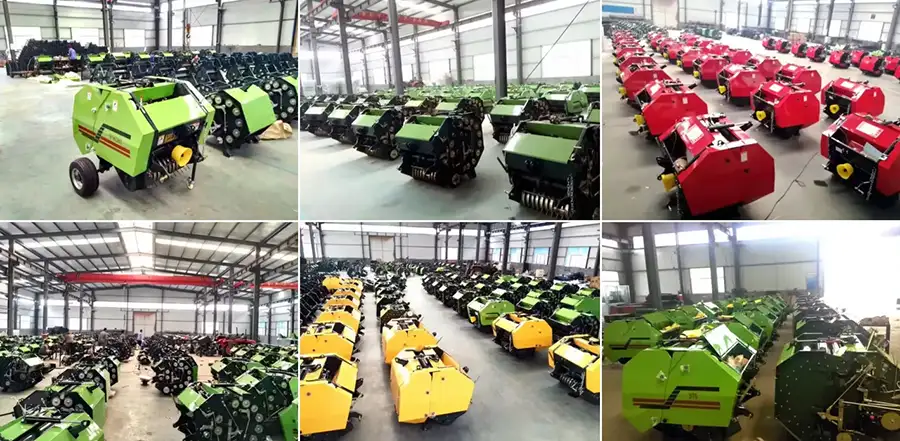

With over 100 employees, including 20 technical staff and five senior R&D personnel, Raydafon Agricultural Machinery Co., Ltd. offers exceptional products and services. Our company holds numerous international certifications and provides customized services based on customer needs. We have an advanced production facility and offer comprehensive after-sales services. Our main products include PTO shafts, agricultural gearboxes, flail mowers, lawn mowers, sickle bar mowers, rotary mowers, rotary tillers, land levelers, fertilizer spreaders, furrow ploughs, hay rakes, disc harrows, disc blades, disc ridgers, disc ploughs, potato planters, potato harvester, corn seeder, wheat seeder, vegetable seeder, post hole diggers, boom sprayers, agricultural subsoiler, agricultural trailers, and more.
