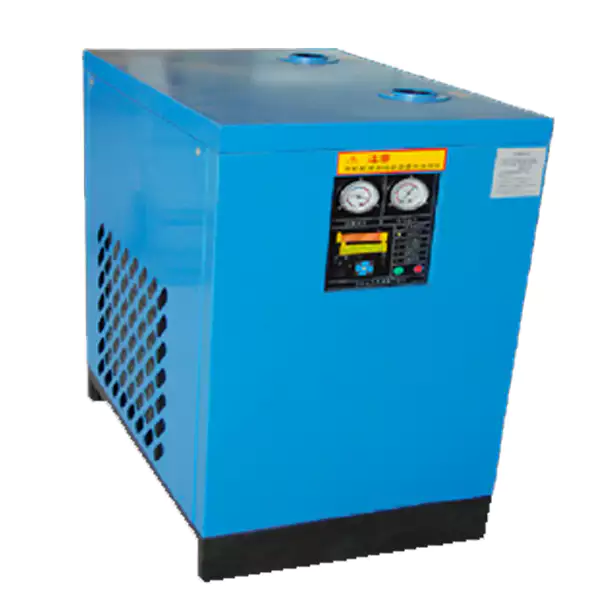

CMNGL-60F High Temperature Refrigerated Compressed Air Dryer

CMNGL-60F High Temperature Refrigerated Compressed Air Dryer

Background and Importance of High Temperature Refrigerated Drying Technology

High temperature refrigerated drying technology plays a crucial role in various industries where compressed air is used. It is essential to remove moisture and contaminants from compressed air to ensure the efficient and reliable operation of equipment and processes. The following points elaborate on the background and importance of high temperature refrigerated drying technology:

• Moisture Control: High temperature refrigerated drying technology effectively controls the moisture content in compressed air, preventing corrosion, and minimizing damage to downstream equipment.
• Prolonged Equipment Life: By removing moisture and contaminants, high temperature refrigerated dryers help extend the lifespan of air compressors, pneumatic tools, and other compressed air systems.
• Energy Efficiency: Properly dried compressed air reduces energy consumption, as dry air requires less energy to compress and operate pneumatic systems.
• Process Optimization: High temperature refrigerated dryers ensure the quality and reliability of compressed air, contributing to optimized production processes and reduced downtime.

Technical Parameters

Parameters Model	CMNGL-60F
Processing capacity (m3/min)	6.8
Power supply	220V/1p
Cooling power (HP)	1 1/2
Pipe diameter	G1 1/2''
Dimensions L*W*H (mm)	1000*1070*550
Equipment weight (KG)	190
Pressure dew point	2℃～10℃ (normal pressure dew point -17℃～-23℃)
Refrigerant	R-22

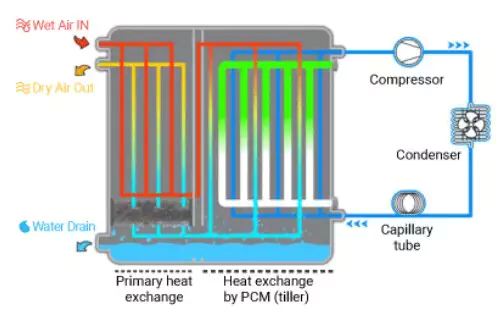

Introduction to High Temperature Refrigerated Air Dryer and its Working Principle

A high temperature refrigerated air dryer is a device designed to remove moisture and contaminants from compressed air. It operates based on the following principles:

• Air Compression: The compressed air enters the dryer at high temperatures and pressures.
• Cooling: The hot compressed air passes through a heat exchanger, where it is cooled to a lower temperature.
• Condensation: As the air cools, the moisture vapor in the compressed air condenses into liquid form.
• Separation: The liquid moisture is separated from the cooled air through a moisture separator.
• Drying: The dried compressed air is reheated to near ambient temperature before exiting the dryer.

Advantages of High Temperature Refrigerated Drying Technology

High temperature refrigerated drying technology offers several advantages over traditional drying methods like hot air drying and vacuum drying:

• Energy Efficiency: High temperature refrigerated dryers consume less energy compared to hot air dryers, resulting in cost savings.
• Consistent Performance: Refrigerated dryers can maintain a constant dew point, ensuring consistent and reliable air quality.
• Compact Design: High temperature refrigerated dryers are compact and require less floor space, making them suitable for various installation environments.
• Ease of Operation: Refrigerated dryers are easy to operate and maintain, reducing downtime and maintenance costs.
• Cost-Effective: The initial investment and operational costs of high temperature refrigerated dryers are generally lower compared to vacuum drying systems.

Working Process and Key Components of High Temperature Refrigerated Dryers

High temperature refrigerated dryers consist of several key stages and components:

1. Preprocessing Stage: In this stage, the compressed air passes through filters to remove larger particles and contaminants.
2. Sublimation Drying Stage: The preprocessed air enters the drying chamber, where the moisture content is reduced through sublimation.
3. Desorption Drying Stage: The partially dried air is further dehumidified through desorption, ensuring a low dew point.
4. Key Component Analysis: The crucial components of high temperature refrigerated dryers include the compressor, heat exchanger, moisture separator, and control system. These components work together to achieve effective drying and reliable operation.

Applications and Case Studies of High Temperature Refrigerated Air Dryers

High temperature refrigerated air dryers find application in various industries, including:

• Food and Beverage: Ensuring the purity of compressed air used in food processing and packaging.
• Pharmaceutical: Providing clean and dry compressed air for pharmaceutical manufacturing processes.
• Automotive: Preventing moisture-related issues in paint booths and pneumatic tools.
• Textile: Maintaining the quality of compressed air for textile manufacturing and spinning processes.

Purchasing and After-Sales Service Guide

Consider the following points when purchasing a high temperature refrigerated dryer:

1. Capacity and Air Flow: Determine the required capacity and air flow rate to meet the specific application demands.
2. Reliability and Durability: Choose a reputable manufacturer known for producing reliable and durable dryers.
3. Installation and Maintenance: Ensure that the dryer comes with clear installation instructions and accessible maintenance procedures.
4. Warranty and Service: Check the warranty period and inquire about after-sales service and technical support.

About Our Factory

At our factory, we take pride in being a professional manufacturer of air compressors and related products. Our advantages include:

• Experience: With years of experience in the industry, we have gained expertise in producing high-quality compressed air equipment.
• Advanced Technology: We utilize advanced technology and innovative methods to ensure the performance and reliability of our products.
• Customization: We offer customization options to meet specific customer requirements and provide tailored solutions.
• Quality Assurance: Our products undergo rigorous quality checks to ensure they meet international standards and customer expectations.
• Customer Satisfaction: We strive to provide excellent customer service, support, and timely after-sales assistance.
