Corn Header Gearbox - Replacement of Comer Code N669-J

Corn Header Gearbox - Replacement of Comer Code N669-J

A corn header gearbox is a vital component of a combine harvester used for harvesting corn. It is responsible for transferring power from the main drive system to the corn header, allowing the harvesting of corn to be more efficient. The gearbox's design and durability play a critical role in the performance and longevity of the corn header.

Details of Corn Header Gearbox

Product name:	Corn header gearbox
Gearing Arrangement:	Bevel / Miter
Output Torque:	as drawing
Input Speed:	1000rpm
Output Speed:	as drawing
Color:	Customer Requests
Weight:	82kg
Chain wheel ratio:	1.91:1
Stalk pulled roller ratio:	1:1.2
Noise:	Less than 92db at 1-meter distance in front of the gearbox
Application:	Corn harvester
Place of Origin:	China

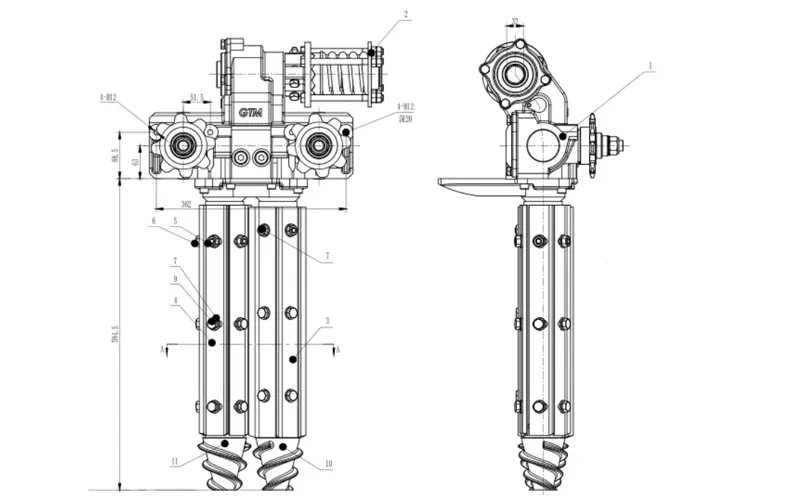

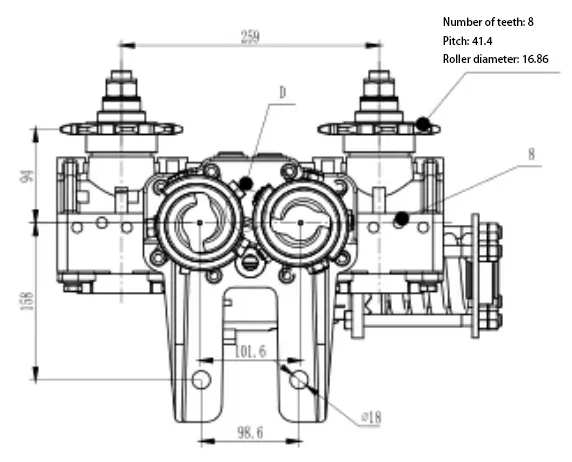

Specifications of Corn Header Gearbox

Main Features

• 1）Safe, reliable, economical, and durable
• 2) Smooth transmission and quiet operation
• 3) Custom production gearboxes for corn harvesters with various input power and transmission ratios are available
• 4) China famous brand —— 2 years warranty for correct operation and long-term after-sales service
• 5) Professional QC department and testing equipment, good control of size and backlash, and noise.
• 6) Skilled design department. Can produce gearbox drawings according to customer requirements.

We are a professional gearbox manufacturing company in China. Our agricultural gearboxes have been exported to the USA, Canada, Australia, Thailand, and other countries.Corn header gearboxes are used for corn harvesters, and we can also provide custom production gearboxes for corn harvesters with various input power and transmission ratios.

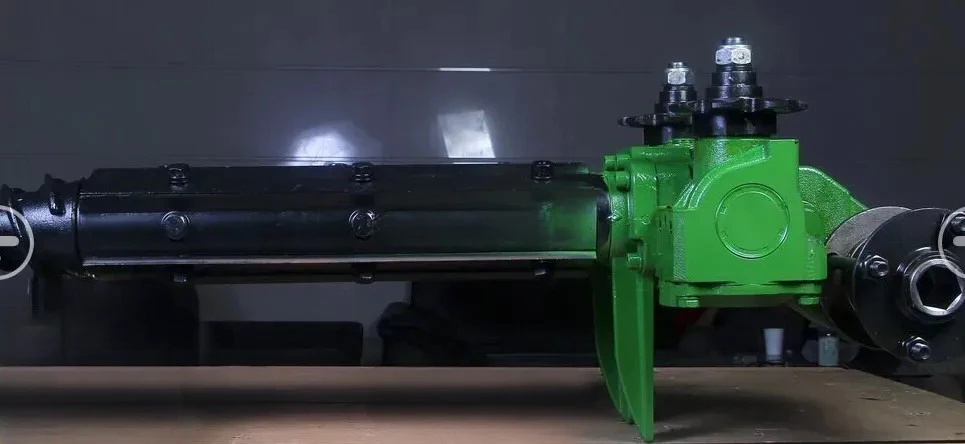

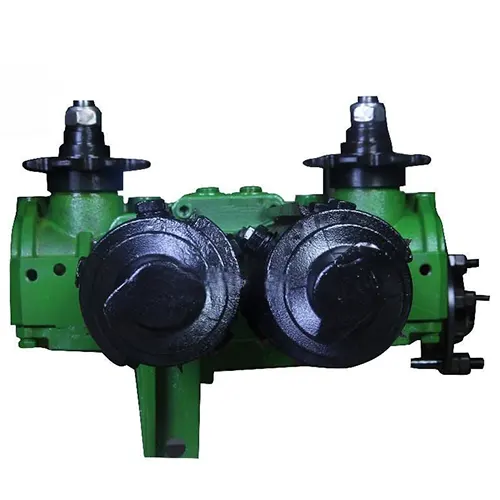

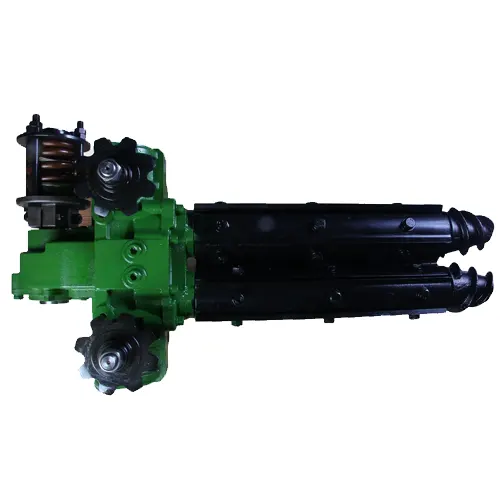

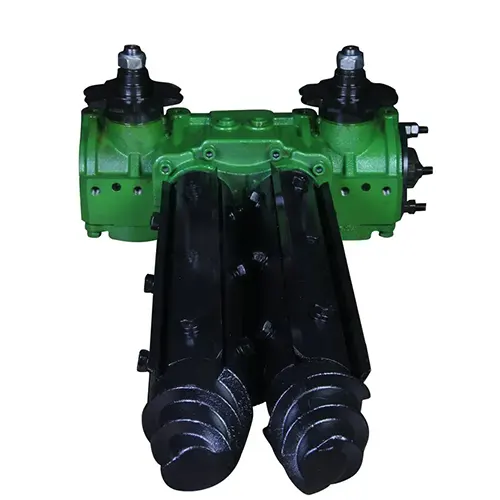

Corn Header Gearbox Display

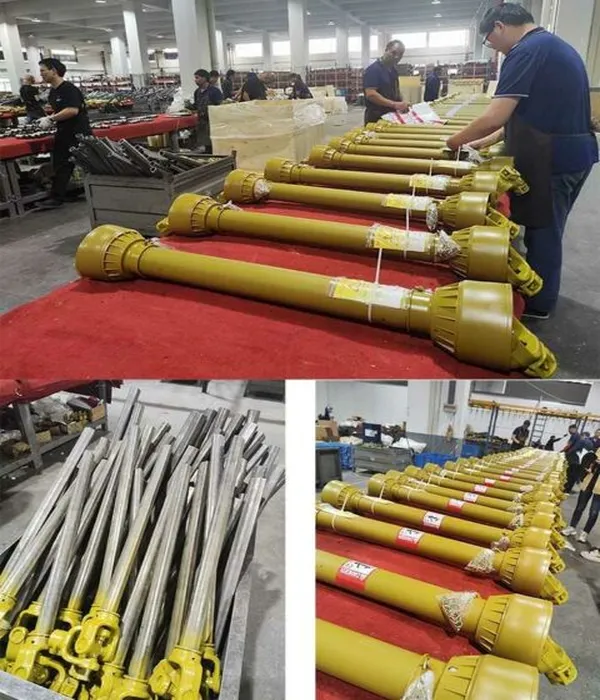

Buy PTO Shafts for Agricultural Gearboxes

Agricultural equipment such as tractors, combines, and harvesters use PTO shafts. These components are subjected to high loads and stress, and it is vital to find out why they failed in the first place. Constant shaft compression can damage connecting shafts and even the tractor and implement. A PTO shaft for an agricultural gearbox is an integral part of an agricultural implement or tractor. And PTO shaft for the agricultural gearbox is secured with a safety shield at both ends and can be found on implements and tractors. A PTO shaft can be welded to the drive end by using a universal joint, while the rear shaft can be welded directly to the tractor. We also provide PTO Shafts for sale. Feel free to contact us if you are interested.
