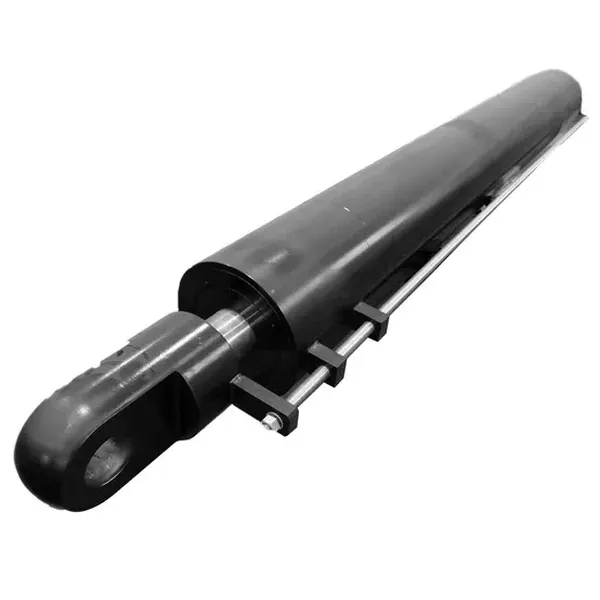

Crane Boom Anti Tilt Hydraulic Cylinder

Crane Boom Anti Tilt Hydraulic Cylinder

A crane boom anti-tilt hydraulic cylinder is a type of hydraulic cylinder that is used to prevent the boom of a crane from tilting. It is a double-acting cylinder, which means that it can both push and pull its load. The cylinder is typically mounted on the side of the boom and is connected to the chassis of the crane. When the cylinder is extended, it pushes against the boom and prevents it from tilting. When the cylinder is retracted, it pulls the boom back into a vertical position.

Crane boom anti-tilt hydraulic cylinders are an important safety feature that helps to prevent accidents. They can help to prevent the boom from tipping over, which could cause serious injury or damage.

Here are some of the benefits of using a crane boom anti-tilt hydraulic cylinder:

• Increased safety: The boom anti tilt hydraulic cylinder helps to prevent the boom from tipping over, which can prevent serious injury or damage.
• Improved stability: The boom anti tilt hydraulic cylinder helps to keep the boom stable, even when it is extended to its full length.
• Extended reach: The boom anti tilt hydraulic cylinder can help to extend the reach of the boom, allowing the crane to reach objects that are further away.
• Reduced wear and tear: The boom anti tilt hydraulic cylinder helps to reduce the wear and tear on the boom, which can extend its lifespan.

If you are operating a crane, it is important to make sure that it is equipped with a crane boom anti-tilt hydraulic cylinder. This is a safety feature that can help to prevent accidents and keep you and others safe.

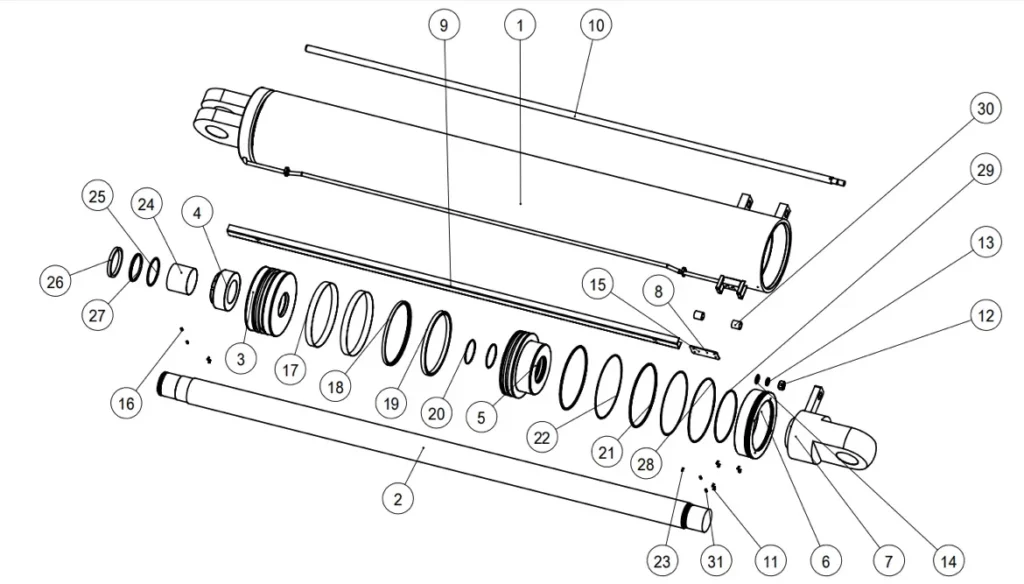

Crane Boom Anti Tilt Hydraulic Cylinder Parts:

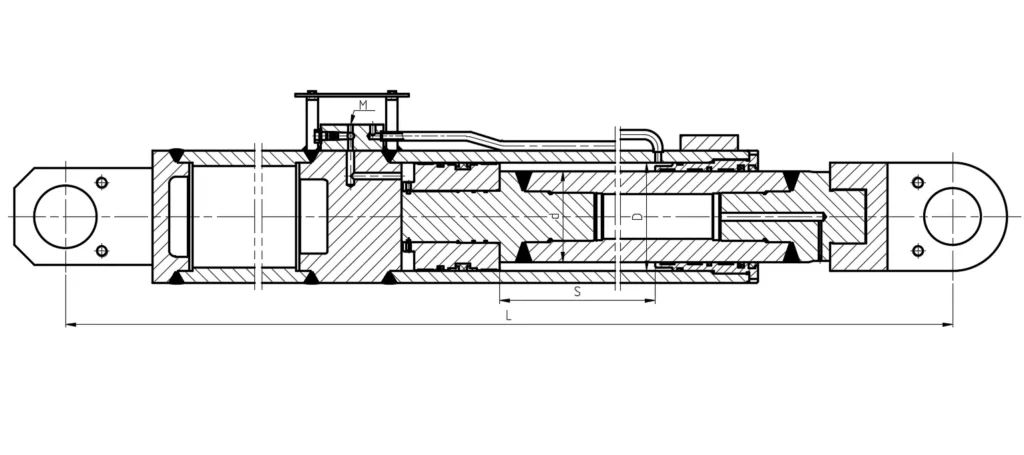

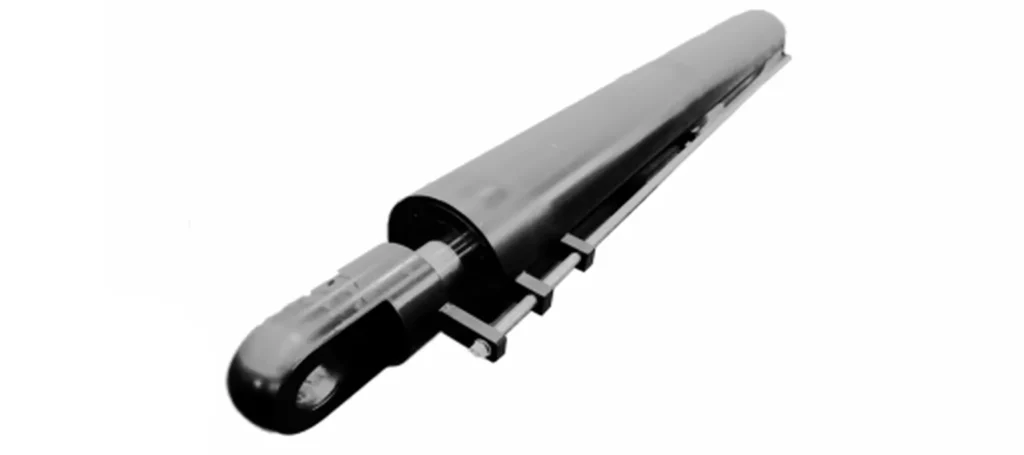

Crane Boom Anti Tilt Hydraulic Cylinder Dimensions:

Cylinder Name	Drawing number	Bore diameter (D)	Rod diameter (d)	Stroke (S)	Installation distance (L)	Working pressure	Interface dimensions (M)	Weight
Boom anti-tilt hydraulic cylinder	ZXYG17.04-00	Φ190	Φ160	1400	4300	31.5MPa	G1/4;2-Φ9	820kg

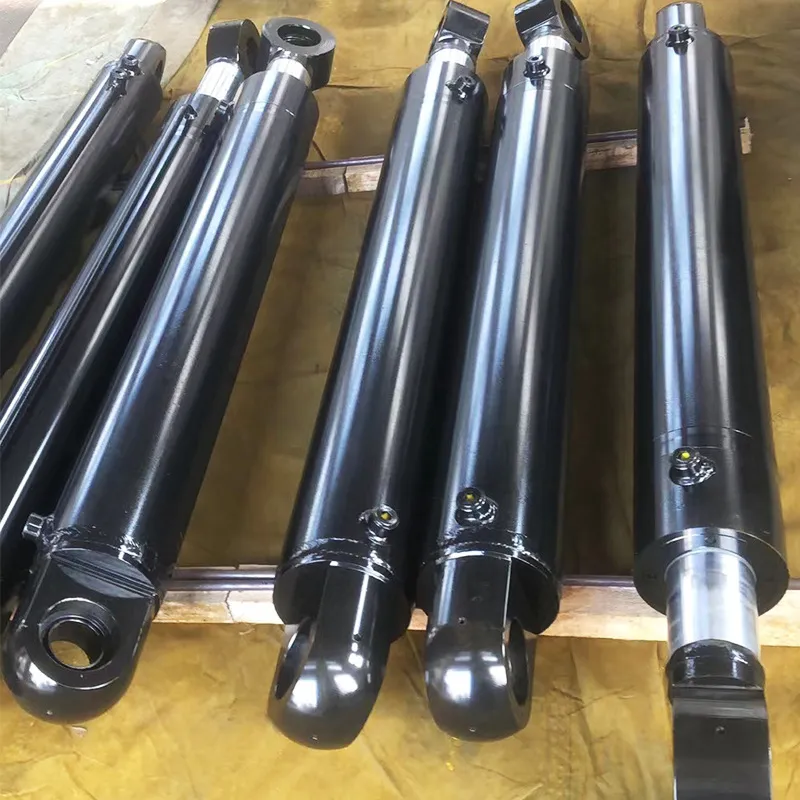

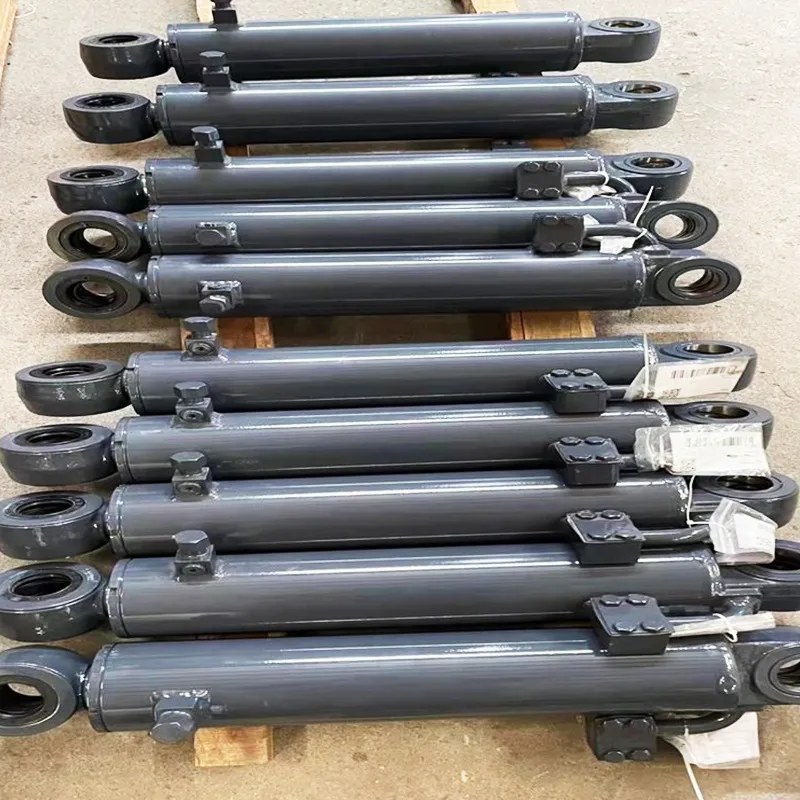

Crane Boom Anti Tilt Hydraulic Cylinder Features:

Crane boom anti-tilt hydraulic cylinders are an essential safety feature for cranes. They help to prevent accidents by preventing the boom from tilting, which can cause the crane to overturn. The crane boom anti tilt hydraulic cylinder incorporates several features that contribute to its effectiveness and reliability. Here are some key features commonly found in these hydraulic cylinders:1. Robust Construction: Crane boom anti tilt hydraulic cylinders are built to withstand heavy loads and harsh working conditions. They are typically constructed using high-strength materials such as steel to ensure durability and longevity.2. High Load Capacity: These crane boom anti tilt hydraulic cylinders are designed to handle significant loads and forces that occur during crane operations. They are engineered to provide substantial lifting capacities to counterbalance the weight and forces acting on the crane boom.3. Precise Control: Crane boom anti tilt hydraulic cylinders offer precise control over the extension and retraction of the piston, allowing for accurate adjustments to counteract tilting moments. This precise control enables operators to maintain stability and keep the crane boom level under varying load conditions.4. Hydraulic Power: The crane boom anti tilt hydraulic cylinders rely on hydraulic power to generate the necessary force for operation. They are connected to a hydraulic system that includes a pump, valves, and hydraulic fluid. The hydraulic system provides the required pressure and flow to control the movement of the cylinder effectively.5. Safety Features: Crane boom anti tilt hydraulic cylinders often incorporate safety features to enhance crane operation safety. These may include pressure relief valves, load holding valves, and position sensors to prevent overloading, ensure load control, and provide accurate position feedback.6. Customization Options: Crane boom anti tilt hydraulic cylinders can be customized to meet specific crane requirements. Manufacturers can tailor the cylinder's dimensions, load capacity, stroke length, and mounting options to suit various crane models and applications.

China Hydraulic Cylinder Manufacturers

Raydafon is a company in the R&D and manufacture of hydraulic cylinders. It maintains a leading position in the market segment of hydraulic cylinders for forklifts in China. In 2020, the domestic market share was around 29%. We produce Industrial vehicle hydraulic cylinders, Aerial work vehicle hydraulic cylinders, Agricultural Machinery hydraulic cylinders, Construction machinery hydraulic cylinders, and Sanitation machinery hydraulic cylinders. Hydraulic cylinder is a non-standard product and all products are independently developed by ourselves.We have a first-class independent R&D platform for assembly. The forklift cylinder production workshop has four semi-automatic lifting cylinder assembly lines and one fully automatic tilting cylinder assembly line, with a designed annual production capacity of 1 million pieces; the special cylinder workshop is equipped with semi-automatic cleaning and assembly systems of various specifications, with a designed annual production capacity of 200,000 pieces. It is equipped with famous brand CNC machining equipment, machining centers, special equipment for high precision cylinder processing, robot welding machines, automatic cleaning machines, automatic cylinder assembly machines, and automatic paint production lines. We have more than 300 sets of key equipment running. The optimized allocation and efficient utilization of equipment resources ensure the precision requirements of the products and meet the high standard quality requirements of the products.

Hydraulic Cylinder Available Brand & Models:

KOMATSU (PC)	PC30,PC40,PC50,PC56,PC60,PC78,PC100,PC110,PC120,PC130,PC160,PC200-3/5/6/7/8/8MO,PC210,PC220-5/6/7/8/8MO,PC240,PC300/350/360-5/6/7/8/8MO,PC400/450-5/6/7/8/8MO,PC800,PC850
CATERPILLAR (E)	E301.5,E302,E305.5,E306,E307V1/V2/B/C/D/E/F,E308B/C,E120B,E312V1/V2/B/C/D,E313D2,E312D2,E315D,E200B,E320V1/V2/A/B/C/D,E324D,E325C/D,E329D,E330/336C/D,E345C,E349D,E365C,E374,E390
KOBELCO (SK)	SK60-3/5/8,SK75-8/SR, SK100 ,SK120-3/5, SK135-8/SR, SK140-8, SK200-3/5/6/6E, SK210-3/5/6/6E,SK230/250-6E,SK250-8,SK260-8,SK350-8/S8,SK460/480-8
HYUNDAI (R)	R55-5/7, R60-5/7, R80, R110,R130, R200-5, R210-5, R215-5/7,R220-5/7/9, R225-5/7/9, R250,R260,R265,R290,R305,R445,R485, R505
HITACHI (EX.ZX)	EX60,EX100-1/2/3,EX120-1/3/5/6,EX200-1/3/5,EX230-5,EX300-1,EX400ZAX60,ZAX70,ZA120-6,ZAX200/210-1/3/5/5K,ZAX240,ZAX250,ZAX260,ZAX330-3/5/6,ZAX450/470,ZAX650/670,ZAX850/870
DOOSAN (DH/DX)	DH55, DH60, DH80,DH150, DH215-5/7,DH220-5,DH225-5/7,DH258,DH300-5/7, DH370,DH420,DH500DX55,DX60,DX75,DX130,DX225-9,DX300,DX380,DX420,DX500
VOLVO (EC)	EC55 ,EC60,EC75,EC80,EC140 ,EC210B/D,EC220D,EC240 ,EC250,EC290,EC300, EC360 EC380,EC460,EC480,EC700,EC750,EC950
KATO (HD)	HD307/308,HD450,HD512,HD700-5/7,HD820-1/2/3/5/R,HD1023-1/3,HD1430-1/3
OTHER BRAND	XCMG,LIUGONG,KUBOTA,CASE,YANMAR,SUNWARD,ZOOMLION,LISHIDE,LIEHERR
