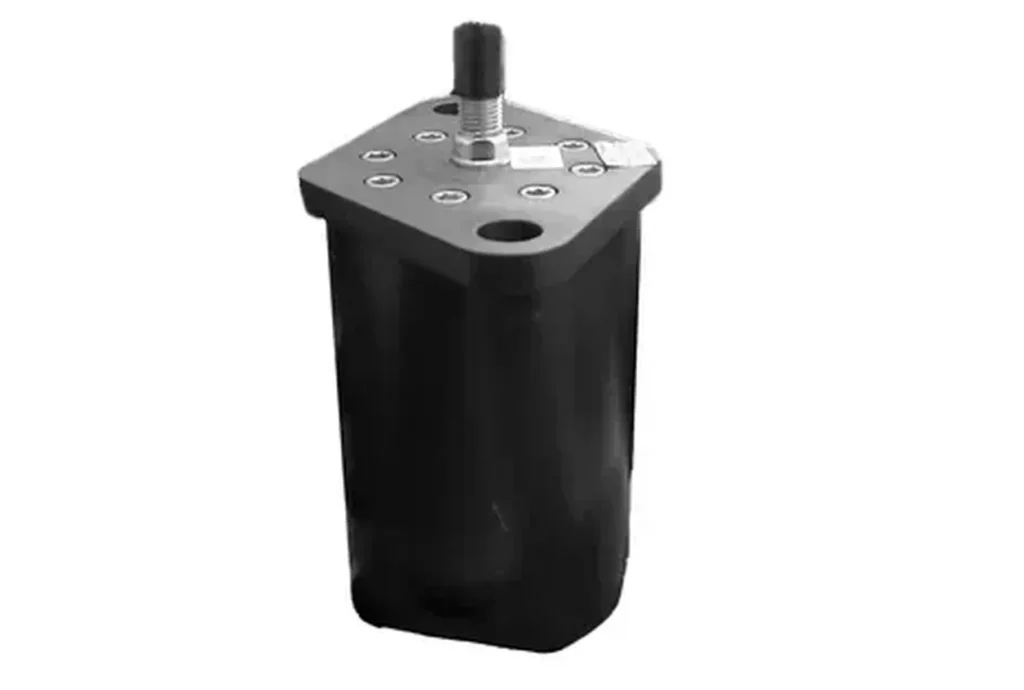

Crane Pin Hydraulic Cylinder

Crane Pin Hydraulic Cylinder

A crane pin hydraulic cylinder is a specialized hydraulic actuator designed to provide powerful and controlled lifting or pushing force in various crane applications. This type of hydraulic cylinder is commonly used in cranes and other heavy machinery where precise and reliable force generation is required.The crane pin hydraulic cylinder consists of a cylindrical barrel, a piston, a piston rod, and hydraulic ports for fluid input and output. It operates on the principle of hydraulic pressure, utilizing the incompressibility of fluids to generate linear motion and force. When hydraulic fluid is supplied under pressure to one side of the piston, it pushes the piston and the attached rod in the desired direction.The pin hydraulic cylinder is typically mounted between two structural components of a crane, with the piston rod extending and retracting to perform the lifting or pushing action. The cylinder is secured using pins, which allow it to pivot and rotate as needed.Crane pin hydraulic cylinders are known for their high load-bearing capacity and ability to withstand heavy loads. They are designed to provide precise and controlled movements, allowing operators to safely and accurately position heavy loads. These cylinders are often used in crane applications such as lifting heavy objects, extending or retracting booms, and maneuvering loads with precision.

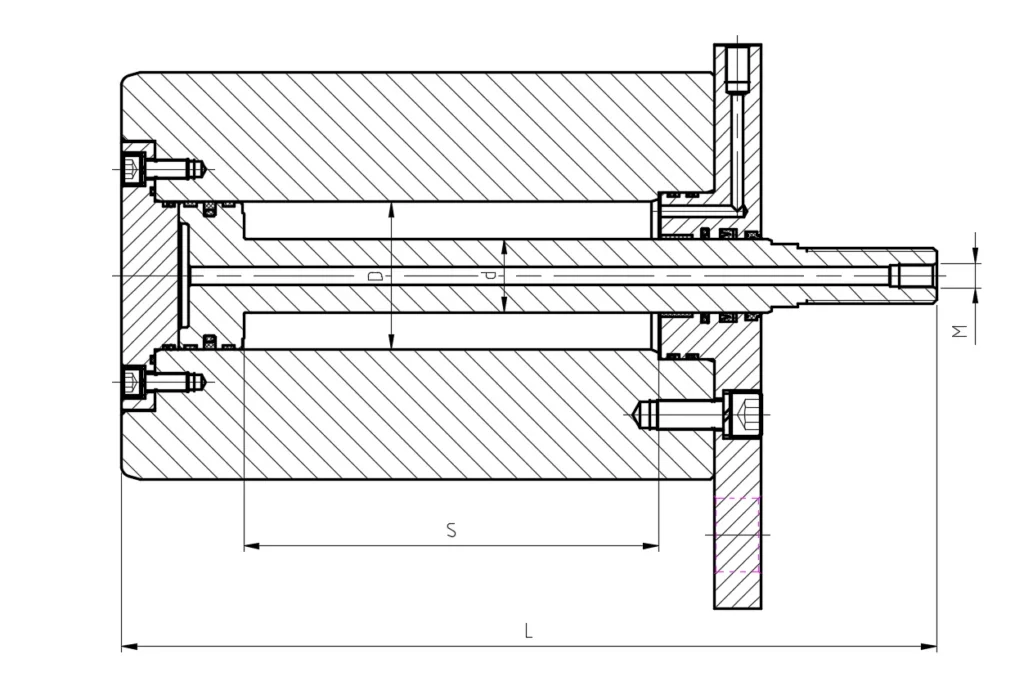

Crane Pin Hydraulic Cylinder Dimensions:

Cylinder Name	Drawing number	Bore diameter (D)	Rod diameter (d)	Stroke (S)	Installation distance (L)	Working pressure	Interface dimensions (M)	Weight
Pin hydraulic cylinder	ZXYG14.01-00	Φ80	Φ40	225	440	25MPa	G1/4	97.8kg

Crane Pin Hydraulic Cylinder Parameter:

Item	Description
Product Name	Custom-made hydraulic Cylinder
Certificate:	ISO9001, ISO4001, ISO 45003
Production Capacity:	1200,000 pcs per year
Sample Time	Based actual type
Brand	EPT or customer's logo
Service	OEM & ODM
Seal  brand	Parker,NOK, BUSAK SHAMBAN
Delivery Time	Based on order quantity.
Business Type	Manufacturer & Exporter

Crane Pin Hydraulic Cylinder Advantages:

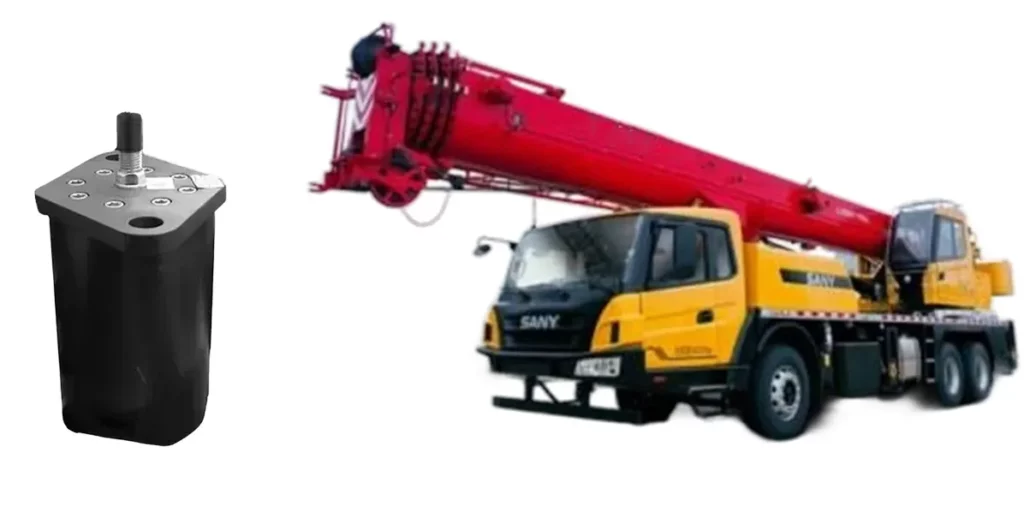

Crane pin hydraulic cylinders are used in a variety of cranes to lift and move heavy loads. They offer several advantages over other types of actuators, including:

1. High power-to-weight ratio: Crane pin hydraulic cylinders are able to generate a lot of force with a relatively small amount of weight. This makes them ideal for use in cranes, where the weight of the actuator must be minimized to improve lifting capacity.2. Variable speed control: The speed of a Crane pin hydraulic cylinder can be easily controlled by adjusting the flow of hydraulic fluid. This allows for precise control of the load being lifted or moved.3. Positioning benefits: Crane pin hydraulic cylinders can be used to position loads with great accuracy. This is important in applications where the load must be placed in a specific location, such as when loading or unloading a ship.4. High energy efficiency: Crane pin hydraulic cylinders are relatively efficient in terms of energy use. This is because the energy used to pump the hydraulic fluid is stored in the cylinder and then released when the load is lifted or moved.

In addition to these advantages, crane pin hydraulic cylinders are also relatively easy to maintain and operate. This makes them a cost-effective choice for a variety of crane applications.

Here are some specific examples of the advantages of crane pin hydraulic cylinders:

(1) In a tower crane, the pin hydraulic cylinders are used to raise and lower the jib. The high power-to-weight ratio of the cylinders allows the jib to be lifted quickly and easily, even when it is carrying a heavy load.(2) In a mobile crane, the pin hydraulic cylinders are used to extend and retract the boom. The variable speed control of the cylinders allows the operator to extend or retract the boom smoothly and precisely.(3) In a gantry crane, the pin hydraulic cylinders are used to move the trolley along the rails. The positioning benefits of the cylinders allow the operator to position the trolley with great accuracy, even when the crane is carrying a heavy load.

Overall, crane pin hydraulic cylinders offer a number of advantages that make them a popular choice for a variety of crane applications. They are powerful, efficient, and easy to maintain, making them a cost-effective solution for lifting and moving heavy loads.

China Hydraulic Cylinder Manufacturers

Raydafon is a company in the R&D and manufacture of hydraulic cylinders. It maintains a leading position in the market segment of hydraulic cylinders for forklifts in China. In 2020, the domestic market share was around 29%. We produce Industrial vehicle hydraulic cylinders, Aerial work vehicle hydraulic cylinders, Agricultural Machinery hydraulic cylinders, Construction machinery hydraulic cylinders, and Sanitation machinery hydraulic cylinders. Hydraulic cylinder is a non-standard product and all products are independently developed by ourselves.We have a first-class independent R&D platform for assembly. The forklift cylinder production workshop has four semi-automatic lifting cylinder assembly lines and one fully automatic tilting cylinder assembly line, with a designed annual production capacity of 1 million pieces; the special cylinder workshop is equipped with semi-automatic cleaning and assembly systems of various specifications, with a designed annual production capacity of 200,000 pieces. It is equipped with famous brand CNC machining equipment, machining centers, special equipment for high precision cylinder processing, robot welding machines, automatic cleaning machines, automatic cylinder assembly machines, and automatic paint production lines. We have more than 300 sets of key equipment running. The optimized allocation and efficient utilization of equipment resources ensure the precision requirements of the products and meet the high standard quality requirements of the products.

Hydraulic Cylinder Available Brand & Models:

KOMATSU (PC)	PC30,PC40,PC50,PC56,PC60,PC78,PC100,PC110,PC120,PC130,PC160,PC200-3/5/6/7/8/8MO,PC210,PC220-5/6/7/8/8MO,PC240,PC300/350/360-5/6/7/8/8MO,PC400/450-5/6/7/8/8MO,PC800,PC850
CATERPILLAR (E)	E301.5,E302,E305.5,E306,E307V1/V2/B/C/D/E/F,E308B/C,E120B,E312V1/V2/B/C/D,E313D2,E312D2,E315D,E200B,E320V1/V2/A/B/C/D,E324D,E325C/D,E329D,E330/336C/D,E345C,E349D,E365C,E374,E390
KOBELCO (SK)	SK60-3/5/8,SK75-8/SR, SK100 ,SK120-3/5, SK135-8/SR, SK140-8, SK200-3/5/6/6E, SK210-3/5/6/6E,SK230/250-6E,SK250-8,SK260-8,SK350-8/S8,SK460/480-8
HYUNDAI (R)	R55-5/7, R60-5/7, R80, R110,R130, R200-5, R210-5, R215-5/7,R220-5/7/9, R225-5/7/9, R250,R260,R265,R290,R305,R445,R485, R505
HITACHI (EX.ZX)	EX60,EX100-1/2/3,EX120-1/3/5/6,EX200-1/3/5,EX230-5,EX300-1,EX400ZAX60,ZAX70,ZA120-6,ZAX200/210-1/3/5/5K,ZAX240,ZAX250,ZAX260,ZAX330-3/5/6,ZAX450/470,ZAX650/670,ZAX850/870
DOOSAN (DH/DX)	DH55, DH60, DH80,DH150, DH215-5/7,DH220-5,DH225-5/7,DH258,DH300-5/7, DH370,DH420,DH500DX55,DX60,DX75,DX130,DX225-9,DX300,DX380,DX420,DX500
VOLVO (EC)	EC55 ,EC60,EC75,EC80,EC140 ,EC210B/D,EC220D,EC240 ,EC250,EC290,EC300, EC360 EC380,EC460,EC480,EC700,EC750,EC950
KATO (HD)	HD307/308,HD450,HD512,HD700-5/7,HD820-1/2/3/5/R,HD1023-1/3,HD1430-1/3
OTHER BRAND	XCMG,LIUGONG,KUBOTA,CASE,YANMAR,SUNWARD,ZOOMLION,LISHIDE,LIEHERR
