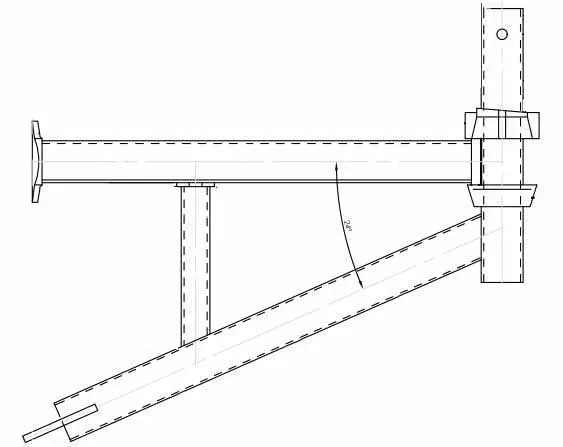

Cuplock Scaffolding Hop-up Brackets / Side Bracket

Cuplock Hop-Up Brackets are designed to increase the width of the working platform from five boards to eight boards wide by supporting additional panels beyond the inside face of the scaffold. They incorporate a cup to locate another inside ledger, which links adjacent hop-up brackets to prevent movement while supporting intermediate transoms. There is also a location point for a handrail post if required.Features● The hop-up brackets extend the working platform to provide workers extra space to move and store supplies. The planks can be placed on the board bracket to allow construction operations closer to the building.● Increase the overall width of the working platform by supporting two or three additional battens beyond the inner face of the scaffold.● A cup joint at the far end allows the fitting of an inside ledger and a socket to support a handrail post.

Model and Specification

The primary material of cup lock scaffolding is: Q235/Q345The surface treatment is: hot dip galvanized

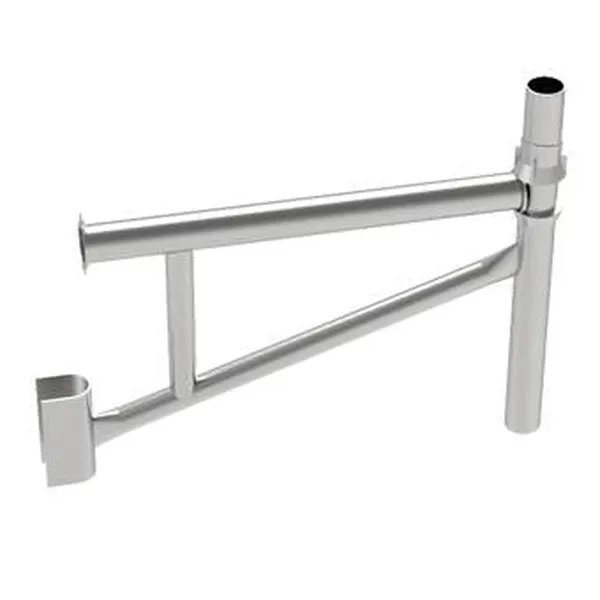

Cuplock scaffolding Hop Up Bracket
Products Code	L(mm)	Surface Treatment
TY-CBB29	290mm	Hot-dip galvanized
TY-CBB57	570mm	Hot-dip galvanized
TY-CBB80	800mm	Hot-dip galvanized

1. Increasing the width of the working platform.2. Made of high tensile structural steel with Hot dip galvanized finish.3. Dimension, surface, material, and style can be specified.

Quality Assurance

(1) Strict contract auditing involved all departments to assure the feasibility of each order.(2) Process design and validation before bulk production.(3) Strictly control of all raw and auxiliary materials; all raw materials reach the world's advanced level.(4) On-site inspection of all processes, inspection record keep traceable for three years.(5) All inspectors are skilled with international certificates.(6) Qualified WPS and professional welders guarantee welding quality.(7) 100% inspection of finished sprouts before shipment.(8) Advanced and complete testing and inspection equipment: Tensile test, pressure test, hardness tester...(9) Regular training for inspection staff.

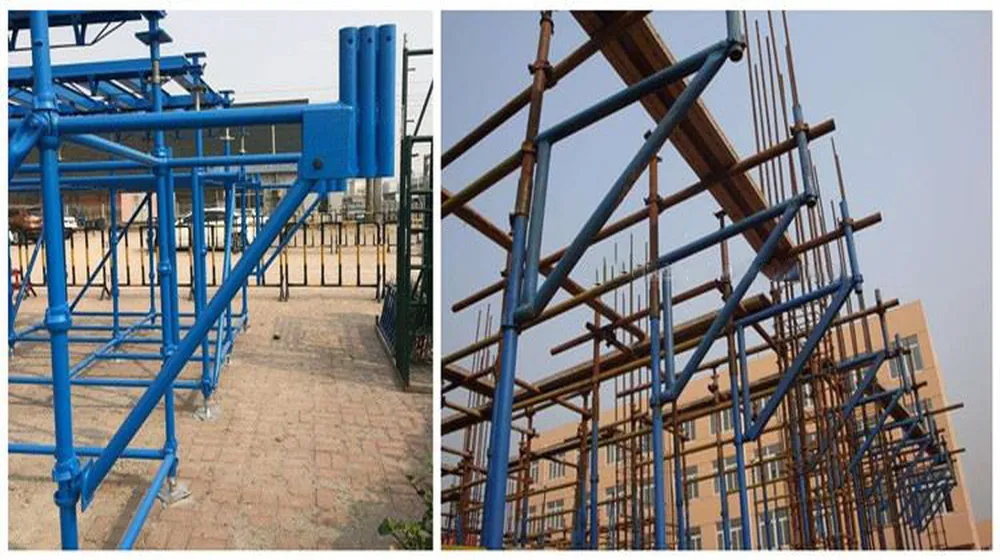

Product Display

Company Information

The company has an independent R & D team, import and export rights, global sales network that can provide customers with comprehensive scaffolding solutions. Products mainly include hot-dip galvanized steel tube; galvanized metal plank, hot-dip galvanized ring lock scaffolding, scaffolding couplers, frame systems, steel props, and so on; hot product sales at home and abroad are widely used in construction engineering facades, building support bridges, tunnels, chimneys, power plants, oil and petrochemical projects.The factory has ten production lines, processing lines, 4,000 square meters of production workshop, 4,000 square meters of warehousing, and 10,000 square meters yard, with an annual output of 200,000 tons, and has more than 10,000 tons perennial spot. "Customer-centric, continue to meet customer needs, improve customer satisfaction" is the long-term development basic strategy. In the future, "high-quality products are a bridge to the world" for this purpose, we will continue to provide customers with "the best quality of products, the most comprehensive sales service, the lowest market price" to enhance customer market competitive advantages.If you need, you can contact our branch：SN TRADING & TRANSPORTATION PTE LTDMp: 89417358    Tel: 65923150    Email: [email protected]
