One Piece Shaft Collars (Shaft Clamps) Inch Series

One Piece Shaft Collars (Shaft Clamps) Inch Series

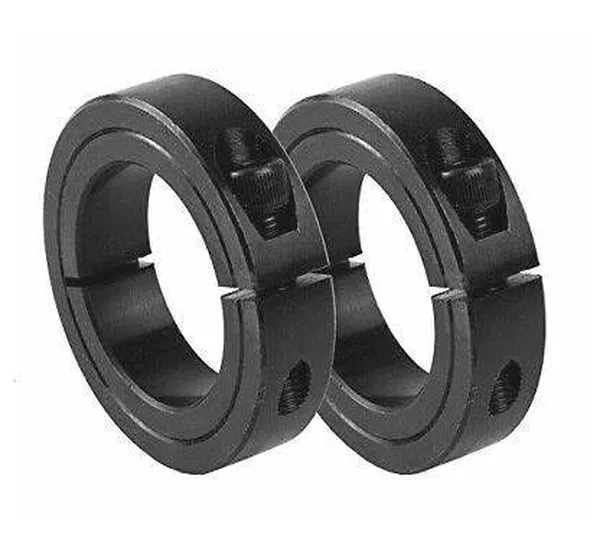

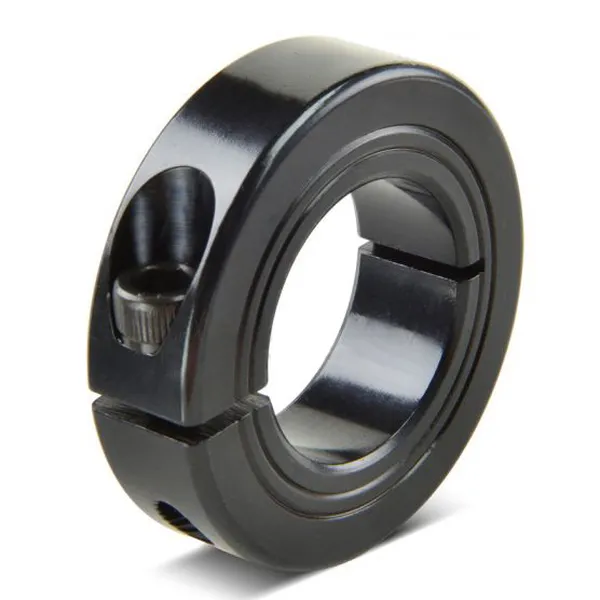

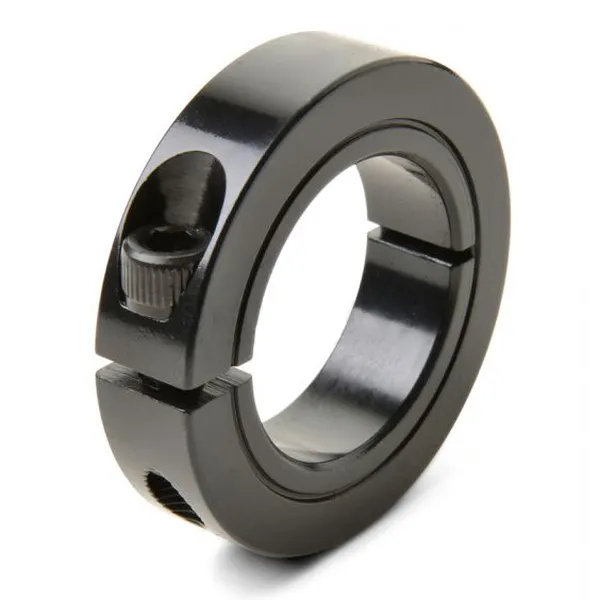

The inch series one piece shaft collars are mechanical components used to secure and position objects on a shaft. They are usually made of metal or plastic and consist of a cylindrical ring with a set screw that tightens onto the shaft, creating a mechanical interference fit.Inch series refers to the standard measurements used in the United States and other countries that use the imperial system of measurement. The one piece shaft collar refers to the design where the collar is a single piece without any separate components. The one-piece design means that the collar is a single piece without any separate components. This design provides a reliable and easy-to-use method of securing components onto a shaft, as it only requires one piece to be installed.These one piece shaft collars can be used in a variety of applications, such as robotics, automation, and machinery, to provide a reliable and easy-to-use method of securing components onto a shaft. They are available in different sizes and materials to suit various shaft diameters and application requirements.

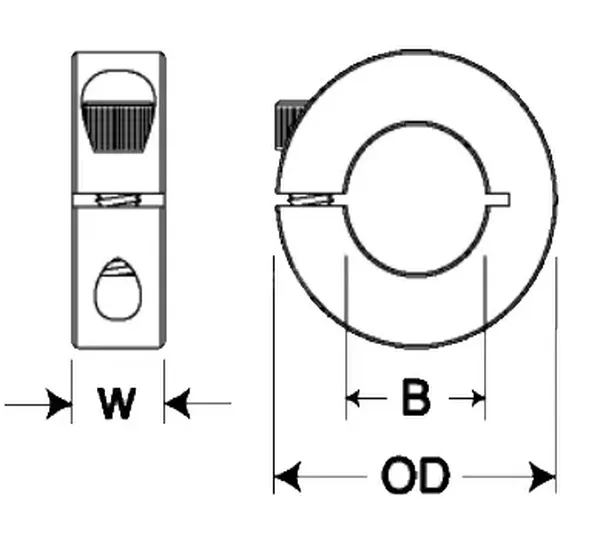

▍One Piece Shaft Collars Sizes Chart (Inch Series)

PART NUMBER STEEL	PART NUMBER ALUMINUM	PART NUMBER STAINLESS STEEL	BOREB (in)	OUTER DIAM.OD (in)	WIDTHW (in)	FORGED SCSAMP SCREW
SCS-2-FL-2-F	SCS-2-A	SCS-2-SS	0.125	5/8	0.281	4-40X5/16
SCS-3-F	SCS-3-A	SCS-3-SS	0.1875	5/8	0.281	4-40X5/16
SCS-4-F	SCS-4-A	SCS-4-SS	0.25	5/8	0.281	4-40X5/16
SCS-5-F	SCS-5-A	SCS-5-SS	0.3125	11/16	0.281	4-40X5/16
SCS-6-F	SCS-6-A	SCS-6-SS	0.375	7/8	0.343	6-32X3/8
SCS-7-F	SCS-7-A	SCS-7-SS	0.4375	15/16	0.343	6-32X3/8
SCS-8-F	SCS-8-A	SCS-8-SS	0.5	1 1/8	0.406	8-32X1/2
SCS-9-F	SCS-9-A	SCS-9-SS	0.5625	1 1/4	0.437	10-32X1/2
SCS-10-F	SCS-10-A	SCS-10-SS	0.625	1 5/16	0.437	10-32X1/2
SCS-11-F	SCS-11-A	SCS-11-SS	0.6875	1 3/8	0.437	10-32X1/2
SCS-12-F	SCS-12-A	SCS-12-SS	0.75	1 1/2	0.5	1/4-28X5/8
SCS-13-F	SCS-13-A	SCS-13-SS	0.8125	1 5/8	0.5	1/4-28X5/8
SCS-14-F	SCS-14-A	SCS-14-SS	0.875	1 5/8	0.5	1/4-28X5/8
SCS-15-F	SCS-15-A	SCS-15-SS	0.9375	1 3/4	0.5	1/4-28X11/16
SCS-16-F	SCS-16-A	SCS-16-SS	1	1 3/4	0.5	1/4-28X11/16
SCS-17-F	SCS-17-A	SCS-17-SS	1.0625	1 7/8	0.5	1/4-28X11/16
SCS-18-F	SCS-18-A	SCS-18-SS	1.125	1 7/8	0.5	1/4-28X11/16
SCS-19-F	SCS-19-A	SCS-19-SS	1.1875	2 1/16	0.5	1/4-28X11/16
SCS-20-F	SCS-20-A	SCS-20-SS	1.25	2 1/16	0.5	1/4-28X11/16
SCS-21-F	SCS-21-A	SCS-21-SS	1.3125	2 1/8	0.563	1/4-28X3/4
SCS-22-F	SCS-22-A	SCS-22-SS	1.375	2 1/4	0.563	1/4-28X3/4
SCS-23-F	SCS-23-A	SCS-23-SS	1.4375	2 1/4	0.563	1/4-28X3/4
SCS-24-F	SCS-24-A	SCS-24-SS	1.5	2 3/8	0.563	1/4-28X3/4
SCS-25-F	SCS-25-A	SCS-25-SS	1.5625	2 3/8	0.563	1/4-28X3/4
SCS-26-F	SCS-26-A	SCS-26-SS	1.625	2 5/8	0.688	5/16-24X7/8
SCS-27-F	SCS-27-A	SCS-27-SS	1.6875	2 3/4	0.688	5/16-24X7/8
SCS-28-F	SCS-28-A	SCS-28-SS	1.75	2 3/4	0.688	5/16-24X7/8
SCS-29-F	SCS-29-A	SCS-29-SS	1.8125	2 7/8	0.688	5/16-24X7/8
SCS-30-F	SCS-30-A	SCS-30-SS	1.875	2 7/8	0.688	5/16-24X7/8
SCS-31-F	SCS-31-A	SCS-31-SS	1.9375	3	0.688	5/16-24X7/8
SCS-32-F	SCS-32-A	SCS-32-SS	2	3	0.688	5/16-24X7/8
SCS-33-F	SCS-33-A	SCS-33-SS	2.0625	3 1/8	0.75	5/16-24X7/8
SCS-34-F	SCS-34-A	SCS-34-SS	2.125	3 1/4	0.75	5/16-24X7/8
SCS-35-F	SCS-35-A	SCS-35-SS	2.1875	3 1/4	0.75	5/16-24X7/8
SCS-36-F	SCS-36-A	SCS-36-SS	2.25	3 1/4	0.75	5/16-24X7/8
SCS-37-F	SCS-37-A	SCS-37-SS	2.3125	3 3/8	0.75	5/16-24X1
SCS-38-F	SCS-38-A	SCS-38-SS	2.375	3 1/2	0.75	5/16-24X1
SCS-39-F	SCS-39-A	SCS-39-SS	2.4375	3 1/2	0.75	5/16-24X1
SCS-40-F	SCS-40-A	SCS-40-SS	2.5	3 3/4	0.875	3/8-24X1
SCS-41-F	SCS-41-A	SCS-41-SS	2.5625	3 7/8	0.875	3/8-24X1
SCS-42-F	SCS-42-A	SCS-42-SS	2.625	3 7/8	0.875	3/8-24X1
SCS-43-F	SCS-43-A	SCS-43-SS	2.6875	4	0.875	3/8-24X1
SCS-44-F	SCS-44-A	SCS-44-SS	2.75	4	0.875	3/8-24X1
SCS-45-F	SCS-45-A	SCS-45-SS	2.8125	4 1/4	0.875	3/8-24X1 1/8
SCS-46-F	SCS-46-A	SCS-46-SS	2.875	4 1/4	0.875	3/8-24X1 1/8
SCS-47-F	SCS-47-A	SCS-47-SS	2.9375	4 1/4	0.875	3/8-24X1 1/8
SCS-48-F	SCS-48-A	SCS-48-SS
