EWA12 Series Slewing Drive

The slewing drive is a gearbox that can safely hold radial and axial loads and transmit torque for rotating. The rotation can be on a single axis or multiple axes together. Slewing drives are made by manufacturing gearing, bearings, seals, housing, motor, and other auxiliary components and assembling them into a finished gearbox.Slewing drives function with standard worm technology, in which the worm on the horizontal shaft acts as the driver for the gear. The rotation of the horizontal screw turns a gear about an axis perpendicular to the screw axis. This combination reduces the driven member's speed and multiplies its torque, increasing it proportionally as the speed decreases. The speed ratio of shafts depends upon the number of threads on the worm to the number of teeth in the worm wheel or gear.As technology has improved, more slewing drives are using hourglass worm technology, shaping the worm to engage more teeth in gear. This increased tooth engagement results in greater strength, efficiency, and durability.

Performance Parameters

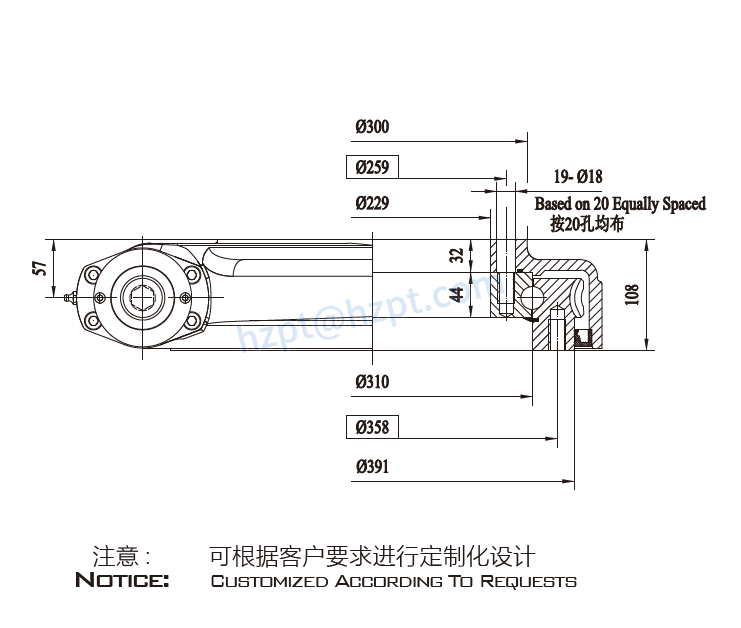

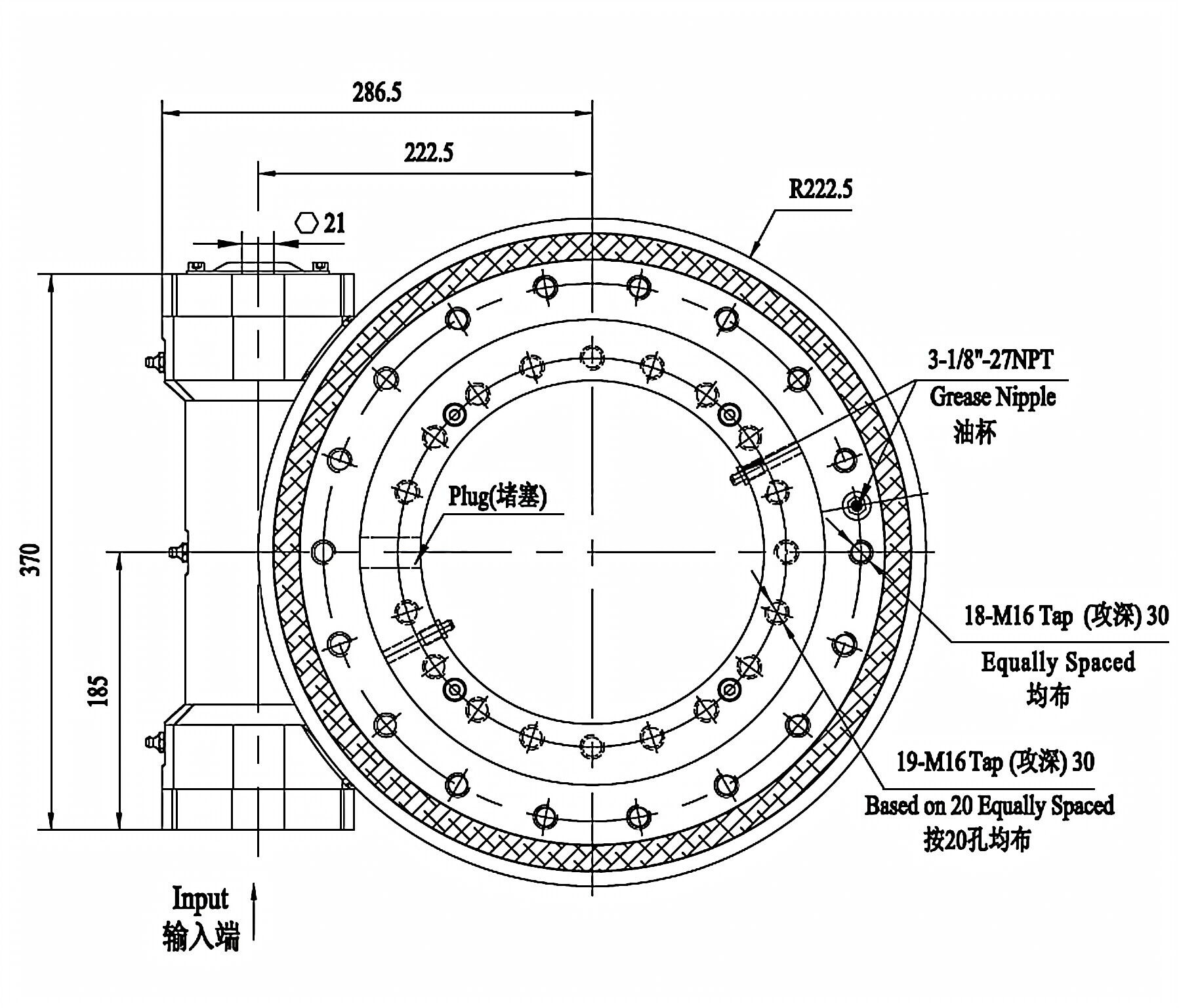

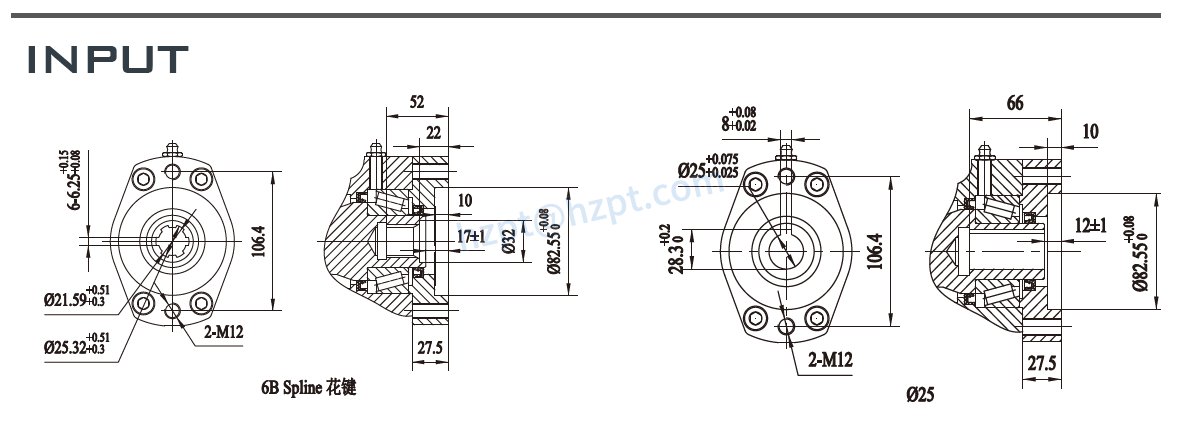

Front View	Top View



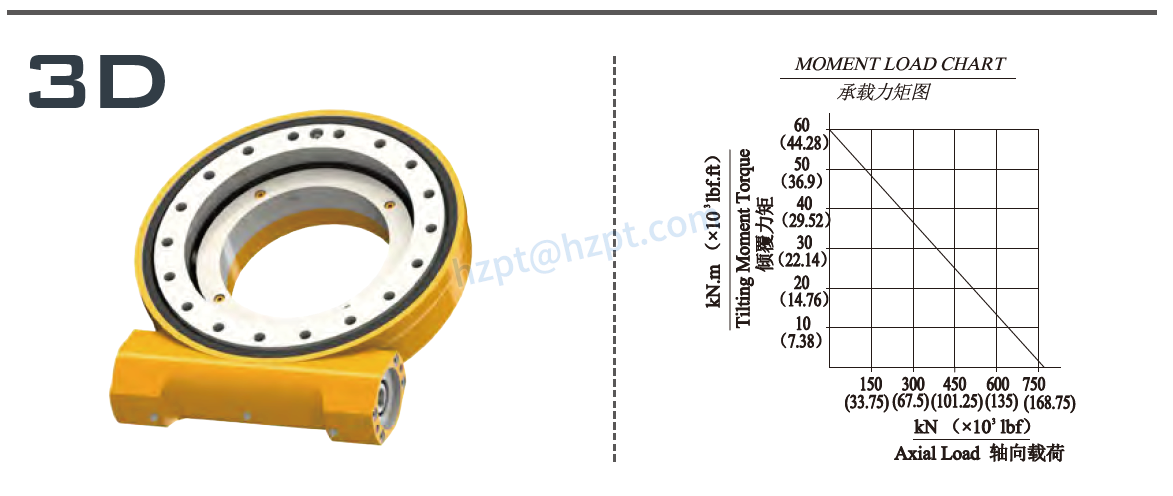

Output torque	Tilting moment torque	Holding torque	Axial load	Radial load	Ratio	Backlash	Weight
输出转矩	倾覆力矩	保持力矩	轴向承载力	径向承载力	速比	精度	重量
9.5 kN.m	57 kN.m	44.3 kN.m	760 KN	280 KN	79:1	<= 0.15 °	67Kg
7011 Lbf.ft	41200 Lbf.ft	32700 Lbf.ft	171100 Lbf	62900 Lbf

Slew Drive Types

Slewing drives are available in many configurations depending on the task at hand. These may be single-axis or dual-axis turning in unison.An hourglass configuration expands the capability from a single gear tooth to as many as 11 to create rotational torque by contacting the worm screw. Multiple gear teeth interacting at once allows the equipment to be more efficient and generate more torque.

Slew Drive Functions

Slew drives work best for applications in which high torque can create precision positioning and rotational accuracy. This design results in a device which works smoothly and powerfully with minimal backlash.Because of the power and dependability generated by slew drive technology, the functions of this engineering technology apply to many types of equipment. One particular use, for example, involves solar technology, tracking the sun’s movements in perfect time to generate maximum energy output.Any job requiring high load capacity and reliable positioning may require the implementation of slewing drive engineering.

Slew Drive Applications

The list of active applications for slew drives is extensive. Several types of industries require some form of slewing drive to make their operations more efficient. Equipment for mining, construction, metalworking, and other applications that require unrelenting strength combined with faultless precision use slewing technology for safety and accuracy.Powerful devices like aerial lifts, rotating forklifts, truck-mounted cranes, cable winders, fire trucks, hydraulic machinery, and utility equipment depend on the safety and strength of slew drives.Precision devices such as military equipment, satellite dishes, solar trackers, printing presses, and telescopic devices benefit from the absolute precision that slewing drives provide to be effective.

Custom Slewing Drives

Raydafon provides its customers with a high-quality application-based slew drives product line. Sizes range from 7.5" (200mm) up to 20" (500mm) in ID. Standard hydraulic or electric motors rotate the drive-through standard worm shaft inputs and can be assembled upon customer request, depending on their application.Our engineers are well equipped with the tools and technology necessary to work alongside our customers. We work to understand their applications, design requirements, project scope, and loads and help identify the most suitable products. We are ready to provide technical support and slew drive recommendations based on application requirements.For over three decades, slewing rings and slew drives have proven their worth in the most varied application areas. We've been supplying products to many of our customers for decades. We'd love to have the opportunity to win you over with our technological competence, too!
