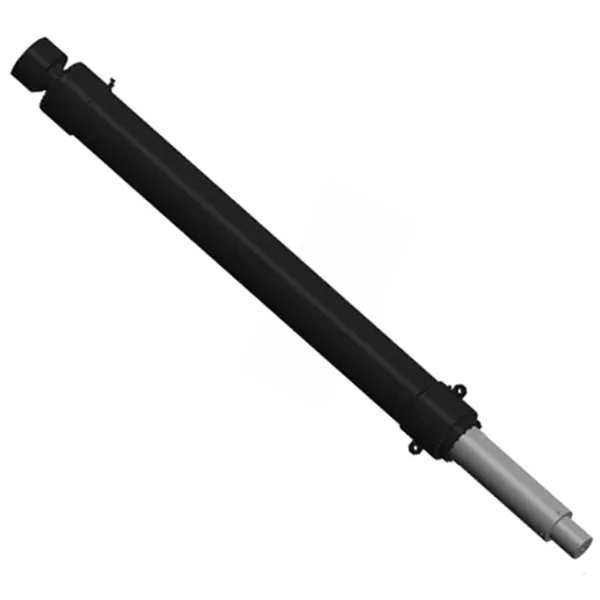

Cutter Suction Dredger Piling Cylinder

Cutter Suction Dredger Piling Cylinder

A cutter suction dredger piling cylinder is a specialized piece of equipment used in dredging and marine construction projects. It is designed to create vertical piles or columns in the seabed or riverbed to provide a stable foundation for various structures, such as bridges, ports, or offshore platforms.The cutter suction dredger piling cylinder is an essential component of a cutter suction dredger, which is a type of hydraulic dredging vessel. It consists of a large floating platform equipped with a rotating cutter head, suction pipes, and a powerful pump system. The cutter head is fitted with multiple cutting blades that excavate the sediment, such as sand, silt, or clay, from the seabed or riverbed.Once the material is excavated, it is transported through the suction pipes to the pump system on the dredger. The pump creates a high-pressure flow that carries the excavated material to a designated discharge location, often through floating or submerged pipelines.In the case of piling operations, the cutter suction dredger is equipped with a piling cylinder attachment. The cutter suction dredger piling cylinder consists of a long, hollow tube with a sharp tip at the bottom. It is driven into the seabed or riverbed using hydraulic force, either by pushing or vibrating, depending on the soil conditions.As the piling cylinder penetrates the soil, it displaces the sediments and creates a void. Once the desired depth is reached, the cylinder is lifted, and the void is filled with a suitable material, such as concrete or steel, to form a stable pile. Piling cylinders can create piles of various diameters and depths, depending on the project requirements.

Cutter Suction Dredger Piling Cylinder Specifications:

Product Name	Cutter Suction Dredger Piling Cylinder
Features:	Provide thrust force to pull the steel piles out of the seabed
Bore diameter:	Up to 460 mm
Rod diameter:	Up to 400 mmStroke up to 4000 mm
Pressure:	up to 32MPa
Thrust force:	Maximum 3140KN
Applications:	Cutter Suction Dredger

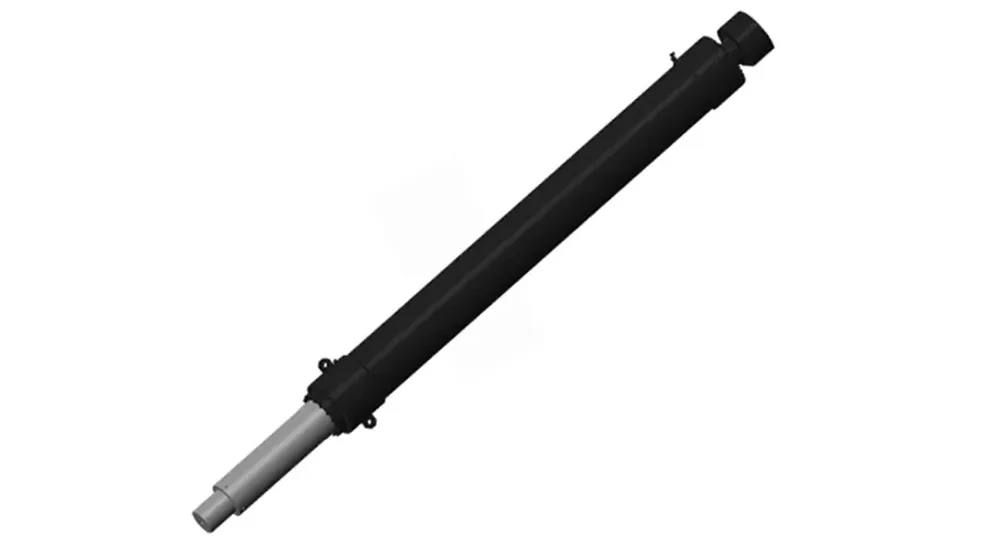

Cutter Suction Dredger Piling Cylinder Features:

The cutter suction dredger piling cylinder is a versatile and powerful attachment used in marine construction projects. Here are some key features of a cutter suction dredger piling cylinder:1. Robust Construction: Piling cylinders are built to withstand the demanding conditions of dredging and piling operations. They are typically made of high-strength steel or other durable materials to ensure long-lasting performance.2. Cutting and Excavation Capability: The piling cylinder is equipped with cutting edges or teeth that effectively penetrate and excavate the soil during the piling process. These cutting elements are designed to handle various types of sediments, including sand, clay, and gravel.3. Hydraulic Power: Cutter suction dredger piling cylinders are powered by hydraulic systems, which provide the force necessary to drive the cylinder into the ground. The hydraulic power ensures precise control and efficient operation during the piling process.4. Variable Diameter: Piling cylinders come in different diameters to accommodate various project requirements. The diameter of the cylinder determines the size of the pile that can be created, allowing for flexibility in design and construction.5. Depth Control: Piling cylinders are designed with mechanisms to control the depth of penetration into the soil. This feature ensures that the piles are installed at the desired depth, providing the necessary stability for the construction project.6. Lifting and Extraction Capability: Piling cylinders are designed to be lifted and extracted from the ground once the desired depth is achieved. This feature allows for the installation of multiple piles without the need for additional equipment.7. Versatility: Cutter suction dredger piling cylinders can be used in a wide range of marine construction projects, including port infrastructure development, offshore platform construction, bridge construction, and coastal protection works. They are adaptable to different soil conditions and can handle various types of sediments.

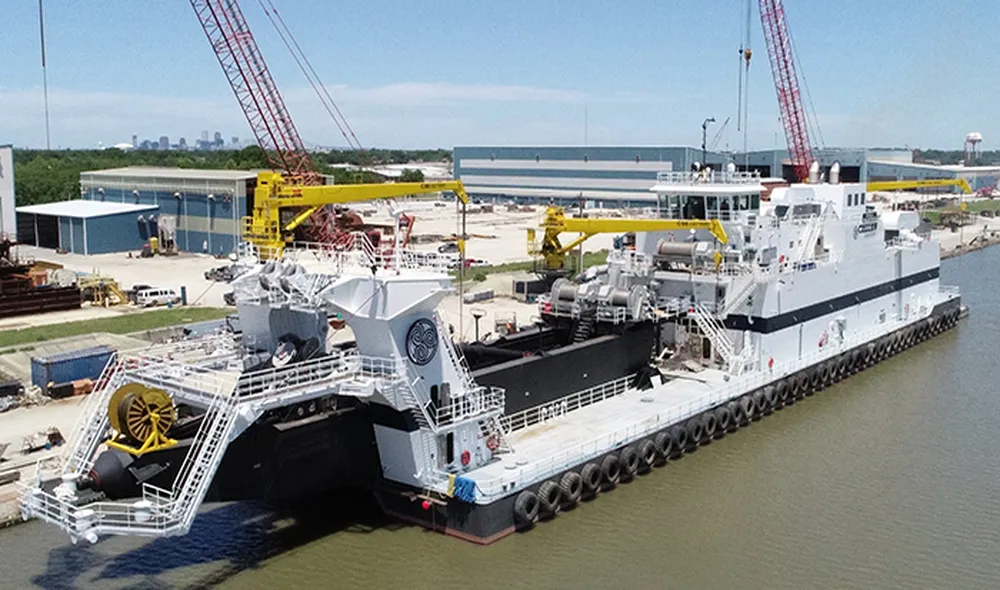

How Does Cutter Suction Dredger Piling Cylinder Work?

A cutter suction dredger piling cylinder is a hydraulic cylinder that is used to drive or pull piles into the seabed. The cylinder is located on the front of the dredger and is connected to the pile by a steel cable. When the cylinder is extended, it applies a force to the pile, driving it into the seabed. When the cylinder is retracted, it pulls the pile out of the seabed.

The cutter suction dredger piling cylinder is a critical component of the cutter suction dredger and is essential for the installation of piles for a variety of marine construction projects, such as bridges, wharves, and offshore platforms.

The cutter suction dredger piling cylinder works by the following steps:

1. The cutter suction dredger is positioned over the location where the pile is to be installed.
2. The pile is lowered into the water and the piling cylinder is extended.
3. The hydraulic pump is activated, which forces hydraulic fluid into the cylinder.
4. The pressure of the hydraulic fluid causes the piston in the cylinder to extend, which applies a force to the pile.
5. The pile is driven into the seabed until it reaches the desired depth.

To pull a pile out of the seabed, the following steps are followed:

1. The hydraulic pump is reversed, which causes the hydraulic fluid to flow out of the cylinder.
2. The pressure of the hydraulic fluid decreases, which causes the piston in the cylinder to retract.
3. The pile is pulled out of the seabed by the cable attached to the cylinder.

The piling cylinder is a powerful and versatile tool that is essential for the installation of piles in marine construction projects. It is a complex machine that requires regular maintenance and inspection to ensure safe and reliable operation.
