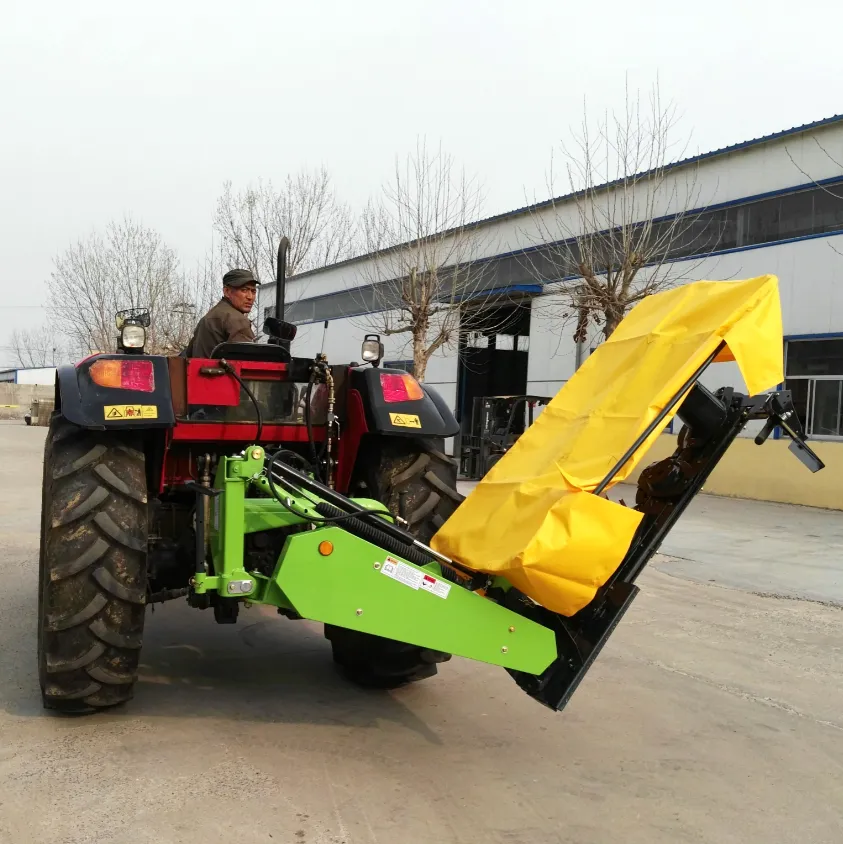

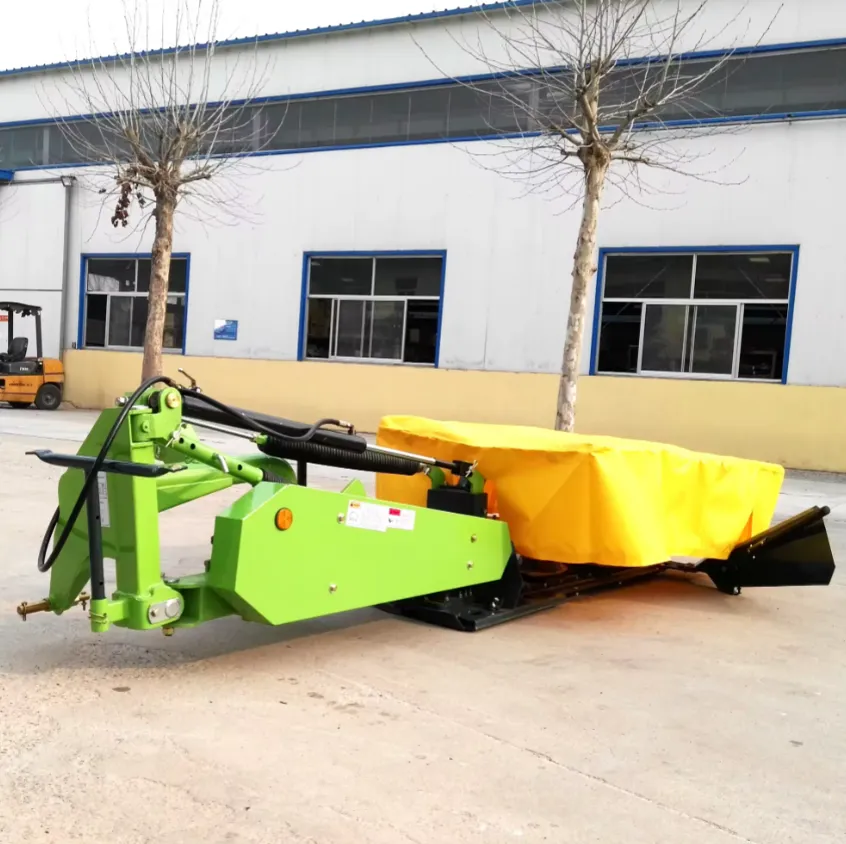

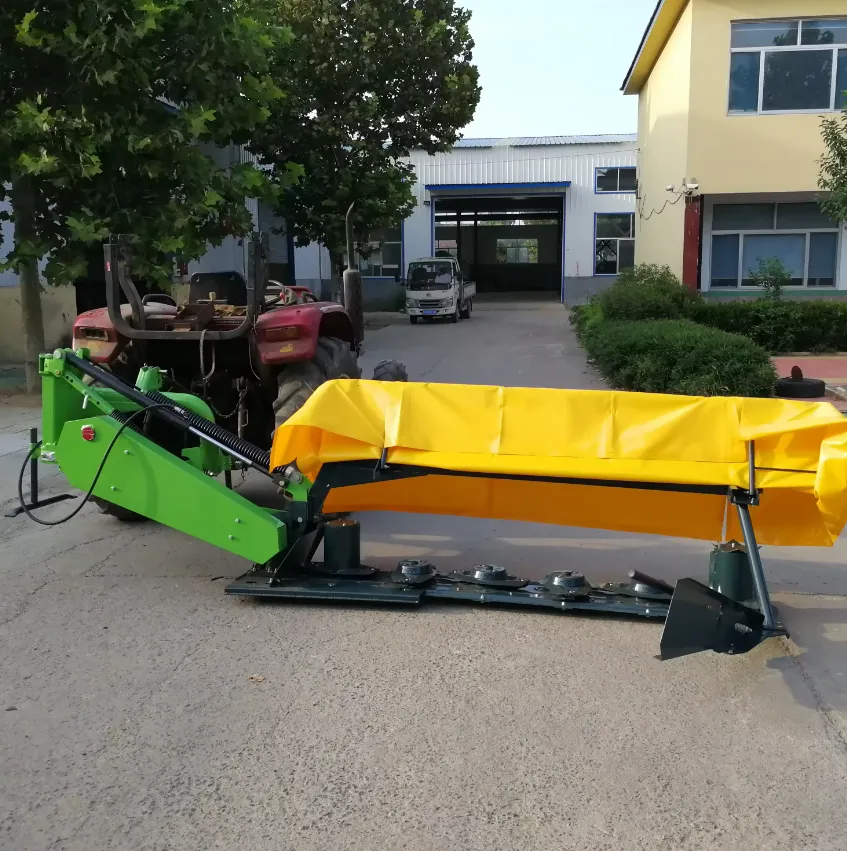

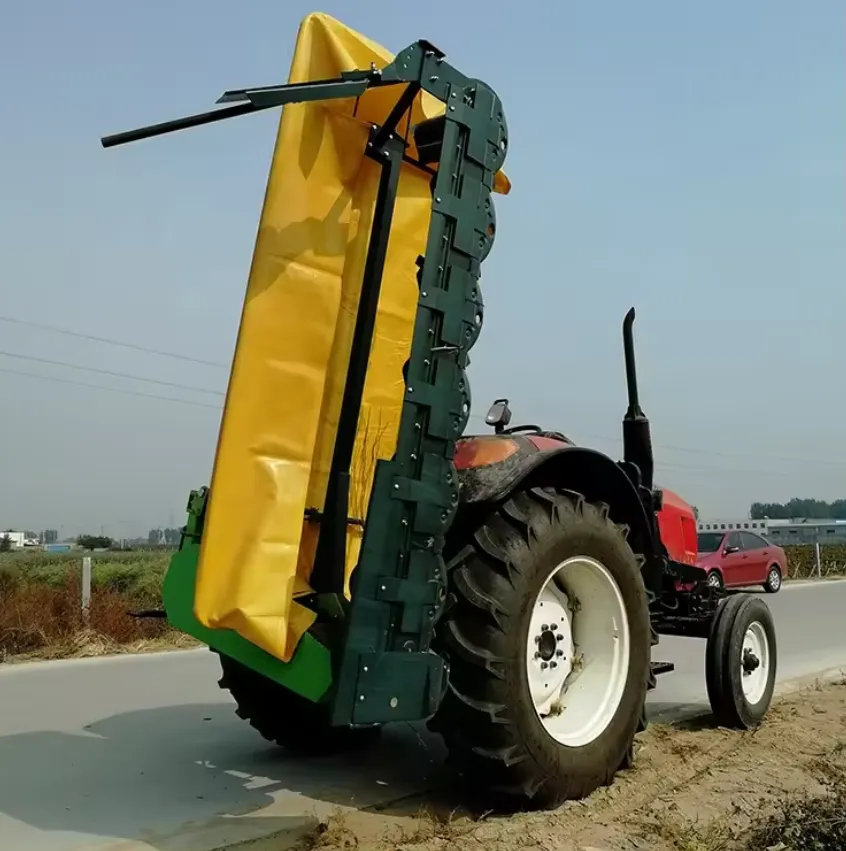

Disc Rotary Mower for Cutting Grass, Straw, and Stalk

The Disc Rotary Mower is a versatile, high-productivity agricultural tool. With a one-year warranty on core components, it's a reliable choice for farms and agricultural businesses. This disc mower, equipped with gear transmission, is designed for cutting grass, straw, and stalk, making it an essential asset for any farm. The Disc Rotary Mower weighs around 550 kg and doesn't require a showroom location for its operation. It comes with a video outgoing-inspection and Machinery Test Report, ensuring its quality. The ordinary marketing type product is CE and ISO certified, making it a safe and dependable choice for all agricultural needs.

The Advantages of the Disc Rotary Mower

Here are six major advantages of the Disc Rotary Mower:

1. High Productivity: The disc rotary mower is designed for high productivity, enabling it to handle heavy-duty tasks with ease.
2. Core Components: The core components of the disc rotary mower include the bearing, gearbox, and gear. These components are robust and designed to last, ensuring the longevity of the product.
3. Diverse Usage: The disc rotary mower is ideal for cutting various types of vegetation, including grass, straw, and stalk. This makes it a versatile tool for any agricultural operation.
4. Number of Discs: The disc rotary mower comes with 2-7 discs, each with 2 blades. This multi-disc design allows for more efficient cutting.
5. Easy Operation: The disc rotary mower is easy to operate, making it a convenient tool for all users, regardless of their experience level.
6. Reliable Certification: The disc rotary mower is CE and ISO certified, ensuring its quality and safety.

Applications of the Disc Rotary Mower

The Disc Rotary Mower is designed for a wide range of applications. Here are six major ones:

1. Farms: The disc rotary mower is primarily used on farms for cutting grass, straw, and stalk.
2. Agricultural Businesses: The disc rotary mower is also a valuable tool for agricultural businesses that need to maintain large areas of vegetation.
3. Pastures: The disc rotary mower can be used to harvest pastures, making it a valuable tool for ranchers and other livestock owners.
4. Herbage Harvesting: The disc rotary mower can also be used to harvest herbage, such as alfalfa, ryegrass, oat grass, and so on.
5. Landscaping: The disc rotary mower can also be used for landscaping purposes, making it a versatile tool for businesses and homeowners alike.
6. Heavy-duty Tasks: The disc rotary mower can handle heavy-duty tasks without wrapping or plugging, making it a reliable choice for all cutting needs.

How Does the 3 Point Hitch Disc Drum Mower Work?

The 3-point hitch disc drum mower is a type of agricultural machinery used for cutting and harvesting hay or grass. It is typically attached to the rear of a tractor using a three-point hitch, which provides stability and allows for easy maneuverability. Here's how the 3-point hitch disc drum mower works:

1. Mounting: The mower is attached to the tractor's three-point hitch, which consists of two lower arms and an upper link. The lower arms are connected to the mower frame, while the upper link provides vertical adjustment.
2. Power Source: The mower is powered by the tractor's power take-off (PTO), which transfers power from the tractor engine to the mower blades. The PTO shaft is connected to the mower's gearbox, which increases the rotational speed and transmits it to the cutting mechanism.
3. Cutting Mechanism: The cutting mechanism consists of a set of horizontally rotating disc drums equipped with cutting blades. These blades are mounted on the drums at specific intervals and are designed to cut the standing crop as the mower moves forward.
4. Height Adjustment: The mower's height can be adjusted using the upper link of the three-point hitch. By changing the angle of the upper link, the cutting height can be increased or decreased, allowing the operator to adapt to different crop conditions or cutting requirements.
5. Operation: Once the mower is properly attached and adjusted, the tractor moves forward, pulling the mower along. As the disc drums rotate, the cutting blades engage with the crop, slicing it at the desired height. The cut material is then discharged to the side or rear of the mower, forming a windrow or spreading it evenly, depending on the design of the mower.
6. Safety Features: To ensure safe operation, most disc drum mowers are equipped with various safety features. These may include guards around the rotating blades to prevent debris from being thrown out, shear bolts or slip clutches to protect the mower from damage in case of an obstacle, and a quick-release mechanism to disengage the mower from the tractor in emergencies.

How to Install the Disc Drum Mower to Tractor?

Installing a disc drum mower to a tractor generally involves the following steps:

1. Position the Tractor: Park the tractor on a level surface and engage the parking brake to ensure stability during the installation process. Adjust the three-point hitch to the proper height. This can usually be done by using the hydraulic control lever or crank on the tractor. The hitch should be set to match the attachment points on the mower.
2. Align the Mower: Position the disc drum mower behind the tractor, aligning the lower hitch arms of the mower with the attachment points on the tractor's three-point hitch. Ensure that the hitch arms are securely connected to the tractor.
3. Attach the Top Link: Connect the top link of the three-point hitch to the upper attachment point on the mower. Adjust the length of the top link as needed to achieve the desired height and level the mower. Double-check all fasteners, including pins and bolts, to ensure they are tight and secure. This step is crucial for safety and to prevent any parts from becoming loose during operation.
4. Connect PTO Shaft: Attach the power take-off (PTO) shaft of the mower to the PTO stub on the tractor. The PTO shaft should slide onto the stub and be secured using the locking mechanism, such as a collar or a pin.
5. Adjust Height and Level: Use the tractor's hydraulic control lever or crank to adjust the height of the mower. Set it to the desired cutting height, keeping in mind the type of crop and cutting conditions.
6. Test Operation: Before starting the actual cutting, engage the PTO and observe the mower's operation. Ensure that the blades rotate smoothly and that there are no unusual vibrations or noises. Check for any interference between the mower and the tractor.

Maintenance of the Disc Rotary Mower

Proper maintenance of a 3-point hitch disc drum mower is essential to ensure its optimal performance, extend its lifespan, and promote safe operation. Here are some maintenance tasks to consider:

1. Regular Cleaning: After each use, clean the mower thoroughly to remove any debris, grass clippings, and other material that may have accumulated. Pay attention to the cutting blades, disc drums, and discharge chute. Use a brush or compressed air to remove stubborn debris.
2. Blade Inspection and Sharpening: Regularly inspect the cutting blades for signs of wear, damage, or dullness. Replace any blades that are bent, cracked, or excessively worn. Sharpen the blades as needed to maintain their cutting efficiency. Follow the manufacturer's recommendations for blade maintenance and sharpening techniques.
3. Lubrication: Keep all moving parts properly lubricated according to the manufacturer's instructions. This includes lubricating bearings, gearbox components, and any other areas specified in the maintenance manual. Use the recommended lubricants and follow the recommended intervals for lubrication.
4. Gearbox Inspection: Check the gearbox for any leaks, abnormal noises, or signs of wear. If you notice any issues, address them promptly to prevent further damage. Follow the manufacturer's guidelines for gearbox maintenance and lubrication.
5. PTO Shaft Maintenance: Inspect the PTO shaft for any signs of wear, damage, or loose components. Ensure that the protective shielding is intact and properly secured. Grease the PTO shaft as recommended by the manufacturer.
6. Check Nuts and Bolts: Regularly inspect all nuts, bolts, and fasteners on the mower for tightness. Vibrations during operation can cause them to loosen over time. Tighten any loose fasteners to ensure the mower remains properly assembled.

Why Choose Raydafon's Agricultural Disc Drum Mower?
