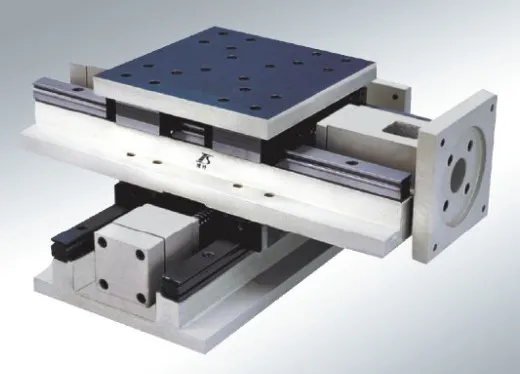

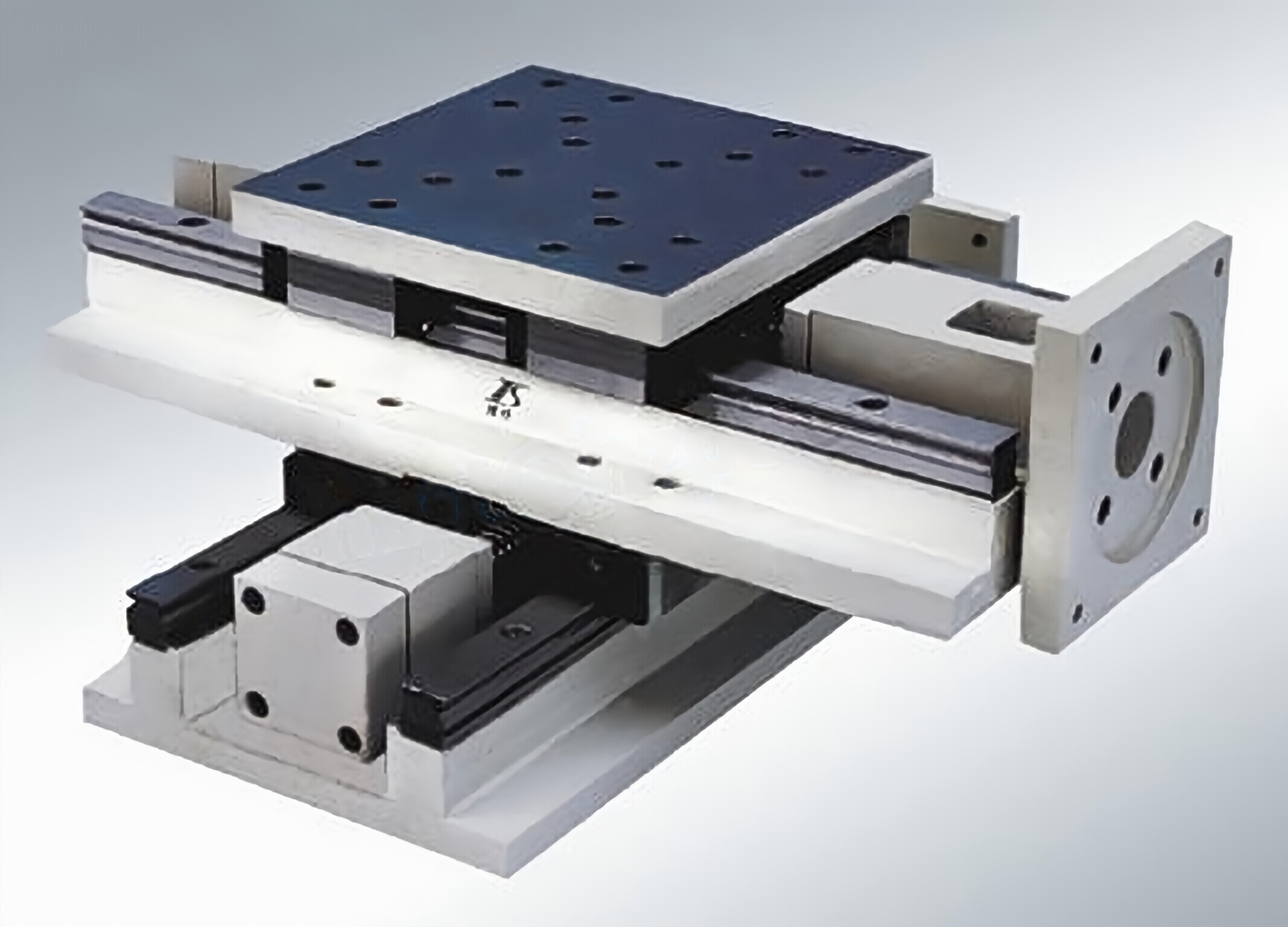

Double Coordinate Cross Working Table

Double Coordinate Cross Working Table

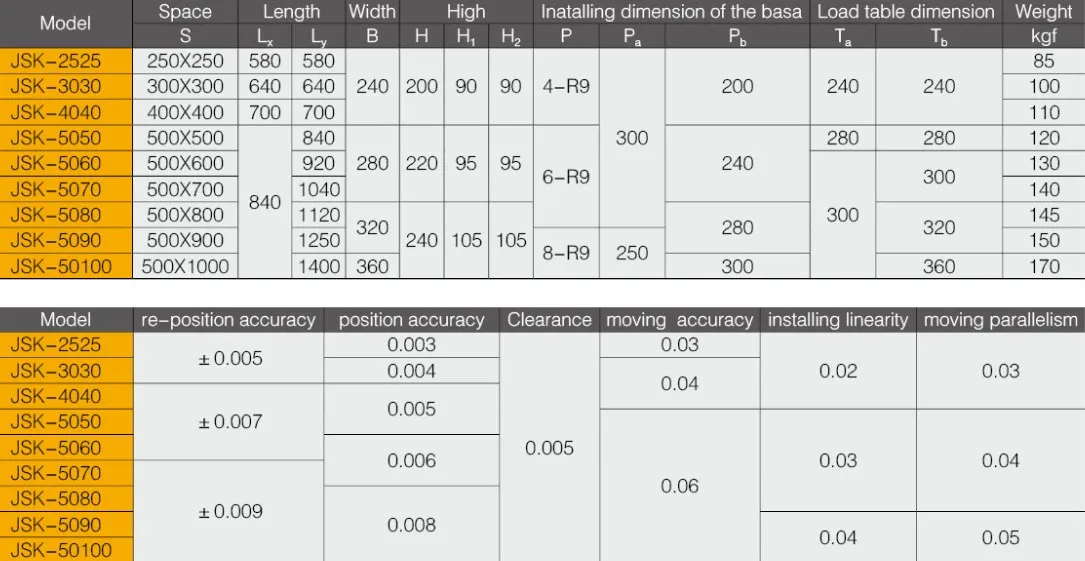

Smooth XY Movement: Our milling machine worktable can move horizontally and vertically through the adjustment handles.Accurate measurement: This cross slide is equipped with precise dials and handles for quick, proper positioning.Smooth and grounded table: The flat work area and machined T-slots effectively provide essential assistance in your machining process. Note:1. The following table is a primary type.2. Please point out the direction of the motor when you order.3. Motor and the control system depend on the client to choice.

The Benefits of a Cross Table

Crosstabs are tables that allow automated machinery to move horizontally. These tables are also called coordinate tables and XY tables. They are used to assemble robots and other similar automated machinery. These tables have many benefits. Here are some of them: They can speed up production and improve accuracy. They are also very versatile. However, you must know how to use them properly. Read on to learn more about these tables and their functions.The cross table is used for milling and drilling and is ideal for machining cylindrical parts. They are also manual units, requiring the part to be secured to the table by hand. They usually contain a base, table, bracket kit, and Phillips block screws.Cross worksheets are also known as XY tables and coordinate tables. They are used to assemble robots and provide horizontal motion for automated machinery. The table should be regularly lubricated, cleaned, and protected against knocking to ensure accuracy. It is also important to check the accuracy of the crossover.
