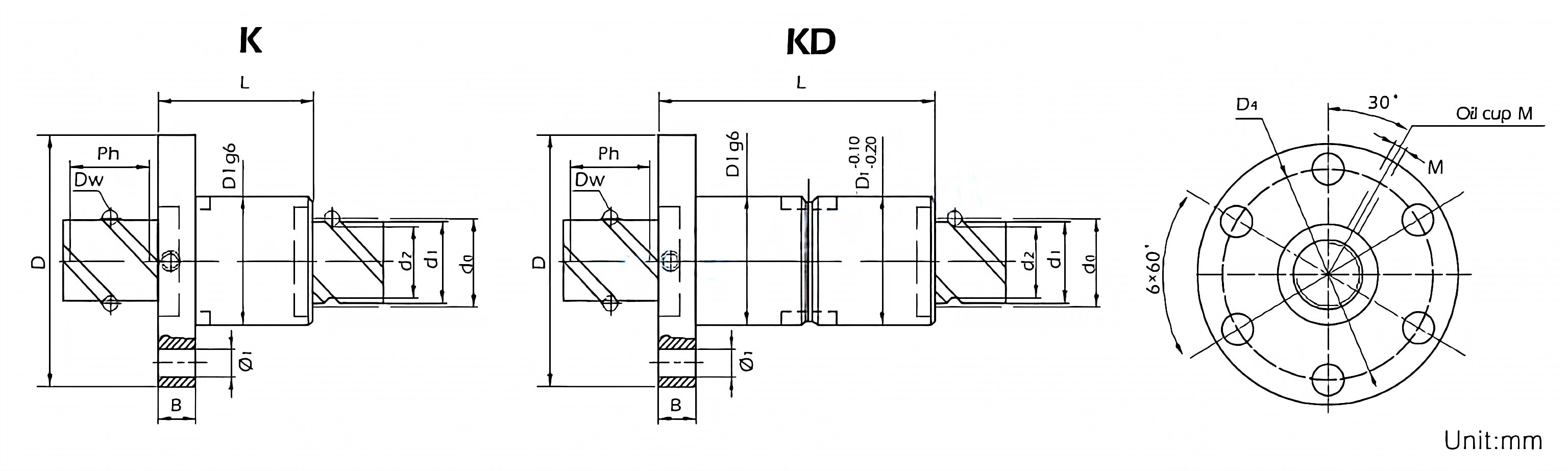

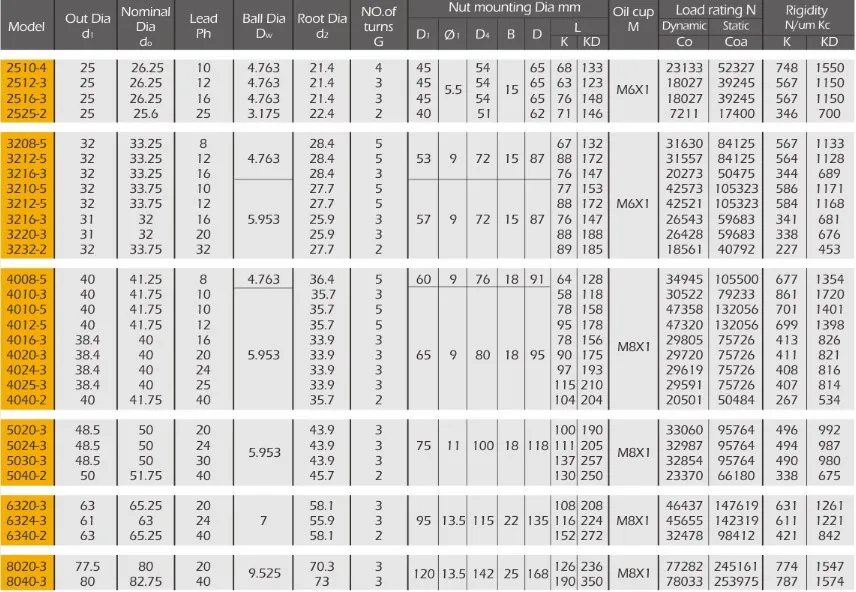

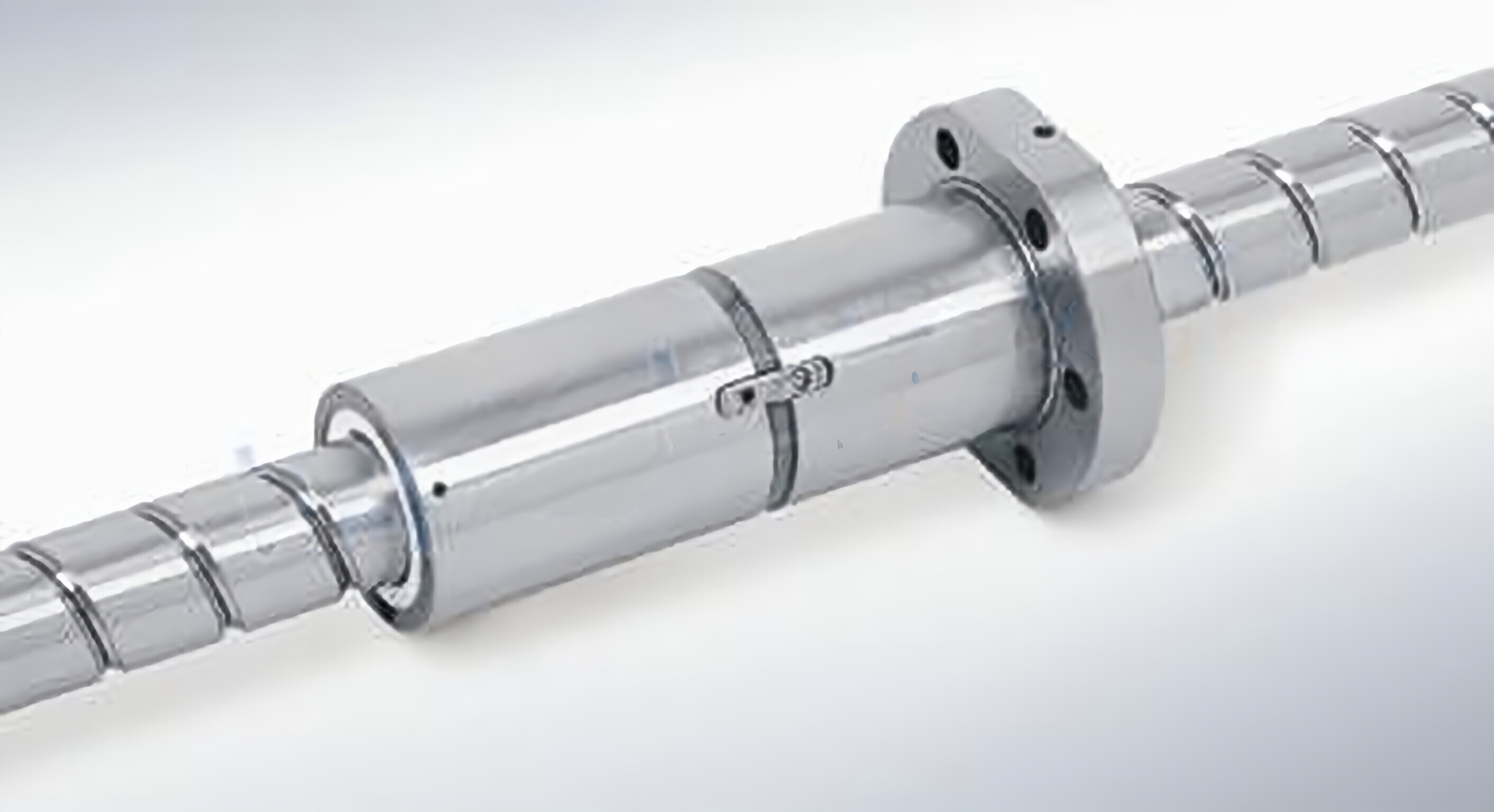

K.KD Series Ball Screws with High Speed

K.KD Series Ball Screws with High Speed

The Ball Screw is a high-efficiency feed screw with the ball rolling between the screw axis and the nut. Compared with a conventional sliding screw, this product has a drive torque of one-third or less, making it most suitable for saving drive motor power.Our ball screw assemblies consist of a lead screw and a nut, each with matching helical grooves. Balls roll between these grooves, providing contact between the nut and the lead screw. These recirculating bearings enable the unit to operate efficiently with excellent static and dynamic load ratings.We stock ball screw models in various materials and designs, including high carbon and low carbon alloy steels and multiple grades of stainless steel in standard and metric sizes.Our ball screws provide linear motion solutions for various industries, including Building construction, heavy lifting, transportation, marine, medical, food packaging, and energy.

Accuracy Index of Ball Screw

Another is for transmission()The accuracy degree has 7 degrees; 1 is top, then the following Step down. Ball screws have two major parts: a screw shaft and ball bearings. A motor at one end provides rotational power to the screw. The nut, meanwhile, houses the ball bearing and recirculation system. The ball bearings match up with grooves on the screw shaft. A ball bearing is usually made of steel.As with all other types of screw repairs, ball screw repair services take into account the physical and design specifications of the screw. Some features include unit type, length, outer diameter, lead accuracy, lubrication port, thread type, right-hand or left-hand threads, twin leads, and more.Ball screws are used in many industries, including aerospace, robotics, and automotive manufacturing. They are also used in missiles and precision assembly equipment.

Features of Ball Screw Pairs

1. High transmission efficiencyIn a ball screw assembly, free rolling balls transmit force and motion between the screw and the nut. This transmission method replaces the direct action method between the screw and the standard threaded screw pair nut.Therefore, the sliding friction of the traditional lead screw is replaced by minimal rolling friction so that the transmission efficiency of the ball screw pair reaches more than 90%, and the driving torque of the entire transmission pair is reduced to about 1/3 of the sliding lead screw.Right, the heat generation rate is thus significantly reduced.2. High positioning accuracyThe ball screw pair has a low heating rate, a slight temperature rise, and measures such as pre-stretching and pre-tightening the lead screw to eliminate axial clearance during processing so that the lead screw pair has high repeat positioning accuracy.3. Transmission reversibilityThe ball screw pair has no stick-slip friction from the sliding screw, eliminating the possible creeping phenomenon during the transmission process. The ball screw pair can realize two transmission modes—converting rotary motion into linear motion or converting linear motion into rotation. Movement and transmission of power.4. Long service lifeDue to the strict control of the accuracy of the shape of the screw raceway, the surface hardness, and the selection of materials, the actual life of the ball screw pair is much higher than that of the sliding screw.5. Good synchronization performanceDue to the smooth operation of the ball screw pair, the elimination of axial play, and the consistency of manufacturing, when multiple sets of ball screw pairs are used to drive the same device or numerous identical components, good synchronization can be achieved.

Model.Series	Style of nut
G.GD	Inner cycle fixed reverser single/double nut style
CM.CDM	Tube single/double nut type
ZCT	Tube big size and extra-load type
KD	Inner cycle high speed type
Z.ZD	Inner cycle rolling single/double nut type
CBT	Tube lead preload type
JS-FC	Tube big lead type
GWS	Micro ball screw
GZXS	Planetary roller Screw
SG	Heavy load type for plastic machinery
