Double Piston Rod Hydraulic Cylinder

Double Piston Rod Hydraulic Cylinder

The Double Piston Rod Hydraulic Cylinder is a cutting-edge hydraulic component designed to deliver exceptional power, stability, and versatility in a wide range of industrial applications. With its unique double piston rod configuration, this hydraulic cylinder offers enhanced load-bearing capacity, precise control, and reliable performance, making it an indispensable asset in demanding hydraulic systems.Essential Characteristics Of Four Rod Hydraulic Cylinder:

1. Double Piston Rod Configuration:
   • The double piston rod configuration sets this hydraulic cylinder apart from conventional designs, providing increased stability, load-carrying capability, and resistance to side loads.
   • It offers symmetrical force distribution, ensuring balanced and precise movement during operation.
2. High Power Output:
   • This hydraulic cylinder boasts impressive power output, making it suitable for applications that demand substantial force and lifting capacity.
   • It delivers exceptional thrust, allowing it to handle heavy loads with ease.
3. Precise Control and Positioning:
   • The Double Piston Rod Hydraulic Cylinder offers precise control over linear motion, ensuring accurate positioning and smooth operation.
   • It provides excellent stroke control, enabling operators to achieve the desired speed and accuracy required for specific tasks.
4. Versatile Application:
   • With its robust construction and versatile design, this hydraulic cylinder is suitable for a wide range of industries and applications.
   • It can be utilized in heavy machinery, construction equipment, material handling systems, agricultural machinery, and more.

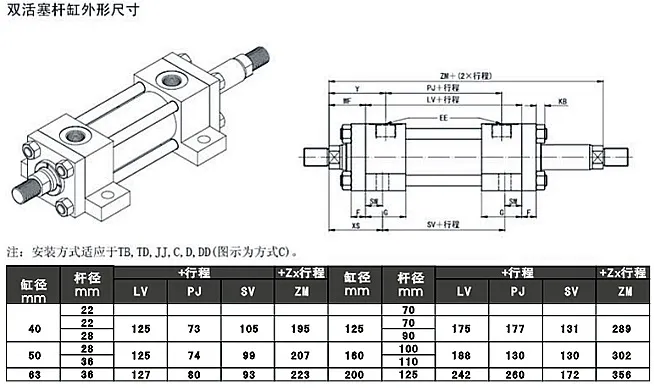

Double Piston Rod Hydraulic Cylinder Parameter:

Usage Method Of Double Piston Rod Hydraulic Cylinder:

1. Mounting and Installation:
   • Consider load requirements and space constraints to identify the appropriate mounting location for the hydraulic cylinder within the system or equipment.
   • Ensure the mounting surface is clean, level, and capable of supporting the cylinder's weight.
   • Securely fasten the cylinder using recommended bolts or fasteners, following the manufacturer's guidelines.
2. Hydraulic Connections:
   • Connect the hydraulic supply lines to the cylinder ports, ensuring proper sealing to prevent leaks.
   • Follow the manufacturer's recommendations for hydraulic fluid type and fill the system to the recommended level.
3. Operation:
   • Activate the hydraulic system and control the cylinder's movement using a hydraulic control valve or other suitable control mechanism.
   • Adjust the flow and pressure settings to achieve the desired speed and force output.
   • Regularly monitor the cylinder's operation for abnormal behavior, such as leaks, excessive heat, or unusual noise.

Maintenance Of Double Piston Rod Hydraulic Cylinder:

1. Regular Inspection:
   • Perform routine visual inspections to check for signs of wear, leaks, or damage.
   • Inspect the piston rods, seals, and mounting connections for abnormalities and promptly address any issues.
2. Lubrication:
   • Follow the manufacturer's guidelines for lubrication intervals and use a recommended lubricant to ensure smooth operation.
   • Apply lubrication to the piston rods, seals, and other moving parts to minimize friction and extend the cylinder's lifespan.
3. Seal Replacement:
   • Over time, seals may wear out and require replacement. If leakage is detected, carefully remove the old seals and install new ones according to the manufacturer's specifications.

How Fast Can A Hydraulic Cylinder Move？

The speed at which a hydraulic cylinder can move depends on several factors, including the size and design of the cylinder, the hydraulic system's pressure and flow rate, and the load being moved.In general, hydraulic cylinders are known for their ability to provide both high force and precise control, but their maximum speed is typically lower compared to other types of actuators. The speed of a hydraulic cylinder is determined by the rate at which hydraulic fluid is supplied to or released from the cylinder chamber.Here are a few factors that can affect the speed of a hydraulic cylinder:

1. System Design and Components: The design of the hydraulic system, including the pump, valves, and piping, can impact the speed of the cylinder. The system should be properly sized and configured to provide adequate flow rate and pressure to achieve the desired speed.
2. Cylinder Diameter and Stroke Length: The diameter and stroke length of the cylinder also play a role in determining its speed. Generally, larger diameter cylinders tend to move more slowly than smaller ones due to the more extensive hydraulic fluid required to fill or empty the cylinder chamber.
3. Flow Rate and Pressure: The flow rate and pressure of the hydraulic fluid supplied to the cylinder are critical factors in determining the cylinder's speed. Increasing the flow rate or pressure can result in faster movement, while reducing them will slow down the cylinder.
4. Load and Friction: The weight and friction of the shipment being moved can affect the speed of the cylinder. Heavier loads may require more force, which can reduce the overall rate of the cylinder. Additionally, increased friction within the system, such as from seals or misalignment, can also impact the speed.

China Hydraulic Cylinder Manufacturers:

Raydafon is a company in the R&D and manufacture of four rod hydraulic cylinders. It maintains a leading position in the market segment of hydraulic cylinders for forklifts in China. In 2020, the domestic market share was around 29%. We produce Industrial vehicle heavy rod hydraulic cylinders, Aerial work vehicle heavy rod hydraulic cylinders, Agricultural Machinery hydraulic cylinders, and Sanitation machinery hydraulic cylinders.We have a first-class independent R&D platform for assembly. The four rod hydraulic cylinder production workshop has four semi-automatic lifting cylinder assembly lines and one fully automatic tilting cylinder assembly line, with a designed annual production capacity of 1 million pieces; the special cylinder workshop is equipped with semi-automatic cleaning and assembly systems of various specifications, with a designed annual production capacity of 200,000 essays. It has famous CNC machining equipment, machining centers, special equipment for high-precision cylinder processing, robot welding machines, automatic cleaning machines, automatic cylinder assembly machines, and automatic paint production lines. We have more than 300 sets of critical equipment running. The optimized allocation and efficient utilization of equipment resources ensure the precision requirements of the products and meet the high standard quality requirements of the products.
