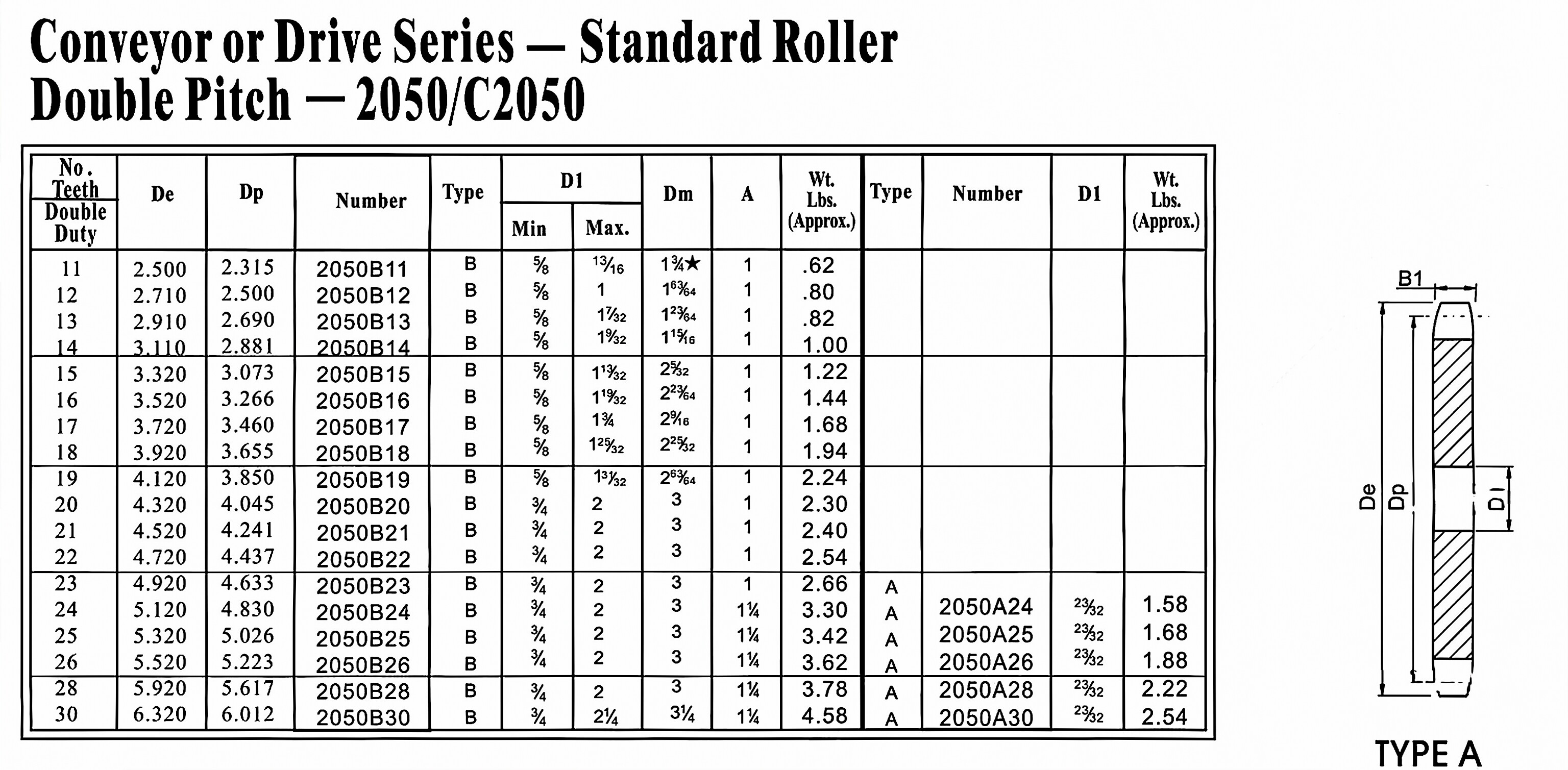

Double Pitch Sprocket 2050B with standard roller

Introduction

Double Pitch Sprocket 2050B with standard roller is a type of sprocket that is commonly used in power transmission systems. It is designed to work with a double pitch roller chain and has a larger pitch than standard sprockets. The sprocket features a simple yet robust design that ensures smooth and reliable operation.

Definition and basic structure of Double Pitch Sprocket

• Double pitch sprocket is a type of sprocket that has a larger pitch than standard sprockets.
• It is used in power transmission systems with double pitch roller chains.
• The basic structure of a double pitch sprocket consists of a hub, teeth, and a bore.
• The teeth of a double pitch sprocket are designed to engage with the rollers of a double pitch roller chain.

Main features of Double Pitch Sprocket

• More significant pitch: Double pitch sprockets have a larger pitch, which allows for higher speeds and smoother operation.
• Higher load capacity: Due to their larger size, double pitch sprockets can handle more load than standard sprockets.
• Smooth operation: The larger pitch and tooth design ensure that the chain engages smoothly with the sprocket, resulting in less noise and vibration.

Materials for Double Pitch Sprocket

Double pitch sprockets are typically made from carbon steel, alloy steel, or stainless steel. Carbon steel sprockets offer high strength and durability at an affordable price. Alloy steel sprockets are stronger than carbon steel sprockets and are suitable for heavy-duty applications. Stainless steel sprockets are corrosion-resistant and are ideal for use in harsh environments.

Manufacturing process of Double Pitch Sprocket

• Raw material preparation: The first step in the manufacturing process is to prepare the raw material. The steel is cut into the desired shape and size.
• Forging or casting: The next step is to forge or cast the sprocket. Forging involves heating the steel and shaping it with a hammer or press. Casting involves pouring molten metal into a mold and letting it cool.
• Machining: After forging or casting, the sprocket is machined to the desired size and shape.
• Rolling: The teeth of the sprocket are then rolled to ensure a precise fit with the chain.
• Heat treatment: The sprocket is heated and cooled to improve its strength and durability.
• Surface treatment: The sprocket is then finished with a surface treatment to protect it from corrosion and wear.
• Quality inspection: Finally, the sprocket undergoes a quality inspection to ensure that it meets the required specifications and standards.

Customization services

We offer a range of customization services for our double pitch sprockets, including:

• Material selection: We can help you choose the right material for your specific application.
• Design of tooth profile: Our experts can create a tooth profile that is optimized for your application.
• Hole diameter and keyway: We can customize the bore diameter and keyway of the sprocket to meet your requirements.

FAQs

1. What is the difference between a double pitch sprocket and a standard sprocket?

Double pitch sprockets have a larger pitch than standard sprockets and are designed to work with double pitch roller chains.

2. What are the main benefits of using a double pitch sprocket?

Double pitch sprockets offer more extensive tooth engagement, higher load capacity, and smoother operation.

3. What materials are double pitch sprockets made from?

Double pitch sprockets can be made from carbon steel, alloy steel, or stainless steel.

4. What customization services are available for double pitch sprockets?

We offer material selection, tooth profile design, and custom bore diameter and keyway services for our double pitch sprockets.

5. What is the lead time for custom double pitch sprockets?

The lead time for custom double pitch sprockets depends on the complexity and quantity of the order. Please contact us for more information.
