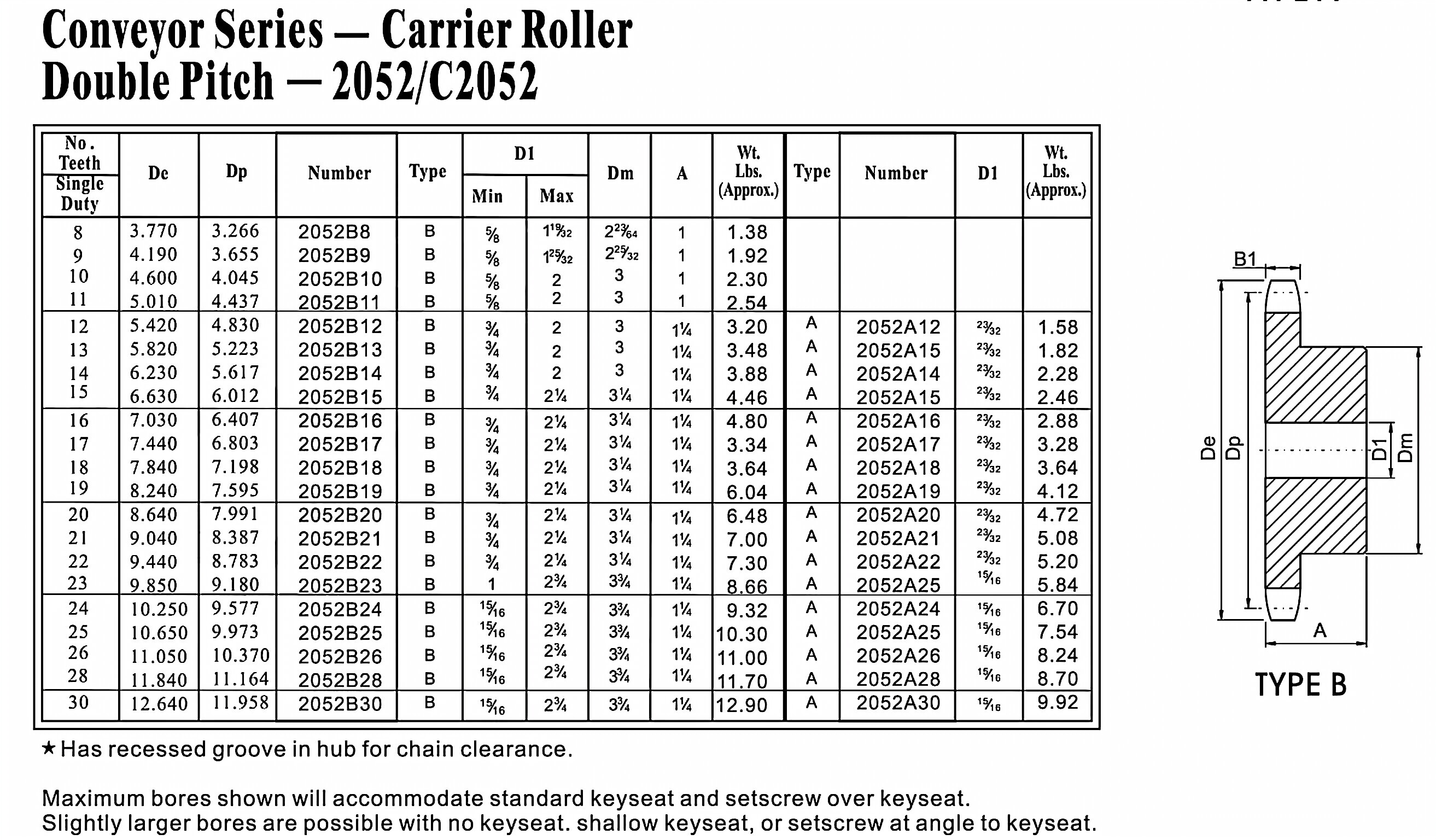

Double Pitch Sprocket 2052B with carrier roller

Introduction to Double Pitch Sprocket 2052B with Carrier Roller

Double Pitch Sprocket 2052B with carrier roller is a type of sprocket commonly used in transmission systems. It features a carrier roller that helps to guide the chain and ensure smooth operation.

Definition and Basic Structure

Double Pitch Sprocket refers to a sprocket with a larger pitch than standard sprockets. It consists of teeth positioned at a greater distance from each other, allowing for better load distribution and increased load capacity. The carrier roller, located between the teeth, acts as a guide for the chain.

Main Features of Double Pitch Sprocket 2052B with Carrier Roller

• Greater Tooth Spacing: The larger pitch provides more space between the teeth, allowing for smoother engagement with the chain.
• Higher Load Capacity: The design of the sprocket and the presence of the carrier roller enable it to withstand higher loads.
• Smooth Operation: The carrier roller ensures smooth movement of the chain, reducing friction and noise.

Material Selection for Double Pitch Sprocket

Double pitch sprockets can be made from different materials depending on the specific requirements of the application. The available material options include carbon steel, alloy steel, and stainless steel.

Carbon Steel: Known for its strength and affordability, carbon steel is commonly used for standard applications.

Alloy Steel: Alloy steel offers enhanced strength and durability, making it suitable for demanding environments or heavy-duty applications.

Stainless Steel: Stainless steel provides excellent corrosion resistance, making it ideal for applications where exposure to moisture or chemicals is a concern.

Manufacturing Process of Double Pitch Sprocket

1. Raw Material Preparation: The process starts with selecting high-quality materials that meet the required specifications.
2. Forging or Casting: The selected material is either forged or cast to shape it into the desired sprocket form.
3. Machining: The sprocket undergoes precision machining to achieve the correct dimensions and tooth profiles.
4. Tooth Rolling: The teeth are formed using a rolling process, ensuring high precision and strength.
5. Heat Treatment: The sprocket is subjected to heat treatment to enhance its hardness and durability.
6. Surface Treatment: Various surface treatments like plating or coating are applied to improve corrosion resistance and aesthetics.
7. Quality Inspection: The finished sprocket undergoes rigorous quality checks to ensure it meets the required standards.

Customization Services

We offer customization services for Double Pitch Sprockets to meet specific requirements:

• Material Selection: Customers can choose the material that best suits their application needs.
• Tooth Profile Design: We can assist in designing the optimal tooth profile for efficient chain engagement and performance.
• Bore Size and Keyway: The bore size and keyway can be customized to match the shaft requirements of the application.

Frequently Asked Questions (FAQ)

1. Q: What are the benefits of using Double Pitch Sprocket 2052B with carrier roller?

A: The sprocket offers increased load capacity, smoother operation, and better chain guidance, resulting in improved overall performance.

2. Q: Where are Double Pitch Sprockets with carrier roller commonly used?

A: They are commonly used in conveyor systems, material handling equipment, and other applications that require long-distance transmission.

3. Q: Can the Double Pitch Sprocket be customized for specific applications?

A: Yes, we offer customization services to tailor the sprocket's material, tooth profile, bore size, and keyway to meet specific application requirements.

4. Q: What maintenance is required for Double Pitch Sprocket 2052B with carrier roller?

A: Regular lubrication and inspection are essential to ensure optimal performance and prolong the sprocket's lifespan.

5. Q: Can Double Pitch Sprocket 2052B with carrier roller be used in high-speed applications?

A: Yes, the sprocket is designed to withstand a range of operating speeds, making it suitable for various applications.

Author: Miya
