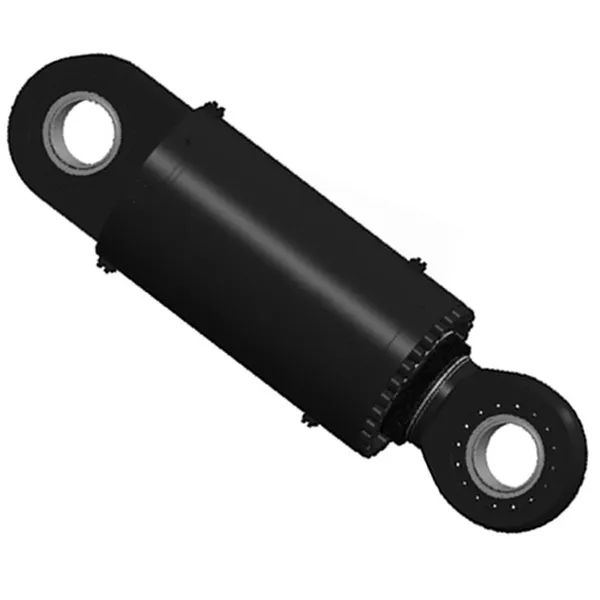

Double Shield Tunnel Boring Machine Support Shoe Cylinder

Double Shield Tunnel Boring Machine Support Shoe Cylinder

A double shield tunnel boring machine (TBM) support shoe cylinder is a hydraulic cylinder that is used to provide the thrust required to brace the tunnel boring machine against the tunnel walls. It is one of the most important components of a double shield tunnel boring machine, and its proper operation is essential for the safety and efficiency of the tunneling process.

Double shield tunnel boring machines are used to excavate tunnels in hard rock conditions. They have two shields: a front shield and a gripper shield. The front shield contains the cutterhead, which rotates to excavate the rock. The gripper shield is located behind the front shield and contains the gripper shoes. The gripper shoes are pressed against the tunnel walls to provide a reaction force for the tunnel boring machine to push against.

The support shoe cylinders are connected to the front shield and the gripper shield. When the support shoe cylinders are extended, they push the gripper shield against the tunnel walls. This provides the reaction force necessary for the tunnel boring machine to advance.

Double shield tunnel boring machine support shoe cylinders are typically made of high-strength steel and are designed to withstand the high pressures and forces involved in tunneling. They are also equipped with a variety of safety features, such as pressure relief valves and overstroke protection.

Double shield TBM support shoe cylinders are typically customized to meet the specific needs of each tunneling project. Factors such as the tunnel diameter, rock type, and tunneling depth are all considered when designing and manufacturing these cylinders.

Here are some of the key features of double shield tunnel boring machine support shoe cylinders:

• High strength and durability to withstand the harsh conditions of tunneling
• Large bore diameters to provide sufficient thrust
• Long stroke lengths to accommodate the wide range of tunneling conditions
• Precision manufacturing to ensure accurate operation and long service life
• Safety features to protect against overpressure and overstroke

Double shield TBM support shoe cylinders are essential components of these powerful machines. They play a critical role in the safety and efficiency of tunneling operations in hard rock conditions.

Double Shield Tunnel Boring Machine Support Shoe Cylinder Specifications:

Product Name	Double Shield Tunnel Boring Machine Support Shoe Cylinder
Features:	Provides the thrust of cutterhead tunneling
Bore diameter:	320mm～700mm
Rod diameter:	220mm～500mmStroke: 300mm～1200mm
Pressure:	up to 35MPa
Applications:	Double Shield Tunnel Boring Machine

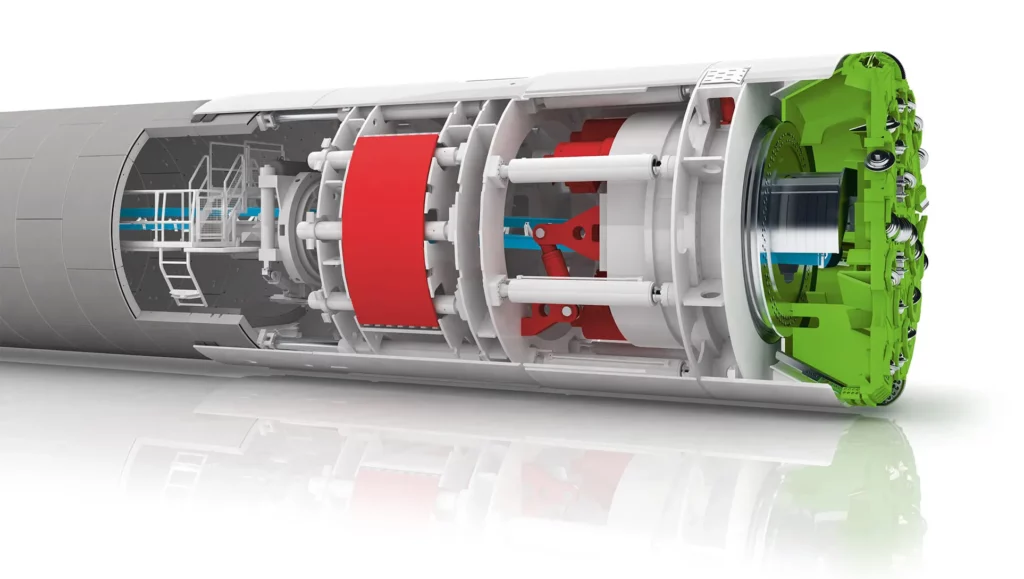

Features of Double Shield Tunnel Boring Machine Support Shoe Cylinder:

Double shield tunnel boring machine (TBM) support shoe cylinders are critical components of these machines, providing the thrust necessary to advance the tunnel boring machine through the ground. These cylinders are subjected to extreme loads and harsh operating conditions, so they must be designed and manufactured to the highest standards. Features of double shield TBM support shoe cylinders:

1. High strength and durability: Support shoe cylinders must be made from high-strength materials that can withstand the extreme loads and harsh operating conditions of tunnel boring machine tunneling.2. Long fatigue life: Support shoe cylinders must be able to withstand millions of cycles of loading and unloading without failure. This is achieved through the use of high-quality materials, special heat treatment processes, and optimized design.3. Reliability: Support shoe cylinders must be highly reliable to ensure that the tunnel boring machine can operate continuously and efficiently. This is achieved through rigorous quality control and testing procedures.4. Customizability: Support shoe cylinders can be customized to meet the specific requirements of each tunnel boring machine. This includes factors such as bore diameter, stroke, and pressure rating.5. Special sealing configuration: To protect the cylinder from dirt, dust, and other contaminants.6. Wide range of temperature resistance: To operate in a variety of climates.7. The ability to withstand high levels of vibration: Due to the harsh operating conditions of tunnel boring machine tunneling.8. Optimized design: For maximum strength and performance.

Double shield TBM support shoe cylinders are essential components of these machines, and their features and performance are critical to the success of tunnel boring machine tunneling projects.

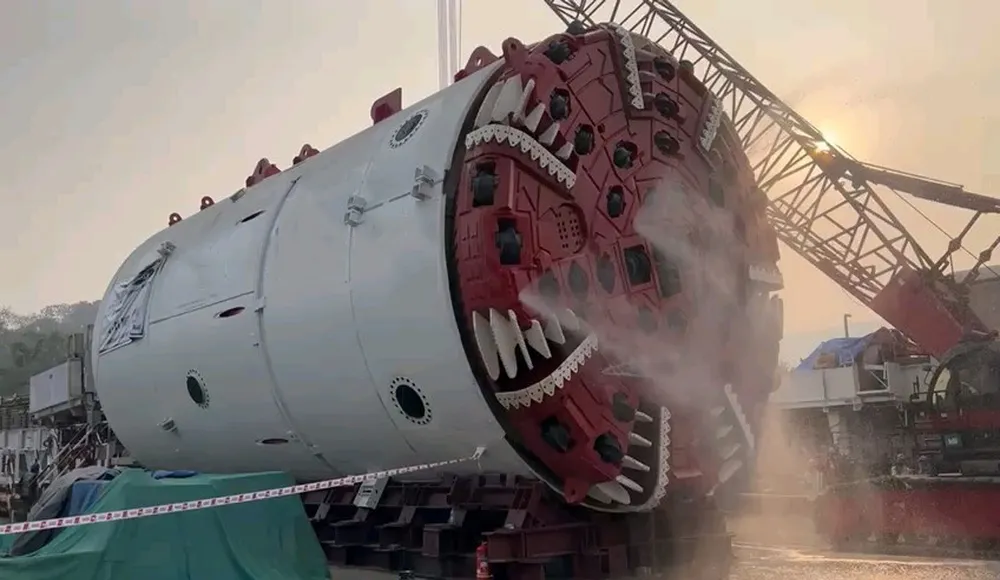

How Does the Support Shoe Cylinder for Double Shield Tunnel Boring Machine Work?

The support shoe cylinder for a double shield tunnel boring machine (TBM) is a hydraulic cylinder that is used to provide thrust to the gripper shoes. The gripper shoes are a series of hydraulically actuated pads that are pressed against the tunnel wall to provide stability and reaction force for the TBM.

The support shoe cylinder is typically located at the front of the tunnel boring machine, between the cutterhead and the gripper shield. It is connected to the gripper shoes by a series of linkages. When the cylinder is extended, it pushes the gripper shoes against the tunnel wall. This provides a reaction force that allows the tunnel boring machine to advance.

The support shoe cylinder is a critical component of a double shield tunnel boring machine. It must be able to withstand high loads and operate in a harsh environment. Support shoe cylinders are typically made of high-strength materials and are specially designed to withstand the vibrations and shock loads that are common in tunneling applications.

Here is a more detailed explanation of how the support shoe cylinder works in a double shield tunnel boring machine:

1. The cutterhead at the front of the tunnel boring machine excavates the ground, creating a hole in the ground.
2. The gripper shoes are pressed against the tunnel wall by the support shoe cylinder. This provides stability and reaction force for the tunnel boring machine.
3. The main thrust cylinders push the tunnel boring machine forward.
4. The gripper shoes are released and the tunnel boring machine is advanced forward.
5. The gripper shoes are pressed against the tunnel wall again by the support shoe cylinder.
6. The cycle repeats.

The support shoe cylinder plays a vital role in the tunneling process. It allows the tunnel boring machine to advance forward in a safe and controlled manner.

Tunnel Boring Machine Hydraulic Cylinder Manufacturers

Raydafon has been developing and producing tunnel boring machine cylinders since 2005, has successfully exported them all over the world, and has a leading global market share. For example, in the Bertha tunnel boring machine in Seattle, the entire set of high-pressure hydraulic cylinders is from Raydafon. Even though the equipment was constructed underground for two years, Raydafon's hydraulic cylinders did not suffer from corrosion and seal aging. We customized solutions for customers to fully meet the needs of complex working conditions such as high frequency, high load, vibration, and pollution during underground construction. Raydafon uses its strength to build a comprehensive service brand for hydraulic transmission and control systems in the field of tunnel boring equipment.In addition, we not only provide shield machine cylinders. We also supply a diverse range of hydraulic cylinders, including industrial vehicle hydraulic cylinders, aerial work vehicle cylinders, mobile machinery cylinders, industrial engineering cylinders, construction machinery cylinders, forklift hydraulic cylinders, agricultural machinery cylinders, crane hydraulic cylinders, sanitation machinery cylinders, excavator hydraulic cylinders, offshore hydraulic cylinders, energy technology cylinders, tunnel boring machine cylinders, and more. Our extensive product lineup caters to various industries and applications, providing solutions for your hydraulic needs.[embed]https://www.youtube.com/embedqlR4ZvCup9A[/embed]
