Drive Shaft Yoke for Agricultural Tractor Parts Lemon Yoke Wide Angle Joint PTO Shaft Latest 12965 CE Certificated

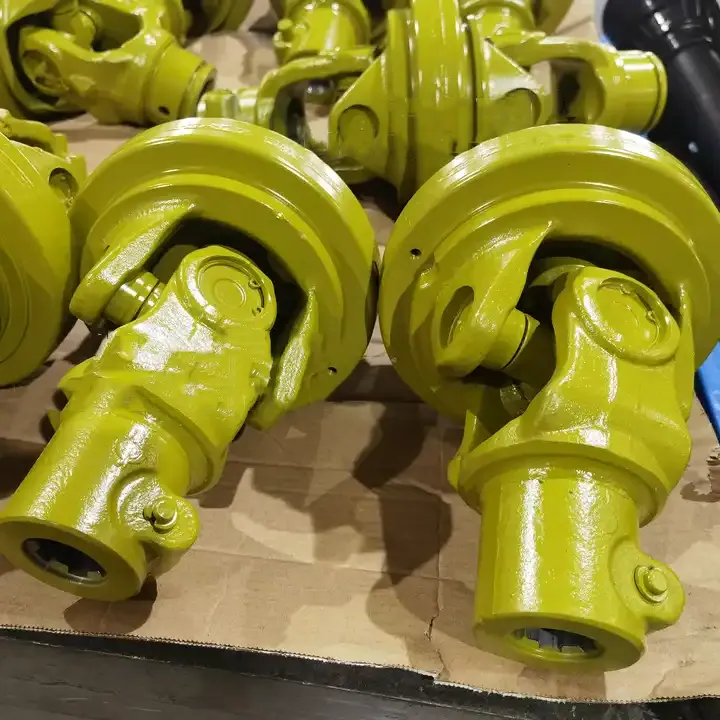

Introducing the latest in tractor drive parts ?C the Lemon Yoke 36 Wide Angle Joint for PTO Drive Shaft. This product is new, ISO & CE certified, and comes with a warranty of 6 months. It weighs 10 KG, and is made from 45C material. The product is perfect for use in a wide array of industries such as hotels, garment shops, building material shops, manufacturing plants, machinery repair shops, food & beverage factories, farms, restaurants, and retail shops, among others. Its yellow colour adds a vibrant touch to its appearance.

Advantages of the Lemon Yoke 36 Wide Angle Joint

The WA Wide Angle Joint offers several advantages for tractor PTO shafts. Here are some of the key benefits:

1. Increased Flexibility: The WA Wide Angle Joint is specifically designed to accommodate larger angles between the input and output shafts.
2. Improved Power Transmission: The WA Wide Angle Joint is highly efficient in transmitting power between the tractor's engine and the attached implement.
3. Enhanced Durability: The WA Wide Angle Joint is built to withstand the demanding conditions of agricultural work. It is typically made of high-quality materials, such as steel, that offer excellent strength and durability.
4. Reduced Wear and Tear: The design of the WA Wide Angle Joint minimizes wear and tear on the components. The cross-shaped spider distributes the load evenly across the joint, reducing stress concentration and extending the lifespan of the joint.
5. Versatile Application: The WA Wide Angle Joint can be used in a variety of agricultural applications where the input and output shafts are not aligned in a straight line.

Applications of the Lemon Yoke 36 Wide Angle Joint

The WA Wide Angle Joint finds applications in various scenarios where tractor PTO shafts need to accommodate larger angles between the input and output shafts. Here are some specific applications where the WA Wide Angle Joint is commonly utilized:

1. Mowers and Rotary Cutters: The WA Wide Angle Joint allows the PTO shaft to flex and rotate at larger angles, enabling the mower or rotary cutter to follow contours of the land without hindrance.
2. Balers and Hay Equipment: The WA Wide Angle Joint allows for smooth power transmission, even when the PTO shaft is not aligned in a straight line with the implement.
3. Tillage Equipment: The WA Wide Angle Joint enables the PTO shaft to handle the required angles and maintain consistent power transmission, allowing for effective soil preparation and cultivation.
4. Sprayers and Spreaders: The WA Wide Angle Joint facilitates smooth power transfer, allowing the sprayer or spreader to maintain proper operation and coverage.

Agricultural PTO Shaft Torque Limiter Types

In agricultural machinery, PTO shaft torque limiters are crucial for protecting equipment from damage due to torque overload. There are various types of PTO shaft torque limiters, each designed to cater to different operational needs and specifications.

1. 1. Shear Bolt Torque Limiter: Ideal for situations where overload conditions are clear and easily detectable.
   2. Friction Clutch Torque Limiter: Used in applications where gradual overload conditions might occur and frequent replacement of shear bolts is not desirable.
   3. Ratchet Torque Limiter: Suitable for implements like augers where unidirectional operation is required.
   4. Overrunning Clutch Torque Limiter: Commonly used in mowers and rotary cutters, allowing the implement to overrun when the tractor slows down.

How Does the Wide Angle Joint for Tractor PTO Shaft Work?

A wide-angle joint for a tractor PTO (Power Take-Off) shaft is a specialized mechanical component designed to transmit power from the tractor to an attached implement.

1. The primary function of a wide-angle joint is to transmit power from one shaft to another, particularly when these two shafts are not aligned in a straight line.
2. A wide-angle joint is specially designed to accommodate angles much larger than those possible with standard universal joints.
3. Unlike standard joints, which can cause fluctuations in rotational speed when angled, CV joints ensure that the input and output speeds remain consistent.
4. The wide-angle joint's ability to maintain a constant rotational speed despite being bent at steep angles is particularly beneficial in agricultural settings where the terrain is uneven.

How to Install Wide Angle Joints to PTO Shaft?

Wide Angle Joints can be installed on a PTO Shaft using the following steps:

1. Prepare the PTO Shaft: Ensure the PTO shaft is clean and free from any debris or rust.
2. Align the Wide Angle Joint: Align the Wide Angle Joint with the input and output shafts.
3. Attach the Yokes: Attach the yokes of the Wide Angle Joint to the input and output shafts.
4. Check Alignment and Movement: Once the Wide Angle Joint is installed, check the alignment of the input and output shafts.
5. Lubrication: Apply appropriate lubrication to the bearings or needle rollers within the Wide Angle Joint.
6. Test Operation: Start the tractor and engage the PTO to test the operation of the Wide Angle Joint.

Maintenance of the Lemon Yoke 36 Wide Angle Joint

Regular maintenance is essential to ensure the longevity and optimal performance of wide angle joints installed on a tractor PTO shaft. Here are some key maintenance practices for wide angle joints:

1. Inspection: Regularly inspect the wide-angle joints for any signs of wear, damage, or misalignment.
2. Lubrication: Proper lubrication is crucial for the smooth operation of the wide angle joints.
3. Cleaning: Keep the Wide Angle Joints clean from dirt, debris, and contaminants.
4. Tightening Fasteners: Periodically check the tightness of the fasteners, such as bolts or clamps, that hold the yokes and spider in place.
5. Ensure Proper Alignment: Monitor and maintain proper alignment between the input and output shafts.
6. Load Distribution: Ensure that the load is distributed evenly across the wide angle joint components.

Why Choose Raydafon's Wide Angle Joints for PTO Shaft?

Raydafon Drive Shaft Co., Ltd., located in Ningbo Zhejiang City, specializes in developing, manufacturing, and marketing PTO shafts, agricultural gearboxes, PTO shaft accessories, PTO shaft u-joints, torque limiters, PTO shaft tubes, PTO shaft yokes, PTO shaft adaptors, industrial cardan shafts, car driveshafts, u-joint coupling shafts, etc. Our products gained a great reputation from European, American, Asia, Australian, and North American customers. We are the top professional OEM supplier for many agricultural implement factories in the domestic market.

About Raydafon Drive Shaft Co., Ltd.

Raydafon Drive Shaft Co., Ltd., located in Ningbo Zhejiang City, is a two-hour drive to the Pudong Airport and an hour to the Xiaoshan Airport & the East of Ningbo Station. Our company covers more than 12,000 m2 with over 100 people on staff. We specialize in developing, manufacturing, and marketing PTO shafts, agricultural gearboxes, PTO shaft accessories, PTO shaft u-joints, torque limiters, PTO shaft tubes, PTO shaft yokes, PTO shaft adaptors, industrial cardan shafts, car driveshafts, u-joint coupling shafts, and more. The annual turnover is 60 million RMB, 9 Million Dollars, and It??s increasing year by year. Our products gained a great reputation from European, American, Asia, Australian, and North American customers. We are the top professional OEM supplier for many agricultural implement factories in the domestic market. Raydafon Driveshaft insisted on our principles: Quality first, Deliver quickly, and Price Competitive. We already have the CE, TS/16949, and ISO9001 certificates with systematic manufacturing types of equipment and a QC team to guarantee our quality and delivery. We warmly welcome every friend to visit us and establish a mutually beneficial long-term relationship cooperation.

Watch Our Video

Get a closer look at our wide-angle joints in action and understand more about our products and their applications in the agricultural industry.[embed]https://youtu.be/yDbCp68662g[/embed]Author: Yjx
