DZHQ Type Single Coordinate Worktable

DZHQ Type Single Coordinate Worktable

DZHQ type single coordinate worktable is a cutting-edge solution designed to enhance precision and efficiency in workstation operations. This innovative product is precisely engineered to provide smooth and accurate movement along a single coordinate axis, making it ideal for various industrial and laboratory applications.The DZHQ type single coordinate worktable is a powerful tool for enhancing precision and efficiency in workstation operations. With its precision engineering, sturdy construction, smooth operation, and space-saving design, this worktable provides a reliable and efficient solution for various industrial and laboratory tasks. By following the recommended usage method and maintenance guidelines, you can unlock the full potential of the DZHQ type single coordinate worktable, leading to improved workflow, increased productivity, and exceptional results in your daily operations. Experience the precision and efficiency of the DZHQ type single coordinate worktable today and elevate your workstation capabilities to new heights.CNC precision worktable consists of a linear motion guide as guide supporting and ball screw as motion enforcing parts. Its advantages include high accuracy, high efficiency, long lifetime, less abrasion, saved energy, small friction coefficient, compact structure, and wide application. It is widely used for measuring, laser welding, laser cutting, gelatinization, boring, small-type CNC machine tools, ray screeners, carving & milling machines, actual teaching situations, etc.

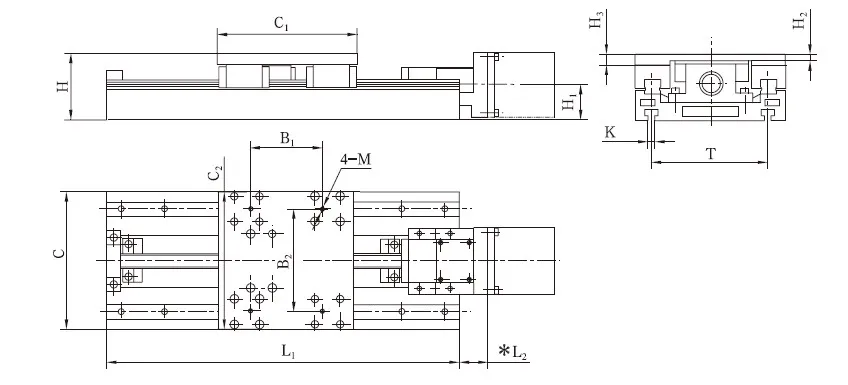

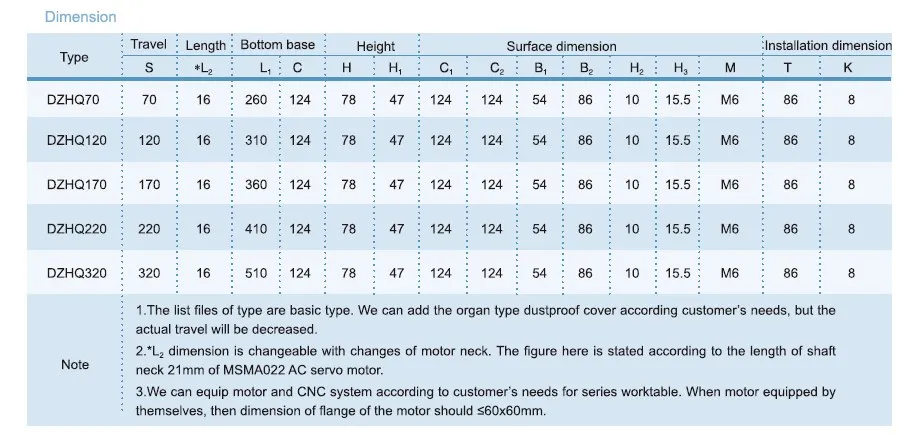

Dimension of DZHQ Types:

Characteristics of DZHQ Type:

Precision Engineering: The DZHQ Type Single Coordinate Worktable is crafted with meticulous precision. It incorporates high-quality components and advanced manufacturing techniques, ensuring reliable and precise movement along the coordinate axis. Experience accurate positioning and efficient workflow execution.Sturdy Construction: This worktable boasts a robust and durable construction. It is designed to withstand heavy loads and provide stability during operation, making it suitable for demanding tasks in industrial and laboratory environments.Smooth and Quiet Operation: The DZHQ Type Single Coordinate Worktable is engineered for smooth and quiet operation. It features a refined mechanism that minimizes friction and vibration, enabling seamless movement without disruptive noise. Enjoy a peaceful working environment.Compact and Space-Saving Design: With its compact footprint, the DZHQ Type Single Coordinate Worktable optimizes workspace utilization. It efficiently fits into tight areas, allowing you to make the most of your available space without compromising functionality.

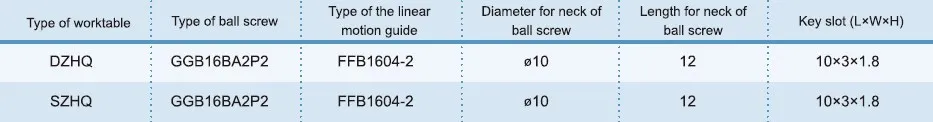

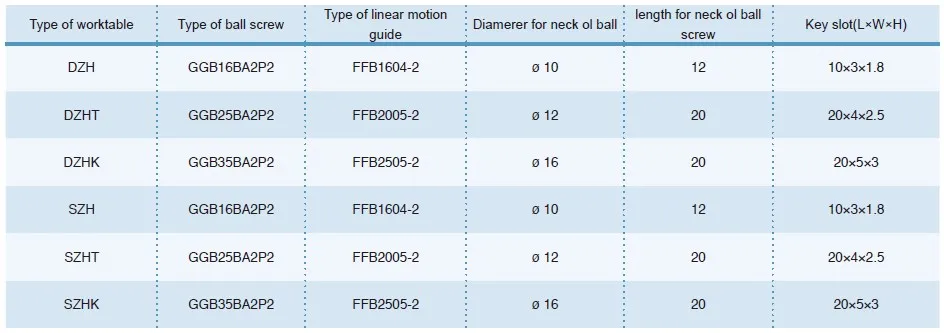

Type of Ball Screw and Linear Motion Guide, Parameters for Neck of Ball Screw in DZHQ and SZHQ:

Type of workable:

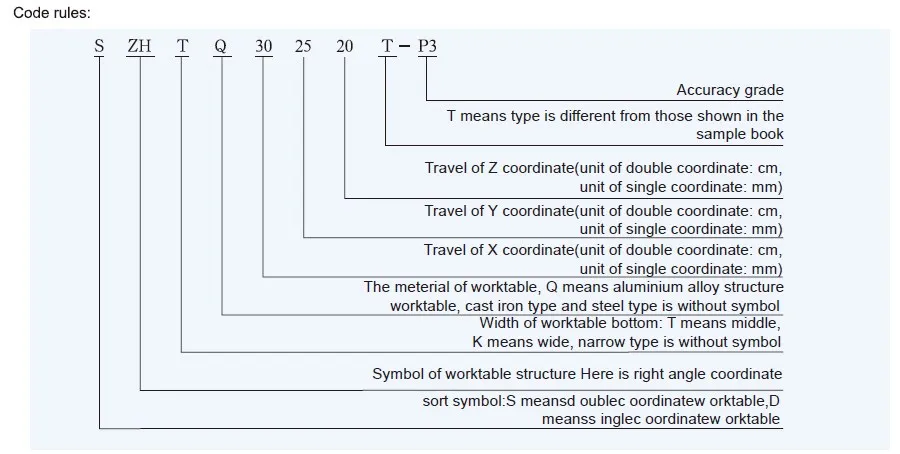

Code rules:

Selection Principle:

There are 49 types of standard type single & double-coordinate worktables manufactured in our factory, and all their worktables belong to 10 series, such as DZH, DZHT, DZHK, SZH, SZHT, and SZHK.Double coordinate worktables SZH, SZHT, and SZHK consist of two single-color donate worktables DZH, DZHT, and DZHK, respectively. The principle is that the above worktable travel is not longer than underside worktable travel.We can provide integration unit of machine & electric. Customize a select motor, drive, and CNC system according to the requirements to meet the speed, load, and pulse needs. The series of standard worktables has no dustproof unit and no electric limit unit. When customers want it, we will make it a particular project. If customers select a motor by themselves, its power should not be much higher or lower. Generally, the relative motors will be chosen according to the neck of the ball screw.Type of ball screw and linear motion guide, the parameter for the neck of ball screw in series standard worktable.

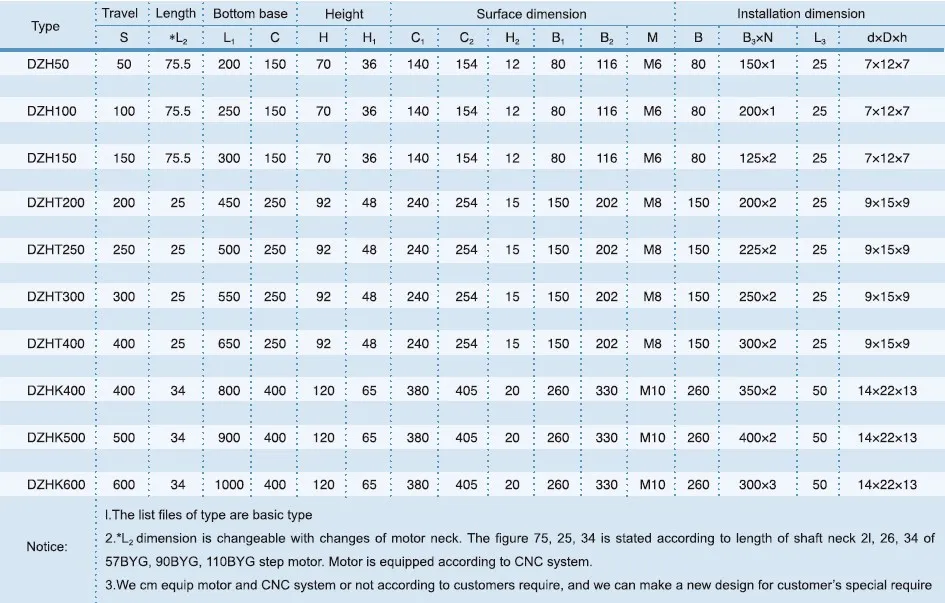

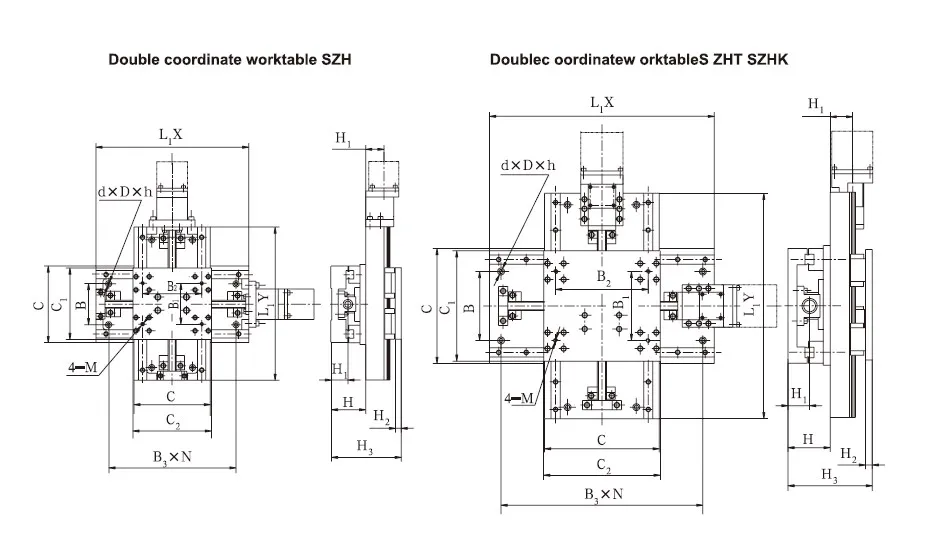

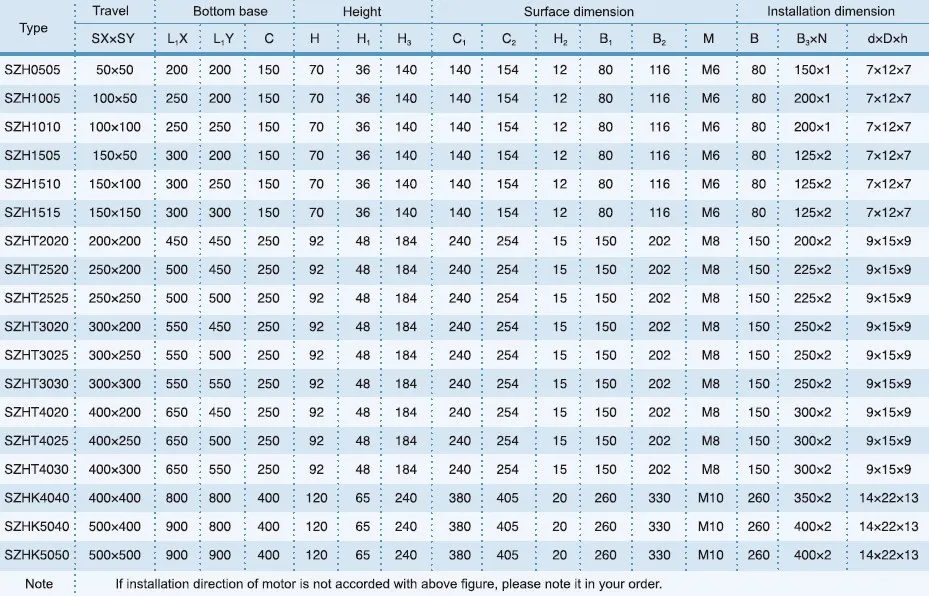

Dimension of Worktable:

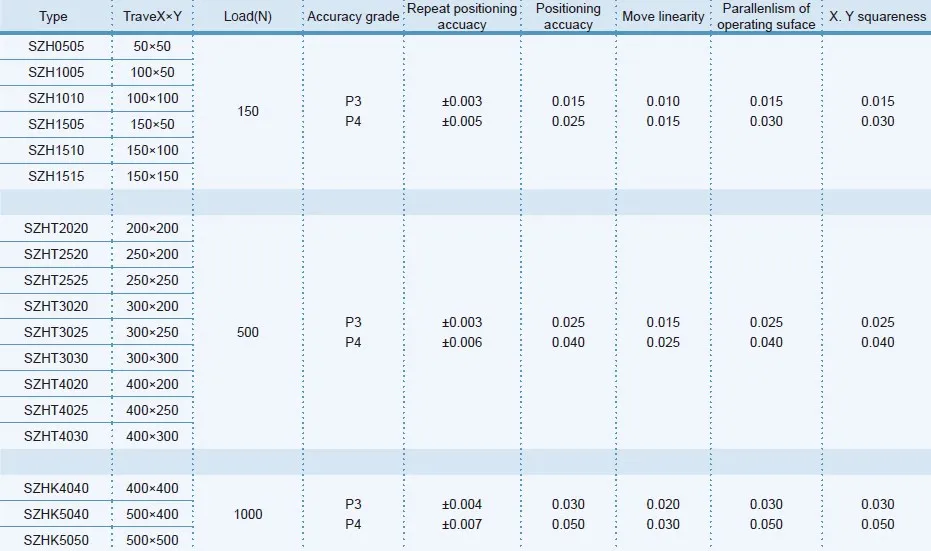

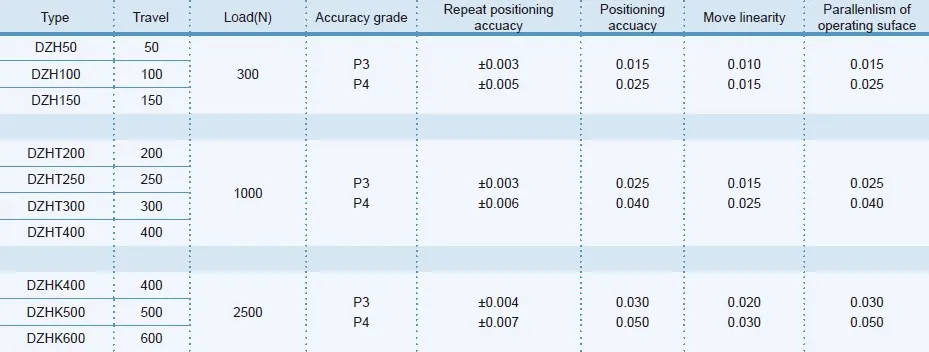

Accuracy Grade:

Accuracy Grade

Accuracy Gracle

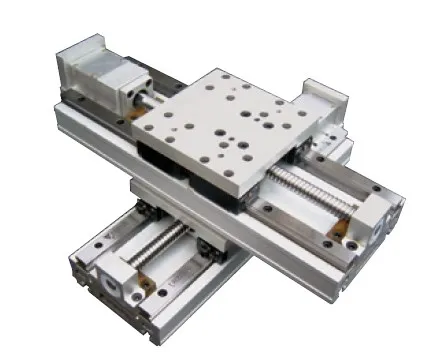

New Product-aluminium Alloy Structure Worktable:

With the aluminum alloy of the base component, it has advantages such as high accuracy, long lifetime, lightweight, compact structure, and beauty. It is widely used for measuring, laser welding, laser cutting, gelatinization,insen, ray screener, actual teaching situations, etc. There are two types of single coordinate worktable DZHQ and double coordinate worktable SZHQ for customers to choose from.We can provide integration unit of machine & electric. Customers can select motors, drives, and CNC systems according to the requirements to meet the needs of speed, load, pulse, etc.

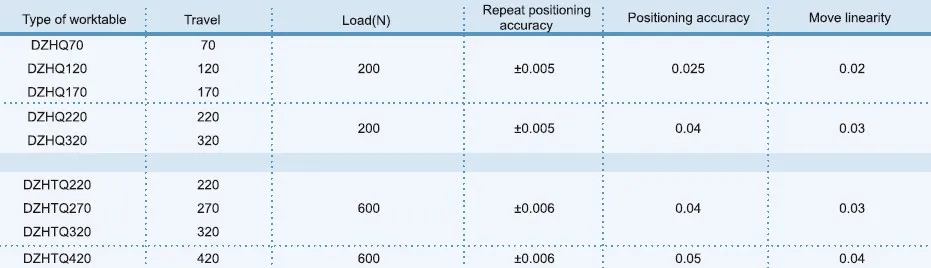

Accuracy of DZHQ and SZHQ Aluminium Alloy Worktable:

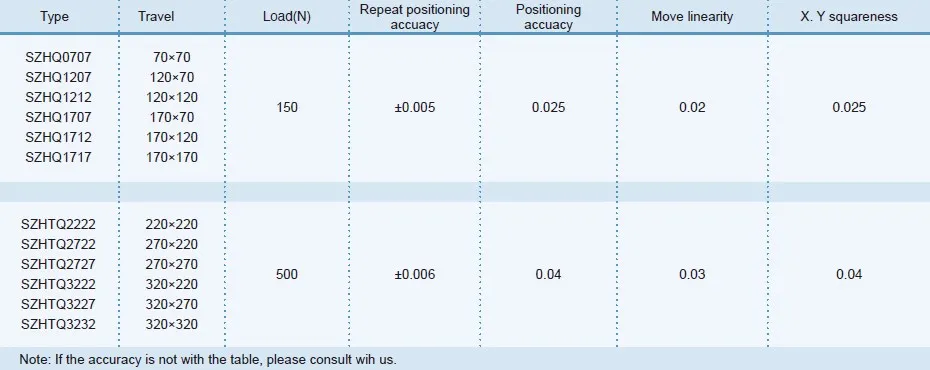

Accuracy of SZHQ and SZHTQ Aluminium Alloy Worktable:

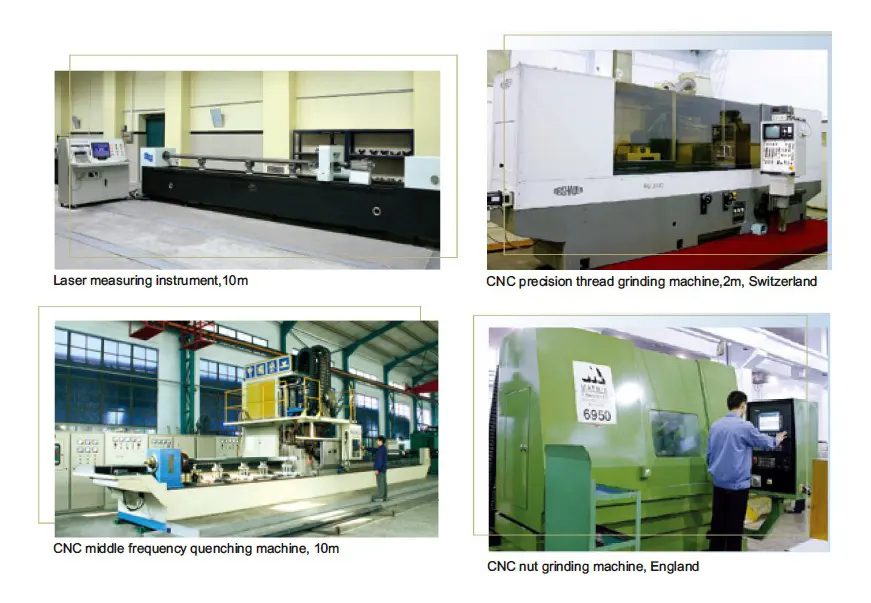

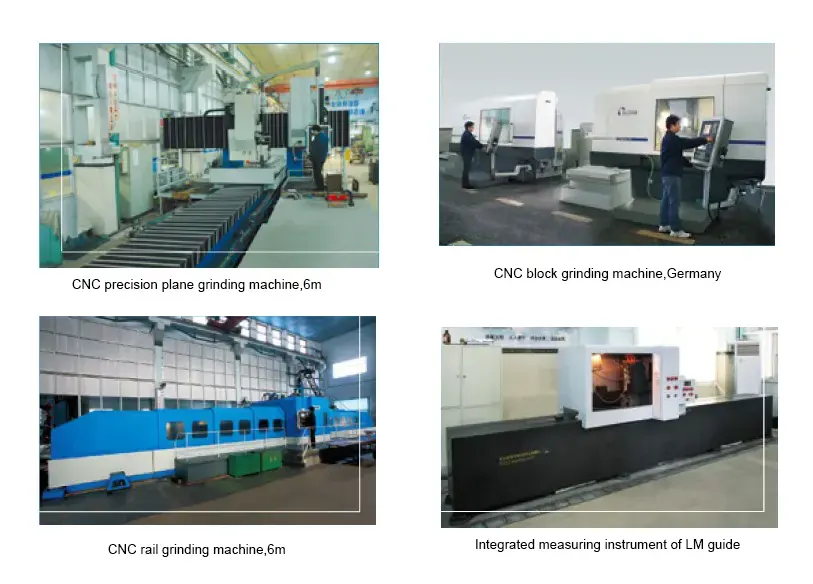

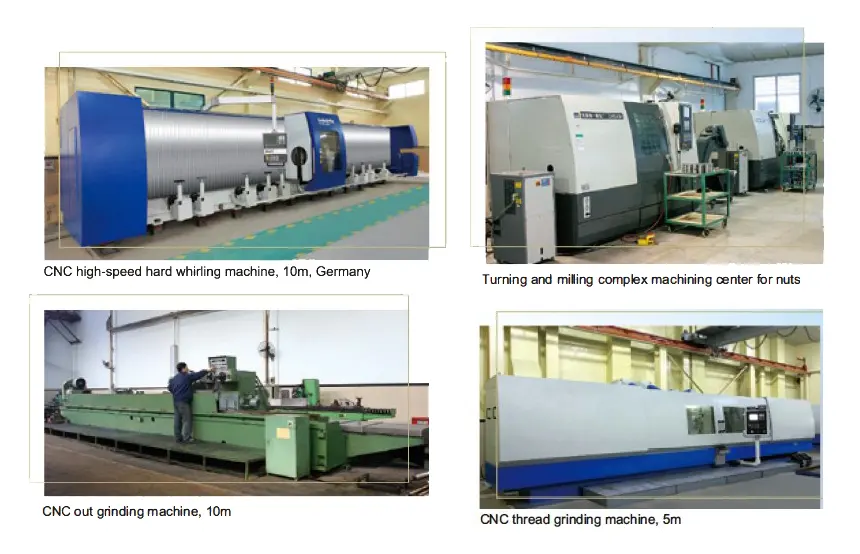

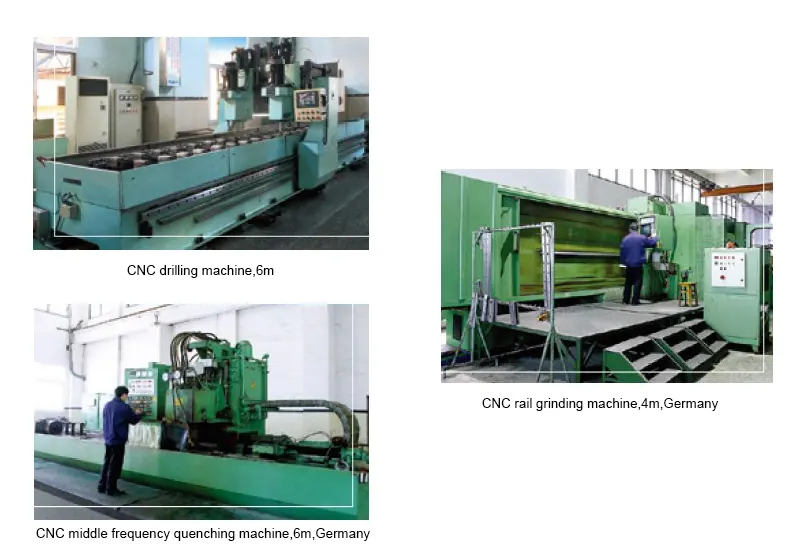

Excellent Equipment Quality Guarantee:
