Electric Furnace Cover Lifting Cylinder

Electric Furnace Cover Lifting Cylinder

An electric furnace cover lifting cylinder is a hydraulic cylinder that is used to lift and lower the cover of an electric furnace. It is a critical component of the furnace, as it allows for safe and efficient access to the interior of the furnace. Electric furnace cover lifting cylinders are typically made of high-strength steel and are designed to withstand the high temperatures and harsh conditions of the furnace environment. They are also equipped with a variety of safety features, such as overload protection and pressure relief valves. Electric furnace cover lifting cylinders are available in a variety of sizes and capacities to meet the specific needs of different furnace applications.

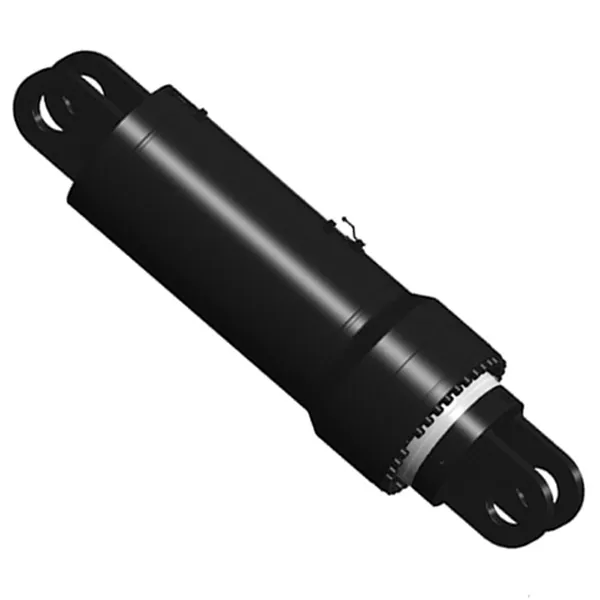

Electric Furnace Cover Lifting Cylinder Specifications:

Product Name	Electric Furnace Cover Lifting Cylinder
Bore diameter:	580mm
Rod diameter:	560mm
Pressure:	14MPa
Thrust force:	Maximum 3448KN
Furnace Cover Lifting Cylinder Applications:	Electric Furnace

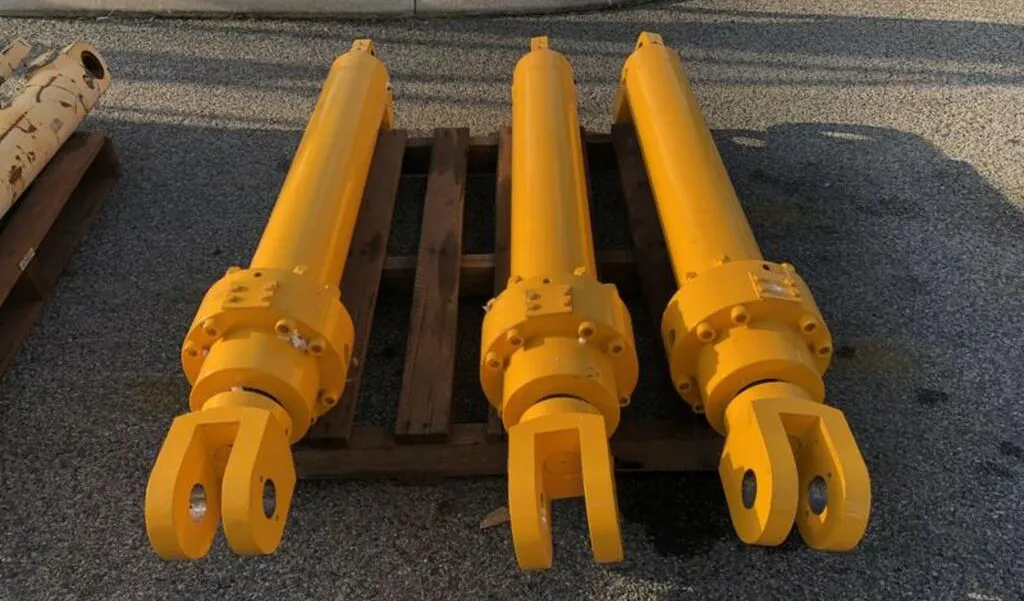

Electric Furnace Cover Lifting Cylinder Features:

Electric furnace cover lifting cylinders are specially designed for the demanding requirements of electric furnace operation. They must be able to withstand high temperatures, heavy loads, and corrosive environments.

Here are some of the key features of electric furnace cover lifting cylinders:

1. High-temperature resistance: Electric furnace cover lifting cylinders must be able to withstand the high temperatures generated by electric furnaces. This typically requires cylinders to be made of high-strength steel alloys that are resistant to heat creep and distortion.2. Heavy load capacity: Electric furnace covers can be very heavy, so lifting cylinders must have a high load capacity. This is typically achieved by using large-diameter pistons and high-pressure hydraulics.3. Corrosion resistance: Electric furnace environments can be very corrosive, so lifting cylinders must be made of materials that can resist corrosion. This typically requires cylinders to be coated with a protective layer of paint or zinc plating.4. Smooth operation: Electric furnace cover lifting cylinders must operate smoothly and precisely to avoid damaging the furnace cover or its contents. This is typically achieved by using high-quality seals and bearings.5. Safety features: Electric furnace cover lifting cylinders must be equipped with safety features to prevent accidents. This typically includes features such as pressure relief valves, limit switches, and interlocks.

Electric Furnace Cover Lifting Cylinder Applications:

Electric furnace cover lifting cylinders are used in a wide range of industrial applications, including:

(1) Steelmaking: Electric furnaces are used to melt scrap metal into molten steel. The cover of the furnace must be lifted to charge the furnace with scrap metal and to remove the molten steel. Electric furnace cover lifting cylinders are used to lift and lower the cover of the furnace safely and efficiently.(2) Foundry: Electric furnaces are also used in foundries to melt metal into molten form for casting into parts. Electric furnace cover lifting cylinders are used to lift and lower the cover of the furnace to allow for charging and casting.(3) Heat treatment: Electric furnaces are used to heat treat metal parts to improve their strength, hardness, and other properties. Electric furnace cover lifting cylinders are used to lift and lower the cover of the furnace to allow for loading and unloading of the parts.(4) Other applications: Electric furnace cover lifting cylinders are also used in a variety of other applications, such as glassmaking, ceramics processing, and waste incineration.

In general, electric furnace cover lifting cylinders are used in any application where a large, heavy object needs to be lifted and lowered safely and efficiently.

Here are some specific examples of electric furnace cover lifting cylinder applications:

• Lifting the cover of an electric arc furnace to charge the furnace with scrap metal
• Lifting the cover of an induction furnace to remove molten steel
• Lifting the cover of a heat treatment furnace to load and unload metal parts
• Lifting the cover of a glass furnace to charge the furnace with raw materials
• Lifting the cover of a ceramic furnace to unload fired ceramic products
• Lifting the cover of a waste incinerator to load waste material

Electric furnace cover lifting cylinders are typically designed to withstand high temperatures and harsh environments. They are also designed to be very reliable, as any failure of the hydraulic cylinder could lead to a serious accident.

China Electric Furnace Cylinder Manufacturers

In 30 years of focusing on innovation, Raydafon has reached the forefront of the world’s hydraulic industry in terms of both production scale and technical level. Meanwhile, Raydafon is now a widely recognized benchmarking enterprise in the domestic hydraulic industry. Headquartered in Ningbo, Raydafon has founded five hydraulic R&D centers in China, Germany, the United States, Japan, and Mexico, and ten manufacturing bases worldwide. Raydafon the establishment of a high-precision foundry and a pump & valve factory, Raydafon has mastered the key to developing and manufacturing more advanced hydraulic transmission and control components to supply high-pressure cylinders, hydraulic pump valves, motors, precision castings, and the complete hydraulic system. Well sold in over 20 countries and regions, the products are widely applied in various fields such as mobile machinery, agricultural machinery, industrial engineering, offshore, energy technology, and tunnel boring machines.Raydafon is a company in the R&D and manufacture of hydraulic cylinders. It maintains a leading position in the market segment of hydraulic cylinders for forklifts in China. In 2020, the domestic market share was around 29%. We produce industrial vehicle hydraulic cylinders, aerial work vehicle hydraulic cylinders, mobile machinery cylinders, hydraulic press cushion cylinders, construction machinery hydraulic cylinders, forklift hydraulic cylinders, crane luffing hydraulic cylinders and sanitation machinery hydraulic cylinders. Hydraulic cylinder is a non-standard product and all products are independently developed by ourselves.
