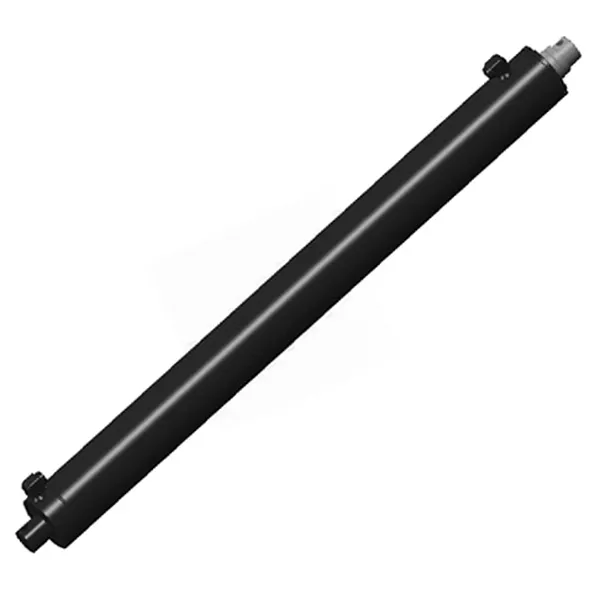

Empty Container Stacker Lifting Cylinder

Empty Container Stacker Lifting Cylinder

An empty container stacker lifting cylinder is a hydraulic cylinder that is used to lift and lower empty containers on an empty container stacker. Empty container stackers are used in ports, terminals, and other facilities to load and unload empty containers.

The lifting cylinder is typically located at the front of the stacker and is connected to the container spreader. When the cylinder extends, it lifts the container spreader, which in turn lifts the container. When the cylinder retracts, it lowers the container spreader and container.

Empty container stacker lifting cylinders are typically made of high-strength steel and are designed to withstand heavy loads and harsh environmental conditions. They are also equipped with a variety of features to ensure safety and reliability, such as:

• A double-acting design, which allows the cylinder to extend and retract in both directions
• A pressure relief valve, which prevents the cylinder from overextending or overloading
• A rod seal to prevent fluid leakage
• A wear ring to protect the rod from abrasion

Empty container stacker lifting cylinders are an essential component of empty container stackers and play a vital role in the efficient handling of empty containers.

Empty Container Stacker Lifting Cylinder Specifications:

Product Name	Empty Container Stacker Lifting Cylinder
Features:	Realize the up and down movement of attachments, the main driving force for lifting
Bore diameter:	85mm～220mm
Rod diameter:	6mm～180mmStroke≤9500mm
Pressure：	Maximum 25MPa
Applications:	Empty Container Stacker

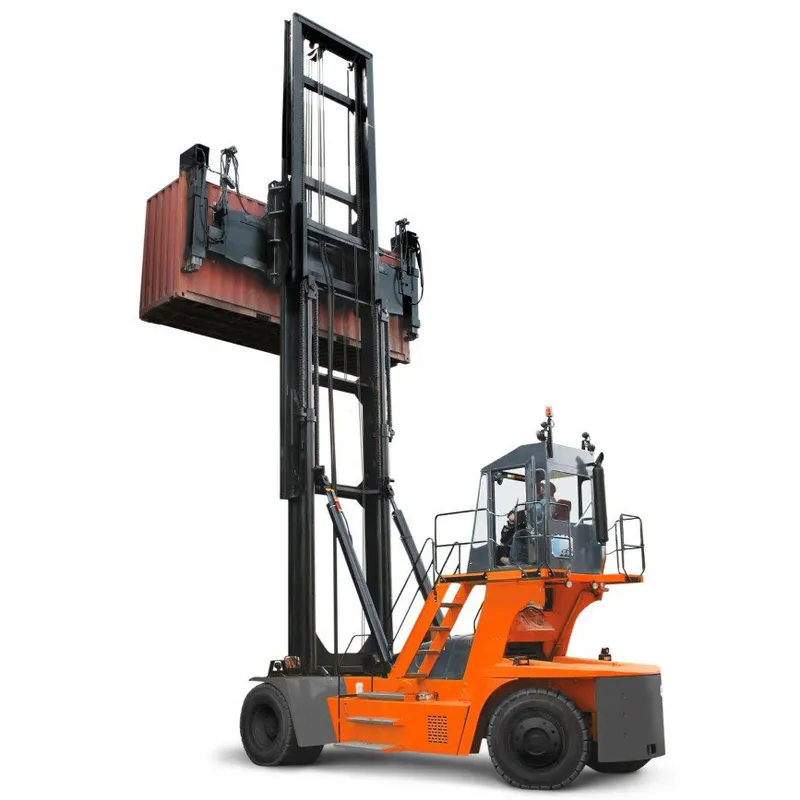

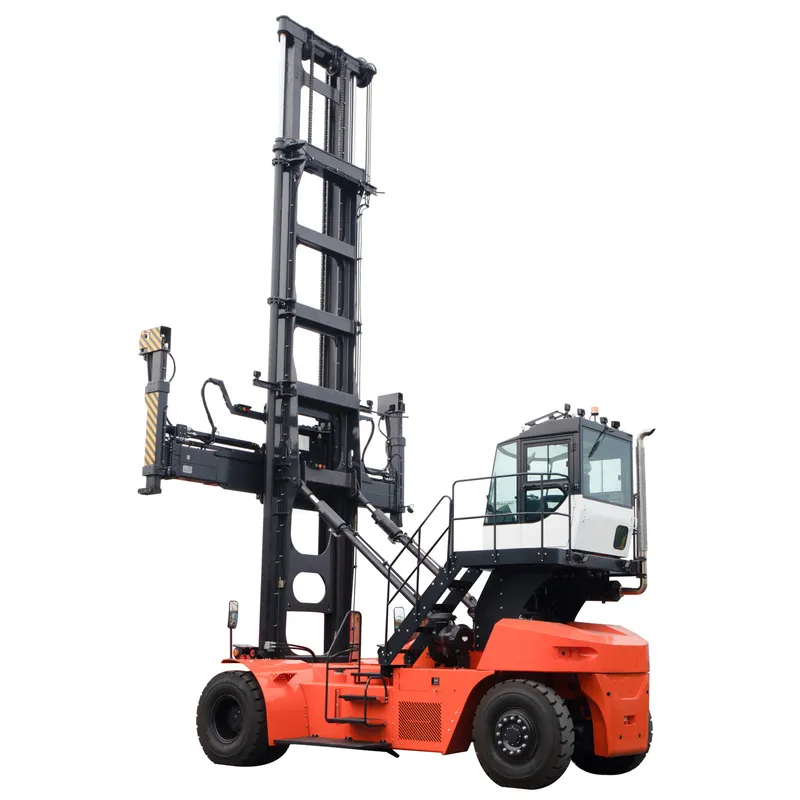

Features of Empty Container Stacker Lifting Cylinder:

Empty container stacker lifting cylinders have a number of advantages over other types of lifting cylinders, including:

1. High lifting capacity: Empty container stacker lifting cylinders are designed to lift heavy loads, such as empty containers. They are typically made from high-strength materials and are built to withstand the rigors of daily use.2. Fast lifting speed: Empty container stacker lifting cylinders are designed to lift containers quickly and efficiently. This helps to improve productivity and reduce operating costs.3. Smooth lifting motion: Empty container stacker lifting cylinders are designed to provide a smooth and controlled lifting motion. This helps to protect the containers from damage and reduces operator fatigue.4. Reliable operation: Empty container stacker lifting cylinders are designed to operate reliably for long periods of time. They are typically equipped with features such as seals and bearings that are designed to extend their lifespan.5. Ease of maintenance: Empty container stacker lifting cylinders are typically easy to maintain. They are typically designed with removable components that can be easily accessed for inspection and repair.

In addition to these general advantages, empty container stacker lifting cylinders may also offer specific advantages depending on the manufacturer and model. For example, some cylinders may be designed to be more fuel-efficient or to operate more quietly. Overall, empty container stacker lifting cylinders are a reliable and efficient way to lift heavy loads. They are well-suited for use in a variety of applications, including ports, warehouses, and distribution centers.

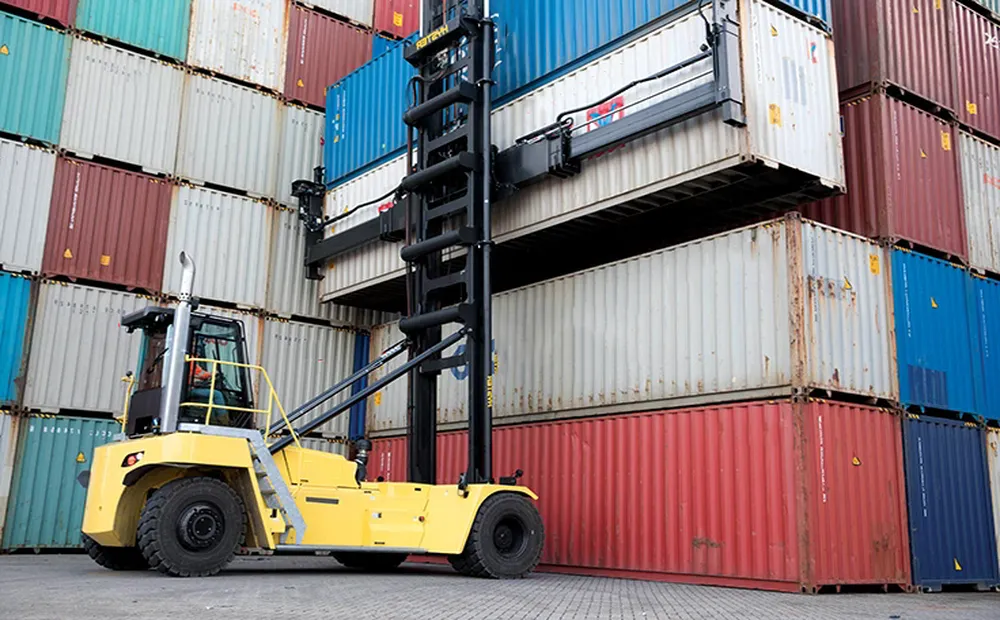

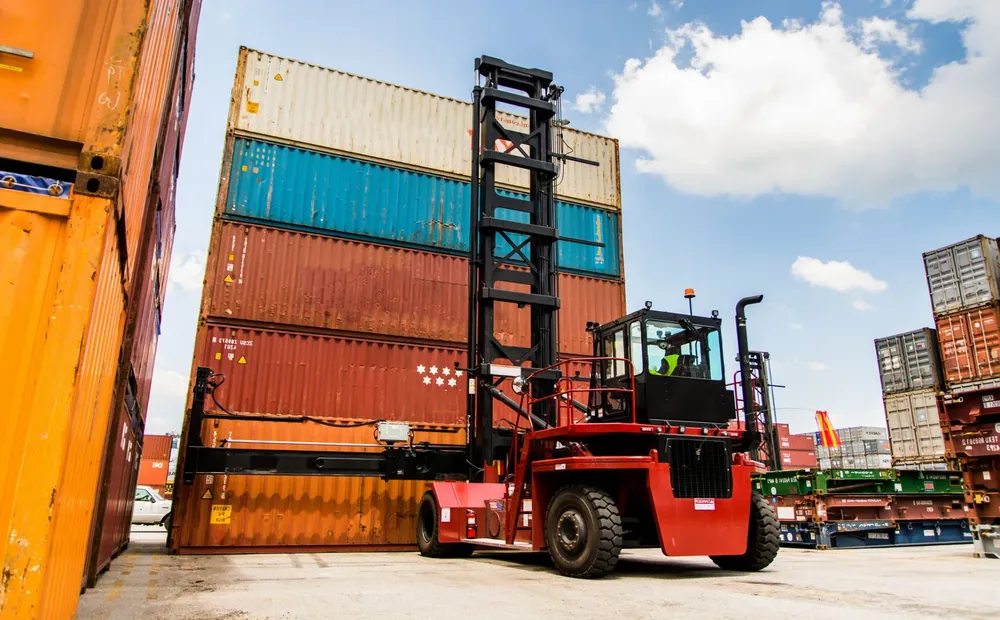

Empty Container Stacker Lifting Cylinder Working Principle:

An empty container stacker lifting cylinder is a hydraulic cylinder that is used to raise and lower the container spreader of an empty container stacker. It is a critical component of the stacker, as it allows it to lift and stack heavy containers.

The lifting cylinder works on the principle of hydraulics. Hydraulics is a system that uses pressurized fluid to transmit force. The lifting cylinder has a piston inside a cylinder. When hydraulic fluid is pumped into the cylinder, it pushes the piston down. This raises the container spreader. When the hydraulic fluid is released, the piston returns to its original position and the container spreader lowers.

The lifting cylinder is controlled by a hydraulic pump and valve system. The operator of the stacker can use the controls to increase or decrease the flow of hydraulic fluid to the cylinder, which controls the speed and force of the lift.

Here is a simplified overview of how an empty container stacker lifting cylinder works:

1. The operator of the stacker presses the lift button.
2. The hydraulic pump sends pressurized fluid to the lifting cylinder.
3. The pressurized fluid pushes the piston down, raising the container spreader.
4. The operator releases the lift button when the container spreader is at the desired height.
5. The hydraulic valve closes, preventing any more fluid from entering the cylinder.
6. The piston returns to its original position, lowering the container spreader.

Empty container stacker lifting cylinders are typically made of high-strength steel and are designed to withstand the high loads and stresses associated with lifting heavy containers. They are also equipped with a number of safety features to prevent accidents.

China Empty Container Stacker Cylinder Manufacturers

The empty container stacker is the key equipment for container transportation, and one machine with multiple uses is in its normal state. It can be used for horizontal transportation, as well as for loading, unloading, handling, and unpacking operations. The key cost is low, and maintenance is convenient.Raydafon's high-quality lifting hydraulic cylinders and telescopic hydraulic cylinders are made of tailor-made high-strength materials, which have better load capacity and wear resistance and can guarantee the reciprocating lifting action of stacking operations. Moreover, the weight is light, which satisfies the lightweight demand of the stacker, making it lighter and more flexible in action. In addition, the special sealing design can adapt to fast-moving work conditions so that the stacker has the advantages of fast operating speed, high efficiency, and reliable performance.Moreover, we go beyond empty container stacker cylinders. We also supply a diverse range of hydraulic cylinders, including industrial vehicle hydraulic cylinders, aerial work vehicle cylinders, mobile machinery cylinders, industrial engineering cylinders, construction machinery cylinders, forklift hydraulic cylinders, agricultural machinery cylinders, crane hydraulic cylinders, sanitation machinery cylinders, excavator hydraulic cylinders, offshore hydraulic cylinders, energy technology cylinders, tunnel boring machine cylinders, and more. Our extensive product lineup caters to various industries and applications, providing solutions for your hydraulic needs.[embed]https://www.youtube.com/embedqlR4ZvCup9A[/embed]
