EP706AL EP707AL EP709AL EP711AL Planetary Slew Drives

EP706AL EP707AL EP709AL EP711AL Planetary Slew Drives

Raydafon Group's EP706AL, EP707AL, EP709AL, and EP711AL Planetary Slew Drives deliver robust, high-torque precision for heavy-duty machinery, robotics, and renewable energy systems. Featuring durable planetary gearboxes and advanced engineering, these drives ensure smooth, reliable performance in demanding applications. Ideal for engineers and industrial users, they solve complex motion control challenges while enhancing operational efficiency. Stand out with superior durability and tailored solutions. Upgrade your projects with Raydafon Group's proven reliability today!

EP706AL, EP707AL SLEW DRIVESEP709AL, EP711AL SLEW DRIVES

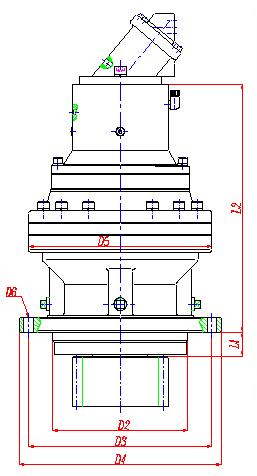

Dimension

Type

EP706AL

EP707AL

EP709AL

EP711AL

D2

230

240

280

320

D3

335

335

385

500

D4

365

365

420

560

D5

300

345

345

425

D6

14-ф17

14-ф17

14-ф22

18-ф22

L1

55

60

60

70

L2

Size according to motor type

Pinion data

Pinion data according to customer

EP706AL EP707AL EP709AL EP711AL Planetary Slew Drives

Technical specification

Type

Max.Output Torque

Ratio

RecommendHydraulicMotor

Max. inputspeed

Braketorque

Brake workpressure

Excavator

Crane

(i)

(rpm)

(N.m)

(bar)

EP706AL

7700

12000

13.5—142.5

SAE A·B·C·D·E adoptA2FE 45·56·63A2FE 80·90A2FE 107·125

3500

50-1000

20-50

EP707AL

10500

165000

12.6—257.7

EP709AL

16000

26000

12.6—257.7

EP711AL

32000

45000

14.0—223.0

2500

400-3200

Input – output rotate same direction.Other ratio and other input type can be specially designed.
