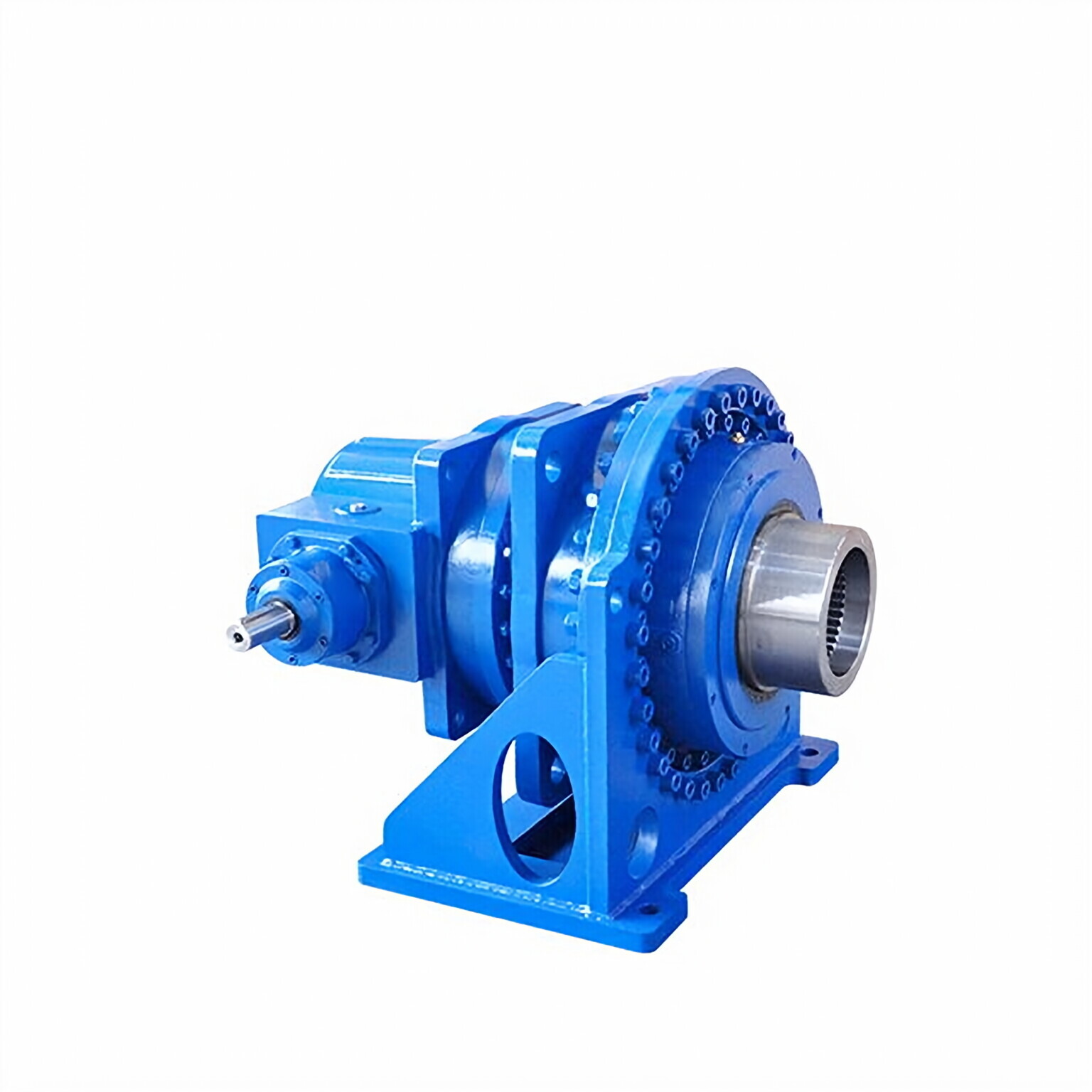

EPH Series Planetary Gear Units

Components:

1. Housing: Cast Iron2. Gearset: Planetary Gears Set3. Input Configurations:Integrated with Electric Motors (50Hz & 60Hz 3 Phrase AC Motors - 4P,6P,8P, DC Motors, Explosion-proof Motors, Hydraulic Motors)Keyed Solid Shaft Input4. Output Configurations:Keyed Cylindrical Solid Shaft OutputKeyed Hollow Shaft OutputSplined Hollow Shaft Output

Models:

• EPHJ – 1 Stage Star Wheel Gearset (Small Teeth Difference Involute Planetary Gear Set)
• EPHN – 1 Stage Star Wheel Gearset Integrated with 1 Stage Planetary Gear Set
• EPHH – 2 Stage Star Wheel Gearset

Features:

1. EPH series planetary gear units(star wheel gearboxes) is a new design internal meshing small teeth number difference involute planetary gear transmission mechanism. H series is very ideal for high load and continuous duty2. Compact structure, high load capacity3. High efficiency4. Smooth operation, low noise5. Large ratio range, intensive gear ratio6. Modular design, easy to maintain

Parameters:

Frame Sizes:18B,20B,22B,25B,28B,31B,35B,40B,45B,50B,56B,63B,71B,80B19B,21B,23B,26B,30B,33B,37B,42B,47B,53B,60B,67B,75B

Installation:

Horizontal MountingVertical MountingCircular Disc Base Mounting

Lubrication:

Oil Immersion and Splash LubricationForced Lubrication

Cooling:

Natural CoolingAuxiliary Cooling Devices
