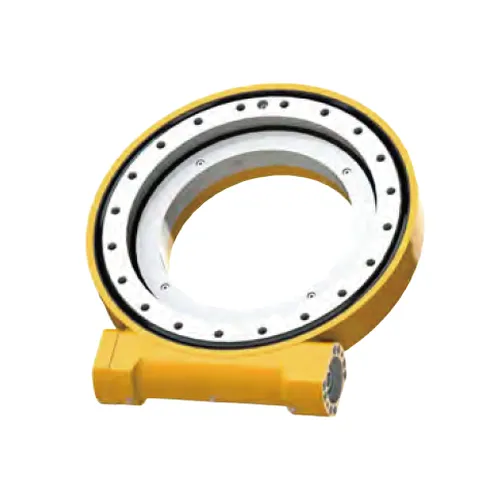

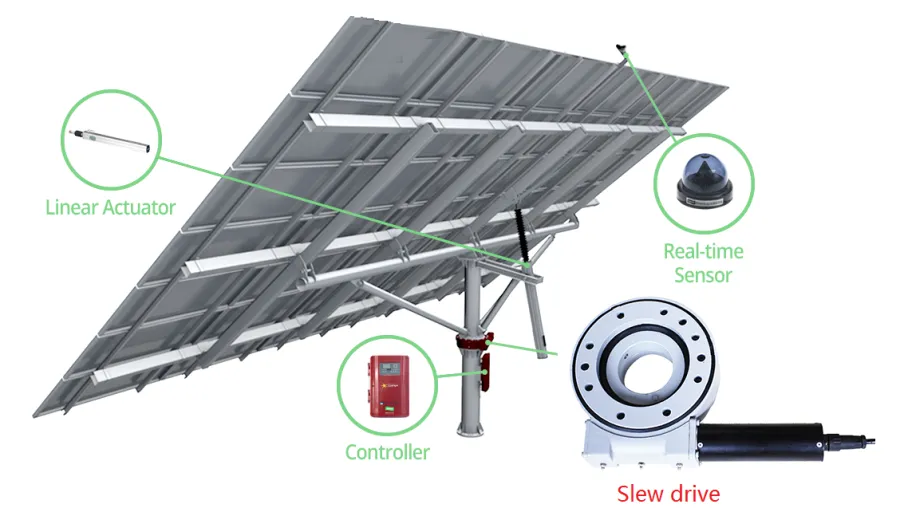

EWA17 Series Slewing Drive

Slew drive and traditional rotary products compared. The slew drive device is a new type of rotary product made of worm gear, slewing ring, shell, and motor. Since the core part adopts slewing bearing, it can simultaneously bear axial force, radial force, and overturning moment. It has the characteristics of simple installation, easy maintenance, and saving installation space to a greater extent. This product can be widely used in heavy plate transport vehicles, container cranes, truck-mounted cranes, and high-altitude operations.

Three advantages of slew drive

a.)ModularizationDue to the high integration of the slew drive, users do not have to purchase and process each part of the rotary device. To a certain extent, it also reduces the preparation process at the beginning of production, thus significantly improving labor productivity.b.)SecurityWorm gear transmission has reverse self-locking characteristics, which can realize reverse self-locking. Only worm can drive worm gear, but not worm gear. The safety factor of the main engine and slewing equipment can be significantly improved in high-altitude operation. Compared with traditional rotary products, slew drive has the advantages of simple installation, easy maintenance, and saving installation space.c.)Simplify host designWorm gear transmission can get a relatively large reduction ratio compared to the traditional gear transmission. In some cases, it can save the reducer parts for the main engine to reduce the purchase cost for customers and significantly reduce the failure rate of the main engine.

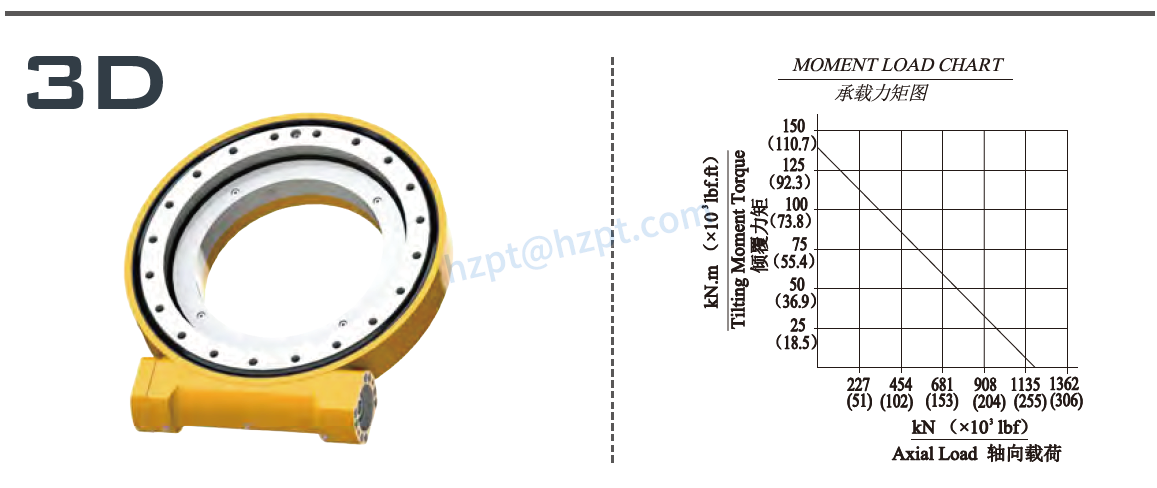

Performance Parameters

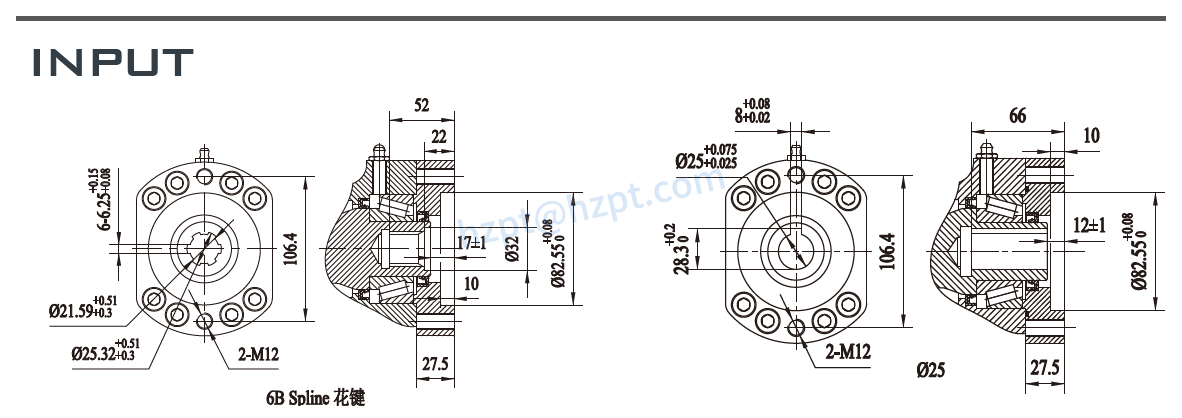

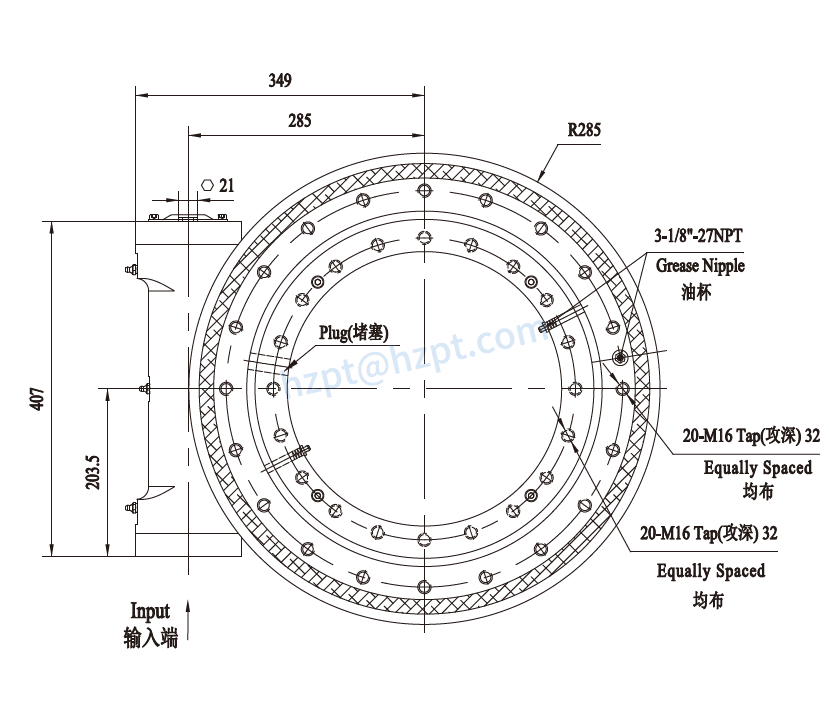

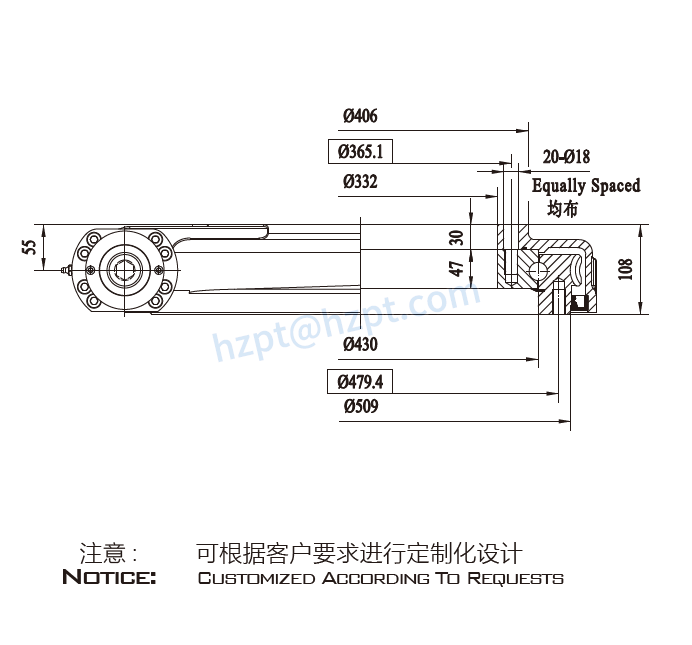

Front View	Top View



Output torque	Tilting moment torque	Holding torque	Axial load	Radial load	Ratio	Backlash	Weight
输出转矩	倾覆力矩	保持力矩	轴向承载力	径向承载力	速比	精度	重量
12.96 kN.m	142.4 kN.m	74 kN.m	1166 KN	435 KN	104:1	<= 0.1 °	97Kg
9564 Lbf.ft	105000 Lbf.ft	54600 Lbf.ft	262000 Lbf	97800 Lbf

How Do Slew Drives Work?

The mechanics behind it are based on the concept of a worm gear, where a slewing bearing with external teeth meshes with a complementary worm gear with a predefined transmission ratio. Internal components are contained and assembled within cast iron or aluminum enclosures for protection and installation.The unique design of the slewing drive enables it to transmit high output rotational torque using two vertical planes with a relative speed ratio to its input. As the worm gear rotates with a low input torque on the horizontal plane, its hardened teeth transmit the rotational motion to the outer rotating teeth. This force generates rotation about the vertical axis of the rotary drive by the rotary outer ring.Versatility and weight allow slewing drives as a straightforward solution to rotation-related problems. The use of a worm gear design provides room for a variety of low torque inputs of the slewing industry to transmit or maintain high torque applications. Slewing drives can be found in various construction and heavy machinery equipment.
