F-A QD Weld-On Hubs

F-A QD Weld-On Hubs

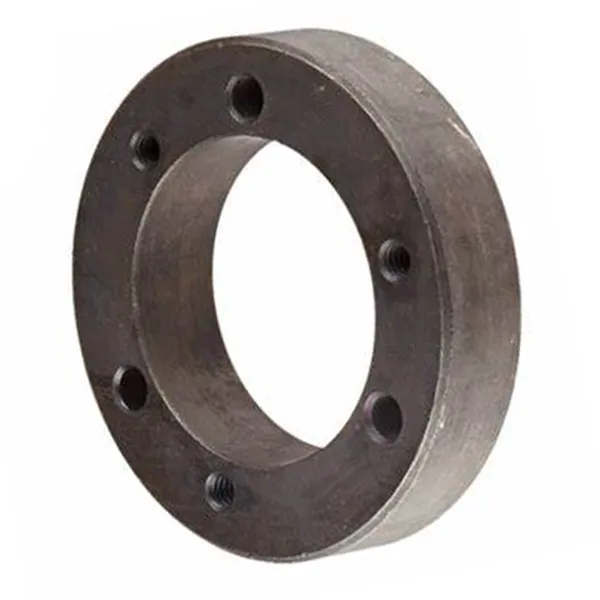

F-A QD weld-on hubs are a type of weld-on hub that is specifically designed for use with F QD bushings. They are made of steel and have a tapered bore that is compatible with F QD bushings. The hubs also have six bolt holes for securing the bushing in place.F-A QD weld-on hubs are a great option for applications where a secure and reliable connection is required between a shaft and a component. They are particularly well-suited for use in high-torque applications.Here are some of the benefits of using F-A QD weld-on hubs:

• Secure connection: The taper bore, and six bolt holes provide a secure connection between the hub and the bushing, ensuring that the component is properly aligned and does not slip.
• High-torque capacity: F-A QD weld-on hubs can withstand high torque loads, making them ideal for use in demanding applications.
• Durable construction: The steel construction makes F-A QD weld-on hubs durable and long-lasting.
• Easy to install: F-A QD weld-on hubs are easy to install, making them a convenient option for many applications.

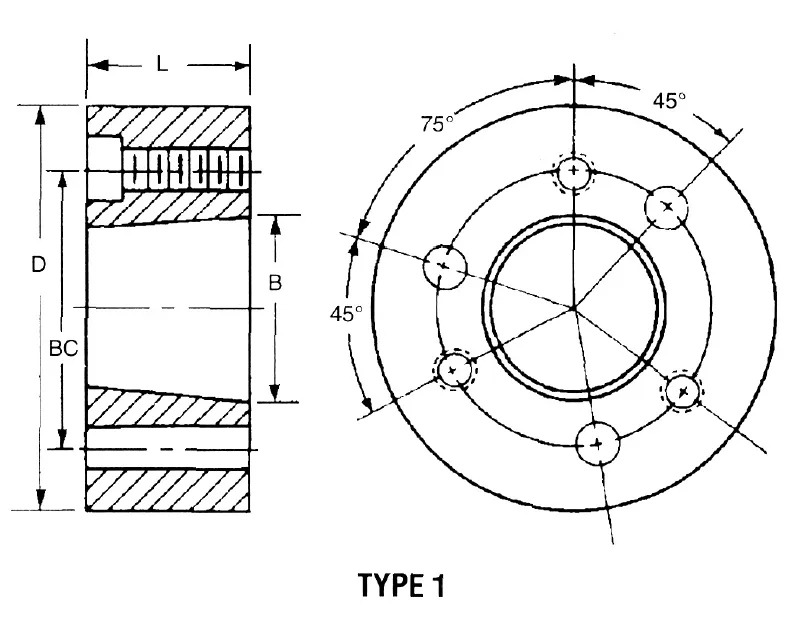

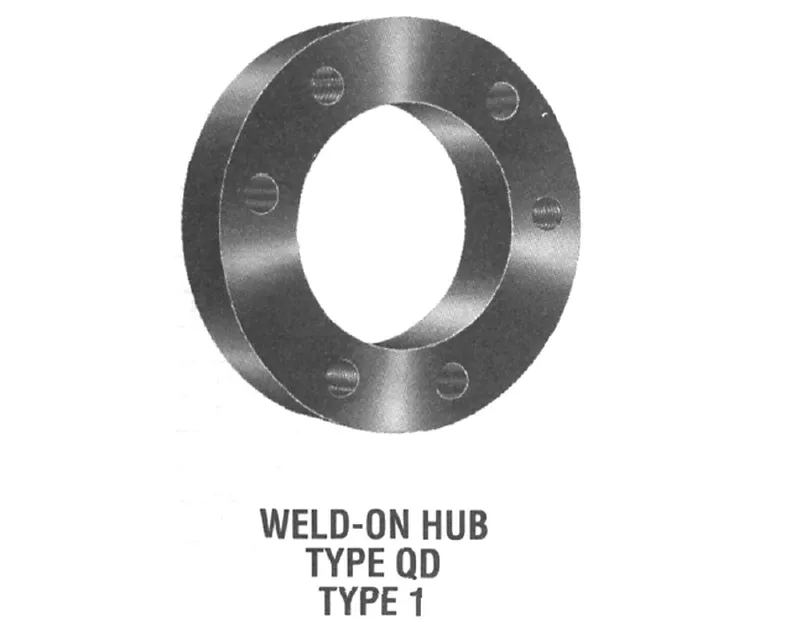

F-A QD Weld-On Hubs Dimensions:

QD Hub Types		F-A Weld-On Hubs
For Bushing		F QD Bushings
Dimensions (Inches)	D	7.000"
	L	2 1/2"
	B	4.437"
	P	-
	L1	-
	BC	5 5/8"
Type Drilling		1"
Weight (lbs)		16 lbs

Tolerance of D Dimension (or P dimension where applicable) JA-A Thru J-A = (+-.002) M-A Thru S-A = (+-.003)

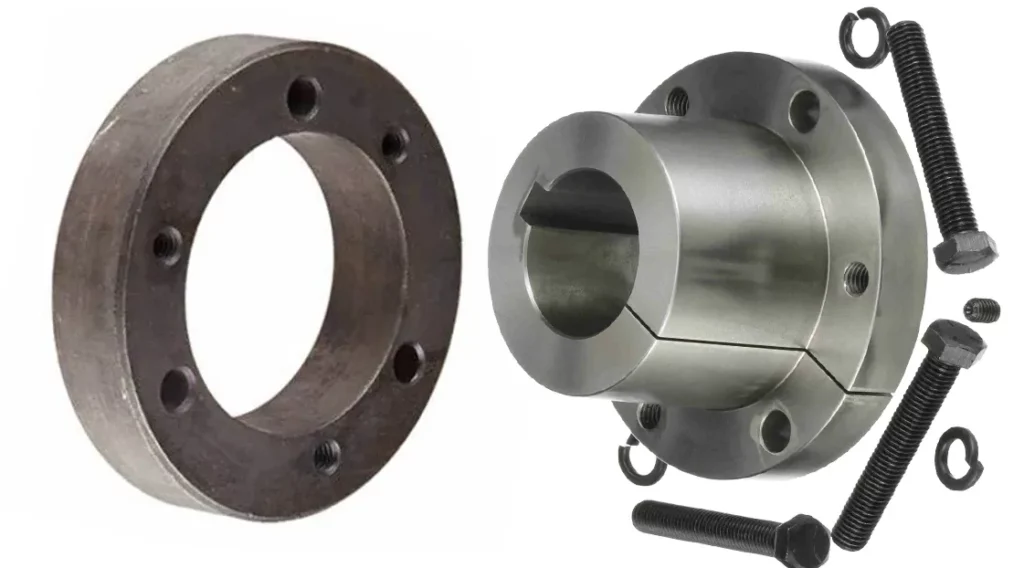

F-A QD Weld-On Hubs for F QD Bushings:

F-A QD weld-on hubs and F QD bushings are mechanical components used in power transmission systems to connect and secure shafts, pulleys, sprockets, and other rotating equipment.F-A QD Weld-On Hubs: These F-A QD hubs are designed to be welded directly onto a shaft or other cylindrical surfaces. They consist of a flange with bolt holes and a tapered bore. The hub is welded onto the shaft, and the tapered bore allows for easy installation and removal of the corresponding QD bushing.F QD Bushings: QD stands for "Quick Disconnect." QD bushings are used to mount components onto shafts with ease and provide a secure and precise fit. They have a tapered bore that matches the taper of the QD weld-on hubs. The QD bushing is mounted into the hub by tightening screws, which causes the bushing to expand and lock into place. This connection allows for easy installation and removal of components without the need for extensive disassembly.The combination of F-A QD weld-on hubs and F QD bushings provide a versatile and efficient method for connecting and securing rotating equipment in power transmission systems. They offer advantages such as quick installation, easy removal, and accurate positioning of components, making them commonly used in various industrial applications.

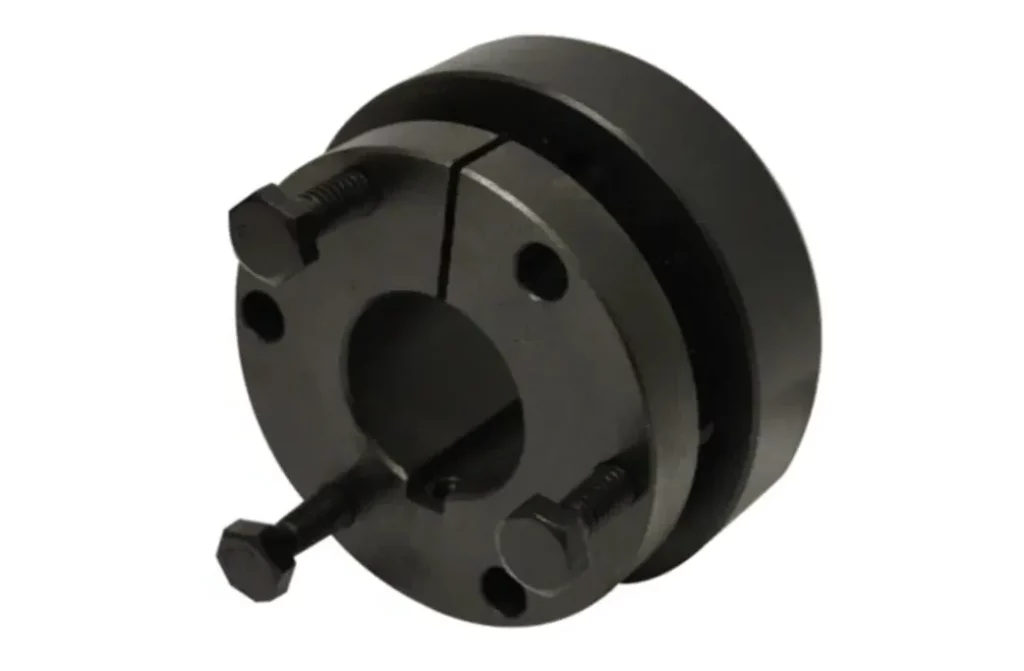

Install the F-A QD Weld-On Hubs onto F QD Bushings:

Here are the steps on how to install F-A QD weld-on hubs onto F QD bushings:1. Clean the surfaces. Be sure to clean the tapered cone surfaces of the bushing and the inside of the hub with a clean rag and solvent to remove any dirt, grease, or oil.2. Apply anti-seize lubricant. Apply a thin coat of anti-seize lubricant to the tapered cone surfaces of the bushing and the inside of the hub. This will help to prevent the hub from seizing to the bushing.3. Slide the bushing onto the shaft. Slide the bushing onto the shaft, and flange the end first. Be sure to align the keyway in the bushing with the keyway in the shaft.4. Install the pull-up bolts. Install the pull-up bolts through the tapped holes in the flange of the F QD bushing and into the hub. Tighten the pull-up bolts until the hub is snug against the flange of the bushing.5. Install the lock washers. Install lock washers on the pull-up bolts. This will help to prevent the pull-up bolts from loosening.6. Tighten the pull-up bolts. Use a wrench to tighten the pull-up bolts until they are snug. Do not overtighten the pull-up bolts, as this could damage the bushing.7. Check the fit. Once the pull-up bolts are tight, check the fit of the hub on the shaft. There should be a slight gap between the face of the hub and the flange of the bushing. This gap is necessary to allow for the expansion and contraction of the bushing due to temperature changes.8. Remove the pull-up bolts. Remove the pull-up bolts from the hub.9. Install the key. Install the key into the keyway in the hub.10. Reinstall the pull-up bolts. Reinstall the pull-up bolts through the tapped holes in the flange of the bushing and into the hub. Tighten the pull-up bolts until they are snug.11. The F-A QD weld-on hubs are now installed on the F QD Bushings.
