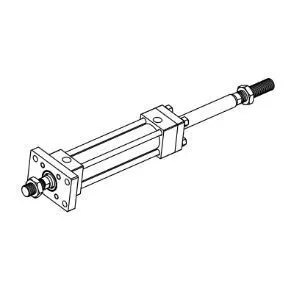

FA Double Shaft Front Flange Type Heavy Rod Hydraulic Cylinder

FA Double Shaft Front Flange Type Heavy Rod Hydraulic Cylinder

The FA Double Shaft Front Flange Type Heavy Rod Hydraulic Cylinder is a robust and high-performance hydraulic component designed to handle demanding industrial applications easily. With its durable construction, double shaft design, and front flange configuration, this hydraulic cylinder delivers exceptional power, precision, and reliability. Whether you need to lift, push, or pull heavy loads, the FA Double Shaft Front Flange Type Heavy Rod Hydraulic Cylinder is engineered to excel under challenging conditions, making it an indispensable tool in various industries.Essential Characteristics Of Heavy Rod Hydraulic Cylinder:Robust Construction: This hydraulic cylinder is built to withstand extreme conditions, thanks to its sturdy construction using high-quality materials. Its rugged design ensures longevity, reliability, and resistance to wear and tear, allowing it to handle heavy loads, high pressures, and harsh operating environments.Double Shaft Design: The double shaft configuration of the cylinder provides enhanced stability, controlled movement, and precise positioning. With shafts on both ends of the cylinder, it allows for simultaneous push and pull actions, making it ideal for applications that require bidirectional force.Front Flange Configuration: The front flange design of the FA Double Shaft Front Flange Type Heavy Rod Hydraulic Cylinder provides easy and convenient mounting options. The flange allows direct attachment to the equipment or machinery, simplifying installation and ensuring proper alignment.

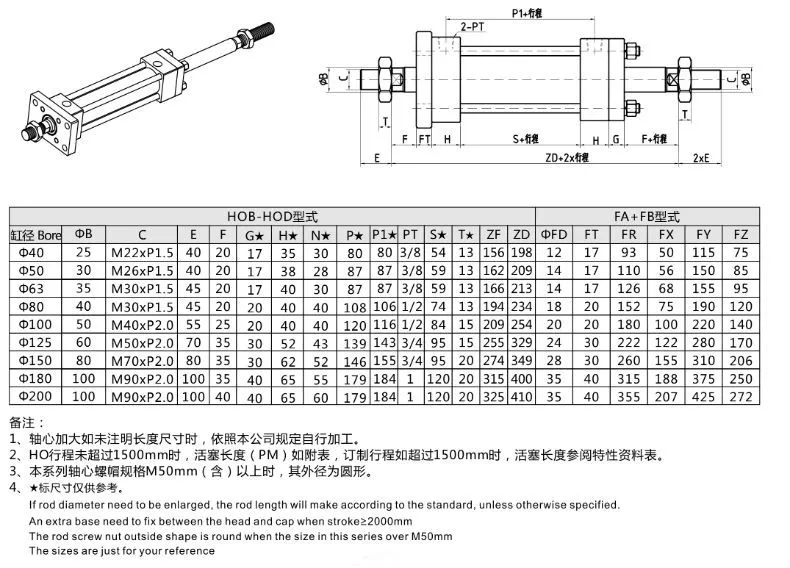

Standard FA Double Shaft Front Flange Type Heavy Rod Hydraulic Cylinder Parameter:

Usage Method Of FA Double Shaft Front Flange Type Heavy Rod Hydraulic Cylinder:

1. Mounting: Begin by securely mounting the FA Double Shaft Front Flange Type Heavy Rod Hydraulic Cylinder using appropriate mounting brackets or fixtures. Ensure proper alignment and stability during installation to prevent misalignment or excessive stress on the cylinder.
2. Hydraulic System Integration: Connect the hydraulic lines to the cylinder, following the manufacturer's instructions and guidelines. Integrate the cylinder into the hydraulic system by connecting it to a suitable pump or power unit. Ensure compatibility with the cylinder's specifications and operating requirements.
3. Control and Operation: Utilize the control valves in the hydraulic system to regulate the flow of hydraulic fluid into and out of the cylinder. Adjust the control settings to achieve the desired linear motion and force output. Test the cylinder's movement to verify its functionality and responsiveness.

Maintenance Of FA Double Shaft Front Flange Type Heavy Rod Hydraulic Cylinder:

Regular maintenance is essential to ensure optimal performance and longevity of the FA double shaft front flange type heavy rod hydraulic cylinder. Follow these maintenance guidelines:

1. Regular Inspection: Conduct routine inspections to identify signs of wear, damage, or leaks. Inspect the cylinder body, shafts, seals, and other components for abnormalities. Address any issues promptly to prevent further injury or operational inefficiencies.
2. Lubrication: Apply the recommended lubricant to the moving parts of the cylinder, including the shafts and seals. Regular lubrication minimizes friction, reduces wear, and ensures smooth operation. Follow the manufacturer's guidelines for lubrication intervals and use the appropriate lubricant type.
3. Seal Replacement: If you notice seal deterioration or leakage, replace the seals using genuine manufacturer-approved parts. Damaged or worn seals can compromise the cylinder's performance and may lead to hydraulic fluid leaks.
4. Cleaning: Clean the cylinder by removing dirt, debris, and other contaminants. Use a non-abrasive cleaner and ensure all components are thoroughly dried before reassembly. Regular cleaning promotes optimal performance and prevents premature wear or damage.

How Does A One Way Hydraulic Cylinder Work？

Here's a step-by-step explanation of how a one-way hydraulic cylinder works:

1. Cylinder Construction: A one-way hydraulic cylinder consists of a cylindrical barrel, a piston, a piston rod, and one or more seals. The cylinder barrel houses the piston and provides a sealed chamber for hydraulic fluid.
2. Hydraulic Fluid Supply: Hydraulic fluid, typically oil, is supplied to the cylinder through an inlet port connected to a hydraulic pump or power unit. The hydraulic fluid is pressurized, creating a force that will act on the piston.
3. Extension Stroke: When hydraulic pressure is applied to the cylinder's inlet port, the pressurized fluid enters the cylinder chamber on one side of the piston. The force exerted by the hydraulic fluid pushes the piston and the attached piston rod outward, extending the stroke of the cylinder.
4. Retraction Stroke: Unlike a double-acting cylinder, which can generate force in both directions, a one-way hydraulic cylinder relies on an external force to retract the piston. This force can be provided by gravity, a spring, or an external load that pushes the piston back into the cylinder.
5. Seal Operation: The seals in the cylinder prevent hydraulic fluid leakage and maintain the separation between the fluid and rod sides. They ensure that the pressurized fluid acts only on one side of the piston, creating the desired linear force.
6. Control Valves: Control valves, such as a directional control valve, control the flow and direction of the hydraulic fluid. By manipulating the control valve, the operator can control the extension and retraction of the one-way hydraulic cylinder.
7. Return Fluid: As the piston retracts, the hydraulic fluid on the extension side of the cylinder is forced out and returns to the hydraulic reservoir through an outlet port or a return line.

China Hydraulic Cylinder Manufacturers:

Raydafon is a company in the R&D and manufacture of heavy rod hydraulic cylinders. It maintains a leading position in the market segment of hydraulic cylinders for forklifts in China. In 2020, the domestic market share was around 29%. We produce Industrial vehicle heavy rod hydraulic cylinders, Aerial work vehicle heavy rod hydraulic cylinders, Agricultural Machinery hydraulic cylinders, and Sanitation machinery hydraulic cylinders.We have a first-class independent R&D platform for assembly. The heavy rod hydraulic cylinder production workshop has four semi-automatic lifting cylinder assembly lines and one fully automatic tilting cylinder assembly line, with a designed annual production capacity of 1 million pieces; the special cylinder workshop is equipped with semi-automatic cleaning and assembly systems of various specifications, with a designed annual production capacity of 200,000 essays. It has famous CNC machining equipment, machining centers, special equipment for high-precision cylinder processing, robot welding machines, automatic cleaning machines, automatic cylinder assembly machines, and automatic paint production lines. We have more than 300 sets of critical equipment running. The optimized allocation and efficient utilization of equipment resources ensure the precision requirements of the products and meet the high standard quality requirements of the products.
