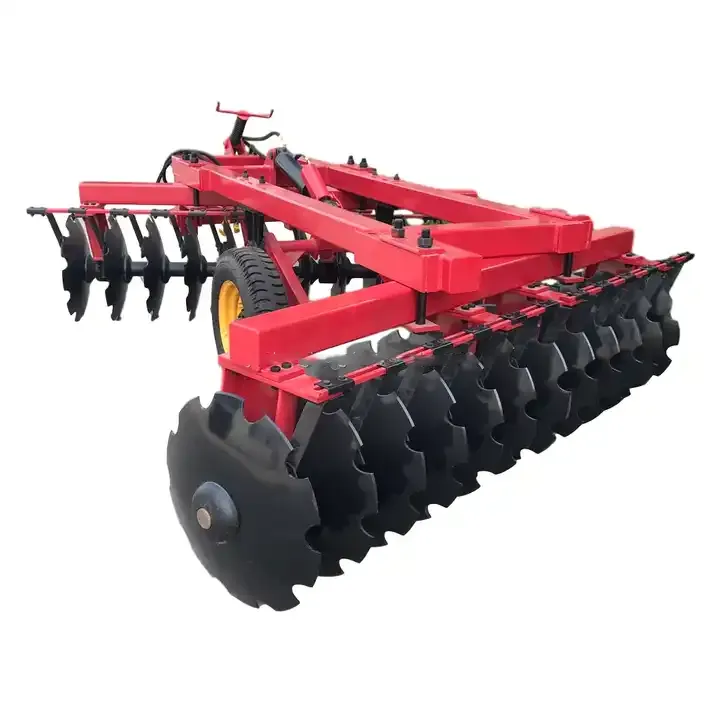

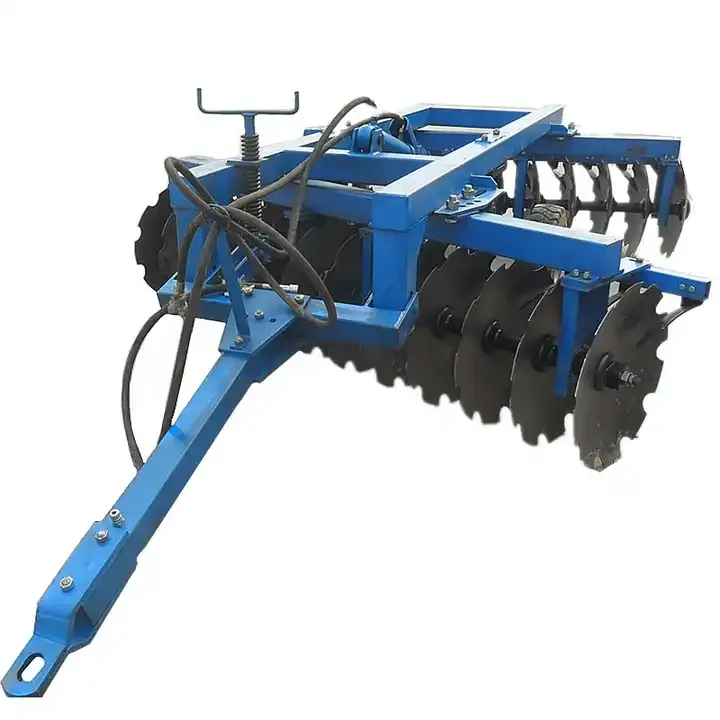

Farm Equipment Tractor Heavy Duty Hydraulic Disc Harrow 1BZ-2.2

1BZ series of hydraulic offset disc harrow agriculture machine is suitable for heavy clay soil, waste land, and weedy field as well, mainly suitable for stubble cleaning before farming; it can break the hardened soil and return the chopped straw to the soil and also can crash the soil after tillage and level the land. The disc harrow can cultivate the soil instead of plow. The farm equipment tractor heavy duty hydraulic disc harrow is an essential agricultural implement used for soil preparation. It consists of a series of heavy-duty, concave discs mounted on a frame, which is attached to a tractor. This equipment is specifically designed to break up and smooth out the soil, making it ideal for creating a suitable seedbed for planting. The hydraulic feature allows for easy adjustment of the disc angles and depth, providing versatility to tackle different soil conditions. The heavy-duty construction ensures durability, allowing it to handle tough terrains and large fields efficiently. The discs cut through the soil and crop residue, breaking it into smaller pieces, which aids in better soil aeration and moisture retention. This type of harrow is particularly useful in larger farming operations due to its ability to handle extensive areas quickly and effectively. It improves soil texture and fertility, ultimately leading to better crop yields. Its robust design and hydraulic capabilities make it a valuable tool for modern farmers seeking efficiency and reliability.

Specification of Light-Duty Disc Harrow 1BZ-2.2

Model	1BZ-2.2
Working width	2200mm
Working depth	200-250mm
Size of harrow disc blade	26'' (660mm) x 5mm
No. of harrow disc blade	20pcs
Weight	1450kg
Macthed power	90-100hp
Square shaft size	40*40mm shaft with heat treatment
Bearing	RSP sealed bearing pedestal,with oi hole
No. of tires	2pcs
Type of tires	7.50-16, this tires is walking effect
Linkage	Hydraulic trailed with tractor

Advantages of Farm Equipment Tractor Heavy Duty Hydraulic Disc Harrow

The farm equipment tractor heavy duty hydraulic disc harrow offers several advantages that make it a valuable tool for farmers:

• Harrow Disc Durability: The harrow discs are made from 65Mn spring steel, featuring a 26-inch diameter and 5mm thickness. This steel is renowned for its excellent toughness and high wear resistance, with a hardness rating of 38-46 HRC. These characteristics ensure the discs can withstand rigorous use, providing a long-lasting and effective performance in various soil conditions.
• Robust Square Shaft: The square shaft, measuring 40x40mm, is crafted from 45# steel. Undergoing tempering and quenching processes, the shaft attains superior strength and resilience, preventing breakage during operation. This robust construction allows the harrow to handle heavy loads and challenging terrains without compromising on reliability or performance.
• Sturdy Main Frame: The main frame of the disc harrow is constructed using 120x120x6mm tubing. This strong framework provides exceptional stability and durability, ensuring the equipment can endure the demands of extensive agricultural tasks. The solid structure supports the entire mechanism, allowing for efficient soil preparation even in tough conditions.
• Sealed Bearing Pedestal: Equipped with a sealed bearing pedestal, the disc harrow offers enhanced protection against dust and debris ingress. The inclusion of an oil hole simplifies maintenance, allowing for easy lubrication and extending the lifespan of the bearings. This design minimizes downtime and ensures smoother operation, reducing the need for frequent repairs.
• Versatile Hydraulic Adjustment: The hydraulic mechanism allows for easy adjustment of disc angles and depth, providing flexibility to adapt to various soil types and conditions. This versatility enhances the effectiveness of soil preparation, ensuring optimal seedbed conditions. The hydraulic system streamlines operations, reducing manual effort and improving overall efficiency.
• Enhanced Soil Treatment: The heavy-duty design of the disc harrow enables it to break up compacted soil and incorporate crop residue effectively. This process improves soil aeration and moisture retention, promoting better root penetration and plant growth. By enhancing soil texture and fertility, the harrow contributes to increased agricultural productivity and healthier crop yields.

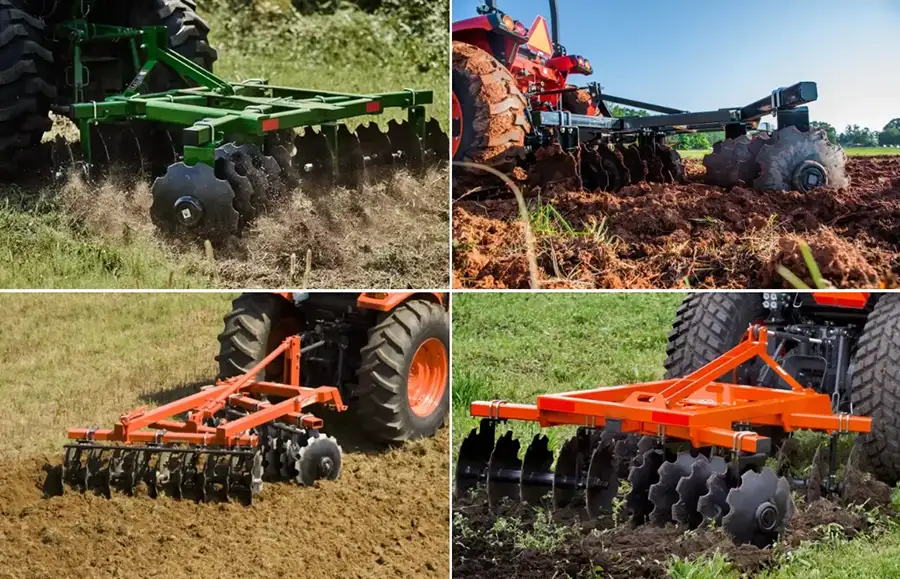

Common Applications of Heavy Duty Hydraulic Disc Harrows

Heavy duty hydraulic disc harrows are versatile agricultural implements that find application in various farming tasks. Some common applications include:

1. Residue Management: After harvesting, disc harrows play a crucial role in managing crop residue. They chop and incorporate leftover plant material into the soil, enhancing decomposition and nutrient cycling. This process not only clears the field for subsequent planting but also enriches the soil with organic matter, improving its structure and fertility.
2. Soil Cultivating: Hydraulic disc harrows are used to cultivate and aerate the soil, improving its physical properties. By breaking up compacted layers, they enhance water infiltration and root penetration. This cultivation process helps maintain soil health, promotes beneficial microbial activity, and ensures that crops have access to essential nutrients and moisture.
3. Secondary Tillage: Following primary tillage, disc harrows are employed for secondary tillage tasks. They refine the soil structure, breaking down clods and leveling the field. This phase is critical for creating a smooth and even surface, facilitating efficient planting operations. Secondary tillage with disc harrows ensures the soil is in perfect condition for optimal seed growth.
4. Seedbed Preparation: Heavy duty hydraulic disc harrows are essential for creating optimal seedbeds. They break up and smooth out the soil, ensuring a fine texture that promotes uniform seed placement and germination. By leveling the ground and incorporating organic matter, these harrows prepare a nutrient-rich environment conducive to healthy crop establishment and growth.
5. Weed Control: These harrows effectively manage weed growth by cutting through and burying weeds during soil preparation. This mechanical disruption prevents weed proliferation, reducing competition for nutrients and sunlight with crops. By integrating weed control into regular tillage, farmers can minimize reliance on chemical herbicides, promoting more sustainable agricultural practices.

Key Components of a Hydraulic Disc Harrow

A Hydraulic Disc Harrow is a complex agricultural implement that consists of several key components working together to perform various soil preparation tasks effectively. Some of the key components of a Hydraulic Disc Harrow include:

• Discs: The discs are the primary working components, typically made from high-strength steel to ensure durability and wear resistance. Their concave shape allows them to cut into the soil effectively, breaking up clods and incorporating organic matter. The size and spacing of the discs can be adjusted to suit different soil conditions and tasks.
• Frame: The frame provides structural support and stability for the disc harrow. Constructed from heavy-duty steel tubing, it ensures the implement can withstand the rigors of field operations. The frame is designed to distribute weight evenly across the discs, enhancing penetration and overall efficiency during soil preparation.
• Hydraulic System: The hydraulic system allows for precise control of the disc angles and depth. By using hydraulic cylinders, operators can easily adjust the settings to match field conditions. This adaptability improves performance and efficiency, enabling the harrow to tackle various tasks such as seedbed preparation and residue management.
• Bearing Assemblies: Bearings support the rotating discs, allowing for smooth and efficient movement. These assemblies are typically sealed to protect against dust and debris, reducing maintenance requirements. The inclusion of lubrication points ensures longevity and reliable operation, minimizing downtime and keeping the harrow functioning optimally.
• Scraper Bars: Scraper bars are positioned between discs to prevent soil and debris buildup. They maintain disc cleanliness, ensuring consistent cutting action and reducing drag. By keeping the discs clear, scraper bars enhance the harrow’s efficiency and prevent potential blockages that could disrupt field operations.
• Hitch System: The hitch system connects the disc harrow to the tractor, facilitating transport and operation. It is designed to be robust and secure, ensuring safe attachment and stability during use. The hitch often features adjustable settings to accommodate different tractor models and optimize the alignment of the harrow.

Working Principle of Tractor Hydraulic Disc Harrow for Seedbed Preparation

The tractor heavy duty hydraulic disc harrow is a key implement used in seedbed preparation, a crucial step in agriculture before planting crops. Here's how it works:

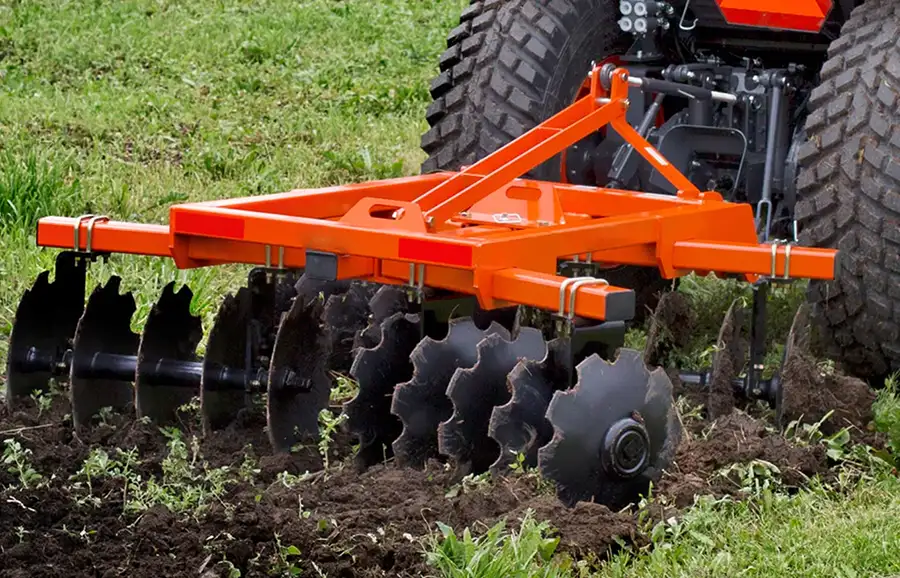

Operation Tips for Tractor 3 Point Hitch Hydraulic Disc Harrow

Operating a tractor 3-point hitch hydraulic disc harrow efficiently and effectively is crucial for achieving optimal seedbed preparation and overall farming productivity. Here are some operation tips to ensure successful use of this agricultural implement:

• Proper Attachment: Ensure the disc harrow is securely attached to the tractor’s 3-point hitch. Check that all pins and clips are in place and properly tightened. A secure attachment is crucial for maintaining stability during operation and preventing equipment damage. Regularly inspect the hitch connection before use to ensure safety.
• Check Hydraulic Connections: Inspect all hydraulic hoses and connections for leaks or damage. Ensure that the hydraulic system is properly connected and functioning. Test the hydraulic controls to make sure the discs can be adjusted smoothly. Proper hydraulic operation is vital for adjusting the disc angles and depth efficiently during fieldwork.
• Adjusting Disc Angles: Set the disc angles according to soil conditions and the desired level of soil disturbance. Steeper angles provide more aggressive soil cutting, while shallower angles are suitable for lighter tasks. Adjusting the angles properly can enhance soil preparation and improve the overall effectiveness of the harrow.
• Setting the Depth: Use the hydraulic system to set the desired working depth of the discs. The depth should be appropriate for the crop being planted and the soil type. Consistent depth settings help achieve uniform soil texture, which is essential for optimal seedbed preparation and successful crop establishment.
• Monitor Ground Speed: Maintain an appropriate ground speed to ensure effective soil penetration and avoid equipment strain. Too fast a speed may reduce the harrow’s effectiveness, while too slow a speed can cause unnecessary wear. Adjust the tractor’s speed to match field conditions and the specific task being performed.
• Regular Maintenance Checks: Perform routine maintenance checks, including lubrication of moving parts and cleaning of discs. Inspect the bearings, scrapers, and frame for wear and damage. Regular maintenance extends the life of the harrow and ensures consistent performance. Address any issues promptly to prevent operational disruptions.

Why Choose Raydafon's Disc Harrows?

Raydafon is a leading manufacturer and distributor specializing in the production and sale of disc harrows, with a robust presence in the agricultural equipment industry. Our company is equipped with advanced production facilities and a highly skilled workforce, enabling us to deliver high-quality products that meet international standards. With a commitment to innovation and excellence, Raydafon has established itself as a key player in the market, offering reliable and efficient solutions for farmers worldwide. Our disc harrows are designed to be perfect replacements for renowned brands such as John Deere, Case IH, New Holland, Massey Ferguson, Kubota, Mahindra, Landoll, Kuhn, AGCO, Bush Hog, RhinoAg, Land Pride, Agri-Fab, Woods Equipment, and more. These harrows are engineered with precision and durability in mind, ensuring optimal performance in diverse agricultural settings. Whether it's soil preparation, weed control, or residue management, our disc harrows provide unparalleled efficiency and effectiveness, making them indispensable tools for modern farming. At Raydafon, we pride ourselves on our expertise and influence in the disc harrows sector. Our products are characterized by their robust construction, ease of use, and adaptability to various terrains and conditions. We are committed to quality and have received numerous international certifications that attest to our standards. Our customizable solutions cater to specific farming needs, supported by state-of-the-art production facilities and a dedicated after-sales service team. In addition to disc harrows, we offer a wide range of agricultural machinery, including PTO shafts, agricultural gearboxes, large round balers, mini round balers, hay square balers, PTO wood chippers, diesel wood chippers, drum mowers, disc mowers, lawn mowers, sickle bar mowers, flail mowers, rotary mower, rotary tillers, land levelers, rotary hay rakes, fertilizer spreaders, furrow ploughs, disc harrows, disc blades, disc ridgers, disc ploughs, potato planters, potato harvesters, corn seeders, wheat seeders, vegetable seeders, post hole diggers, boom sprayers, subsoiler, trailers, snow blowers, chain trenchers, and more, ensuring comprehensive support for all agricultural operations.

FAQs:

Q: What is a hydraulic disc harrow used for? A: A hydraulic disc harrow is primarily used for soil preparation, including breaking up clods, incorporating crop residues, and leveling the field. It is essential for creating a smooth seedbed, promoting better seed germination and growth. Q: How does the hydraulic system benefit a disc harrow? A: The hydraulic system allows for easy adjustment of disc angles and working depth. This flexibility helps operators adapt to different soil conditions and tasks, improving efficiency and effectiveness in various agricultural operations. Q: What maintenance is required for a hydraulic disc harrow? A: Regular maintenance includes checking hydraulic connections, lubricating moving parts, inspecting discs and bearings for wear, and cleaning components to prevent debris buildup. Consistent maintenance ensures reliable performance and extends the equipment’s lifespan. Q: Can a hydraulic disc harrow be used in all soil types? A: Yes, it can be used in various soil types, but adjustments may be needed for optimal performance. The disc angle and depth can be modified to handle different soil textures and moisture levels effectively, ensuring efficient soil preparation. Q: How do I choose the right disc size for my harrow? A: Disc size depends on the specific agricultural tasks and soil conditions. Larger discs are suitable for heavy-duty work and deeper soil penetration, while smaller discs are ideal for lighter tasks. Consider your field requirements when selecting disc sizes. Q: What safety precautions should I follow? A: Always ensure the harrow is securely attached to the tractor. Wear appropriate protective gear, keep bystanders at a safe distance, and be aware of obstacles in the field. Regularly check equipment for any damage to prevent accidents. Q: How does a disc harrow help with weed control? A: The rotating discs cut through and bury weeds during soil preparation, reducing their growth and minimizing competition with crops. This method of mechanical weed control reduces the need for chemical herbicides, promoting sustainable farming practices. Q: Is a hydraulic disc harrow easy to operate? A: Yes, with proper training and regular maintenance, a hydraulic disc harrow is straightforward to operate. The hydraulic adjustments simplify the process, allowing for quick adaptations to field conditions, making it an efficient tool for modern agriculture. Author: Yjx
