FB Single Double Sprockets FBN 50SD

FB Single Double Sprockets FBN 50SD

Experience precision engineering with Raydafon Group's FB Single Double Sprockets FBN 50SD, designed for seamless power transmission in industrial applications. Crafted from durable materials, it offers superior performance, reduced maintenance, and enhanced efficiency, ideal for mechanics and engineers seeking reliable solutions. Feel confident with its smooth operation and long-lasting build, solving common wear issues and outperforming competitors in durability. Trust Raydafon Group for quality that drives success.
Send Inquiry
Product Description

FB Single Double Sprockets (Japanese Standard) FBN 50SD

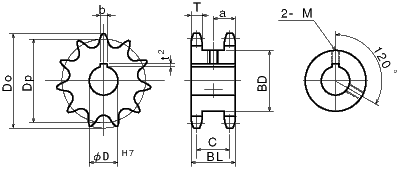

FB Single Double Sprockets FBN 50SD FB Single Double Sprockets FBN 50SD

ChainNo.50
Pitch(P)15.875 mm  (5/8inch)
Internal width(W)9.53 mm
Roller dia.(Dr)10.16 mm
Tooth width(T)8.7 mm   (C) 31.3　mm

Outside dia.DoPitch dia.DpHubaWeight(kg)Sprocket No.Bore dia.H7
BDBLTypeTeeth No.
6961.344340200.63FBN 50SD1218,20
7466.344840200.751320,25,28
7971.345340200.901420,25,28,30
8476.355840201.041520,25,28,30,35
8981.376340201.221625,28,30,35,40
9486.396840201.411725,28,30,35,40
10091.427340201.611825,28,30,35,40
10596.457940201.801925,28,30,35,40
110101.488440201.952025,28,30,35,40
115106.518940202.272128,30,35,40

Finished Bore
Bore dia.H7Keywaybxt2SetscrewｭｳM
18~226X2.86
24~308X3.38
32~3810X3.38
4012X3.38

 FB Single Double Sprockets FBN 50SD---
