FBN Standard Sprockets FBN 100B

Elevate your machinery's performance with Raydafon Group's FBN Standard Sprockets FBN 100B, a durable, precision-engineered component designed for industrial applications. Crafted from high-strength materials, it offers reliable power transmission, smooth operation, and extended lifespan, solving wear-and-tear issues. Ideal for engineers and manufacturers, it ensures efficiency in conveyors, drives, and more, delivering a sense of confidence and reduced downtime. Stand out with its superior fit and compatibility—unlock peak productivity today!

Send Inquiry

Product Description

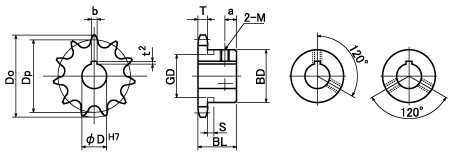

FBN Standard Sprockets (Japanese Standard) FBN 100B

Chain Type	No.100
Pitch	(P)	31.75 mm (1-1/4inch)
Internal width	(W)	19.05 mm
Roller Dia.	(Dr)	19.05 mm
Teeth width	(T)	17.6 mm

Outside Dia. Do	Pitch Dia. Dp	Hub		a	Sprockets No.		Bore dia. H7	Weight (kg)
Outside Dia. Do	Pitch Dia. Dp	BD	BL	a	Type	Teeth No.	Bore dia. H7	Weight (kg)
117	102.75	65	50	16	FBN 100B	10	25,28,30,32,35,38,40,42	1.90
127	112.70	75	50	16		11	25,28,30,32,35,38,40,42,45,48,50	2.30
138	122.67	86	50	16		12	25,28,30,32,35,38,40,42,45,48,50,55	2.90
148	132.67	94	50	16		13	25,28,30,32,35,38,40,42,45,48,50,55	3.10
158	142.68	98	50	16		14	25,28,30,32,35,38,40,42,45,48,50,55,60	3.60
168	152.71	98	50	16		15	32,35,38,40,42,45,48,50,55,60	4.20
179	162.74	98	50	16		16	38,45,50,55,60	4.60
189	172.79	107	50	16		17	38,45,50,60	5.30
199	182.84	107	50	16		18	38,45,50,60	5.70
209	192.90	107	50	16		19	38,45,50,60	6.10
220	202.96	107	50	16		20	38,45,50,60	6.50
230	213.03	107	50	16		21	45,50,60	7.00
