Feed Mixer Gearboxes - Replacement of Comer Code C3A, 1:1, 1,8:1

Feed Mixer Gearboxes - Replacement of Comer Code C3A, 1:1, 1,8:1

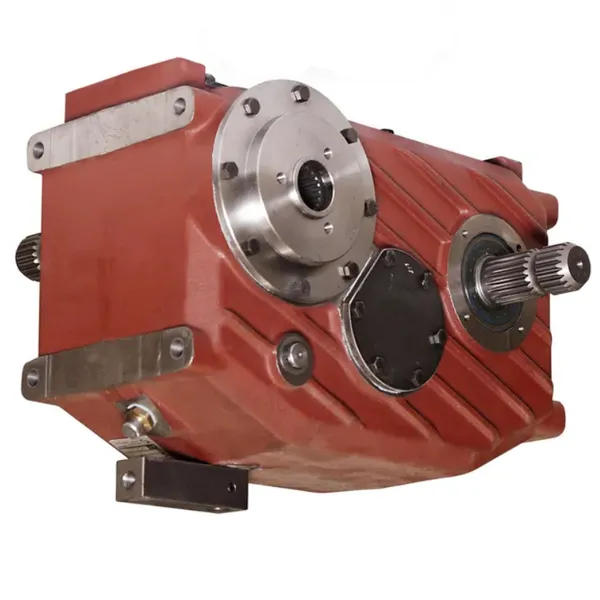

The Feed Mixer Gearbox C3A is a specialized gearbox designed for use in mixing wagons used in the agricultural industry. It is particularly suitable for machines/vehicles produced by the brands Aksa, DAF Agro, Falke Maschinenbau, Euromilk, and Metal-Fach. The gearbox is designed to provide efficient and reliable power transmission for the mixing process. Our feed mixer gearboxes are perfect replacements for the Replacement of Comer brand C-3A gearboxes.The Feed Mixer Gearbox C3A offers two different gear ratios: 1:1 and 1.8:1. These gear ratios allow for flexibility in adjusting the speed and torque of the mixing mechanism to suit different requirements. The 1:1 ratio provides a balanced speed and torque output, while the 1.8:1 ratio offers increased torque for heavy-duty mixing applications.This gearbox is specifically engineered for the demands of mixing wagons, which are used to blend various animal feeds and other agricultural materials. The gearbox ensures smooth and consistent mixing by transmitting power from the vehicle's engine to the mixing mechanism. It is designed to withstand the high loads and stresses encountered during the mixing process, providing reliable operation and long service life.The C3A Feed Mixer Gearbox is manufactured with high-quality materials and precision engineering to ensure durability and performance. It is designed to be easily integrated into the compatible machines/vehicles mentioned above, providing a seamless fit and reliable operation.

Specifications of Feed Mixer Gearbox C3A, 1:1, 1,8:1

Product Name	Feed Mixer Gearboxes - Replacement of Comer C3A, 1:1, 1,8:1
Unit	Each
Product details	Housing material: cast iron Contact us for power at a different RPM The gearbox is delivered without oil and must be filled before first use. First oil change after 50-70 operating hours, then after 500-700 operating hours or at least once a year.
Application range	Mixing wagon
Model	C3A
Max. input rotation speed	540 r/min
Consists of	Gearbox Order oil separately
Max. input power	92 kW
Connection 1 type	Splined
Connection 1 outside diameter	1-3/4 Inch
Connection 1 number of splines	20
Connection 2 type	Splined
Connection 2 outside diameter	1-3/4 Inch
Connection 2 number of splines	20
Suitable for machine/vehicle brand	Aksa DAF Agro Falke Maschinenbau Euromilk Metal-Fach
Contains oil	No
Oil SAE viscosity grade	90

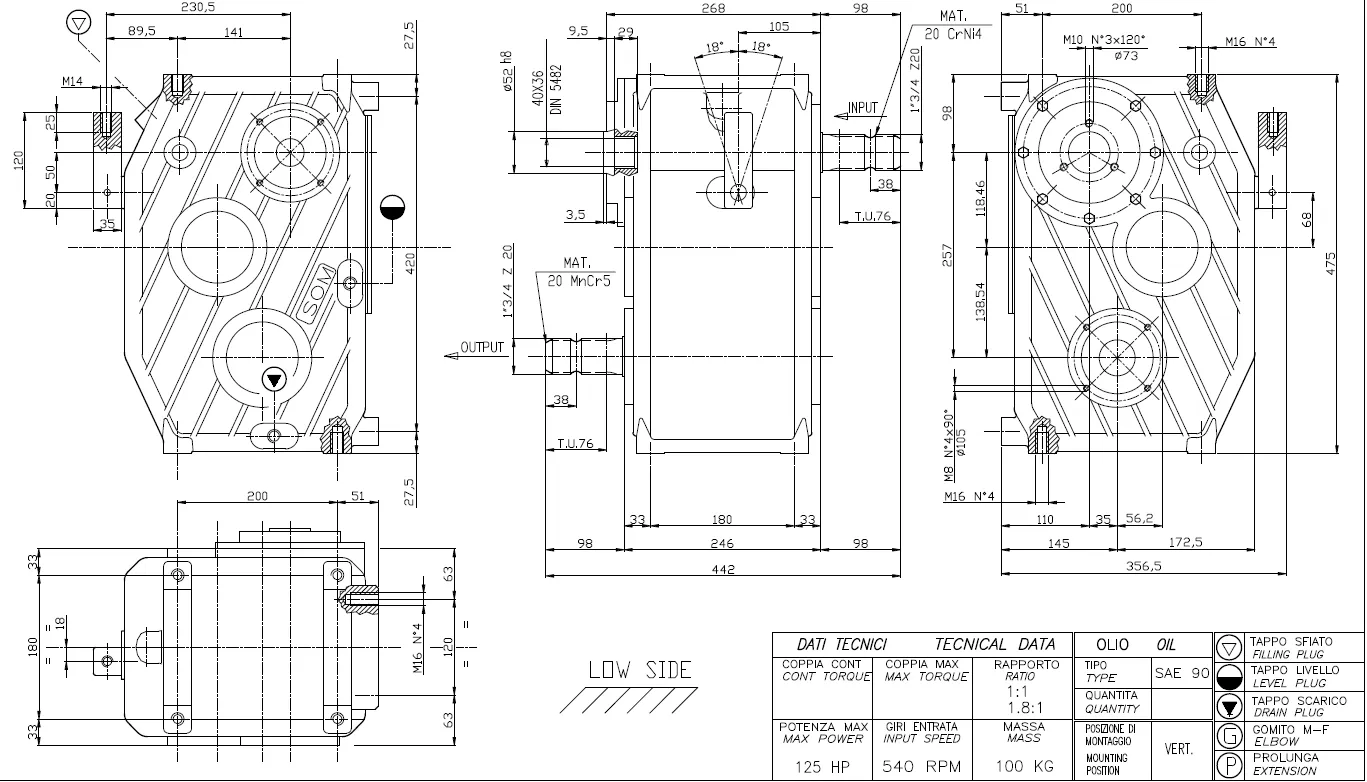

Dimensions of Feed Mixer Gearbox C3A, 1:1, 1,8:1

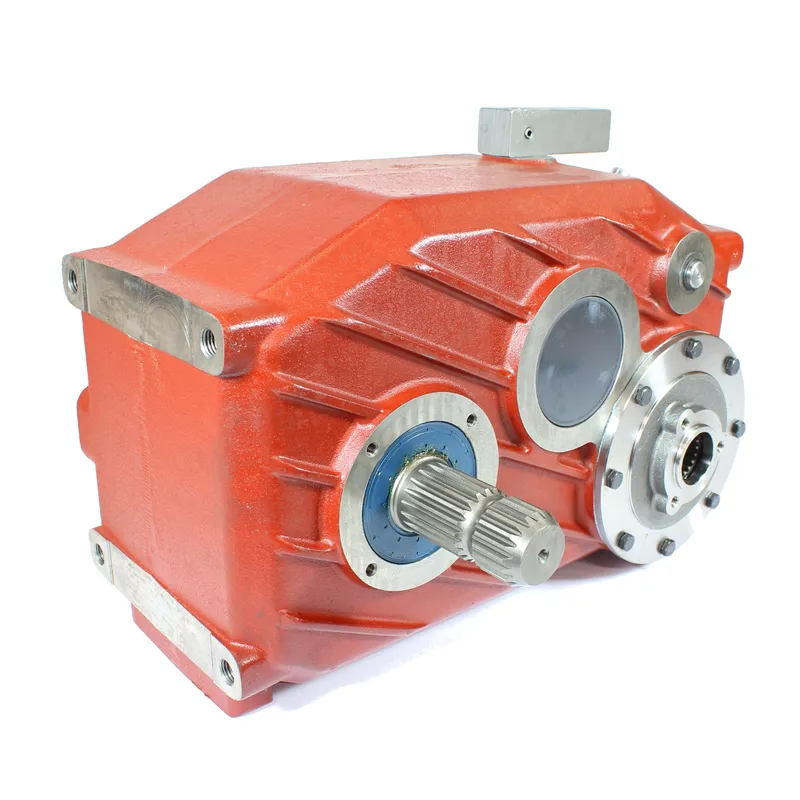

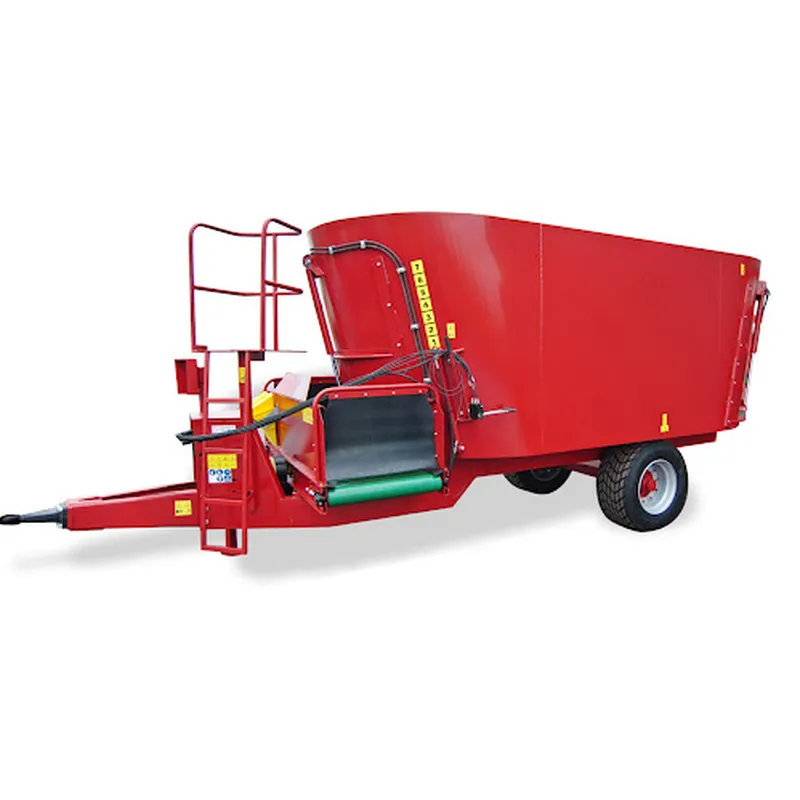

Advantages of Feed Mixer Gearbox C3A, 1:1, 1,8:1 for Mixing Wagon

The Feed Mixer Gearbox C3A, with its 1:1 and 1.8:1 gear ratios, offers several advantages for mixing wagons used in the agricultural industry. Here are some key advantages of the C3A Feed Mixer Gearbox:1. Efficient Power Transmission: The gearbox ensures efficient power transmission from the vehicle's engine to the mixing mechanism. It optimizes the transfer of power, allowing for smooth and consistent mixing of feed materials.2. Flexibility in Mixing: The two gear ratios, 1:1 and 1.8:1, provide flexibility in adjusting the speed and torque of the mixing mechanism. This allows operators to adapt the mixing process to different feed materials, mixing requirements, and operating conditions.3. Increased Torque: The 1.8:1 gear ratio option offers increased torque, making it suitable for heavy-duty mixing applications. It enables the mixing wagon to handle dense and challenging feed materials effectively.4. Compatibility with Specific Brands: The C3A Gearbox is designed to be compatible with machine/vehicle brands such as Aksa, DAF Agro, Falke Maschinenbau, Euromilk, and Metal-Fach. This ensures a seamless fit and integration into the designated mixing wagons, reducing installation time and effort.5. Durability and Longevity: The C3A Gearbox is manufactured with high-quality materials and precision engineering. It is designed to withstand the high loads and stresses encountered during the mixing process, offering durability and long service life.6. Reliable Operation: With its robust construction and reliable performance, the C3A Gearbox ensures consistent and trouble-free operation. It is designed to meet the demanding requirements of mixing wagons in the agricultural industry.7. Maintenance-Friendly: The gearbox is designed for easy maintenance, allowing for convenient inspection, lubrication, and potential repairs. This helps minimize downtime and extends the overall lifespan of the mixing wagon.8. Industry-Specific Design: The C3A Gearbox is specifically engineered for the needs of mixing wagons. It takes into account the unique requirements of the agricultural industry, ensuring optimal performance and productivity in feed mixing operations.

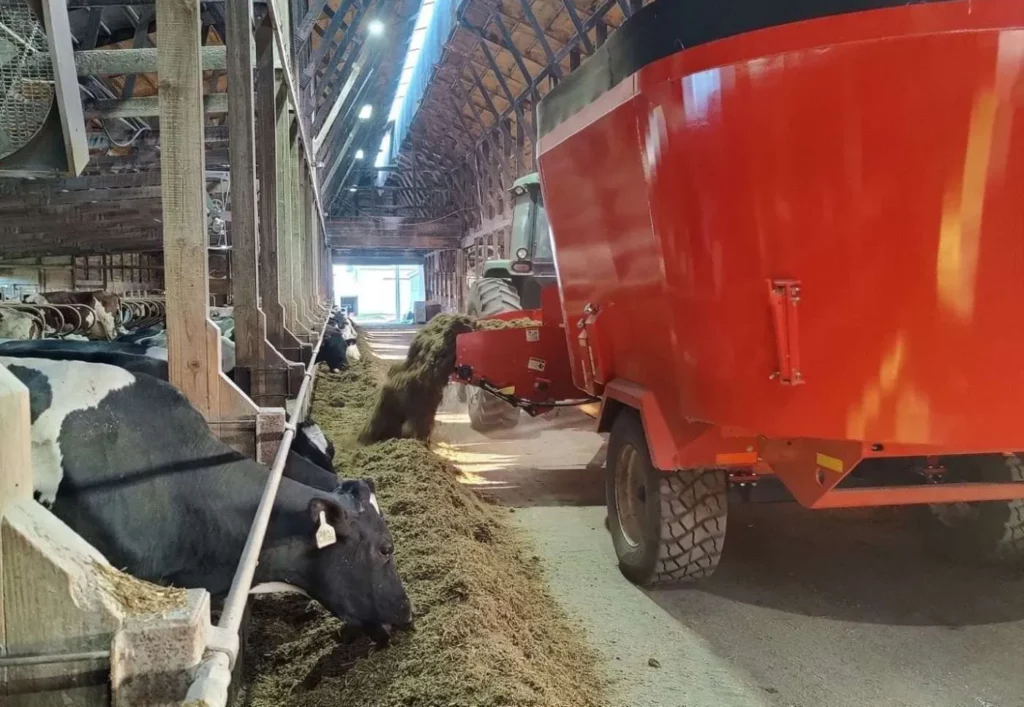

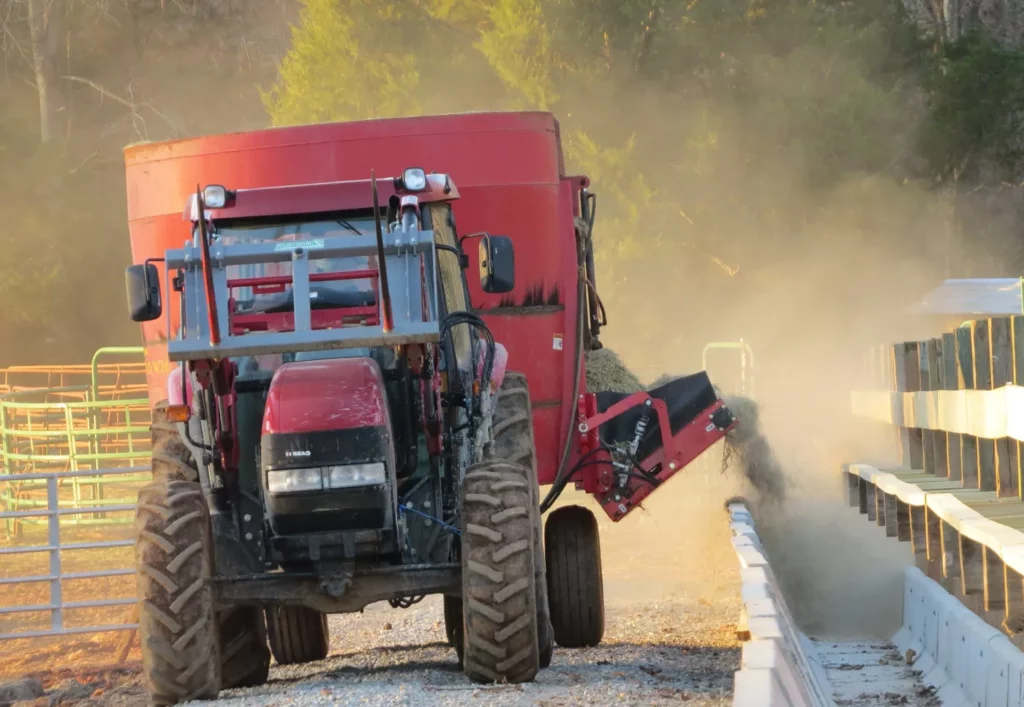

Applications of Feed Mixer Gearbox C3A, 1:1, 1,8:1 for Mixing Wago

The Feed Mixer Gearbox C3A with its 1:1 and 1.8:1 gear ratios finds application in various mixing wagons used in the agricultural industry. Here are some common applications of the C3A Gearbox:(1) Animal Feed Mixing: The C3A Gearbox is primarily used for mixing animal feeds. It is employed in mixing wagons to blend different types of grains, forages, supplements, and other ingredients to create a well-balanced and nutritious feed for livestock.(2) Silage Preparation: Silage is a popular feed option for livestock, especially during the winter months. The C3A Gearbox is utilized in mixing wagons to efficiently mix and chop silage materials such as corn, grass, or legumes, ensuring proper fermentation and preservation.(3) TMR (Total Mixed Ration) Mixing: TMR is a complete feed mixture that integrates all required nutrients for livestock in a single ration. The C3A Gearbox is used in mixing wagons to blend various ingredients like grains, forages, protein sources, minerals, and additives, ensuring a consistent and balanced TMR for the animals.(4) Fertilizer Mixing: Apart from feed mixing, the C3A Gearbox can also be employed in mixing wagons for blending fertilizers. It is utilized to mix different types of granular or powdered fertilizers, ensuring uniform distribution of nutrients before application in the fields.(5) Soil Amendment Mixing: Soil amendments like compost, manure, and lime are often mixed with soils to enhance fertility and improve crop yields. The C3A Gearbox can be used in mixing wagons to efficiently blend these soil amendments, ensuring a homogeneous mixture for even distribution across the fields.(6) Specialty Mixes: The versatility of the C3A Gearbox allows it to be used for creating specialty mixes as per specific agricultural requirements. This can include custom blends of feeds, additives, or other materials tailored to meet the nutritional needs of particular livestock or crops.

Agricultural PTO Shaft and Feed Mixer Machine Gearbox

The Agricultural PTO Shaft plays a crucial role in connecting the power source, typically a tractor, to the feed mixer machine gearbox in agricultural feed mixing operations. Here are some key aspects of the PTO shaft in relation to the feed mixer machine gearbox:1. Power Transfer: The PTO shaft serves as the link between the tractor's power take-off and the feed mixer machine gearbox. It transfers rotational power from the tractor's engine to the gearbox, enabling the mixing mechanism to operate.2. Compatibility: The PTO shaft is designed to be compatible with the tractor's power take-off system, ensuring a proper and secure connection. It is important to select a PTO shaft that matches the specifications and requirements of the tractor and the feed mixer machine gearbox.3. Length and Adjustability: PTO shafts come in various lengths to accommodate different distances between the tractor and the feed mixer machine. Some PTO shafts also offer adjustable length options, allowing for flexibility in connecting the power source to the gearbox.4. Safety Considerations: PTO shafts are equipped with safety features to prevent accidents and injuries. This typically includes shielding or guarding to protect operators from coming into contact with the rotating components of the shaft. It is important to ensure that the PTO shaft is properly installed and that all safety precautions are followed.5. Maintenance: Regular maintenance of the PTO shaft is essential for optimal performance and safety. This includes inspecting the shaft for any signs of wear, lubricating the universal joints, and ensuring that all components are in good working condition. Proper maintenance helps prolong the lifespan of the PTO shaft and minimizes the risk of breakdowns.

We also Offer Other Agricultural Gearboxes

We also offer other types of agricultural gearboxes, such as rotary cutter gearboxes, fertilizer spreader gearboxes, lawn mower gearbox, post hole digger gearboxes, rotary tiller gearboxes, corn headers gearboxes, fertilizer seeder gearboxes, feed mixer gearboxes, flail mower gearboxes, square baler gearboxes, round baler gearboxes, grader-driven rake gearboxes, universal gearboxes, irrigation reels gearboxes, manure spreader gearboxes, rotary rake gearboxes, gearbox for hay tedders, etc.Our technical staff can reconfigure an existing design or assist you in designing a custom agricultural PTO gearbox if a standard or existing design does not fit your application. Shaft rotation, speed ratio, design type, load nature, mounting position, and the application’s environment are all considerations when choosing an agricultural gearbox. We offer a wide range of agricultural gearboxes and PTO shafts for different applications. If you want to buy agricultural gearboxes, please get in touch with us.
