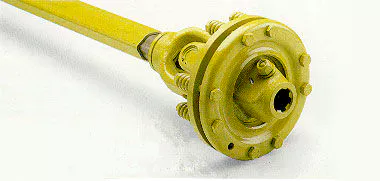

The FF torque limiter clutch is a coil spring clutch used to limit the amount of torque delivered at a calibrated value through slippage of the friction discs but maintain power delivery. It also helps absorb peak torque during the startup of machines with high inertia.Torque limitation is guaranteed by sliding the clutch pack on 2 or 4 special material (asbestos-free) discs. The value of the calibration torque can be adjusted by modifying the compression height of the coil spring. Available with 2 or 4 friction discs. Works in both directions of rotation.

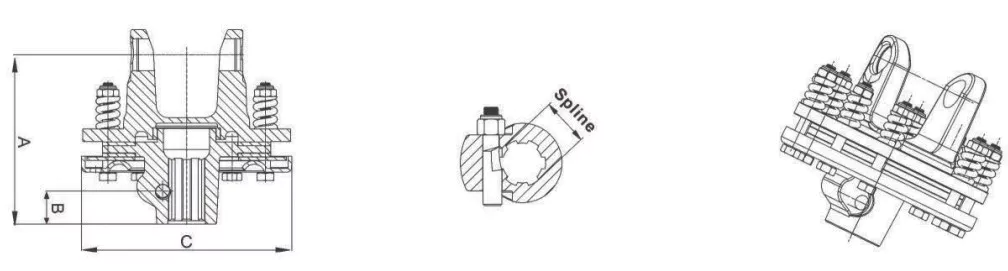

Series	Max Torque（Nm）	Friction Disc	Spline	A(mm)	B(mm)	C(mm)
4FF0	800	φ120	1 3/8" Z6	135	29	φ160
5FF0	1000		1 3/8" Z6	137
4FF1	1200	φ140	1 3/8" Z6	150		φ180
4FF1D			1 3/8" Z21
5FF1			1 3/8" Z6	152
5FF1D			1 3/8" Z21
6FF1			1 3/8" Z6	160
6FF1D			1 3/8" Z21
4FF2	1500	φ160	1 3/8" Z6	150		φ200
4FF2D			1 3/8" Z21
5FF2	1500	φ160	1 3/8" Z6	152
5FF2D			1 3/8" Z21
5FF2C			1 3/8" Z6
5FF2E			1 3/8" Z20
6FF2	1500	φ160	1 3/8" Z6	164
6FF2D			1 3/8" Z21
6FF2C			1 3/8" Z6
6FF2E			1 3/8" Z20
7FF2	1800	φ160	1 3/8" Z6	169
7FF2D			1 3/8" Z21
7FF2C			1 3/8" Z6
7FF2E			1 3/8" Z20
7NFF2			1 3/8" Z6	164
7NFF2D			1 3/8" Z21
7NFF2C			1 3/8" Z6
7NFF2E			1 3/8" Z20
8FF2			1 3/8" Z6	169
8FF2D			1 3/8" Z21
8FF2C			1 3/8" Z6
8FF2E			1 3/8" Z20

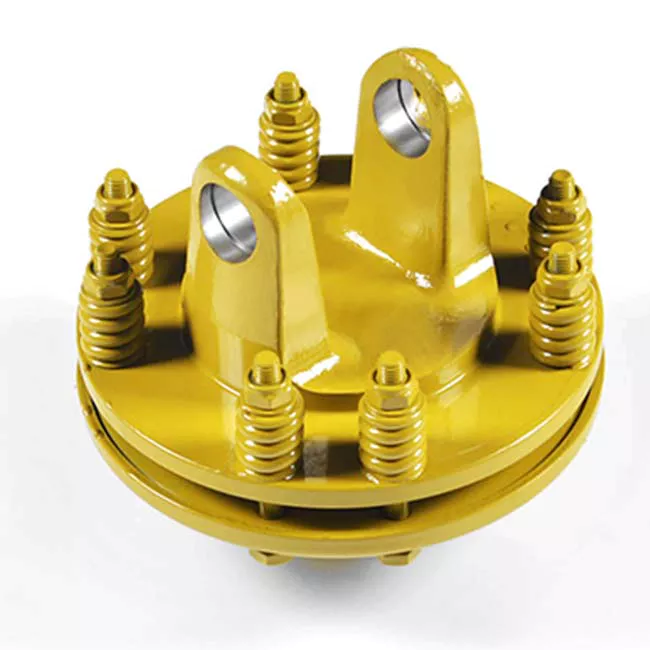

• A Torque Limiter is implemented when an implement exceeds the front PTO horsepower.
• This Torque limiter under extreme load will slip loose allowing all overload on the front PTO and tractor to be released, Once the front PTO of the tractor is turned off the torque limiter will click back into place allowing the use of the front implement again.
• Therefore saving the front Pto and the tractor. This torque limiter is mostly used on our 540rpm gearboxes which are put on tractors with over 100 hp engines.

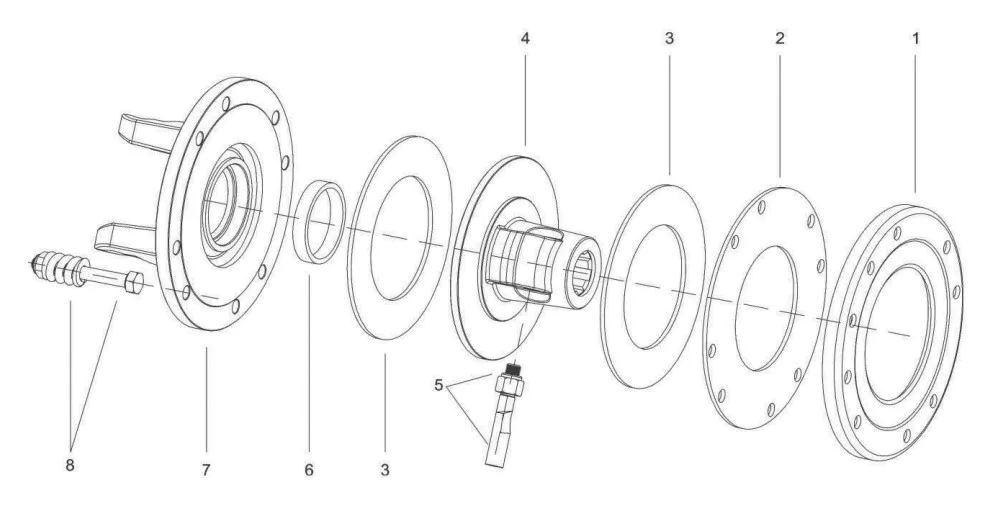

1. pressure plate

2. internal disc

3. friction lining(qty=2)

4. hub

5. taper pin for the hub(with nuts)

6. bushing

7. flanged yoke

8. complete bolt & spring(qty=8)

We also supply PTO Shafts & Agricultural Gearboxes

Depending on applications, PTO shafts may be designed to withstand pressure, impact, or tension. These PTO shaft parts can be equipped with a shear pin or slip clutch to protect them against common obstacles. There are several different PTO shafts and each type has its unique characteristics.The PTO shafts are available in two styles, North American and Italian. The latter type utilizes a PTO universal joint to distribute power from the tractor to the attached implements. The two styles are not identical, however, and the differences between them are important. One type of PTO shaft is a non-shear version, which has a yoke-to-yoke arrangement. Non-shear versions are ideal for massive lawn mowers, and non-shear PTO shafts have a yoke-to-yoke arrangement.Agricultural gearboxes:
