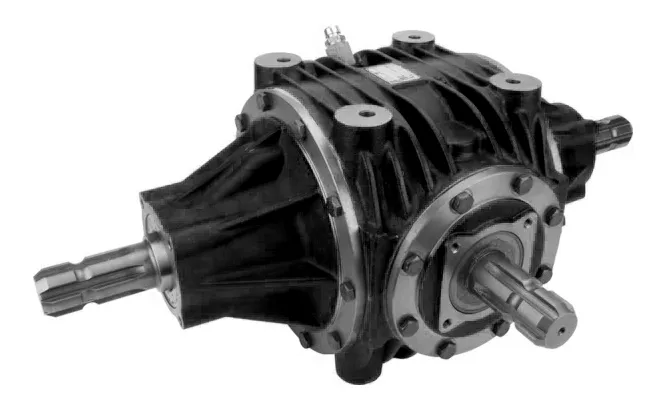

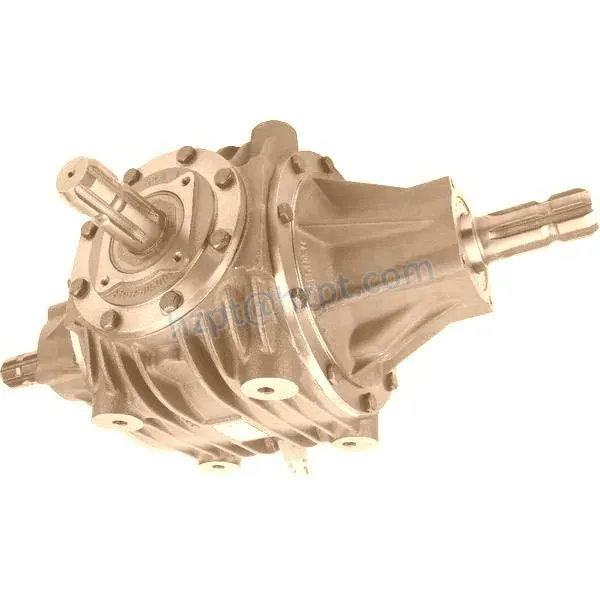

Flail Mower Gearbox - Replacement of Comer Code T-301B

Flail Mower Gearbox - Replacement of Comer Code T-301B

The flail mower gearbox T-301B is a type of gearbox that is designed for use in flail mowers, which are agricultural or landscaping machines used to mow large areas of grass or vegetation. The flail mower gearbox T-301B is a more heavy-duty version of the gearbox and is designed for larger and more demanding flail mower applications. It is constructed to be highly durable and can stand up to the rigors of heavy use, reducing maintenance and replacement costs.The flail mower gearbox T-301B is also highly versatile and can be used in a variety of agricultural applications. Its construction and design ensure that it provides the extra power required for larger and more demanding flail mowing applications. The flail mower gearbox T-301B is designed to be easy to install, which minimizes downtime for maintenance and allows the flail mower to get back to work quickly. Overall, it is a reliable and high-performing flail mower gearbox that is a popular choice among farmers, landscapers, and other professionals who need a gearbox that can handle more challenging flail mowing tasks.

▍Specifications of Flail Mower Gearbox T-301B

Product  Description	Flail Mower Gearbox - Replacement of Comer Gearbox T-301B
Product details	Contact us for power at a different RPM The gearbox is delivered without oil and must be filled before first use. First, the oil change after 50-70 operating hours, then after 500-700 operating hours or at least once a year.
Application range	Various (agricultural) applications Mowers Rotary tillers
Model	T-301B
Max. input rotation speed	1000 r/min
Consists of	Gearbox Without oil
Max. input power	132 kW
Max. output torque	76.4 daNm
Connection 1 type	Splined
XConnection 1 outside diameter	1-3/4 Inch
Connection 1 number of splines	6
Connection 2 type	Splined
YConnection 2 outside diameter	1-3/8 Inch
Connection 2 number of splines	6
Connection 3 type	Splined
ZConnection 3 outside diameter	1-3/8 Inch
Connection 3 number of splines	6
Contains oil	No
Max. oil capacity	4.4 l
Max. oil change interval	500 h
Oil SAE viscosity grade	80W-90
Housing material	Cast iron GGG40
Original number equivalent	9.301.041.00
Weight	61.5 kg
Ratio Increasing	1: 1.60

▍Features of Flail Mower Gearbox T-301B

Here are some of the main features of the flail mower gearbox T-301B:(1) Heavy-duty construction: Flail mower gearbox T-301B is typically made of durable materials such as cast iron, steel, or aluminum to withstand the rigors of regular use.(2) Efficient power transmission: The flail mower gearbox T-301B should be designed for optimal power transfer between the tractor and the flail mower.(3) Adjustable speed: Depending on the model, the flail mower gearbox T-301B may offer adjustable speed settings to match various cutting conditions.(4) Safety features: Flail mower gearbox T-301B comes equipped with safety features like shear bolts or slip clutches that protect the gearbox and the tractor in the event of an obstruction in the path of the mower.(5)Compatibility: Flail mower gearbox T-301B should be compatible with the specific make and model of the tractor and the flail mower.(6) Easy installation: The flail mower gearbox T-301B should be easy to install and remove for maintenance and repair.(7) Low maintenance: The flail mower gearbox T-301B should require minimal maintenance and lubrication to ensure optimum performance and longevity.

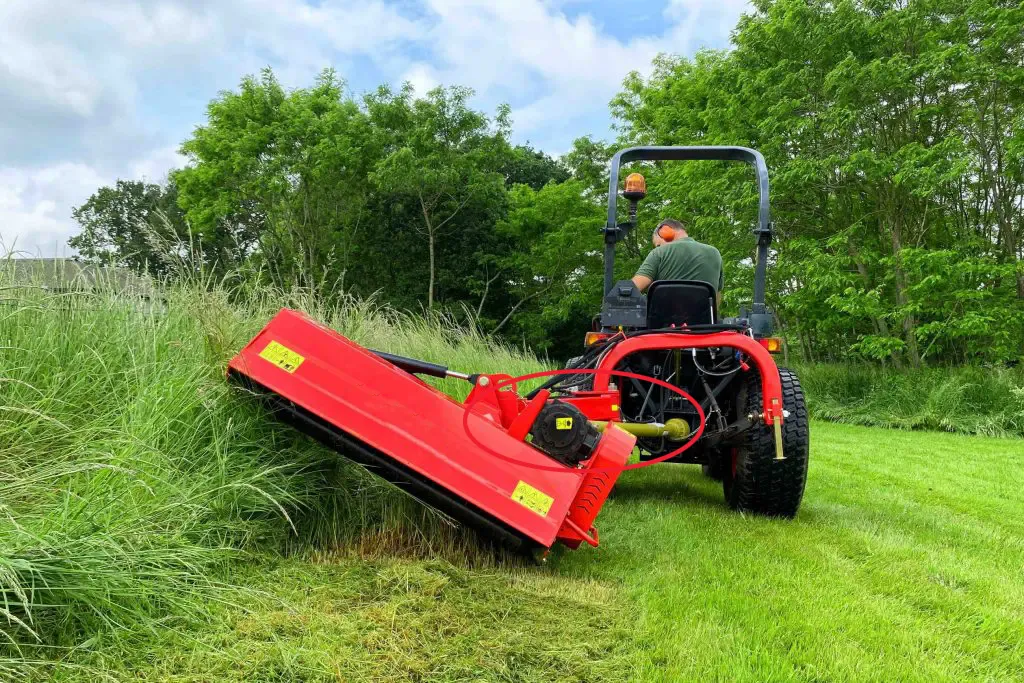

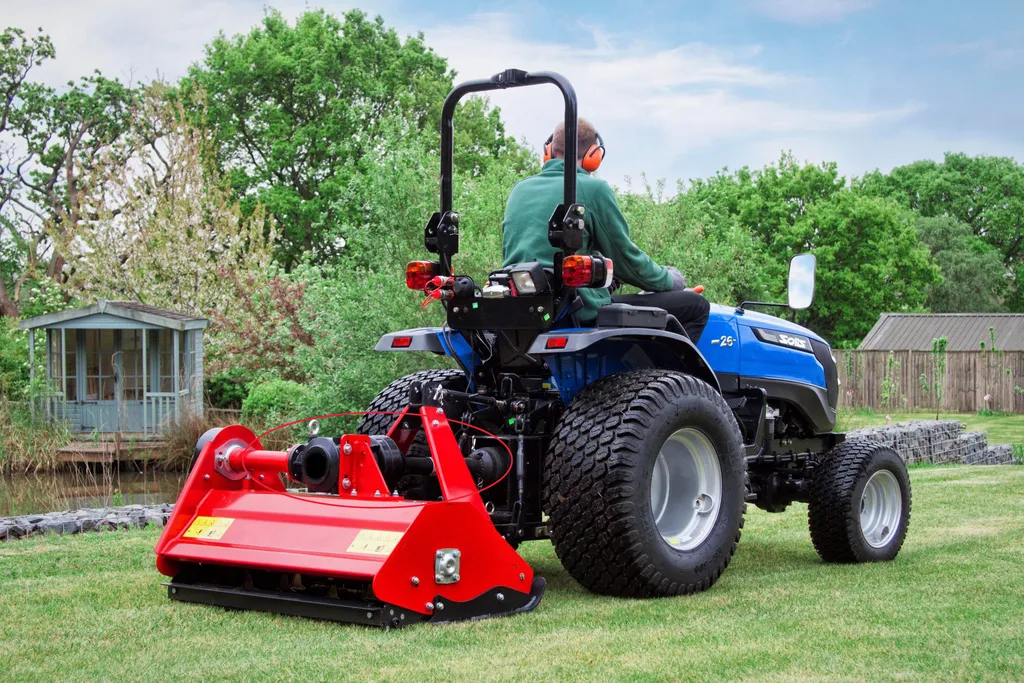

▍Where Can the Flail Mower Gearbox Be Used?

Flail mower gearboxes are used to transmit power from the tractor's PTO shaft to operate a flail mower. Flail mowers are typically used for cutting tall grass, weeds, and light brush in a variety of environments, including parks, golf courses, pastures, and orchards. They are also used for maintaining roadsides, meadows, and other rural landscapes.Flail mower gearboxes play a critical role in the overall performance of the flail mower, as they ensure that the mower operates efficiently and effectively. The gearbox helps to control the speed and cutting action of the mower while providing a stable and consistent power source. It is important to select the right flail mower gearbox based on the intended application, as different gearboxes have varying horsepower ratings and cutting capabilities.

▍Common Faults with Flail Mower Gearbox

Some common faults that can occur with flail mower gearboxes include:Leaking oil: This can be caused by worn seals or gaskets, damage to the flail mower gearbox housing, or overfilling with oil.Noise and vibration: Excessive noise and vibration can be a sign of worn bearings, damaged gears or shafts, or improper alignment.Loss of power or reduced cutting ability: This can be caused by worn or damaged gears, improper lubrication, or worn bearings.Seized gearbox: This can be caused by a lack of lubrication, foreign objects in the flail mower gearbox, or damage to the gears or bearings.PTO Shaft lockup or disconnection: This can be caused by improper assembly of the PTO Shaft, worn or damaged splines or couplers, or damaged bearings.It is important to perform regular maintenance checks, such as checking for leaks and proper lubrication and inspecting the flail mower gearbox for any signs of damage or wear. It is also essential to follow the manufacturer's recommendations for the proper use and maintenance of the flail mower gearbox. If any issues arise, it is important to address them promptly to avoid further damage and ensure safe operation.

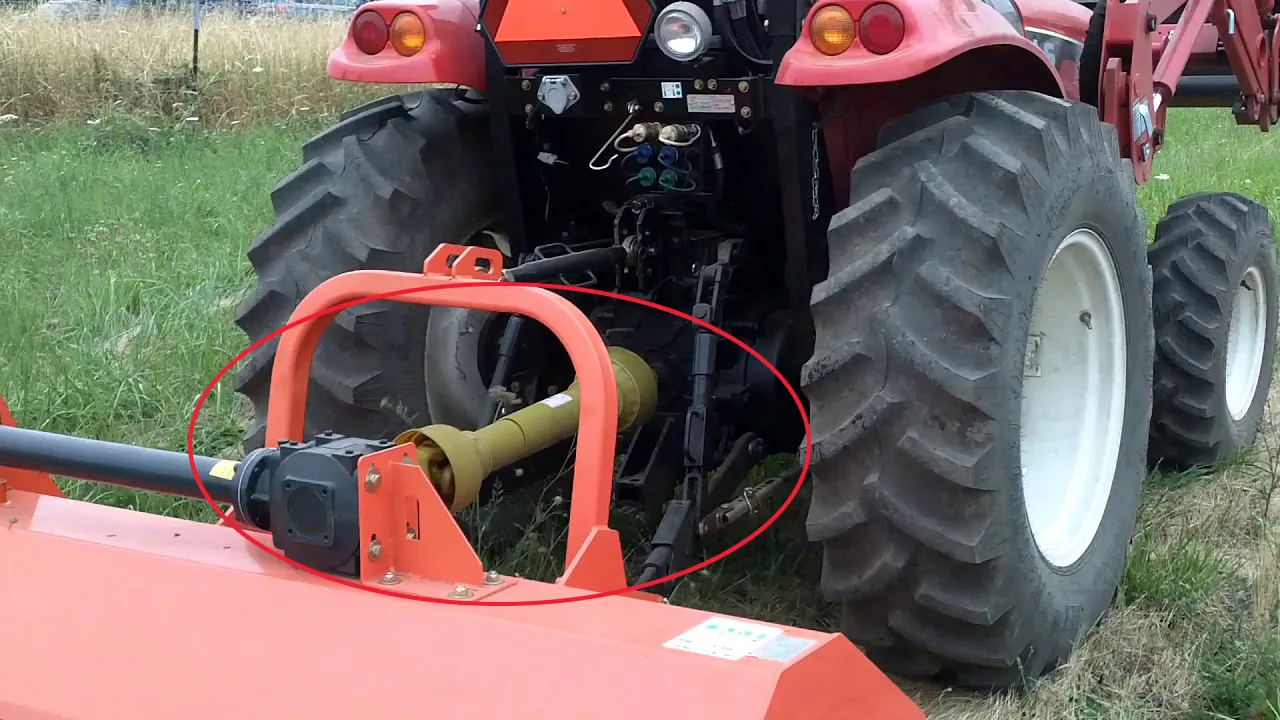

▍Agricultural PTO Shaft and Flail Mower Gearboxes

Agricultural PTO (Power Take-Off) shafts are used in conjunction with flail mower gearboxes to transmit power from the tractor to the flail mower. PTO shafts are essential components of the tractor's power transmission system and connect to the gearbox input shaft. They are typically made of steel and contain multiple universal joints that allow for easy adjustment to ensure proper alignment between the tractor and the flail mower.Flail mower gearboxes are designed to connect to the PTO shaft and convert the rotational motion from the tractor's power source into a cutting action for the flail mower blades. The flail mower gearbox also controls the speed of the blades and ensures that the mower cuts evenly across its entire width.When selecting a PTO shaft, it is important to consider factors such as the distance between the tractor and the flail mower, the positioning of the tractor's lift arms, the tractor's horsepower output, and the maximum torque rating of the flail mower gearbox. In addition, it is recommended to lubricate the PTO shaft regularly and to inspect it for any wear or damage that may compromise its safety and performance.

▍How to Choose the Right Size PTO Shaft for Flail Mower Gearbox?

The key to selecting the right size PTO shaft for a flail mower gearbox is to match the horsepower and torque requirements of the flail mower with the capabilities of the PTO shaft. Here are some steps to guide you in choosing the right size PTO shaft:1. Determine the horsepower requirements of the flail mower: This information is typically provided by the manufacturer and can be found in the operator's manual or technical specifications.2. Determine the operating speed of the flail mower: The operating speed can also be found in the operator's manual or technical specifications.3. Calculate the required torque: Torque is the twisting force required to turn the flail mower gearbox. To calculate the required torque, multiply the horsepower by 5252 and then divide by the operating speed in revolutions per minute (RPM).4. Choose a PTO shaft with the appropriate torque rating: PTO shafts are rated for maximum horsepower and torque. Select a PTO shaft that can handle the calculated torque requirement.5. Make sure the PTO shaft is the right length: Measure the distance between the tractor's PTO output shaft and the flail mower input shaft to determine the required PTO shaft length.6. Check the compatibility of the PTO shaft with the tractor: Make sure the PTO Shaft is compatible with the tractor's PTO output shaft and that it has the appropriate connector for the flail mower gearbox input shaft.By following these steps, you can select a PTO shaft that is appropriate for the flail mower gearbox and ensure that it operates efficiently and safely.

▍We Also Provide Other Agricultural Gearboxes

We also offer other types of agricultural gearboxes, such as rotary cutter gearboxes, fertilizer spreader gearboxes, lawn mower gearbox, post hole digger gearboxes, rotary tiller gearboxes, corn headers gearboxes, fertilizer mixer gearboxes, feed mixer gearboxes, flail mower gearboxes, round baler gearboxes, irrigation reels gearboxes, manure spreader gearboxes, micro tiller gearboxes, gearbox for rotary rakes, gearbox for hay tedders, etc. If you want to buy flail mower gearboxes, please get in touch with us.
