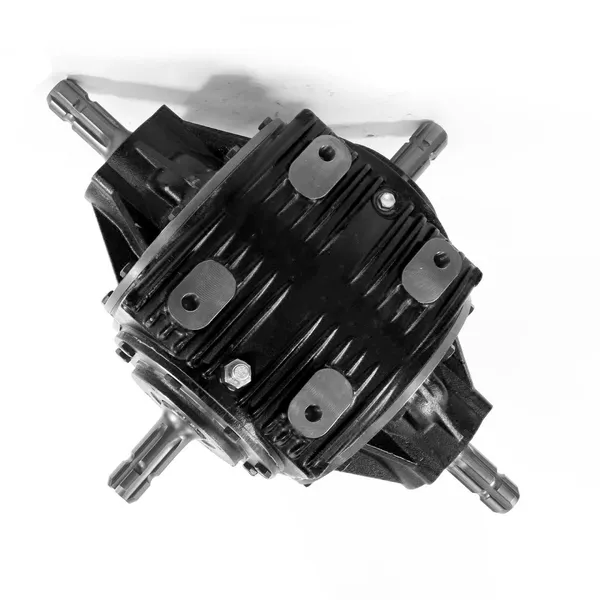

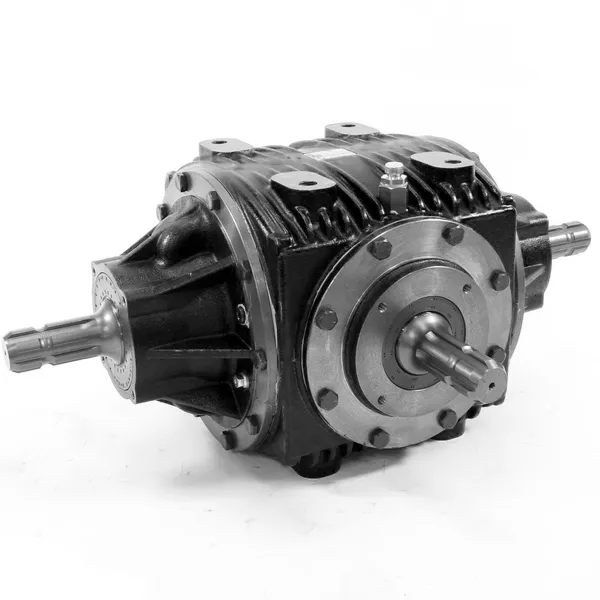

Flail Mower Gearboxes - Replacement of Comer Code T-331A 1:1.94

Flail Mower Gearboxes - Replacement of Comer Code T-331A 1:1.94

The flail mower gearbox T-331A is a type of gearbox that is specifically designed and manufactured for use in flail mower applications. Flail mowers are used to cut and shred vegetation, such as grass, bushes, and small trees, into small pieces that can be dispersed or mulched. The flail mower gearbox T-331A is an essential component of the flail mower, as it provides the necessary power and torque to drive the blades and cutting mechanisms.The flail mower gearbox T-331A is made of high-grade materials and is designed to withstand the demanding conditions of flail mower applications. It features a durable housing that protects the internal components from damage and wear, and it is designed to reduce noise and vibration for a smoother and more comfortable operation. The flail mower gearbox T-331A is also highly adaptable and versatile, as it can be used in a wide range of flail mower models and configurations. Overall, the flail mower gearbox T-331A is a reliable and high-performance component that is essential for the efficient operation of flail mowers in a variety of agricultural and landscaping applications.

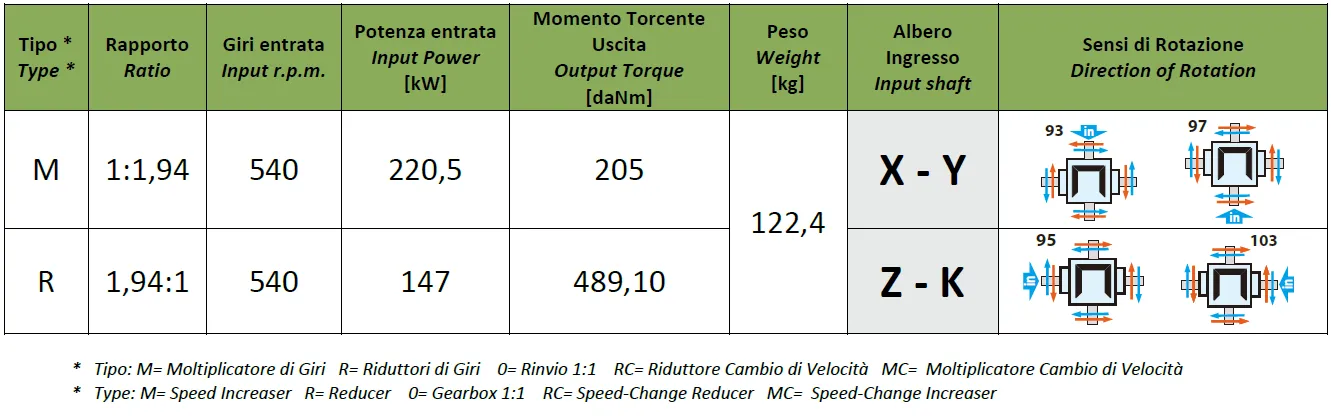

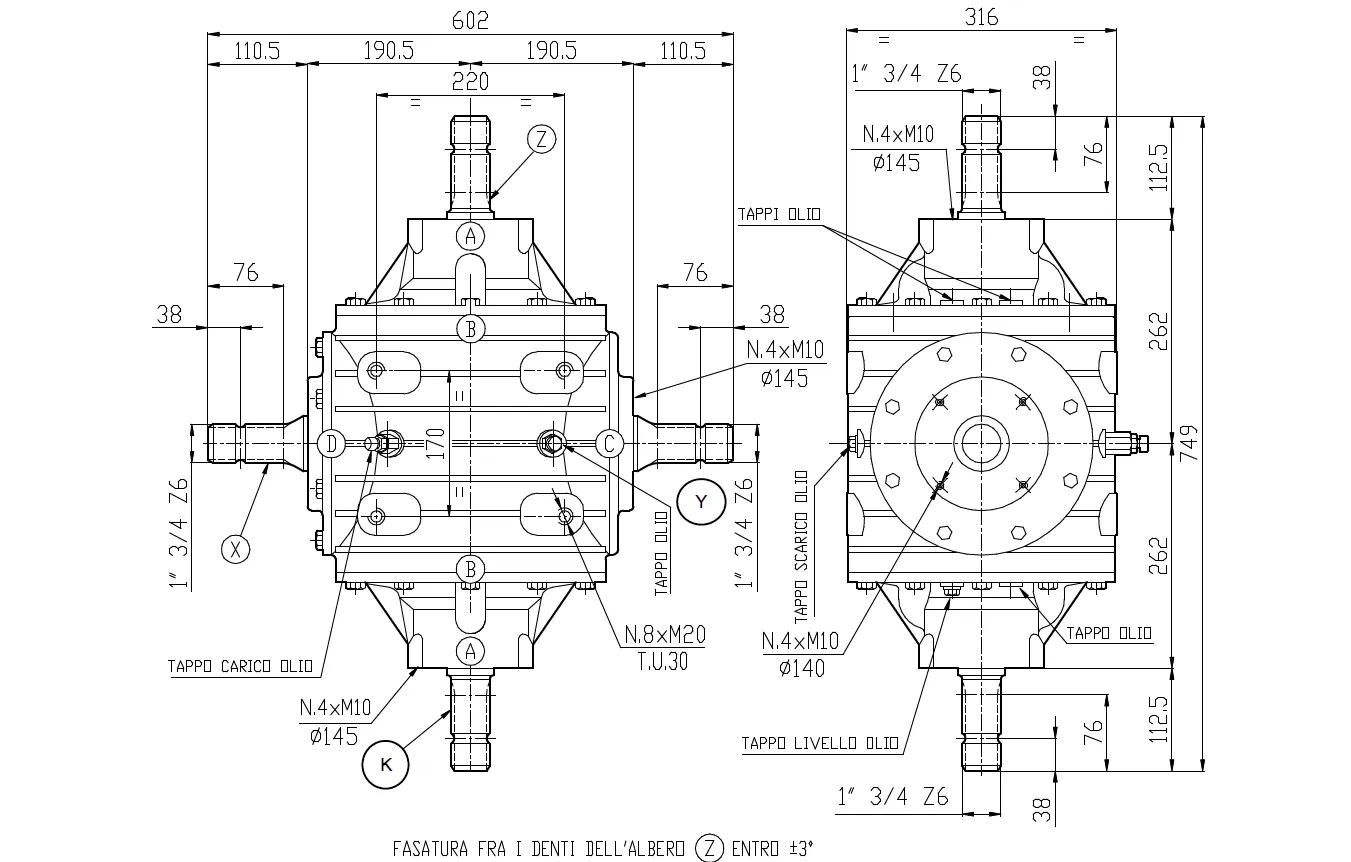

▍Specifications of Flail Mower Gearbox T-331A (1:1.94)

Description	Flail Mower Gearboxes - Replacement of Comer Gearbox T-331A 1:1.94
Product details	Housing material: cast iron Contact us for power at a different RPM The gearbox is delivered without oil and must be filled before first use. First, the oil change after 50-70 operating hours, then after 500-700 operating hours or at least once a year.
Application range	Various (agricultural) applications Mowers
Consists of	Gearbox Order oil separately
Max. output torque	205 nm
Contains oil	No
Max. oil capacity	7.5 l
Oil SAE viscosity grade	80W-90
Weight	122.4 kg
Gear arrangement Increasing	93 - 97
Gear arrangement Reducing	95- 103
Input power kW / HP Increasing	147 / 197 kW/HP
Input shaft Increasing	Z - K
Input shaft Reducing	X - Y
Input power KW / HP Reducing	220.5 / 295 kW/HP
Output Torque DaNm Increasing	489.10 daNm
Ratio Increasing	1: 1.94
Ratio Reducing	1.94: 1
Shaft X	1 3/4" (6) (A)
Shaft Y	1 3/4" (6) (A)
Shaft Z	1 3/4" (6) (B)

▍Features of Flail Mower Gearbox T-331A (1:1.94)

The flail mower gearbox T-331A is a popular choice among farmers, landscapers, and other professionals, as it offers numerous advantages, including:High-Torque Capacity: The flail mower gearbox T-331A is designed to handle high torque loads from the mower's engine, making it an ideal choice for heavy-duty applications.Durable: The flail mower gearbox T-331A is made of high-quality materials, such as cast iron and steel, to ensure a long service life and the ability to withstand harsh operating conditions.Efficient: The flail mower gearbox T-331A offers efficient power transfer from the mower's engine to the blades, allowing for maximum cutting power and productivity.Low Maintenance: The flail mower gearbox T-331A is designed to be low maintenance, reducing downtime and increasing productivity.Versatile: The flail mower gearbox T-331A is versatile and can be used with a variety of flail mowers, making it a popular choice among professionals.Easy to Install: The compact design of the flail mower gearbox T-331A makes it easy to install on a variety of flail mowers.Smooth Operation: The flail mower gearbox T-331A is designed to ensure smooth operation, reducing vibration and noise during operation.Customizable: The flail mower gearbox T-331A is customizable, allowing for specific needs and requirements to be met.

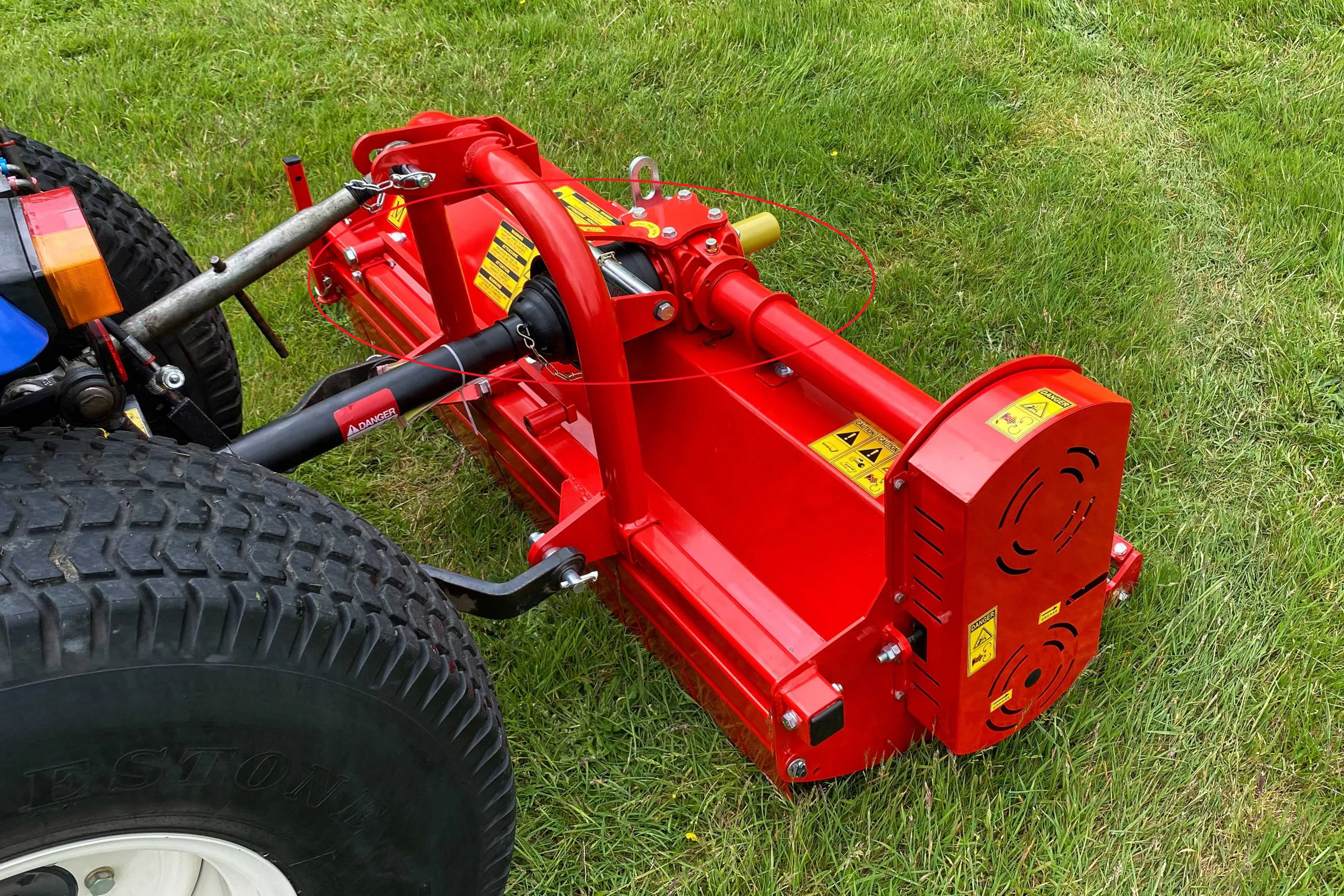

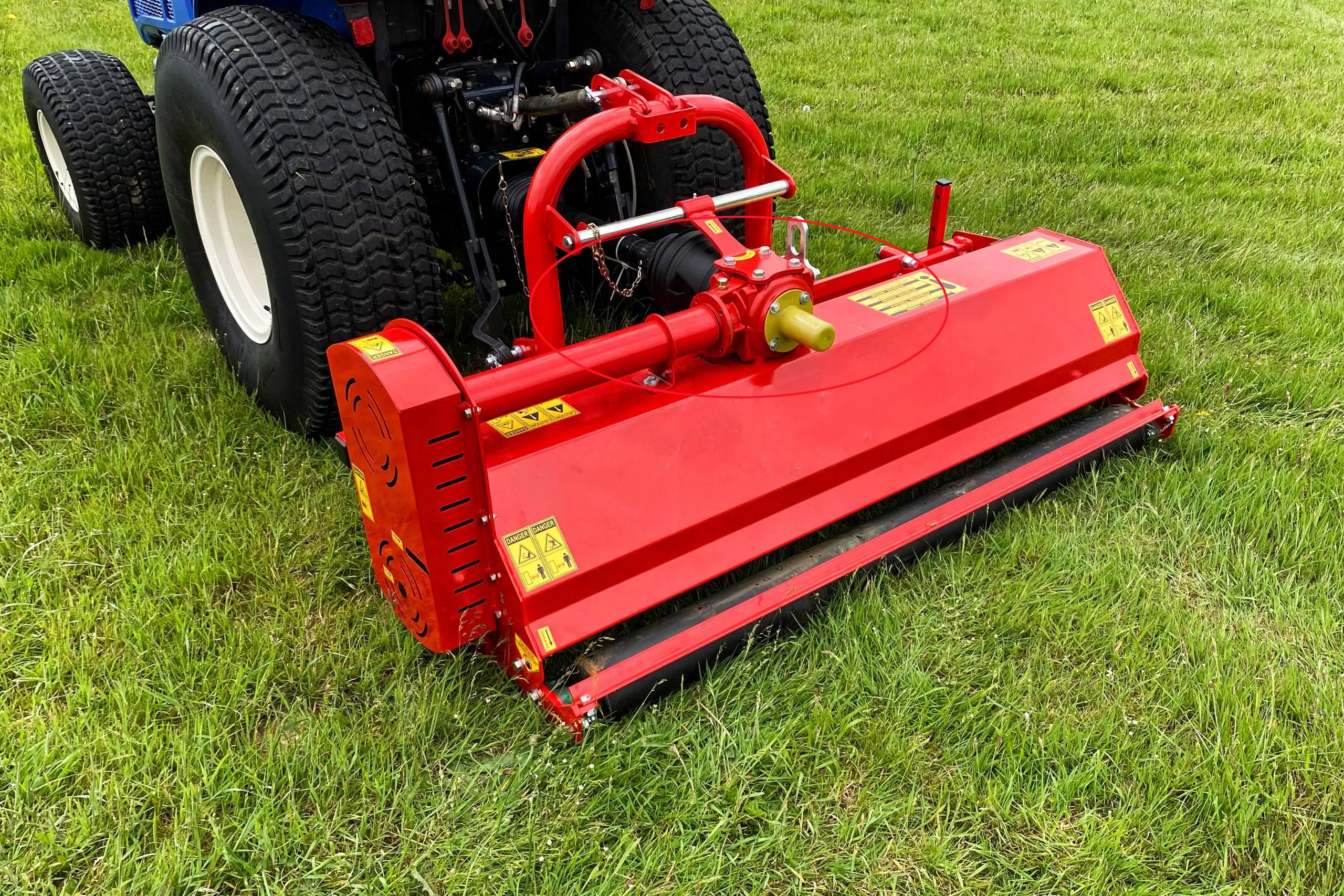

▍Where Is the Flail Mower Gearbox T-331A Used?

The flail mower gearbox T-331A is a versatile gearbox that can be used in a variety of heavy-duty flail mowing applications. Here are some of the industries where flail mower gearboxes are frequently used:Agricultural Fields: The flail mower gearbox T-331A is commonly used in agricultural fields to mow down high grass, weeds, and crops.Landscaping: The flail mower gearbox T-331A is also used in landscaping applications to maintain parks, sports fields, and golf courses.Roadside Maintenance: The flail mower gearbox T-331A is used to maintain roadside vegetation, reducing the risk of accidents caused by obstructive vegetation.Forestry: The flail mower gearbox T-331A is used to clear brush and small trees in forested areas, making it a favorite of many forestry workers.Orchard Management: The flail mower gearbox T-331A is used in orchard management to maintain the grass between the trees.Municipal Maintenance: The flail mower gearbox T-331A is used to maintain municipal lots, parks, playgrounds, and other public spaces.Overall, the flail mower gearbox T-331A is a highly versatile gearbox that can be used in many mowing applications, making it a top choice for professionals who require durable and reliable equipment for their heavy-duty mowing needs.

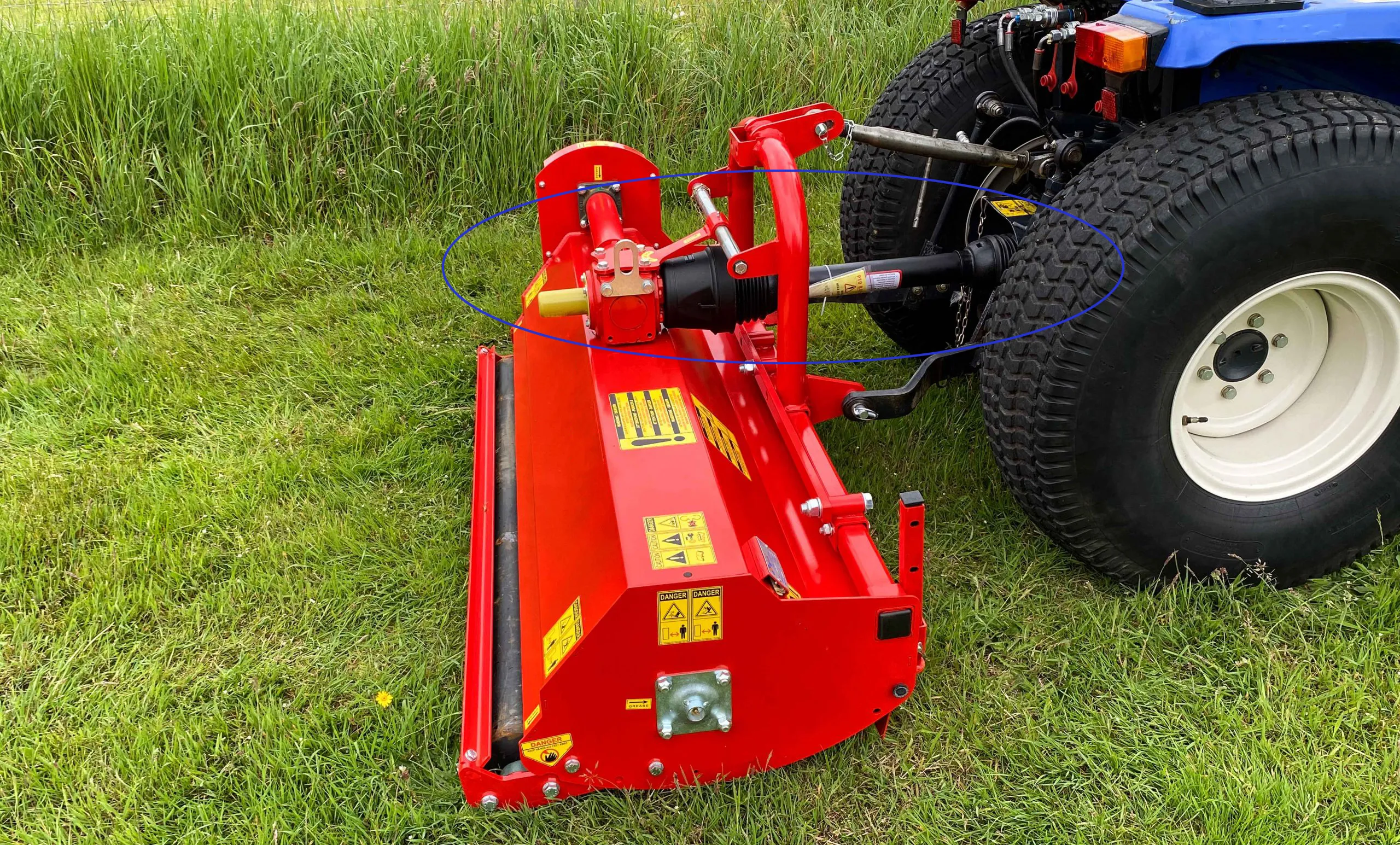

▍PTO Shafts for Flail Mower Gearboxes

PTO (Power Take-Off) shafts are an essential component of flail mower gearboxes. These PTO shafts transfer power from the tractor to the flail mower gearbox to operate the cutting blades. Choosing the right PTO shaft is crucial for the proper functioning of a flail mower, and it's important to ensure that the shaft is compatible with the flail mower gearbox and tractor's horsepower.Here are some key things to consider when selecting a PTO shaft for a flail mower gearbox:1. Length: The length of the PTO shaft should be appropriate to reach from the tractor PTO to the input shaft of the gearbox without any excessive slack.2. Diameter: The diameter should be appropriate to handle the required horsepower and torque of the flail mower gearbox.3. Safety: It's essential to choose a PTO shaft with proper safety features, such as proper shielding to prevent injuries.4. Compatibility: The PTO shaft and flail mower gearbox must be compatible with each other to ensure proper power transfer.Overall, choosing the right PTO shaft is essential for the proper functioning and safety of a flail mower, and it's important to consult an expert in flail mower equipment to ensure that you get the right components for your specific needs.

▍Flail Mower Gearbox Oil Change Steps

Performing regular oil changes in the flail mower gearbox is important to keep the machine running smoothly and prevent wear and tear on its components. Here are the steps to change the oil in a flail mower gearbox:(1) Check the oil level: Before changing the oil, it's important to check the flail mower gearbox oil level. Use the dipstick to see if the oil level is between the recommended marks. If it's too low, add oil to bring it to the recommended level.(2) Drain the existing oil: Locate the drain plug on the flail mower gearbox and place a container underneath to collect the old oil. Remove the drain plug and let the old oil drain completely.(3) Clean the gearbox: Wipe down the inside of the flail mower gearbox with a clean, lint-free cloth to remove any debris or sediment that may have settled at the bottom.(4) Refill the gearbox with clean oil: Once the old oil has drained, replace the drain plug and fill the flail mower gearbox with the recommended amount and type of clean oil. Use a funnel to avoid spilling any oil.(5) Check the oil level: After refilling the gearbox, check the flail mower gearbox oil level again using the dipstick. The flail mower gearbox oil level should be between the recommended marks. If it's too low, add more oil as necessary.(6) Confirm gearbox operation: Start the flail mower and let it run for several minutes to allow the oil to circulate throughout the gearbox. Confirm that the flail mower gearbox is operating smoothly and that the oil level remains within the recommended range.Overall, performing regular oil changes is an important maintenance task that helps keep the flail mower gearbox operating smoothly and helps extend its lifespan.

▍We Also Offer Other Agricultural Gearboxes

We also offer other types of agricultural gearboxes, such as rotary cutter gearboxes, fertilizer spreader gearbox, lawn mower gearboxes, post hole digger gearboxes, rotary tiller gearboxes, corn headers gearboxes, fertilizer mixer gearboxes, feed mixer gearboxes, flail mower gearboxes, round baler gearboxes, irrigation reels gearboxes, manure spreader gearboxes, rotary rake gearboxes, gearbox for hay tedders, etc. If you want to buy flail mower gearboxes, please get in touch with us.
