Forging Bevel Gears

Forging Bevel Gears

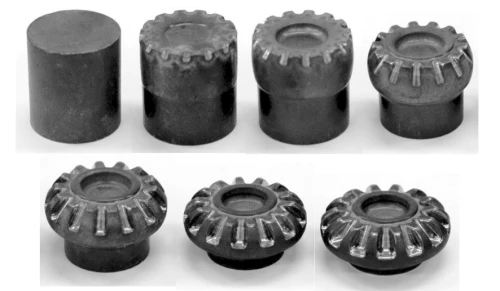

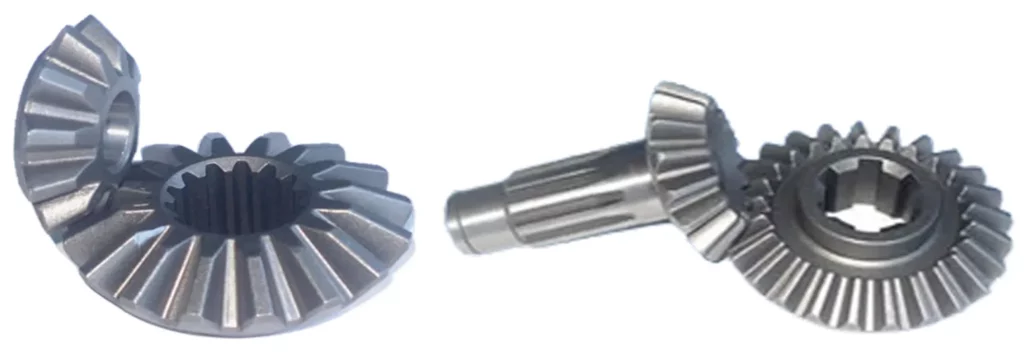

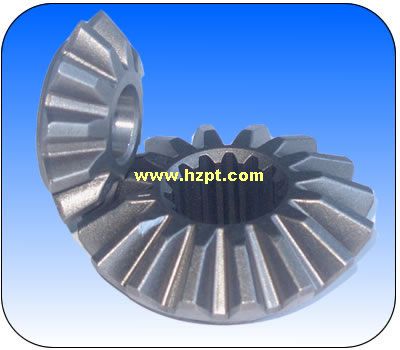

Precision forging bevel gears included forging straight bevel gears and forging spiral bevel gears. These forging bevel gears could be machined by hot forging, cold forging, and compound developing methods. And these bevel gears are widely adopted by OEM suppliers in the application of saloon cars, passenger cars, mini-car, heavy-duty trucks, medium-duty trucks, light-duty trucks, engineering machinery, agriculture machinery, wind power generation, etc.

Application for the Forging Bevel Gears

They can be manufactured using a hot or cold forging process. They are commonly used in engineering machinery and wind power generation. Precision forging bevel gears undergo various processes, including machining, heat treatment, and flame and nitriding.Precision forging bevel gears can also be referred to as miter gears. They feature equal numbers of teeth, and their axes are at right angles. In addition, they have smooth operation and can handle high torque loads.

Forging Bevel Gears Features and Advantages

There are forging straight bevel gears and forging spiral bevel gears. Forging bevel gears offer a number of advantages over machined versions. In addition to being more durable, forged bevel gears are able to achieve lower weight and larger dimensions. They also have the added advantage of being a more cost-effective solution for many applications. Here are some of the advantages of forged gears and how they can benefit your design.A key component of a bevel gear is the pitch angle. This is the angle between the face of the pitch surface and the shaft axis. It is important to ensure that the pitch angle of the two gears matches in order for the gears to mesh. The pitch angle of bevel gears is usually around 20 degrees.The geometry of bevel gears is complex. They are particularly sensitive to deviations in flank form and relative contact position. These two factors are process-linked and affect the paired contact geometry of the ring gear and pinion. Narrow tolerance fields are essential to avoid quality problems, which increase production costs.When calculating the bending stress in bevel gears, consider the following. The diameter of the gears is equal to the diameter of the gear 1 and the shaft of the gear 2. The angle of the pinion is the same as that of the gear. A gear with a smaller diameter will have less contact stress.The features of high-transmission efficiency, smooth operation, low noise, and not easy to corrosion and rust make the forging bevel gears popular in the gears market. What's more, various specifications and non-standard customization are available at Raydafon.

Selecting the Right Forging Bevel Gear:

1. Application Requirements: Understand the specific requirements of your application, including torque, speed, load capacity, operating conditions (temperature, environment), and expected service life. This information will guide you in selecting the appropriate forging bevel gear.2. Design and Specifications: Consider the design parameters such as gear ratio, tooth profile (straight, spiral, or hypoid), and tooth contact pattern. Ensure that the gear design aligns with your application's needs and performance expectations.3. Material Selection: Choose a material that suits your application requirements in terms of strength, hardness, wear resistance, and corrosion resistance. Common materials used for forging bevel gears include carbon steels, alloy steels, and stainless steels. Consult with material experts or gear manufacturers to determine the most suitable material for your specific application.4. Quality and Reliability: Select a reputable and experienced manufacturer or supplier known for producing high-quality forged bevel gears. Ensure that the gears meet industry standards and undergo proper quality control processes, such as non-destructive testing, dimensional inspections, and hardness testing.5. Load-Carrying Capacity: Consider the load-carrying capacity of the bevel gear based on the anticipated operating conditions. Ensure that the gear's capacity exceeds the maximum loads expected during operation to avoid premature failure or damage.6. Efficiency and Performance: Evaluate the gear's efficiency and performance characteristics, such as smoothness of operation, noise and vibration levels, and power transmission efficiency. Look for gears with optimized tooth profiles and precision manufacturing techniques to ensure efficient and reliable performance.7. Customization and Adaptability: If your application requires specific modifications or customization, ensure that the manufacturer can accommodate your needs. This includes the ability to provide tailored gear designs, special coatings or surface treatments, and compatibility with existing equipment or systems.
