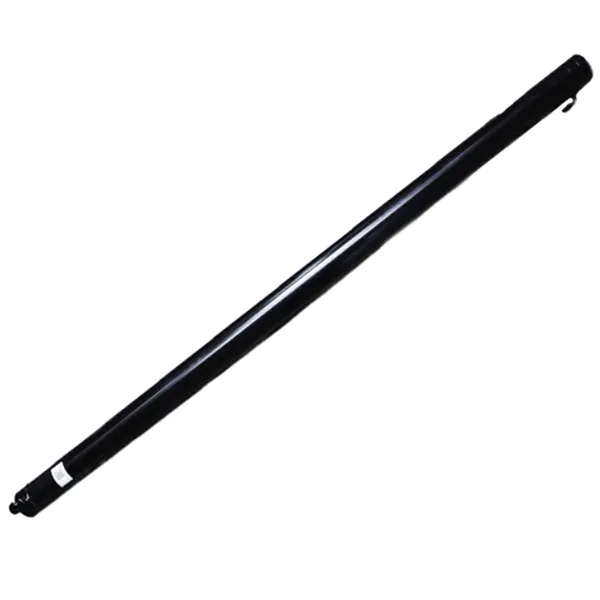

A forklift lifting hydraulic cylinder is a type of hydraulic cylinder that is used to lift and lower the forks of a forklift. It is a single-acting cylinder, which means that it only moves in one direction. The hydraulic fluid is pumped into the cylinder to extend the piston, which lifts the forks. When the fluid is released, the piston retracts, lowering the forks.

The forklift lifting hydraulic cylinders are typically made of steel and have a piston rod that is made of hardened steel. The cylinder is also equipped with a piston seal to prevent the hydraulic fluid from leaking out.

The size and capacity of a forklift lifting hydraulic cylinder will vary depending on the type of forklift and the weight of the loads that it will be lifting. For example, a small forklift that lifts light loads will have a smaller cylinder than a large forklift that lifts heavy loads.

The forklift lifting hydraulic cylinders are an essential component of forklifts. They allow forklift operators to safely and efficiently lift and lower loads, which is essential for a variety of industrial applications.

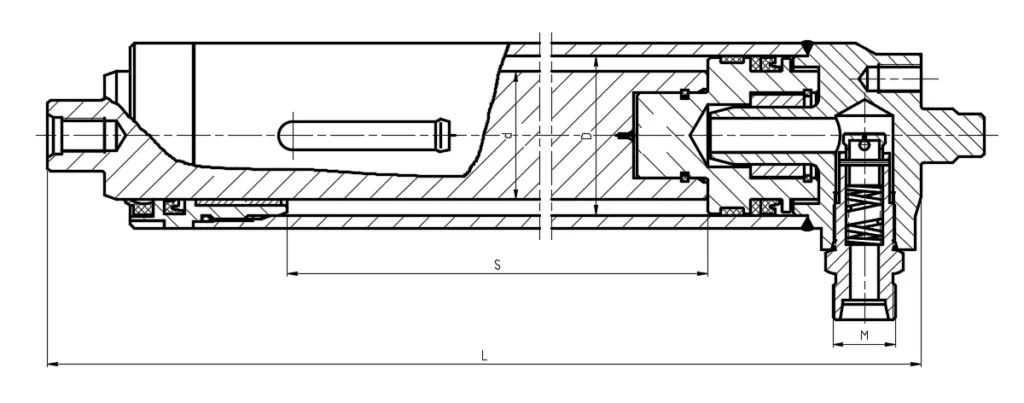

Forklift Lifting Hydraulic Cylinder Dimensions:

Cylinder Name	drawing number	bore diameter (D)	rod diameter (d)	stroke (S)	Installation distance (L)	working pressure	Interface dimensions (M)	weight
Lifting cylinder	N30M300-5/400000-000	Φ56	Φ45	1500	1658	18.1MPa	G1/2	32.6kg
Lifting cylinder	A2A30M300-400000-000	Φ56	Φ45	1500	1658	18.1MPa	M22*1.5	36kg
Lifting cylinder	3.5N4.5H-400000-003	Φ60	Φ45	1505	1780	17.5MPa	M22*1.5	41kg
Lifting cylinder	N35M300-5/400000-001A	Φ60	Φ45	1500	1808	18.1MPa	G1/2	46kg
Lifting cylinder	A2A35M300-400000-000	Φ60	Φ45	1500	1808	18.1MPa	M22*1.5	50kg

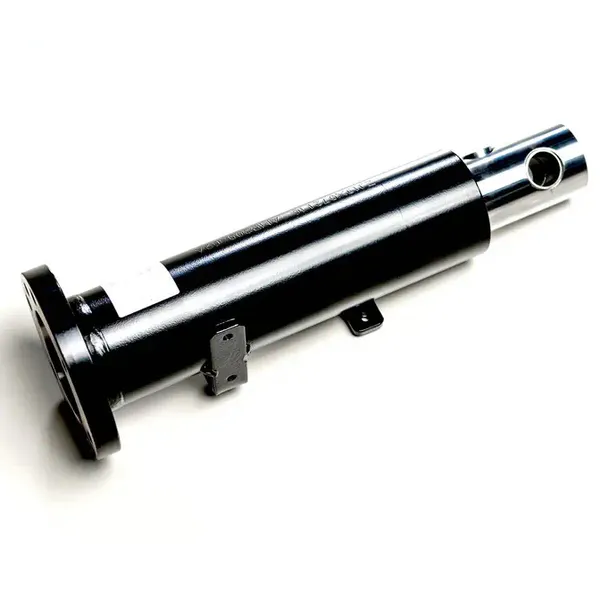

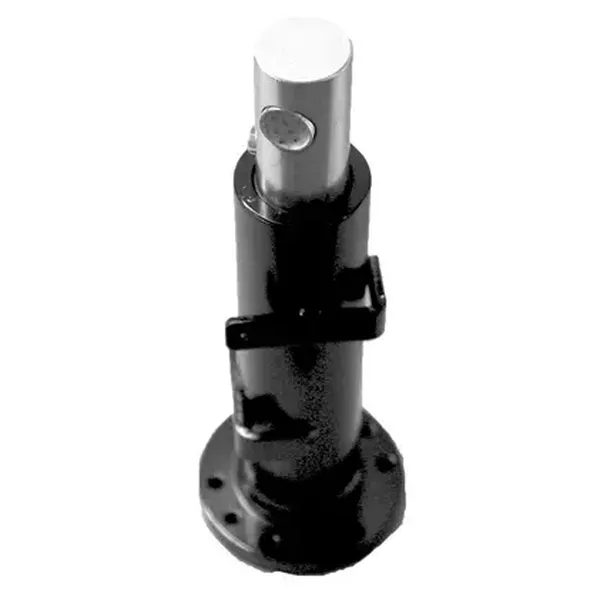

Forklift Lifting Hydraulic Cylinder Features:

Here are some of the features of a forklift lifting hydraulic cylinder:

1. Single-acting cylinder: This means that the cylinder only moves in one direction when hydraulic fluid is pumped into the cylinder. The piston rod extends, lifting the forks. When the fluid is released, the piston retracts, lowering the forks.2. Steel construction: The forklift lifting hydraulic cylinders are typically made of steel, which is a strong and durable material.3. Hardened steel piston rod: The piston rod is the part of the cylinder that extends and retracts. It is made of hardened steel to make it strong and resistant to wear and tear.4. Piston seal: The piston seal is a rubber ring that prevents hydraulic fluid from leaking out of the cylinder.5. Variable size and capacity: Forklift lifting hydraulic cylinders come in a variety of sizes and capacities. The size of the cylinder is determined by the weight of the loads that it will be lifting. The capacity of the cylinder is determined by the amount of hydraulic fluid that it can hold.

Forklift Lifting Hydraulic Cylinder Working Principle:

The working principle of a forklift lifting hydraulic cylinder is based on Pascal's law. Pascal's law states that pressure applied to an enclosed fluid is transmitted equally throughout the fluid.

In the case of a forklift lifting hydraulic cylinder, the hydraulic fluid is contained in the cylinder. When hydraulic fluid is pumped into the cylinder, the pressure of the fluid increases. This pressure is then transmitted to the piston, which extends, lifting the forks.

When the hydraulic fluid is released, the pressure in the cylinder decreases. This causes the piston to retract, lowering the forks.

The amount of force that the forklift lifting hydraulic cylinder can exert is determined by the pressure of the hydraulic fluid and the area of the piston. The greater the pressure of the hydraulic fluid, the greater the force that the cylinder can exert. The larger the area of the piston, the greater the force that the cylinder can exert.

The speed at which the forklift lifting hydraulic cylinder can lift or lower the forks is determined by the flow rate of the hydraulic fluid. The greater the flow rate of the hydraulic fluid, the faster the cylinder can move.

The forklift lifting hydraulic cylinder is an essential component of a forklift. It allows forklift operators to safely and efficiently lift and lower loads, which is essential for a variety of industrial applications.

Here are the steps on how a forklift lifting hydraulic cylinder works:

1. The hydraulic pump is activated, which pumps hydraulic fluid into the cylinder.
2. The pressure of the hydraulic fluid increases, forcing the piston to extend.
3. The piston rod extends, lifting the forks.
4. When the forks reach the desired height, the hydraulic pump is deactivated.
5. The pressure of the hydraulic fluid decreases, and the piston retracts.
6. The forks lower back down.

The forklift lifting hydraulic cylinder is a simple but effective mechanism that allows forklift operators to safely and efficiently lift and lower loads.
