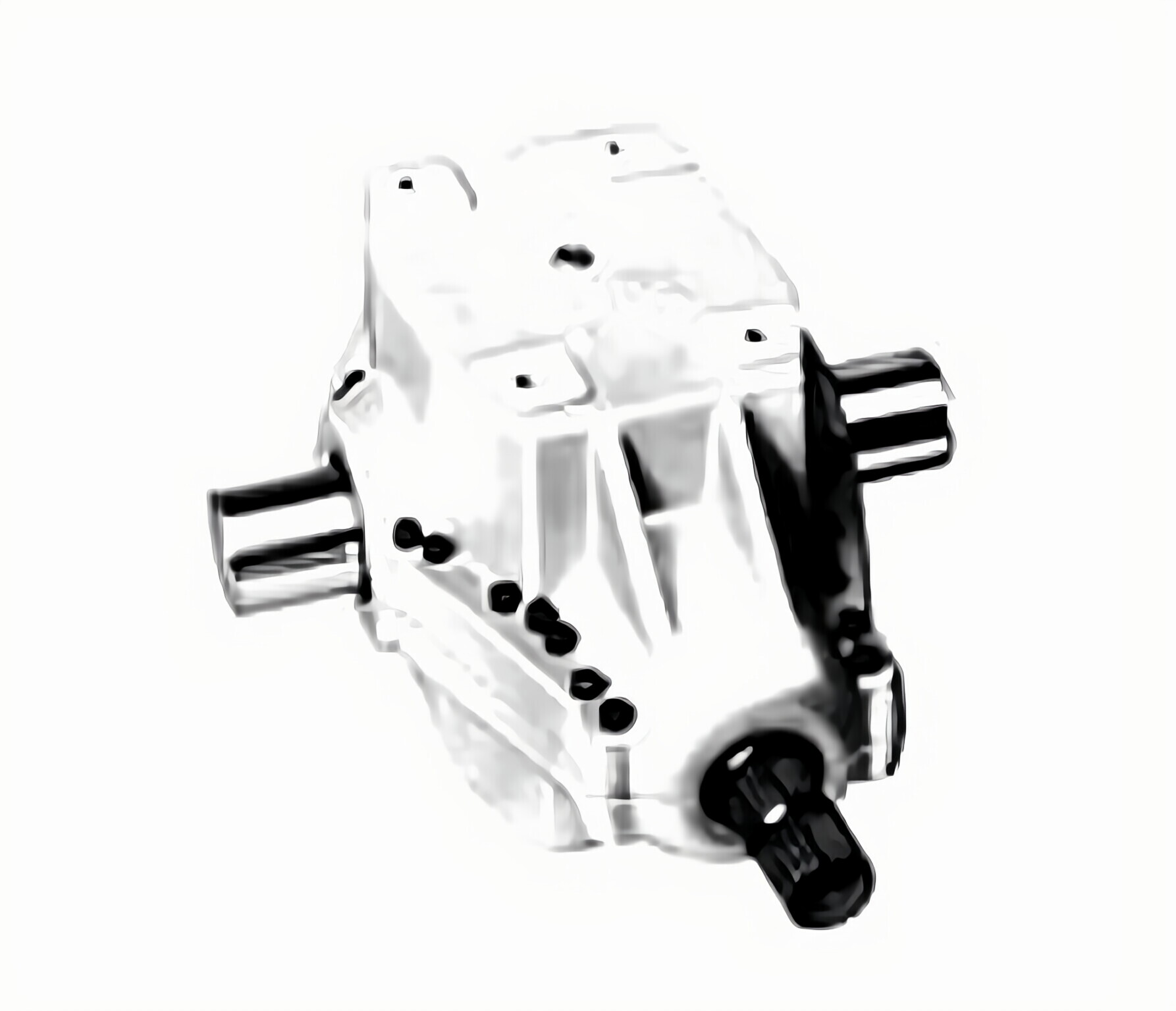

Gearbox for Agricultural Machinery 700 Series

Gearbox for Agricultural Machinery 700 Series

Raydafon Group proudly presents the Gearbox for Agricultural Machinery 700 Series, a robust and efficient solution designed to enhance farming productivity. Crafted from high-quality materials with advanced engineering, it ensures smooth operation and durability under demanding conditions. Ideal for farmers and agricultural professionals, this gearbox tackles the toughest tasks, boosting reliability and reducing downtime. Experience unparalleled performance and peace of mind knowing you're using a standout innovation in the industry. Invest in excellence today and power your machinery to new heights!

Gearbox for Agricultural Machinery 700 Series

Gearbox for Agricultural Machinery 700 Series

Features:

  • Two-piece aluminum housing for high strength, corrosion resistance, and thermal capacity
  • Precision machined for exact gear mesh and bearing preload
  • Precision forged gears are offered in a 3:1 ratio
  • Tapered roller bearings provide increased load capacity and bearing life
  • 1.75" input shaft and 2.75" output shaft made of high strength steel standard
  • Filled with 80W90 gear lubricant and leak tested before shipment
  • The 700 Series weighs approximately 120 lbs. including oil
  • Contact Raydafon Gearbox for your special requirements

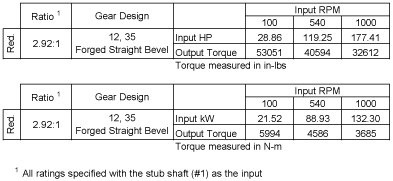

RATING CHARTS

Gearbox for Agricultural Machinery 700 Series

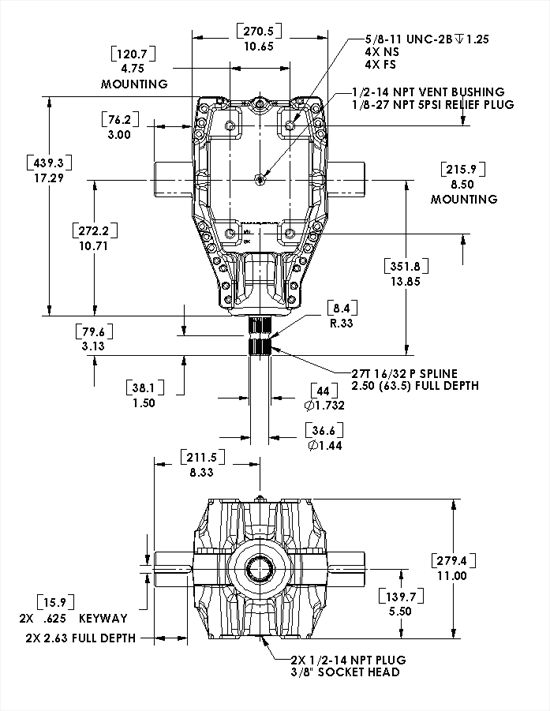

DRAWING FOR 700 SERIES

Gearbox for Agricultural Machinery 700 Series

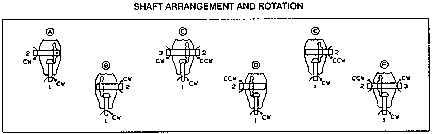

SHAFT ROTATION ALIGNMENT FOR 700 SERIES

Gearbox for Agricultural Machinery 700 Series
