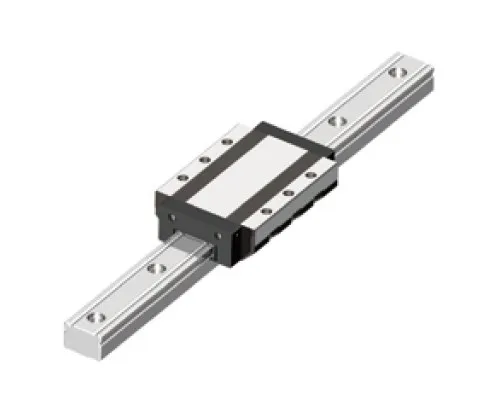

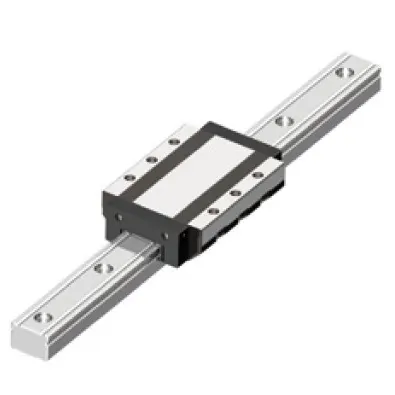

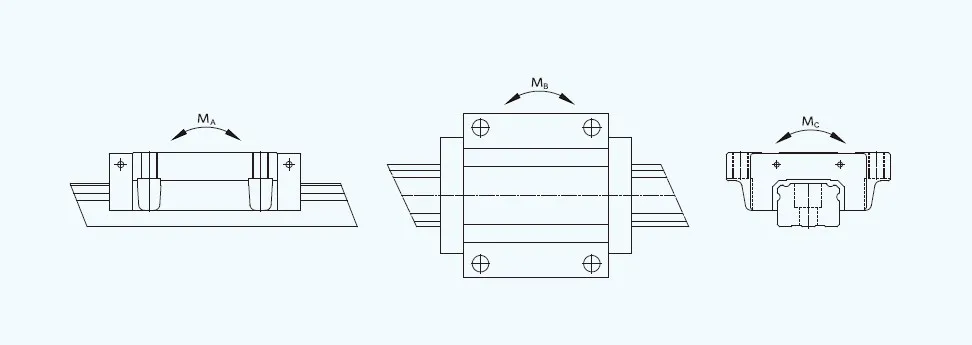

GGD-AA/AAL Heavy Load Radial Guideway

GGD-AA/AAL Heavy Load Radial Guideway

The GGD-AA/AAL heavy load radial guideway offers unmatched power, precision, and reliability for heavy-duty industrial applications. Its superior load capacity, radial motion capability, and low friction design provide the stability and accuracy required for demanding industrial environments. By following the recommended usage methods and maintenance guidelines, users can maximize the performance and longevity of this advanced linear guideway, making it an essential component for their heavy-load applications. Experience the power and precision of the GGD-AA/AAL and take your industrial processes to new heights.

Note:

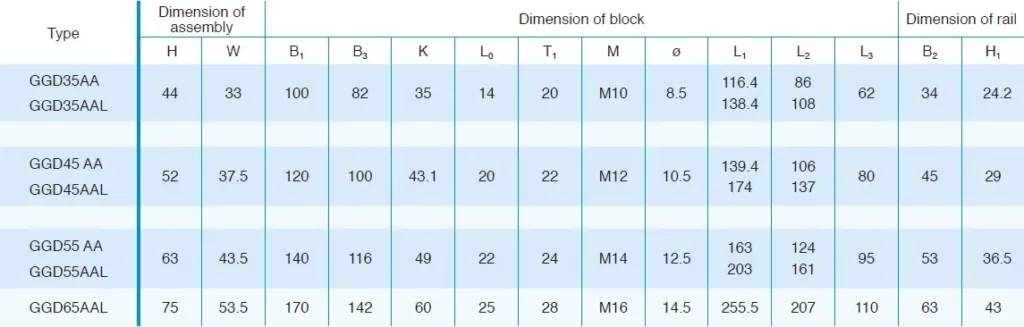

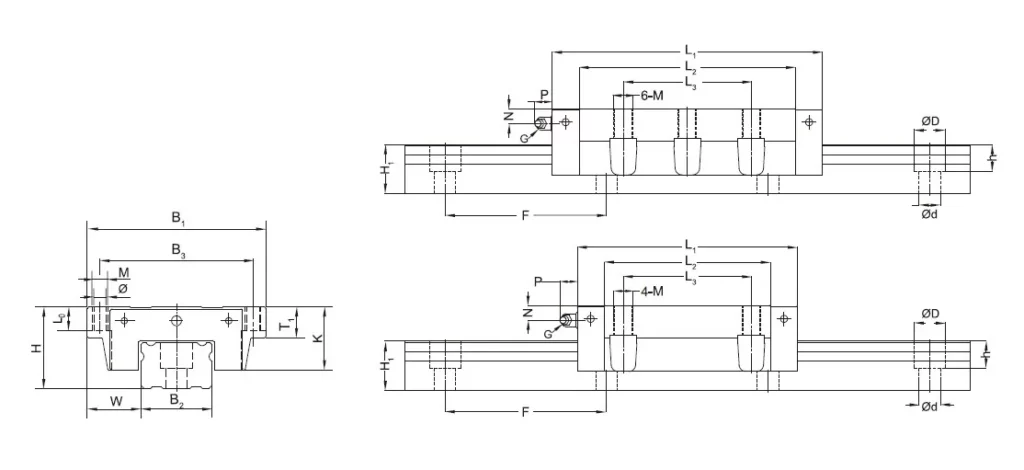

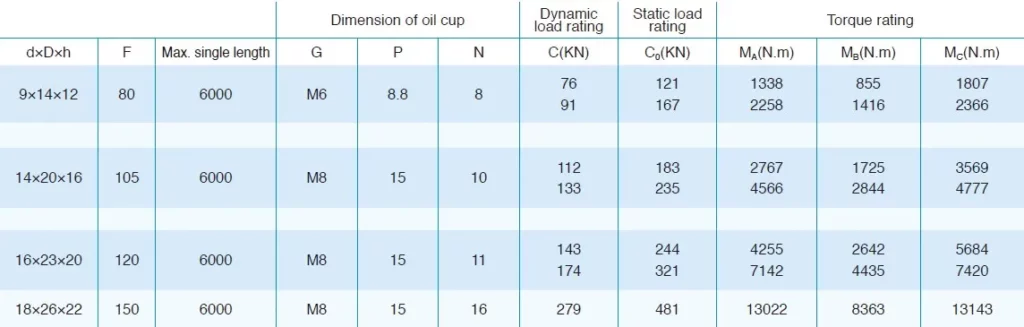

1. The L1 dimension is for the standard seal type MN details please see seal type.2. GGD series AA/AAL block is the flange type, and the top mount hole is a thread hole up-lock see dimension M,down-lock see dimension Φ.3. Right side figs.are the side-view of standard block AA and lengthened AAL type.4. Please note if you need oil on the side surface.

Usage Method of GGD Type Linear Guideway:

Installation: To install the GGD-AA/AAL Heavy Load Radial Guideway, securely mount it onto the machine frame or base using appropriate fasteners and alignment methods. Ensure proper alignment and parallelism with other machine components for optimal performance.Lubrication: Apply the recommended lubricant to the guideway's bearing surfaces. Proper lubrication reduces friction, extends the product's lifespan, and ensures smooth and reliable linear motion. Follow the manufacturer's guidelines regarding lubrication intervals and the appropriate type of lubricant.Load Distribution: When applying heavy loads to the linear guideway, distribute the weight evenly across the contact surfaces to prevent excessive stress on specific areas. This ensures optimal load-bearing performance and prolongs the product's lifespan.Motion Control: Utilize compatible motion control systems, such as servo motors or hydraulic actuators, to drive the GGD-AA/AAL Heavy Load Radial Guideway. Ensure proper alignment and synchronization between the driving mechanism and the guideway for accurate and synchronized linear motion.

Accuracy of Linear Guideway:

Because of the error homogenization effect of the linear guideways, when two or more sets of linear guideways are used on the same surface, higher moving accuracy can be attained even using lower mounting accuracy. Usually, product quality can be improved by 20%~50%. Accuracy grades are recommended for all kinds of machine tools and machinery equipment. See Tab-1The accuracy and inspection method is according to the machinery industry standard of the People's Republic of China JB/T715.4-2006<Rolling linear guide: Acceptance Specification>, equal to the foreign competitor's standard.Accuracy grade is classified as six grades:i.e.1,2,3,4,5 and 6. Grade 1 is the highest accuracy, and accuracy grades go down step by step. For testing items and permission tolerance, see tab.2(those shown in the table below indicate GGB type; others refer to GGB)Notes:1. The rail raceway is finished by fixing the rail with bolts on a particular fixture during grinding. The curve will possibly occur in a free state. So, the rail should be set on a unique table to measure and inspect.2. When some blocks exceed two, testing items of both No.4 and No.5 are unnecessary for middle blocks, but the value W1 of medium blocks should be less than that of both ends.

Operating Instructions of Linear Guideway:

Accuracy requirements for the mounting surface of essential parts of the linear guideway.

The plane accuracy of the mounting surface for a single linear guideway can be a little less than operation accuracy.The accuracy of mounting surface for two sets or over two sets of linear guideways on the same surface can be lower than operation accuracy, the recommended accuracy shown in the table below.

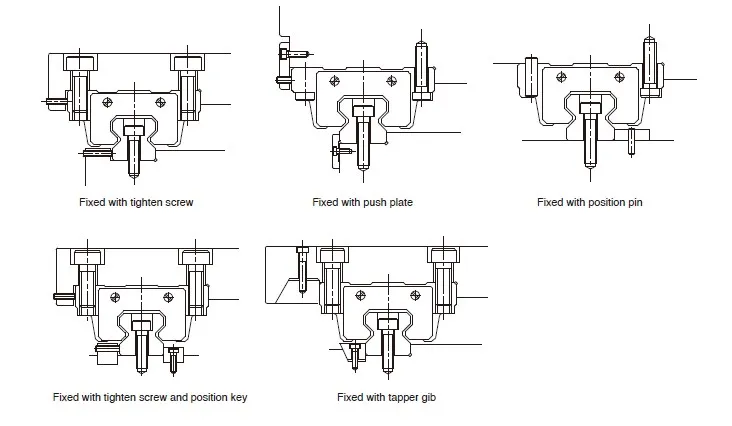

Configuration of connecting datum plane of linear guideway

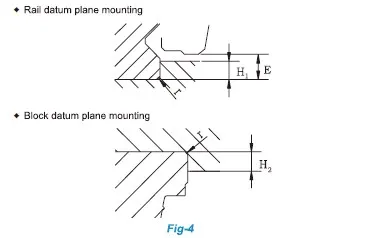

Shoulder height and chamfer type for mounting datum plane

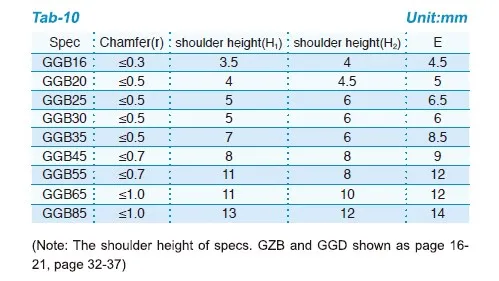

When fixing the block and rail on the machine body and worktable, the chamfer of the block and rail should be machined as value r, which is shown in Tab.10 respectively, or the machine should be grooved to keep the chamfers of rails and block not contact the basic parts.

Mounting And Adjustment Of Linear Guideway:

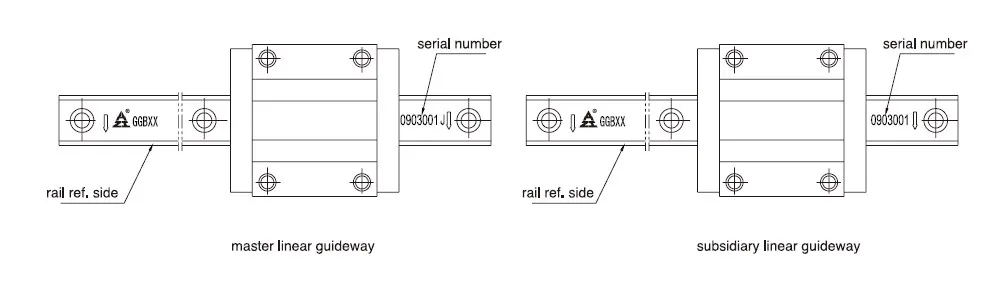

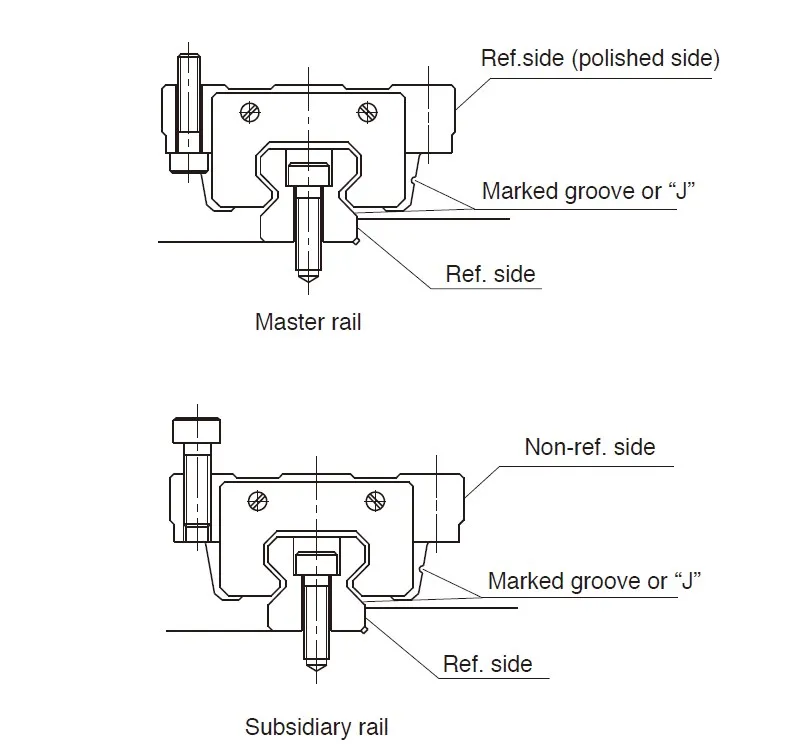

Mounting methods and operating instructionMove the LMG gently enough not to damage its linear accuracy. There is no permission to separate blocks from rail or push them back when they exceed the travel distance limit. When it is challenging to assemble, the block should be taken down, and a guiding guide should be used, which you can order from our company (Guiding-guide is a kind of subsidiary tool, and its size is smaller than the guide's. When necessary, join the guide with the guide, then push the block from the rail to the guide. After fixing the rail, return the block to the rail from the guiding one again. Pay attention to ref. direction.）Mounting attentionFirst, distinguish the master and subsidiary linear guideway correctly; the arrow directs to the ref. The side of the block is polished. （see Fig-5）

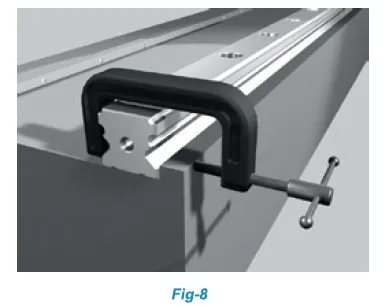

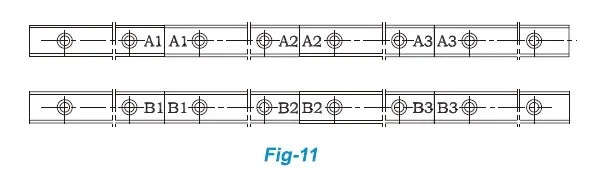

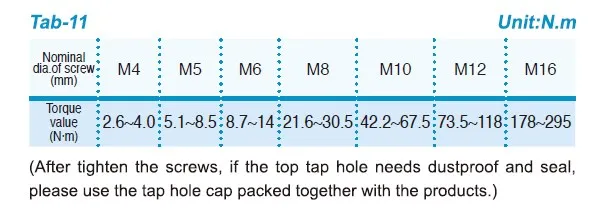

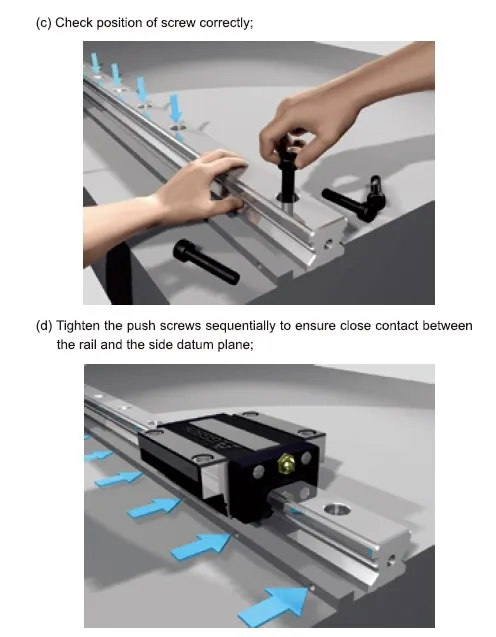

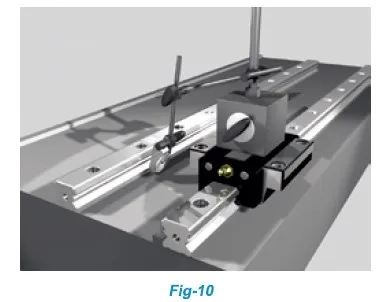

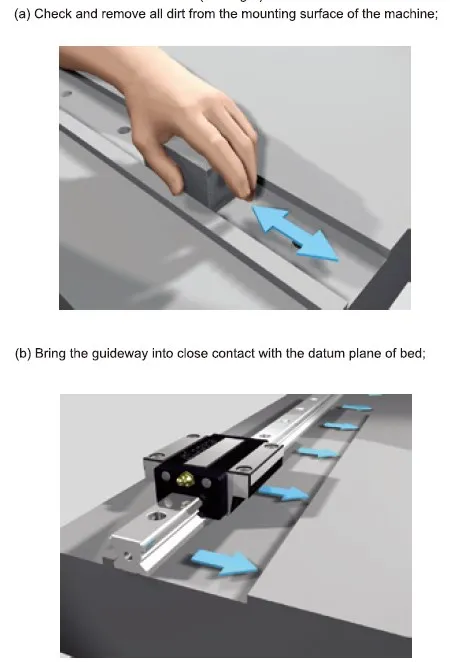

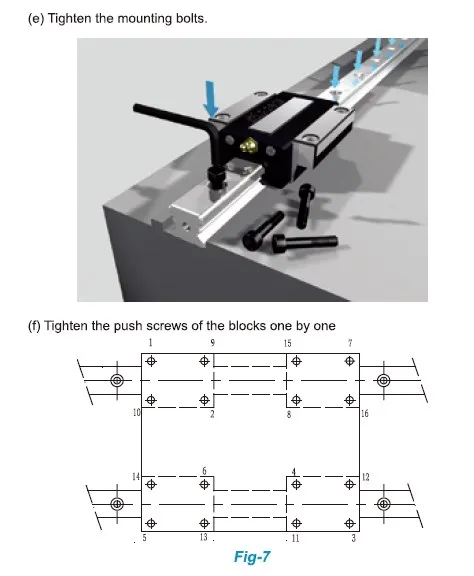

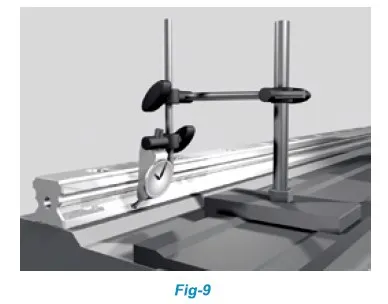

Then make certain the ref. Side when fixing LMGProcedure of rail installation(see Fig-7) Mounting methods of master guide(two methods shown below):<1>.Use the U-type collet to tighten the side datum plane of the rail and bed, then tighten the mounting bolts(mated screw thread recommended）in sequence with the specified torque. (refer to Fig-8）<2>. When there is no bed, fix one end of the linear guideway and use a dial gauge and a straight edge to confirm the straightness of the side datum plane of the rail from one end to the other. Tighten the mounting bolts in sequence. Mounting methods of subsidiary LMG:As shown in fig-10, fix the magnet watch based on the block of the master guide, the pointer of dial gauge contacts on the side datum surface of the subsidiary guide, read the parallelism from one end, and tighten the subsidiary guide in sequence. In addition， methods shown in fig.8 and fig-9 could be referred to.Distinguish of Joint guide:When using the joint guide, we use the same English capital letter to represent the same series guide, and the consecutive Arabic number represents the joint sequence. Two sides (head joint with head)with the same Arabic letter(see fig-11）When tightening the bolts， suggest using a constant torque wrench.The recommended torque value is shown in Tab-11

Sealaccessories of Linear Guideway:

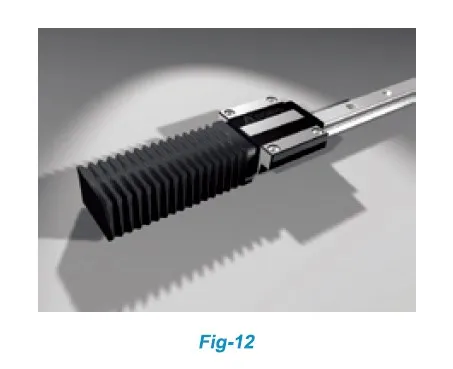

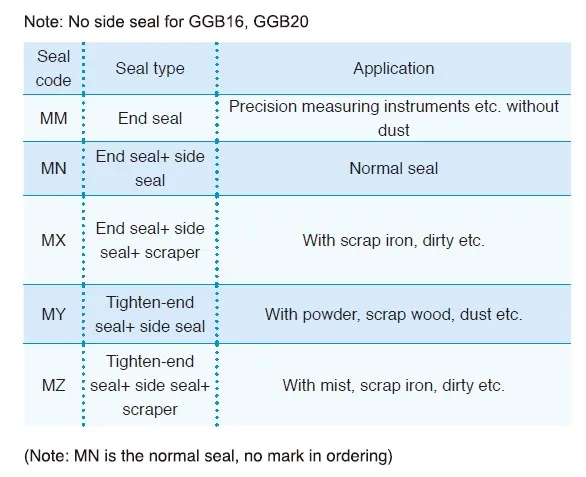

Conditions and situations will be used with the wide use of linear guideways. To meet different customers' seal protection requirements, we designed the seal types below to choose from when ordering：If the working condition worsens with enough room beside the seal fail， the dustproof bellows can be added. (see fg-12）

Lubrication of Linear Guideway:

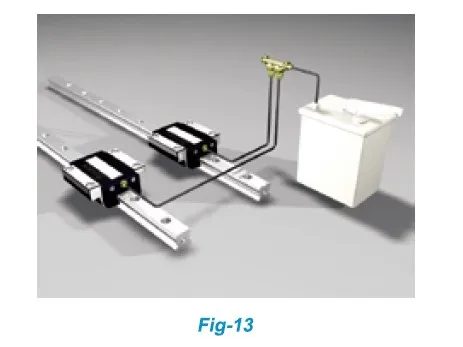

Keep working conditions clear and tidy to avoid scrap iron and dirty foreign materials in the body of the linear guideway. A dust-workshop dust-proof device equipment should be assembled, including under the seal of LMG. (See fig-13）The primary purpose of lubrication is to eliminate friction and abrasion to avoid superheating, which will damage the inner structure and influence motion function. Before ex-factory, the linear guides are injected with low-noise grease to ensure the excellent lubrication of balls in motion， but to avoid the deficiency caused by the wastage of lubrication, we suggest supplementing periodically when the block's motion travels to 50km. When linear guideway is moving at a high velocity (V>=35m/min）N32 lubrication oil is recommended (refer to GGB443-84）. It is equivalent to 20# machinery oil in old standard, when temperature is 40°C, oil's viscosity is 28.5~35.2cst. The linear guideway should be lubricated periodically or connected with an oil hose (shown in Fig-13）. Li grease is recommended when it's running at low velocity (V<35m/min）
