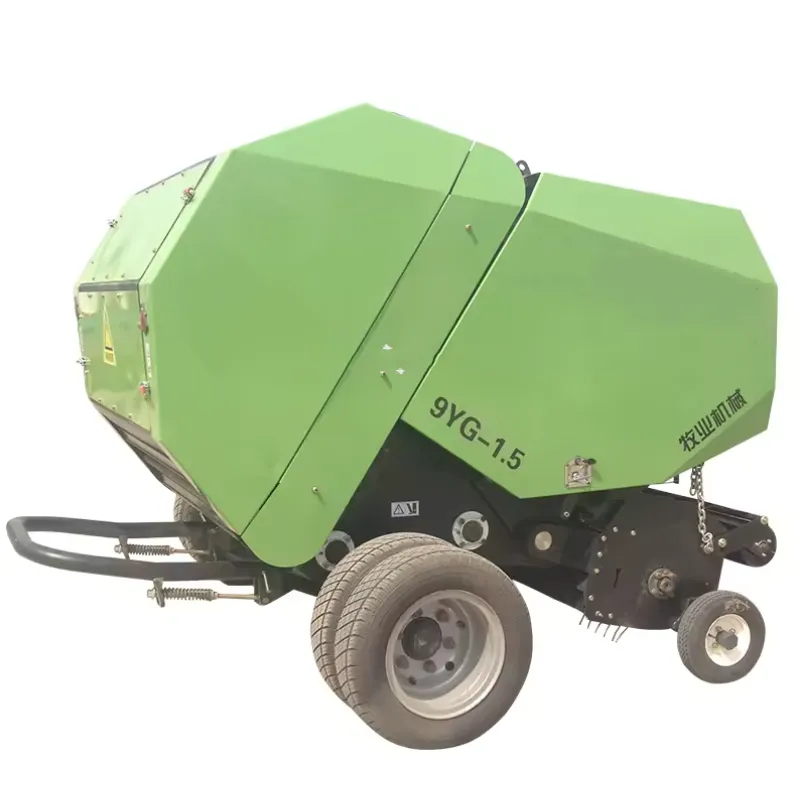

Good Performance Farm Equipment Stationary Self Propelled Large Round Hay Baler

[embed]https://youtu.be/XPTUMj6cOqw[/embed] The Farm Equipment Large Round Baler is a piece of agricultural machinery used to compress cut and raked crops into compact bales that are easy to handle, transport, and store. Typically, these crops include hay, cotton, straw, and silage. The baler gathers the crops from the field, rolls them into large cylindrical shapes, and then wraps or ties the bales to keep them together. Large round balers are favored for their efficiency and the durability of the bales they produce, which are well-suited for outdoor storage. These balers are an essential tool for farmers who need to manage large quantities of crops efficiently. They can significantly reduce the amount of labor required to collect and store crops, making the harvesting process quicker and more cost-effective. The bales produced by large round balers are also easier to transport and can be stacked or lined up in fields without needing a cover for protection against the weather.

Specifications of Large Round Baler 9YG-1.2

Specifications for Large Round Baler 9YG-1.2
Model		9YG-1.2
Bale size: dia.*width		1300X1200mm
Dimension (L*W*H)		4290x2830x2400mm
Weight		3000kgs
Pickup width		2100mm
Efficiency		More than 9000kg/hour
Capacity (bales per hour)		12-30
Bale Weight		20--400kg/bale
Roller number		16pcs
PTO		540rpm
Roller speed		124r/min
Matched Power		Over 100HP

Advantages of Using the Large Round Hay Baler

Using a large round hay baler offers several advantages for farmers and agricultural operations. Here are some of the key benefits: 1. Increased Efficiency: Large round balers are designed for high-capacity baling, allowing farmers to gather and process a significant amount of forage material in a relatively short time. They have a wide pickup system that can efficiently collect crop material, reducing the time and labor required for baling. 2. Time and Labor Savings: With their ability to produce large bales, farmers can reduce the number of bales needed to handle and transport, resulting in time and labor savings. Fewer bales mean fewer trips to load, transport, and unload, which can lead to increased productivity and reduced operating costs. 3. Economical Storage and Transport: Large round bales are compact and stackable, making them easier to store and transport. They can be efficiently stacked in storage facilities or loaded onto trucks or trailers, optimizing space utilization. This can be particularly beneficial for operations with limited storage capacity or when transporting bales over long distances. 4. Reduced Handling Losses: Large round balers minimize handling losses as the bales have a lower surface area exposed to the elements compared to smaller bales. This helps preserve the quality of the forage material, reducing spoilage, nutrient losses, and the risk of mold or rot. 5. Versatility: Large round balers can handle different types of forage crops, including hay, straw, and other similar materials. They are adaptable to various field conditions and can handle uneven or rough terrain, allowing farmers to bale crops in diverse environments.

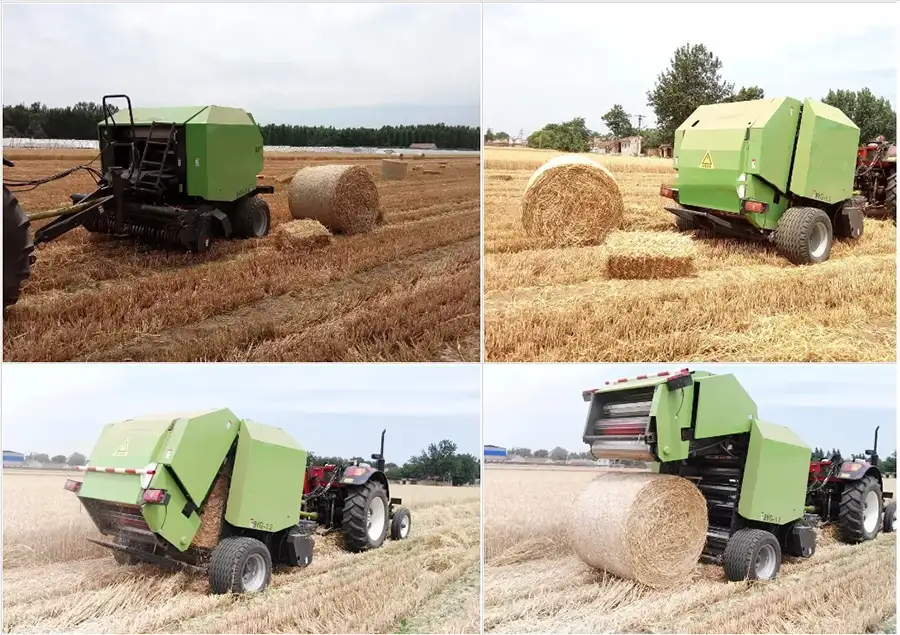

Common Applications of the Large Round Hay Baler

Large round balers are versatile agricultural machines used across various applications to process and package a wide range of crops. The common applications include: (1) Hay: This is perhaps the most widespread use of large round balers. Hay, which consists of grasses that are cut, dried, and stored for animal feed, is efficiently compressed into large round bales. These bales are easy to handle, transport, and store, making them ideal for feeding livestock throughout the year. (2) Alfalfa: Similar to hay, alfalfa is a high-protein forage crop used in animal feed, especially for dairy cows. Alfalfa is baled using large round balers to preserve its nutritional value and facilitate easy storage and transportation. The durability of round bales ensures that the quality of alfalfa is maintained until it's fed to the animals. (3) Wheat Straw: After wheat grains are harvested, the remaining plant material, or straw, is often baled for use as bedding for livestock, erosion control, or as a feed additive. Large round balers are efficient at processing wheat straw into large bales that are easy to manage and store. (4) Rice Straw: Similar to wheat straw, rice straw is the stalks left over after rice grains are harvested. It can be baled for animal bedding, mulch, or as a feedstock for bioenergy production. The ability of large round balers to handle the tough, fibrous material of rice straw makes them suitable for this application. (5) Silage: Silage is fermented, high-moisture stored fodder that can be fed to cattle, sheep, and other such ruminants. The process involves baling green forage, such as corn or sorghum, and wrapping the bales with a plastic film to create an anaerobic environment for fermentation. Large round balers equipped with special wrapping attachments are used for this purpose, producing round bales of silage that can be stored for extended periods without spoilage.

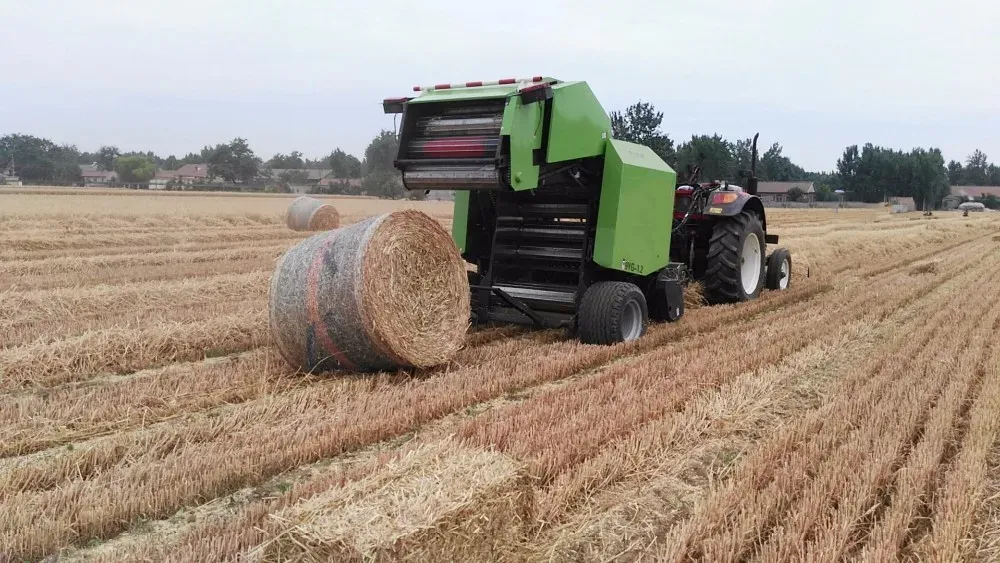

How Does the Tractor Mounted Large Round Baler Work?

A tractor-mounted large round baler is a machine that is attached to a tractor and operated using the tractor's PTO. It is the agricultural equipment used to compress cut crops, such as hay, straw, or silage, into compact, large round bales that are easy to handle, transport, and store. Here's a step-by-step overview of how it works:

1. Attachment to the Tractor: The large round baler is connected to the tractor using a three-point hitch or a drawbar hitch. The hitch ensures a secure connection between the baler and the tractor, allowing them to work together.
2. Collection of Hay: The baler is equipped with a pickup mechanism, usually located at the front or side of the machine. The pickup mechanism consists of rotating tines or augers that gather the loose hay from the ground and feed it into the baling chamber. The pickup width can vary depending on the model.
3. Feeding into the Baling Chamber: As the pickup mechanism collects the hay, it transfers it to the baling chamber. The hay is guided into the chamber, where it starts to accumulate.
4. Bale Formation: Inside the baling chamber, the baler has belts or rollers that rotate, compacting the hay and forming it into a cylindrical bale. The pressure exerted by the belts or rollers creates a tightly packed bale.
5. Bale Size Adjustment: Most large round balers allow for the adjustment of bale size. This can be done by changing the settings on the baler, which control the length and density of the bale. The operator can set the desired bale size based on their specific requirements.
6. Bale Wrapping: Once the bale reaches the desired size, the baler applies twine or net wrap around the bale to secure it. Twine or net wrap is fed into the baler and is automatically wrapped around the bale as it rotates within the baling chamber. This ensures that the bale remains intact and prevents it from unraveling.
7. Bale Ejection: Once the bale is wrapped, it is ready to be ejected from the baling chamber. The baler either drops the bale onto the ground, where it can be manually handled, or it may have a built-in bale ramp that allows for controlled unloading directly onto a bale wagon or trailer.

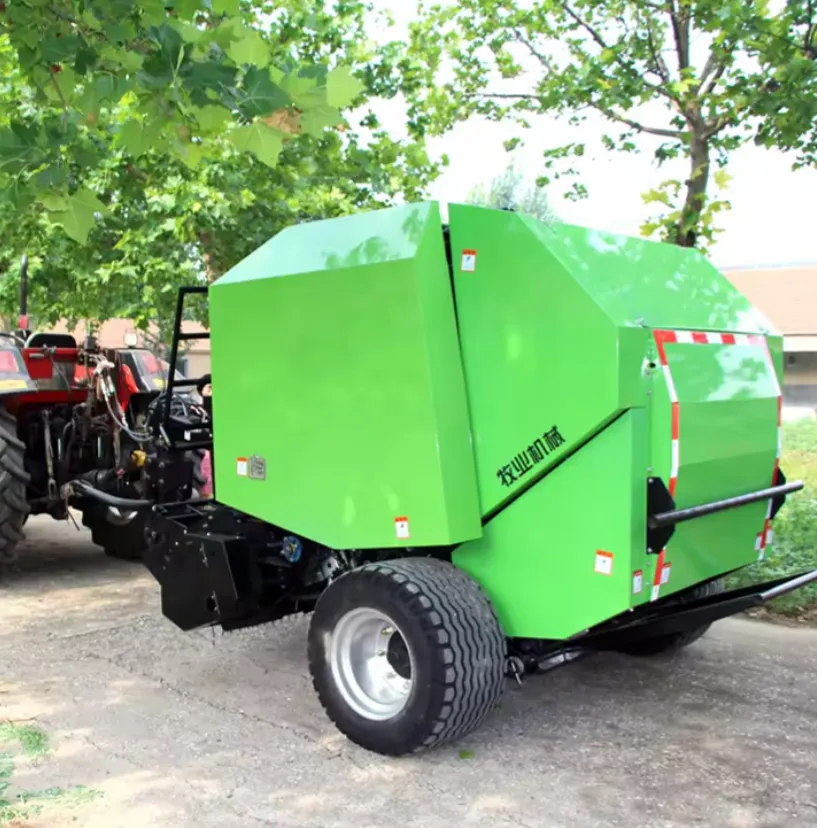

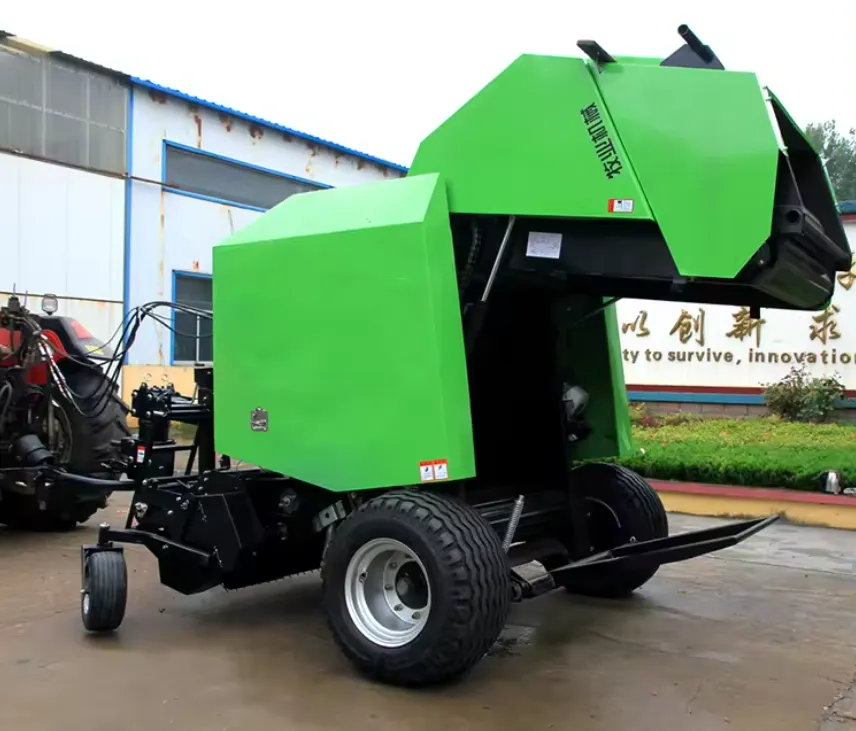

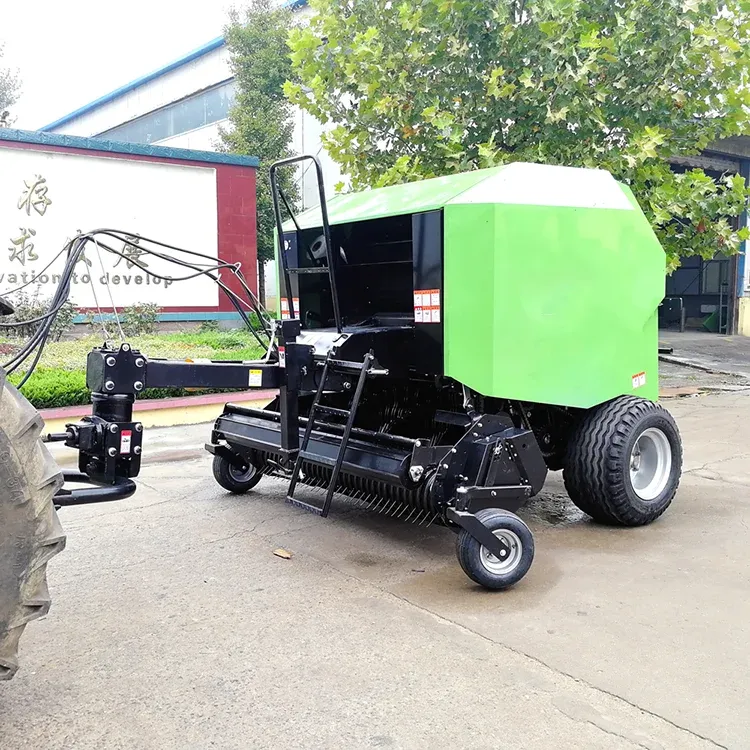

How to Install the Large Round Baler to Tractor?

Installing a large round baler to a tractor involves several steps to ensure a secure and proper attachment. Here's a general guide on how to install a large round baler on a tractor:

• Position the Tractor and Align the Baler: Park the tractor on a level surface and engage the parking brake. Ensure the tractor is turned off and the PTO is disengaged for safety. Position the large round baler behind the tractor, ensuring it is aligned with the hitch. The baler should be centered and directly behind the tractor for proper balance and stability.
• Attach the Baler to the Tractor: For a three-point hitch connection, align the tractor's three-point hitch with the baler's hitch points. Lift the hitch and secure the baler using the locking pins. For balers that connect via a drawbar, align the drawbar of the tractor with the hitch on the baler. Insert the hitch pin and secure it with a linchpin or locking device.
• Connect the PTO Shaft: Align the PTO shaft from the baler with the PTO stub on the tractor. Ensure that the shaft splines are aligned correctly and slide the shaft onto the stub until it locks into place. Ensure that the PTO shaft is the correct length. The shaft should have enough slack to accommodate turns but not so much that it could become entangled or disengage.
• Check the Attachment: Ensure that all hitch connections are secure and properly locked in place. Shake the baler gently to check for any excessive movement or looseness. If everything is properly attached, there should be minimal play between the tractor and the baler.
• Verify Clearance: Check the clearance between the tractor and the baler, ensuring that there is enough space for the baler to operate smoothly without interference from the tractor's components.
• Test the Connection: Once the baler is attached, start the tractor and engage the PTO. Verify that the PTO shaft on the tractor aligns with the PTO input on the baler. Make sure there is a smooth and proper rotation between the two. After the test run, conduct a final inspection to check for any issues or unusual wear. Ensure that all safety features of the baler are operational.

Common Troubleshooting of the Large Round Baler

Troubleshooting common issues with a tractor-mounted large round baler is essential for maintaining its efficiency and prolonging its operational life. Here is a guide to identifying and resolving some frequent problems:

1. Baler Not Starting or Operating: Power Take-Off (PTO) Issue: ensure the PTO is properly engaged. Check the PTO shaft connection between the tractor and baler for correct alignment and secure attachment. Verify that any electrical connections are secure and intact. Inspect fuses and wiring for damage.
2. Irregular Bale Shape: Pickup Issues: ensure the pickup mechanism is not clogged with debris and is rotating freely. Check for bent or broken tines. Inadequate or uneven pressure in the baling chamber can cause misshapen bales. Too fast or too slow tractor speed during baling can affect bale formation. Adjust speed to recommended levels.
3. Bale Density Issues: Tension Adjustment: check and adjust the tension or pressure settings on the baler to ensure proper bale density. Uneven or insufficient material feed into the baler can result in density issues. Ensure uniform feeding.
4. Baler Knotting Problems: For twine or Net Wrap Issues, check the twine or net wrap feed for jams or entanglement. Ensure the spools are loaded correctly and that there is sufficient twine/net wrap available. Inspect the knotter mechanism for cleanliness and proper operation. Clean and lubricate as necessary. Adjust the knotter settings if knots are not being tied correctly.
5. Excessive Vibration: Driveline Misalignment: ensure the driveline between the tractor and baler is straight and correctly attached. Check the PTO shaft for damage or bending. Inspect moving parts, including bearings, chains, and gears, for wear or damage. Replace worn components as necessary.

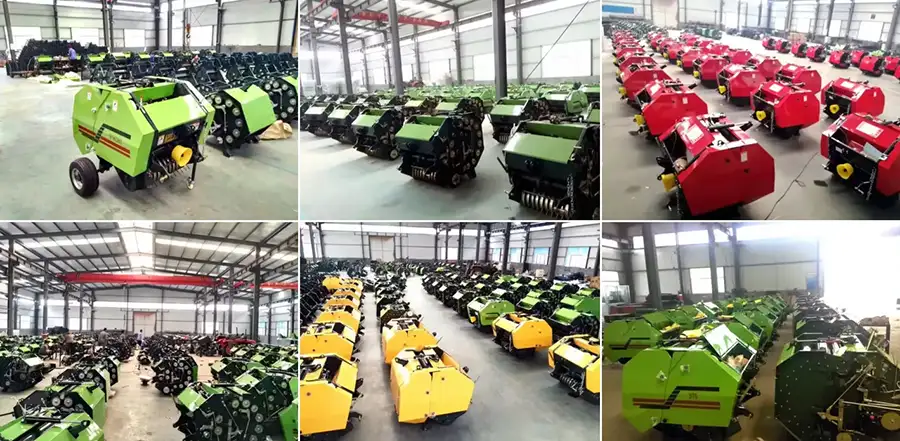

Why Choose Raydafon's Large Round Baler for Hay Baling?
