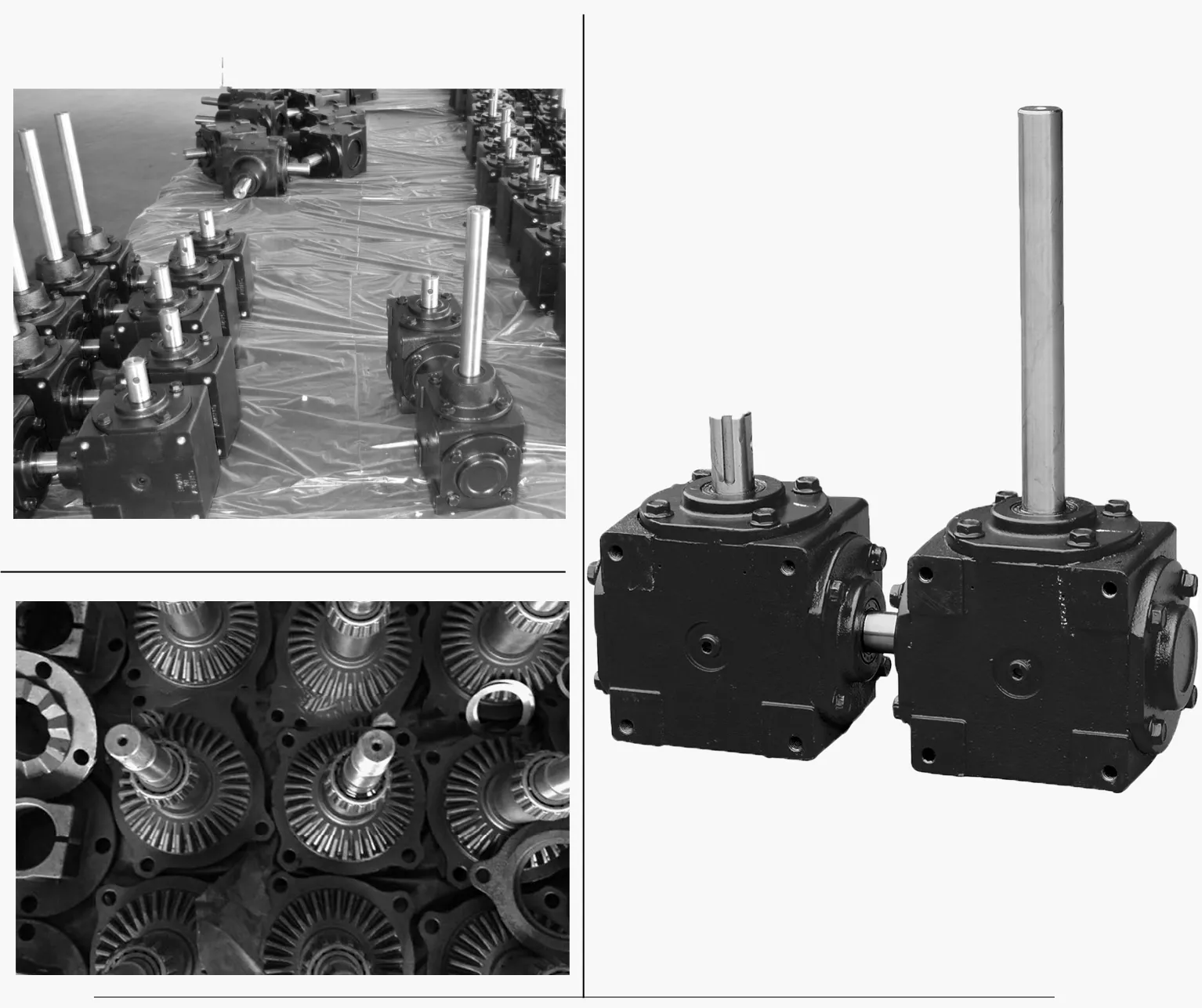

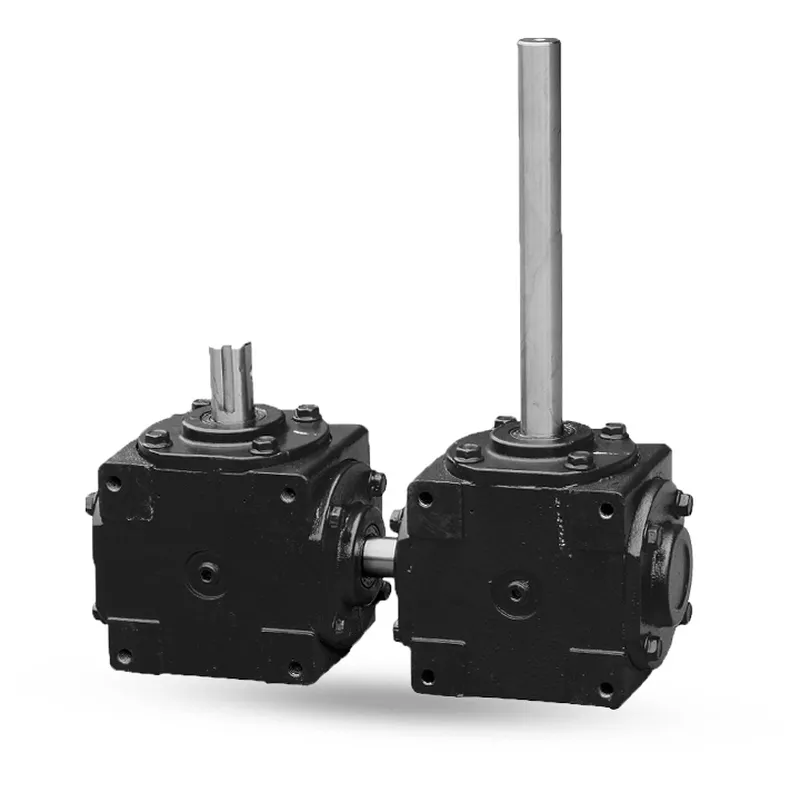

Grain Auger Gearbox RDF-2390 for Agricultural Grain Storage and Transportation

The grain auger gearbox is a crucial component used in agricultural settings, specifically for the management of grain storage. It is part of the grain auger system, which consists of a long screw enclosed in a tube, used to convey grain from one location to another—typically from trucks, grain carts, or grain bins into storage silos. The gearbox in this system is responsible for the operation of the auger, converting the mechanical power from the motor into the rotational force that drives the screw.This gearbox is designed to handle the high torque needed to move large volumes of grain efficiently, ensuring that the grain is transported smoothly without clogging or damage. Made from robust materials, the gearbox must endure the abrasive nature of grains and the outdoor agricultural environment, featuring weather-resistant seals and durable gearing. It facilitates various speed adjustments to accommodate different grain types and flow rates, making it indispensable for modern farming operations where speed and efficiency are key.

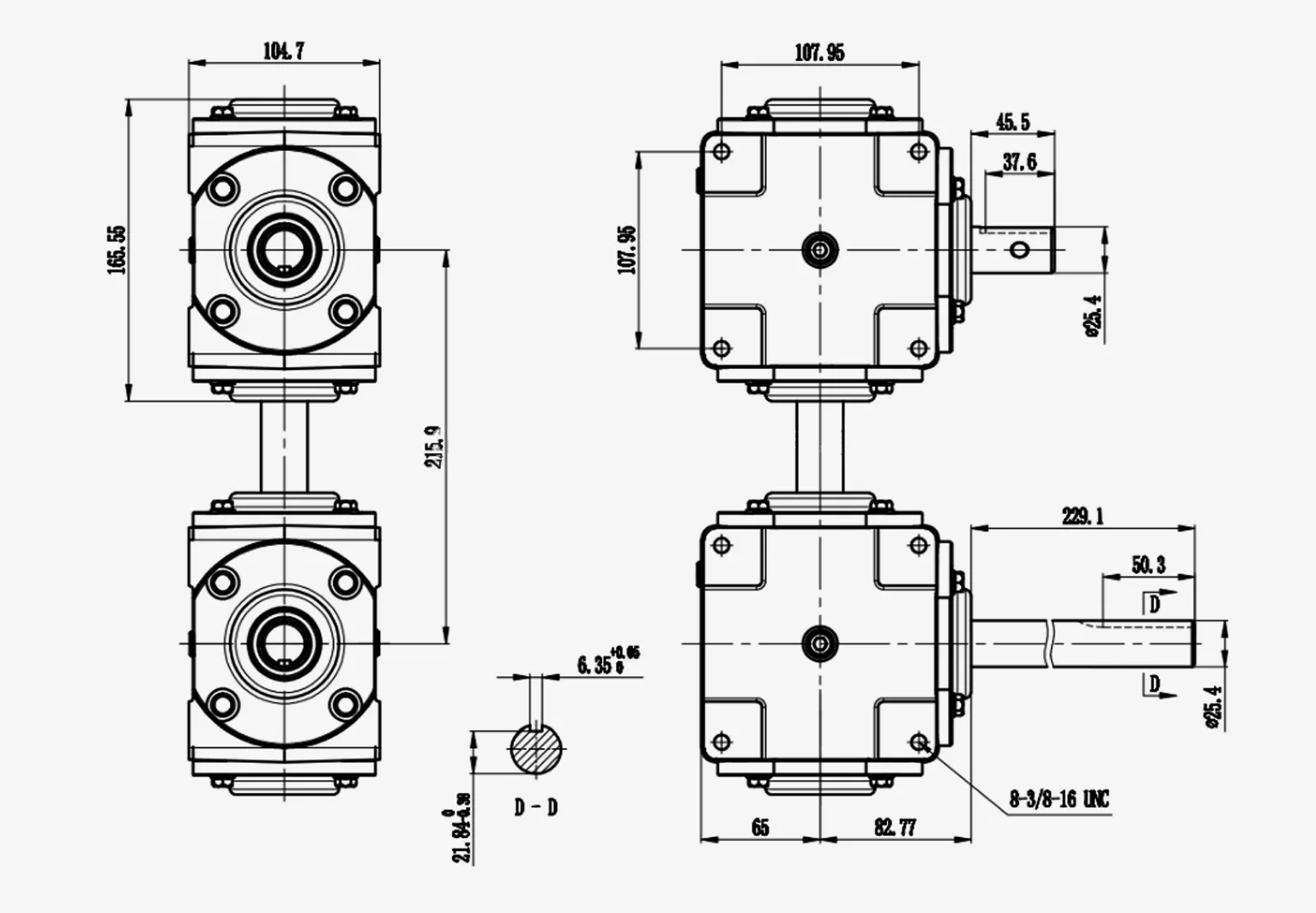

Grain Auger Gearbox RDF-2390 Dimension

Grain Auger Gearbox RDF-2390 Specifications

Product Name	Grain auger gearbox RDF-2390
Material	Housing as HT250, Shaft as 20CrMnTi
Color	Dark or Red or as customized
Type	Bevel gear
Ratio	1:1
Bearing	QC or C&U or NTN
Warranty	one and half year
Used	grain storage

Advantages of Using Grain Auger Gearbox for Grain Storage and Transportation

The grain auger gearbox offers several advantages for grain storage and transportation in agricultural settings:

1. Efficiency: The gearbox allows the grain auger to operate at optimal speeds tailored to specific tasks, such as loading or unloading grain. This maximizes throughput and minimizes the time required for grain handling, leading to increased operational efficiency.
2. Durability: Built to withstand the harsh conditions of agricultural environments, the gearbox is made from materials that resist wear and corrosion. This durability ensures a longer lifespan and reduces the frequency of replacements or repairs.
3. Versatility: Grain auger gearboxes can be adjusted to different speeds, making them suitable for handling various types of grains and seeds without causing damage. This versatility is essential for farms that store multiple types of crops.
4. Energy Efficiency: By optimizing the transfer of power from the motor to the auger, the gearbox ensures that energy is used efficiently. This can lead to reduced energy costs and a smaller environmental footprint.
5. Safety: Properly functioning gearboxes help maintain the stability and smooth operation of the auger, reducing the risk of jams and clogs that can lead to dangerous working conditions.
6. Cost-effectiveness: The ability to transport and store grain quickly and effectively reduces labor costs and improves the overall economics of farm operations.

Applications of Grain Auger Gearbox for Grain Storage and Transportation

The grain auger gearbox has several key applications in the context of grain storage and transportation within the agricultural sector:

• Grain Loading: The gearbox enables the grain auger to efficiently load grain into storage units such as silos or bins. It can handle high volumes of grain quickly, which is crucial during peak harvest times when speed is essential to prevent spoilage.
• Grain Unloading: Similarly, the gearbox aids in the unloading process, allowing for the rapid transfer of grain from storage facilities to trucks or other transportation means. This is vital for meeting market demands or for processing purposes.
• Grain Transfer Between Storage Facilities: In larger farming operations or at grain handling terminals, grain often needs to be moved between different storage facilities. The grain auger gearbox facilitates this internal transportation efficiently, minimizing handling time and reducing grain damage.
• Farm-to-Market Transportation: The gearbox plays a critical role in the initial stages of moving grain from the farm to the market. It ensures that grain can be quickly and efficiently loaded into vehicles designed for longer-distance transportation.
• Seed Distribution for Planting: Beyond storage and transportation, grain augers equipped with gearboxes are also used for distributing seeds evenly and quickly during planting. The precision and control offered by the gearbox help in achieving optimal planting depths and spacing.
• Cleaning and Maintenance Operations: The auger, powered by the gearbox, is not only used for moving grain but also for maintenance tasks such as removing old or spoiled grain from storage facilities. This is crucial for maintaining grain quality and preventing contamination.

Key Components of Grain Auger Gearbox for Grain Storage

The grain auger gearbox is an integral component of the grain handling system, and its efficiency depends on the reliability and performance of several key components. Here’s a breakdown of these essential parts:

1. Housing: The housing of the gearbox provides structural support and protects the internal components from environmental elements and debris. It is usually made of heavy-duty metal to withstand the physical stresses and abrasive nature of grain handling.
2. Gears: Inside the gearbox are various gears, including spur gears, bevel gears, or worm gears, depending on the design. These gears are responsible for reducing the input speed from the power source to a more usable speed at the output while increasing torque. They are typically made from hardened steel or other durable materials to resist wear.
3. Bearings: Bearings support the rotational movement of the gears and shafts within the gearbox. They reduce friction and wear, contributing to the overall efficiency and longevity of the system. Bearings must be robust enough to handle high loads and continuous operation.
4. Shaft: The shaft transmits the rotational force from the gears to the auger. It must be sturdy and well-aligned to handle the torque and prevent undue stress on other components.
5. Oil Seals: Oil seals are used to prevent lubricant from leaking out of the gearbox and to keep contaminants out. This is crucial for maintaining smooth operation and prolonging the life of gears and bearings.
6. Lubrication System: Proper lubrication is vital for reducing friction and wear in the gearbox. The system might include an oil bath or grease points, ensuring that all moving parts are consistently lubricated during operation.
7. Input and Output Couplings: These components connect the gearbox to the power source and the auger, respectively. They must be precisely engineered to transmit mechanical power efficiently and without misalignment, which can lead to excessive wear or failure.

Working Principle and Operation Process

The grain auger gearbox plays a vital role in the operation of a grain auger system, which is essential for the efficient handling of grain in agricultural settings. Here's an outline of its working principle:

• Power Source: The gearbox is typically connected to a power source, such as an electric motor or a tractor's power take-off (PTO). This source provides the mechanical power needed for the gearbox to function.
• Torque Conversion: Inside the gearbox, this mechanical power is used to drive a series of gears. These gears are designed to convert the high-speed, low-torque input from the motor into low-speed, high-torque output. This conversion is crucial because moving large volumes of grain requires a significant amount of torque but at lower speeds.
• Transmission of Rotational Force: The output of the gearbox is a rotational force that is transferred to the auger's screw. This screw is a long spiral blade enclosed within a tube. As the gearbox drives the screw, it rotates.
• Movement of Grain: The rotation of the screw creates a forward movement along the axis of the auger. Grain entering the lower end of the auger tube is caught in the flights of the spiral screw. As the screw rotates, the grain is lifted and propelled along the length of the tube.
• Discharge of Grain: At the upper end of the auger, the grain is discharged into a storage facility, truck, or another conveyor system for further processing or transportation. The rate of discharge can be controlled by adjusting the speed of the gearbox, which in turn alters the rotation speed of the auger screw.
• Speed Control and Adjustments: Modern grain auger gearboxes often come with variable speed settings, allowing operators to adjust the speed according to the type of grain being handled and the specific requirements of the task. This flexibility is important for preventing damage to the grain and ensuring efficiency in different operating conditions.

Proper Maintenance and Lubrication

Proper maintenance and lubrication are critical for ensuring the longevity and efficient operation of a grain auger gearbox. Here are some key practices and considerations for maintaining these systems:

Regular Inspection

• Visual Checks: Routinely inspect the gearbox for any signs of wear, leaks, or damage. Look for cracks in the housing or any signs of oil leakage.
• Noise Monitoring: Listen for unusual noises during operation, such as grinding or squealing, which could indicate internal wear or misalignment.

Lubrication

• Type of Lubricant: Use the type of lubricant recommended by the gearbox manual. This could be specific grades of gear oil or grease, depending on the gearbox design.
• Frequency of Lubrication: Adhere to the manufacturer’s schedule for lubricating the gearbox. This typically involves checking the oil level regularly and adding or changing oil as needed.
• Grease Points: Some gearboxes have grease points on bearings and shafts, which should be greased periodically to ensure smooth operation and to prevent wear.

Cleaning

• External Cleaning: Keep the gearbox clean from dust, dirt, and debris, which can cause overheating or contaminants entering the system. This is especially important in the dusty environments often found in grain handling.
• Internal Cleaning: When performing maintenance checks, clean internal components if there is a buildup of debris or if contamination of the lubricant is detected.

Gear and Bearing Checks

• Alignment and Wear: Check the alignment of gears and the condition of bearings. Misalignment can lead to premature wear and failure. Replace worn or damaged parts to maintain efficient operation.
• Tightening Loose Components: Ensure that all fasteners and mounts are tight and secure to prevent any movement that could lead to misalignment or damage during operation.

Oil Seals and Gaskets

• Integrity Checks: Regularly check the integrity of oil seals and gaskets to prevent leaks and contamination. Replace any that show signs of wear or damage.

We Also Offer Other Types of Agricultural Gearboxes

We can also offer many types of agricultural gearboxes and PTO shafts, such as rotary cutter gearboxes, rotary tiller gearboxes, feed mixer gearboxes, lawn mower gearboxes, fertilizer spreader gearboxes, flail mower gearboxes, post hole digger gearboxes, corn headers gearboxes, fertilizer mixer gearboxes, round baler gearboxes, square baler gearboxes, irrigation reels gearboxes, manure spreader gearboxes, fertilizer seeder gearboxes, rotary rake gearboxes, cutting bar gearboxes, gearbox for hay tedders, etc.
