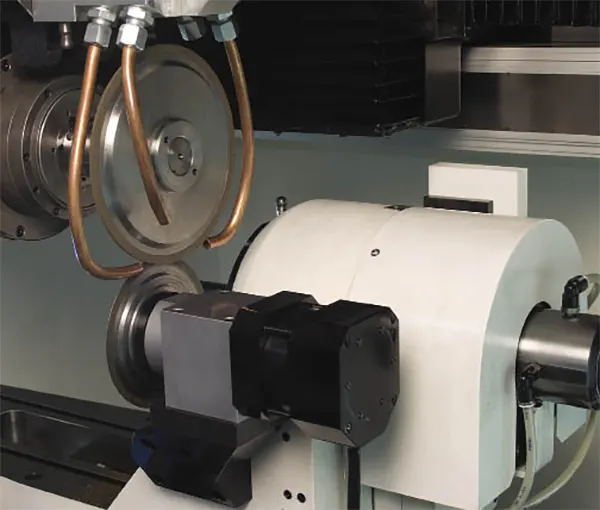

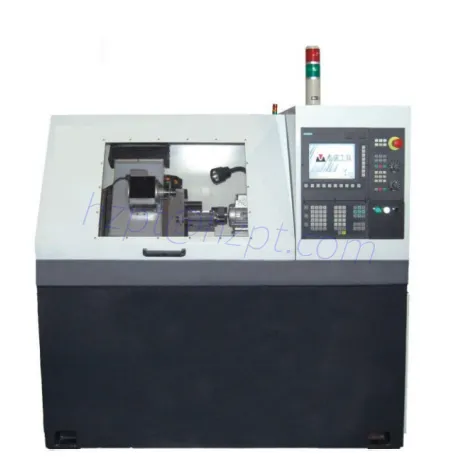

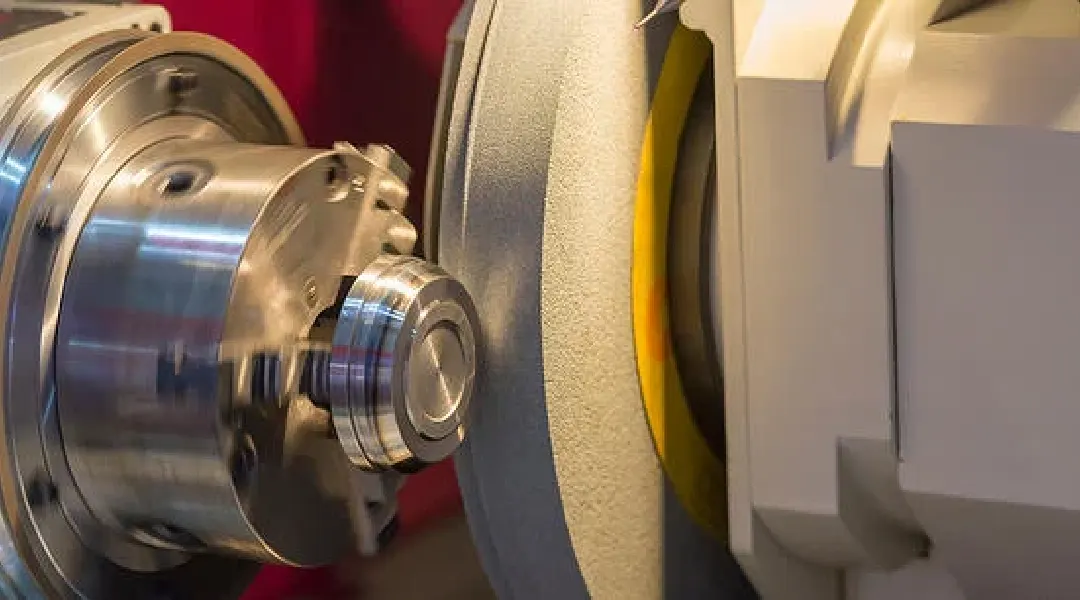

Grinding Wheel Dressing Machine

Introduction to the Grinding Wheel Dressing Machine

The Grinding Wheel Dressing Machine is a state-of-the-art CNC machine tool designed for dressing various types of grinding wheels used in hob shovel grinding operations. With its Siemens 802D CNC system and two-axis fully closed-loop control, this machine offers compactness, simplicity, high dressing accuracy, and exceptional efficiency.At Raydafon, we understand the critical role that precise grinding wheel dressing plays in the machining process. That's why we're proud to offer our state-of-the-art grinding wheel dressing machine, designed to deliver unmatched precision and efficiency. Our machine is engineered to cater to the demanding needs of modern manufacturing environments, ensuring that your grinding wheels are dressed with the utmost accuracy, thereby extending their life and enhancing overall productivity.

Grinding Wheel Dressing Machine Technical Specification

Key Features of the GPM Grinding Wheel Dressing Machine

• Siemens 802D CNC system with two-axis fully closed-loop control for precise and reliable performance.
• Compact structure and simple operation for ease of use.
• High dressing accuracy to ensure optimal grinding wheel performance.
• Efficient and time-saving dressing process for enhanced productivity.
• Compatible with various types of grinding wheels used for hob shovel grinding, including gear hobs, sprocket hobs, timing pulley hobs, and forming milling cutters.

Grinding Wheel Dressing Machine Application Scopes

The Grinding Wheel Dressing Machine is suitable for dressing grinding wheels used in the following applications:

• Involute gear hobs, including standard, pre-shaving, and pre-grinding hobs, as well as involute spline hobs.
• Non-involute hobs, such as rectangular spline hobs, triangular spline hobs, sprocket hobs, pulley hobs, belt touch hobs, single arc hobs, and double arc hobs.
• Forming milling cutters, including involute gear milling cutters, convex and concave semicircle milling cutters, lock mouth milling cutters, blade root milling cutters, wheel groove milling cutters, spline milling cutters, and other complex tooth profile milling cutters.

Why Choose Raydafon?

At Raydafon, we are at the forefront of gear hobbing tools and CNC machine tool manufacturing. Our dedicated team of experienced engineers, operators, and a robust pre-sales and after-sales team are committed to delivering top-quality products and exceptional service to our esteemed customers. Our passion for excellence and innovation drives us to offer the best in the industry.

• Unmatched Product Quality and Design

Elevating Performance with Cutting-Edge TechnologyOur commitment to quality is evident in every product we design. By employing the latest computer-optimized techniques and full CNC processing technology, we ensure our products deliver optimal performance and precision. Our adherence to a comprehensive ISO9001 certified quality control system underlines our promise to meet the diverse needs of our customers, setting new standards in the industry.

• Extensive Production Capacity and Diverse Product Range

Catering to a Growing Demand with ExcellenceWith an impressive hob production capacity of up to 30,000 pieces per year, we proudly serve over 1,500 customers, consistently adding 10 new customers per month thanks to our commitment to quality and competitive pricing. Our hob range spans from high-speed steel hobs (M0.6-M20) to solid carbide hobs (M0.1-M6.0), alongside a vast selection of fine hobs, pre-grinding hobs, pre-shaving hobs, and more. Our catalogue also includes specialized machine tools like CNC hob relieving grinders, hob sharpening machine and CNC grinding wheel dressing machines, known for their efficiency and high precision.

• Discover Our Grinding Wheel Dressing Machine

Unlock New Levels of Precision and EfficiencyOur Grinding Wheel Dressing Machine stands as a testament to our engineering excellence, offering unparalleled precision and efficiency in hob shovel grinding operations. This machine, like all our products, is a reflection of our dedication to superior quality, competitive pricing, and excellent service. We invite you to explore this exceptional machine and our extensive range of gear hobbing tools and CNC machine tools. Join the global community of customers who trust Raydafon (Ningbo Raydafon) for their manufacturing needs and experience the difference in quality and performance we bring to your operations. Contact Raydafon today to elevate your manufacturing process to new heights.With our grinding wheel dressing machine, you're not just investing in a piece of equipment; you're investing in quality, precision, and the future of your manufacturing process. Elevate your production capabilities and maintain the edge of your grinding wheels with our superior solution. Contact us today to learn more about how our grinding wheel dressing machine can benefit your operations.

Q&A

1. Can the Grinding Wheel Dressing Machine handle different types of grinding wheels?

Yes, the Grinding Wheel Dressing Machine is designed to dressvarious types of grinding wheels used in hob shovel grinding operations. It is compatible with gear hobs, sprocket hobs, timing pulley hobs, and forming milling cutters, among others.

2. What is the production capacity of your company's hob production?

Our company has a hob production capacity of up to 30,000 pieces per year. We have the capability to meet the demands of our customers while maintaining excellent quality standards.

3. Do you offer after-sales support for your products?

Absolutely! We have a dedicated pre-sales and after-sales team that provides excellent service and support to our customers. We ensure that our customers receive the necessary assistance and guidance for the maintenance and optimal usage of our products.
