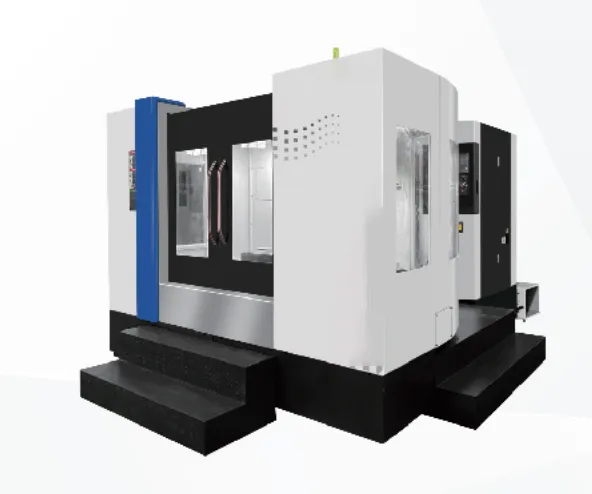

H Series Horizontal CNC Machining Center Lathe

The H Series Horizontal Machining Center Lathe stands at the forefront of modern machining technology, distinguished by its innovative design and superior construction. Embracing the internationally popular inverted T-shaped moving column integral lathe structure, this series of lathes presents a paradigm shift in precision engineering and machining capabilities.The H Series Horizontal Machining Center Lathe represents a significant advancement in lathe design and functionality. Its inverted T-shaped moving column integral structure, coupled with high-grade construction materials and meticulous manufacturing processes, positions it as a top choice for industries demanding precision, durability, and efficiency. The combination of these features results in a lathe that not only meets the current needs of various industries but also sets a new standard in machining capabilities, ensuring its relevance and utility for years to come.

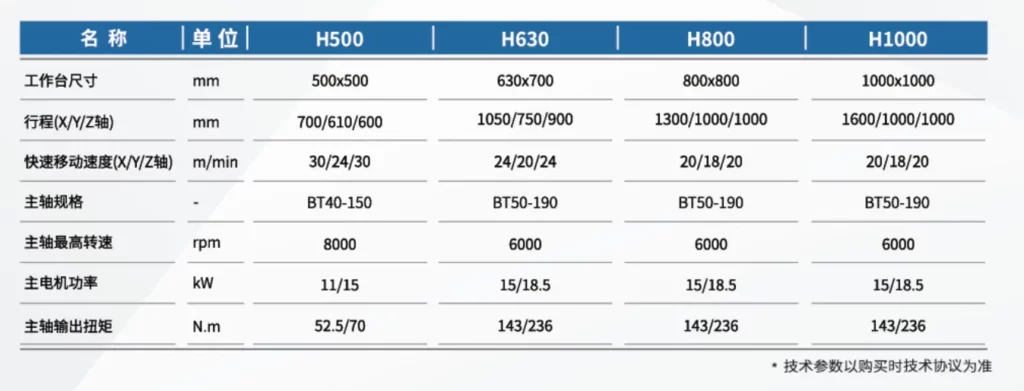

Parameter

Good acceleration performance, suitable for efficient processingFully servo-driven double pallet changer, more stableHigh indexing positioning accuracy

Inverted T-shaped Moving Column Integral Lathe Structure

1. Design Philosophy: The inverted T-shaped moving column design is a strategic choice aimed at enhancing the machine’s overall stability and rigidity. This structure allows for better weight distribution and more efficient utilization of space.
2. Enhanced Rigidity and Stability: The configuration significantly increases the lathe's rigidity, enabling it to handle heavy and complex machining tasks with ease. This rigidity directly contributes to the machine's performance, particularly in terms of precision and accuracy.
3. Space-Efficient Layout: The compact design of the H Series allows for more efficient use of workshop space, an important consideration in modern manufacturing facilities where space can be at a premium.

High-Quality Construction Materials

1. High-Grade Cast Iron: The primary material used in the main castings of the H Series is high-grade, high-quality cast iron. This material is chosen for its excellent vibration dampening properties, strength, and durability.
2. Resin Sand Molding: The use of resin sand molding in the casting process ensures a higher degree of precision and quality in the construction of the lathe components. This process leads to superior surface finishes and dimensional accuracy.
3. Secondary Aging Treatment: After rough machining, the castings undergo a secondary aging treatment. This process relieves internal stresses within the metal, further enhancing the stability and longevity of the machine’s accuracy.

Advantages of the H Series Horizontal Machining Center Lathe

1. Precision Machining: The structural rigidity and stability of the H Series allow for high-precision machining. This makes it ideal for industries where precision is paramount, such as aerospace, automotive, and complex custom manufacturing.
2. Durability and Longevity: The combination of high-quality cast iron construction and secondary aging treatment ensures that the H Series lathes are not only durable but also maintain their precision over extended periods, even under heavy use.
3. Vibration Reduction: The inherent vibration dampening properties of the chosen materials contribute to smoother operation and finer finishes on machined parts.
4. Ease of Maintenance and Protection: The design of the H Series also prioritizes ease of maintenance. The structural layout simplifies access to key components, and its robust construction means that it withstands the rigors of daily use with less wear and tear.
5. Efficiency in Operations: The efficient design and high stability of these lathes make them suitable for high-speed machining, reducing cycle times and increasing productivity.

Application in Various Industries

1. Heavy Industry: The H Series is well-suited for heavy industries, such as shipbuilding and large equipment manufacturing, where large and heavy parts require precise machining.
2. Automotive and Aerospace: In the automotive and aerospace industries, where components need to meet stringent standards, the H Series provides the necessary precision and reliability.
3. General Manufacturing: For general manufacturing, the versatility and precision of the H Series make it an ideal choice for a wide range of machining tasks.



About Raydafon

Raydafon has complete casting production lines, intelligent machine tool equipment assembly lines, intelligent testing equipment, and professional R&D, manufacturing, and sales teams, aiming to provide high-quality CNC machine tools and intelligent equipment solutions to the industry. Relying on its strong CNC machine tool R&D and manufacturing capabilities, Raydafon not only provides customers with high-quality machine tool equipment but also integrates and optimizes the industrial chain to provide customer partners with shared machine tools, smart tool cabinets, automation integration solutions, tool health monitoring systems, and other comprehensive solutions. Industrial chain equipment and life cycle industrial services empower enterprises in all aspects and become industry leaders with high-quality products and professional services.

The Raydafon manufacturing base has advanced lathe flow assembly lines, standard vertical assembly lines, and medium and large equipment assembly lines. It is also equipped with constant temperature inspection rooms such as three-coordinate inspection and precision inspection, equipped with Zeiss high-performance coordinate measuring machines, Weir profilometers, and Ray High-end inspection equipment such as Nisho laser interferometer provides the industry with high-quality CNC machine tools and automated integration solutions.

While opening up the industrial chain of casting, key components, and complete machine assembly, Raydafon is committed to providing customers with flexible equipment purchase models such as shared machine tools, machine tool leasing, and sales-to-lease-to-purchase.

Accessories of CNC Machine Center

CNC Machine Center comes equipped with an array of standard accessories to meet diverse machining demands. Choose from leading controllers like the Siemens controller (optional for those seeking advanced customization), the GSK controller (a standard feature known for its reliability and user-friendliness), and the Fanuc controller (optional for its high performance in complex machining tasks). Additionally, our machine center is designed with a 24ATC (Automatic Tool Changer), enhancing your productivity by minimizing manual tool changing time.

Understanding the unique needs of our clients, Raydafon also offers an exclusive range of optional accessories. Enhance your machining capabilities with our 4th-axis CNC rotary table, allowing for precise and intricate multi-angle machining. To maintain a clean and efficient workspace, consider integrating the Chain-type chip conveyor, a must-have accessory for efficient chip management and removal.

Choose Raydafon’s CNC Machine Center for its commitment to quality, versatility, and precision. Whether standard or optional, each accessory is designed to elevate your machining process, ensuring optimal performance and outcomes. Trust Raydafon to provide the tools and support you need to keep your operations running smoothly and efficiently.



Application of CNC Machine Center

Raydafon's CNC Machine Center stands as a paradigm of versatility and precision in modern manufacturing. Primarily engineered for machining a diverse range of axial and disc parts, this machine showcases its prowess by adeptly turning various threads, arcs, and cones, and intricately machining both the internal and external surfaces of cylindrical parts. Its capability to meet the high-speed requirements of both ferrous and non-ferrous metals marks it as a preferred choice for industries aiming for utmost precision and efficiency.The machine's high-speed operation is a cornerstone feature, making it an indispensable asset in industries where time is of the essence. It's not just about speed; the CNC Machine Center excels in delivering high-quality, precision-machined parts consistently. With a processing accuracy that reaches up to the 7th level, it sets a high standard for precision.Industries such as agriculture, food, automotive, motorcycle, and electronics find this machine a game-changer, particularly in scenarios that demand high efficiency, large-scale production, and precision part machining. Whether it's creating intricate components for the latest electric vehicles or manufacturing robust parts for agricultural machinery, our CNC Machine Center is designed to deliver top-notch performance, meeting the stringent quality demands of various sectors.Embrace the future of manufacturing with our CNC Machine Center, where speed, precision, and versatility converge to revolutionize your production processes. Discover how our machine can transform your operations, ensuring that every component you create is a testament to excellence and innovation.

Why Choose Us？

 Choose our CNC Machine Center for its unmatched quality and precision, ensured by premium components sourced globally from Taiwan, Japan, and Germany. Each part, from the high-precision HIWIN or PMI Guide Rails and Lead Screws to the top-quality FAG or NSK bearings, is meticulously inspected to guarantee machine accuracy and stability. Our CNC Machine Center features a Sanjie brand tool magazine for efficient tool storage and changes, and a high-performance Taiwan Spindle, ensuring high speed, precision, and low noise operation. Trust in our dedication to excellence and let our machine elevate your manufacturing standards.
